Continuously Variable Transmission/Transaxle, CVT
Continuously Variable Transmission/Transaxle, CVT
Disassembly Steps 1-7:

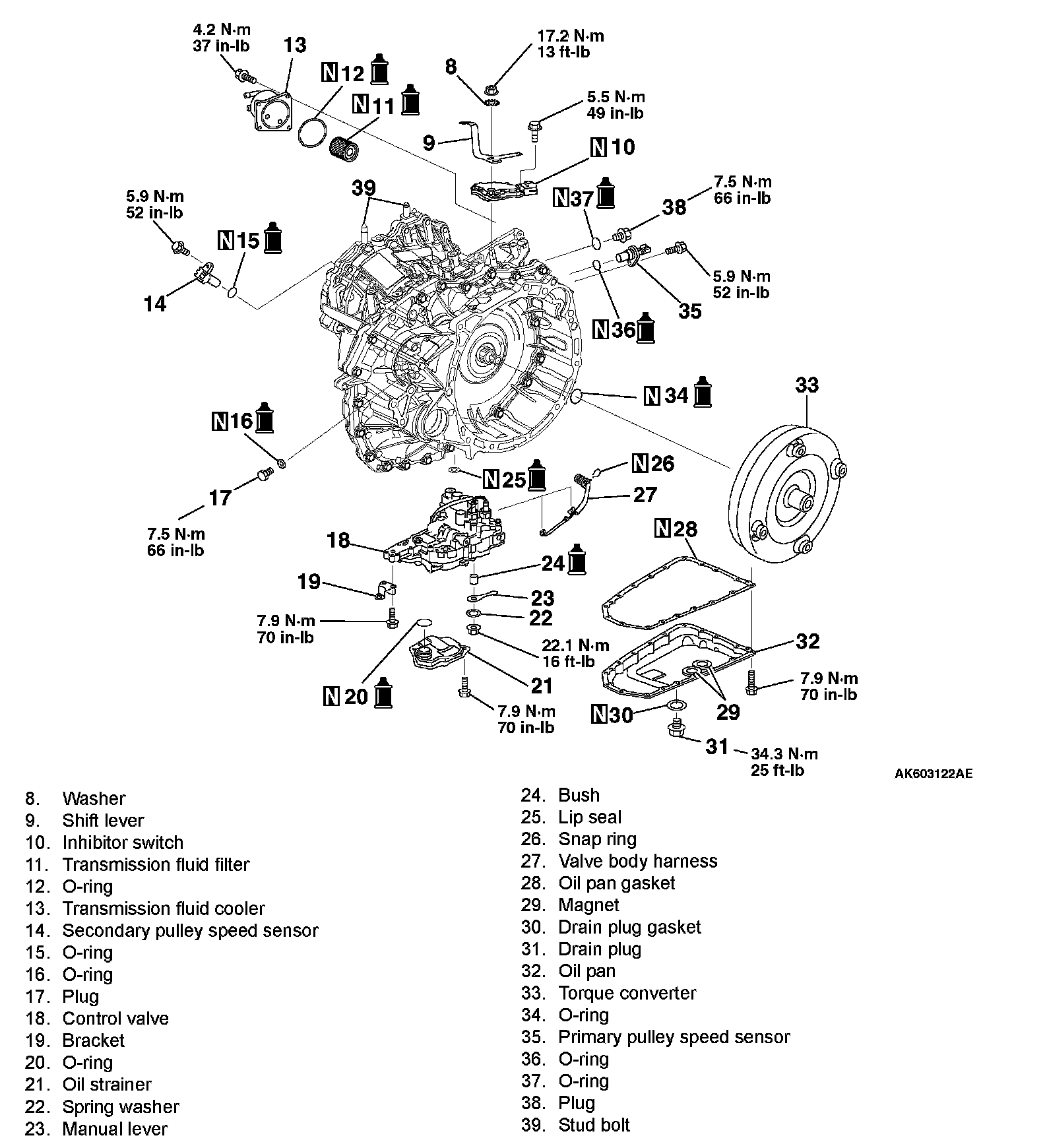

Disassembly Steps 8-39:

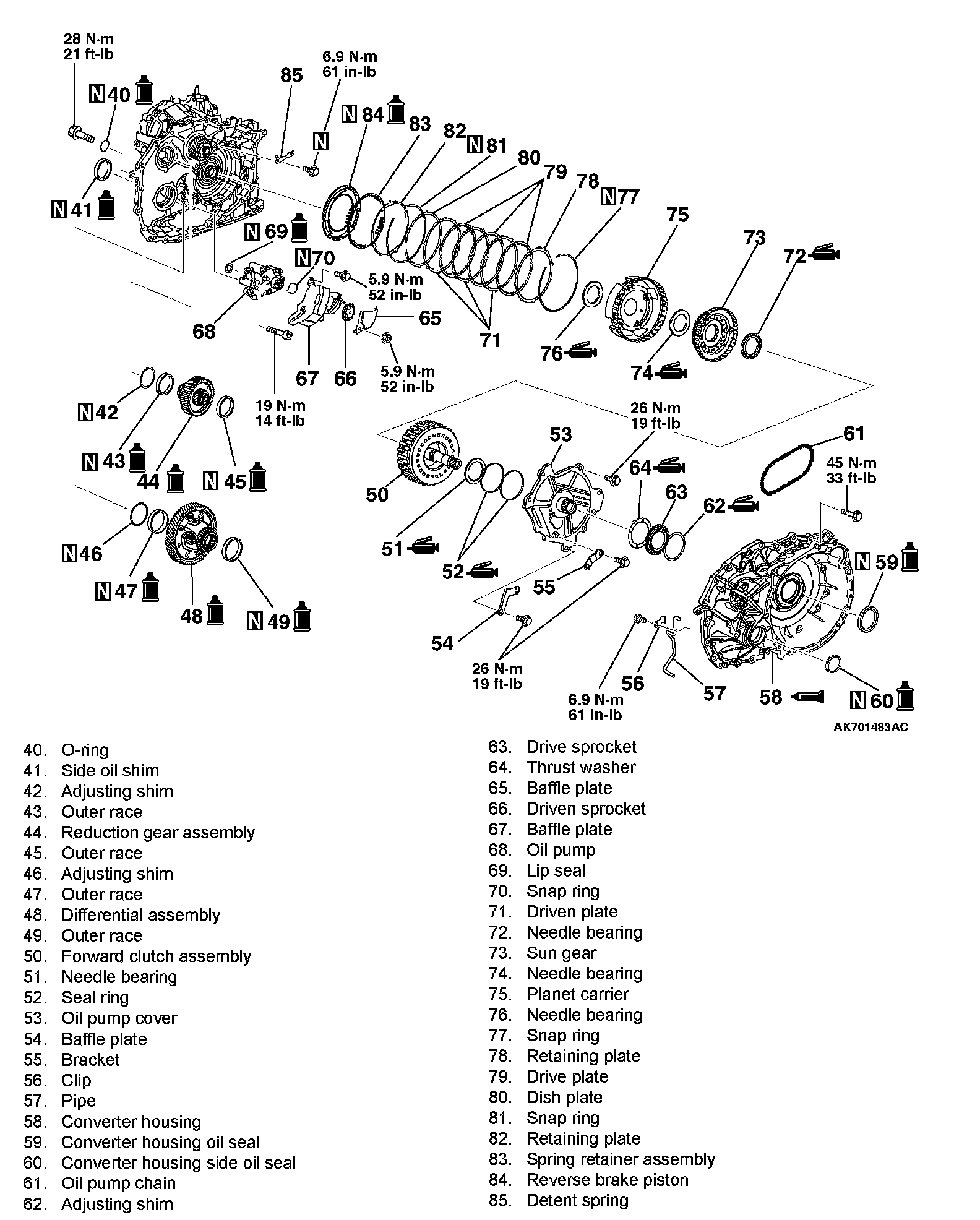

Disassembly Steps 40-85:
