Clutch Switch Check, M/T
Clutch Switch Check, M/T
CLUTCH SWITCH
CHECK [M/T]
1.
Disconnect the clutch switch harness connector.
2.

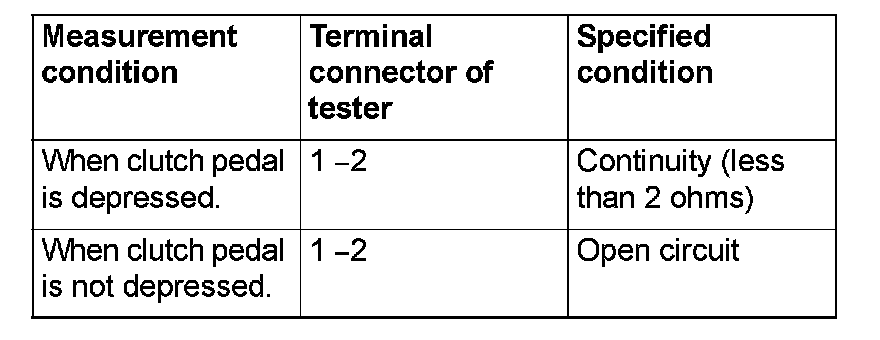

Check for continuity between the terminals of the switch.
