Cruise Control: Service and Repair

AUTO-CRUISE CONTROL SWITCH REMOVAL AND INSTALLATION [2.0L ENGINE NON-TURBO, 2.4L ENGINE]

WARNING: Before removing the driver's air bag module assembly , always refer to Air Bag Systems Service Precautions, and Clockspring Assembly / Spiral Cable, Air Bag Service and Repair.

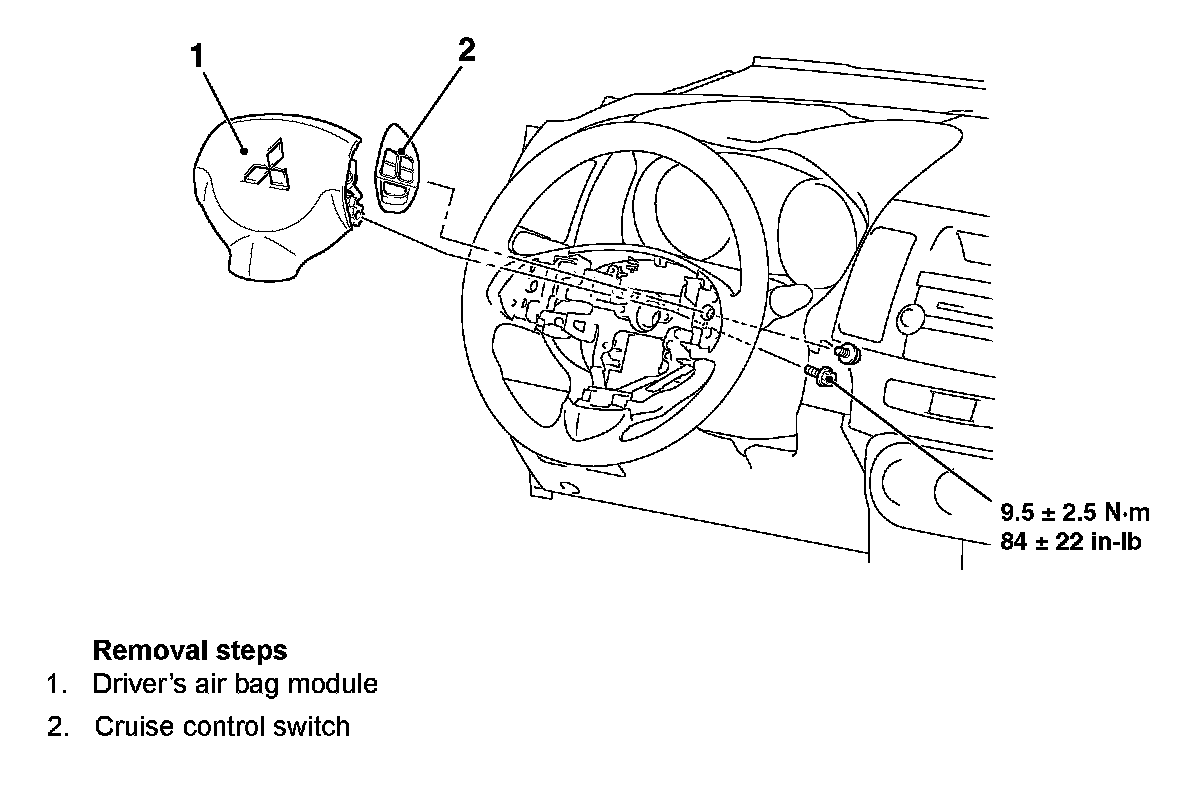

Removal Steps 1-2:
