ABS/TCS - Revised DTC C2100 Troubleshooting
No: TSB-11-35-006DATE: September, 2011
MODEL: See below
SUBJECT:
ABS DTC C2100 TROUBLESHOOTING - SERVICE MANUAL REVISION
[TSB Revision: TSB-11-35-006]
PURPOSE
Troubleshooting procedures for ABS DTC C2100 "Abnormality in battery voltage (low voltage)" are incorrect in the affected service manual pages.
This bulletin provides corrected ABS DTC C2100 troubleshooting procedures for the affected service manuals.
AFFECTED VEHICLES
2008-2009 Lancer
2007-2011 Outlander
AFFECTED SERVICE MANUALS
2008 Lancer, page 35B-132
2009 Lancer, pages 35B-143 thru -147
2007 Outlander, page 35B-103
2008 Outlander, page 35B-139
2009 Outlander, pages 35B-146 thru -151
2010 Outlander, pages 35B-133 thru -137
2011 Outlander, pages 35B-128 thru -132

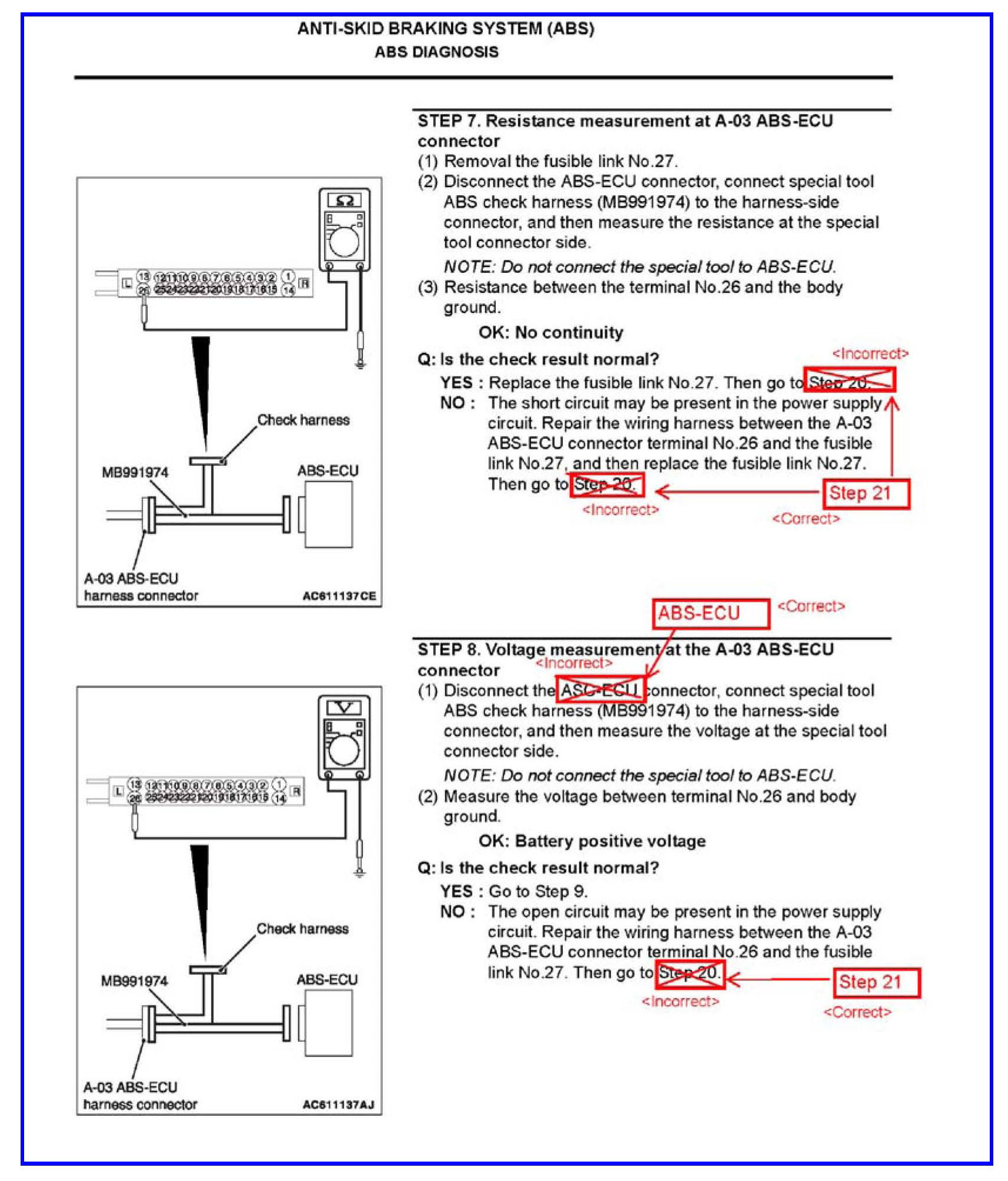

2008 Lancer, page 35B-132
Replace with the following:

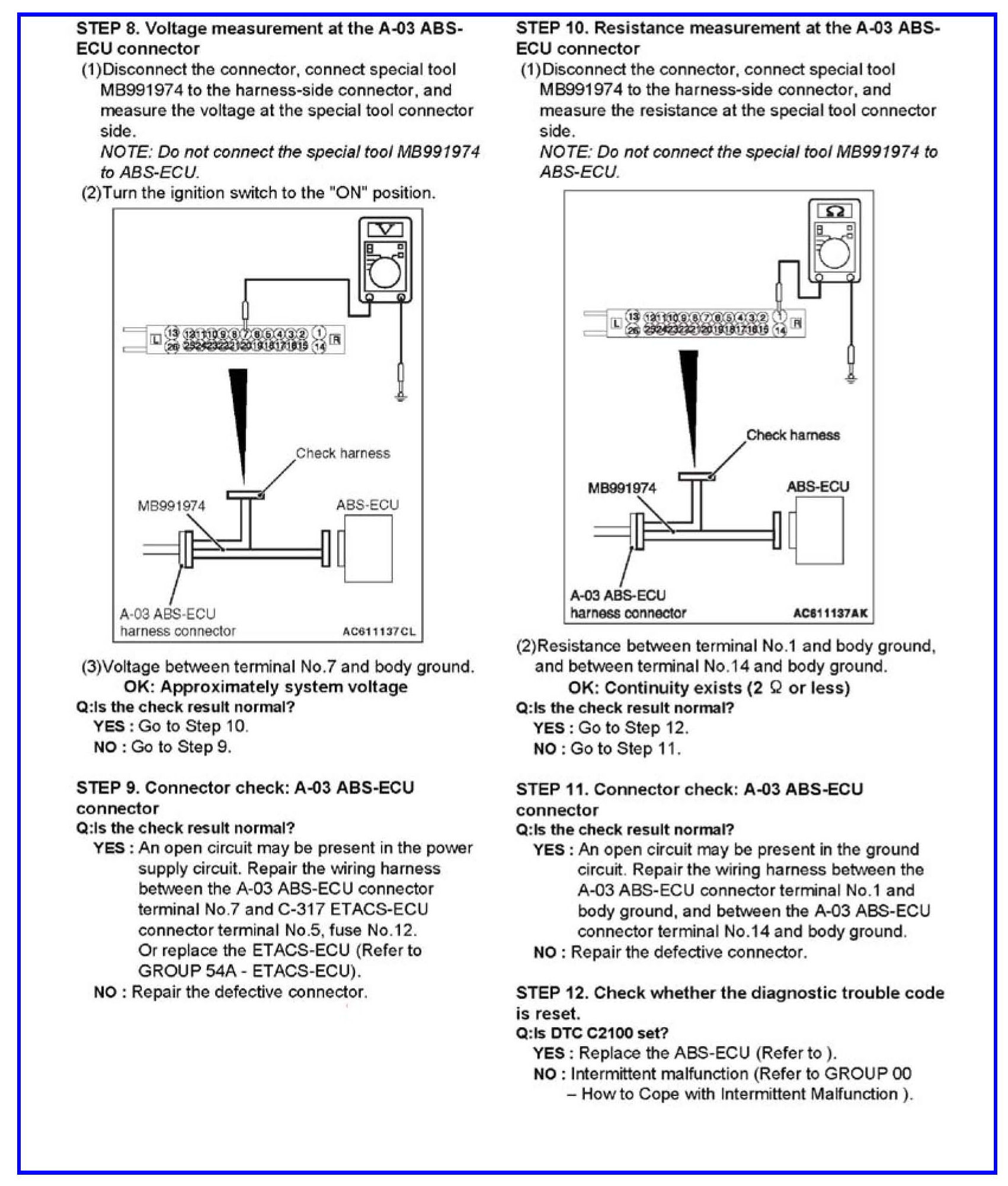

2009 Lancer, page 35B-143
2009 Lancer, pages 35B-144 to -147
Replace with the following:

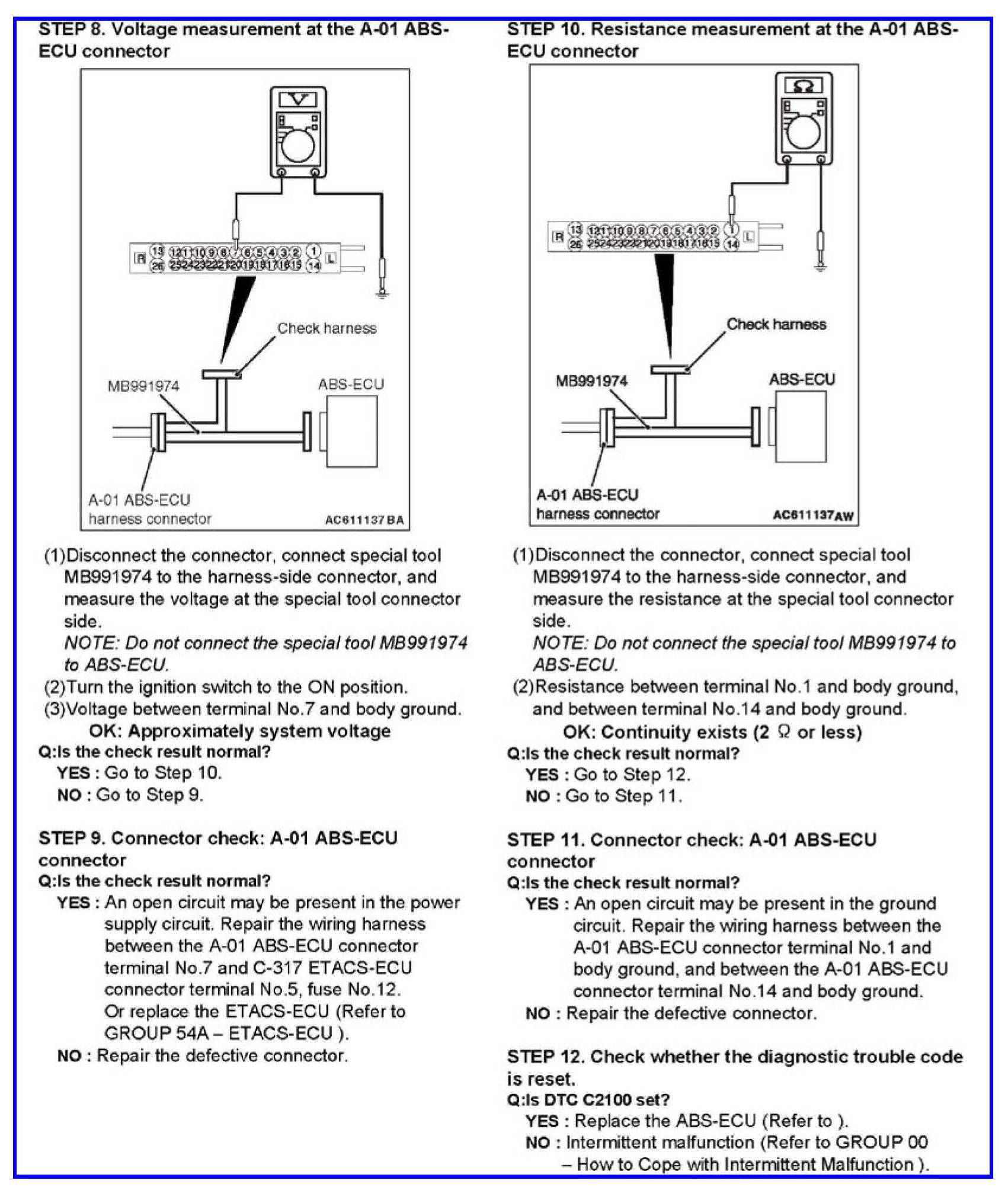

2007 Outlander, page 35B-103
Replace with the following:

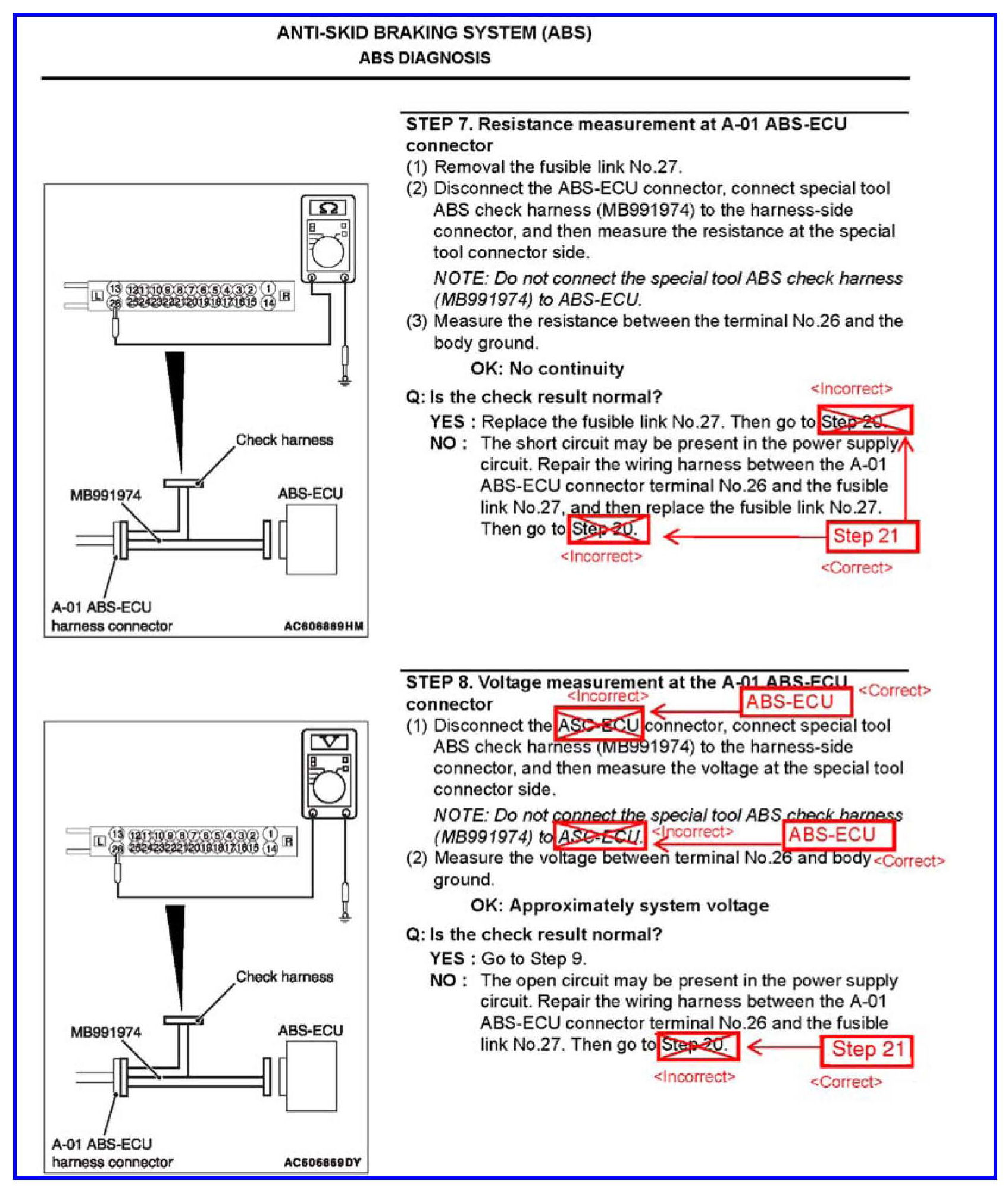

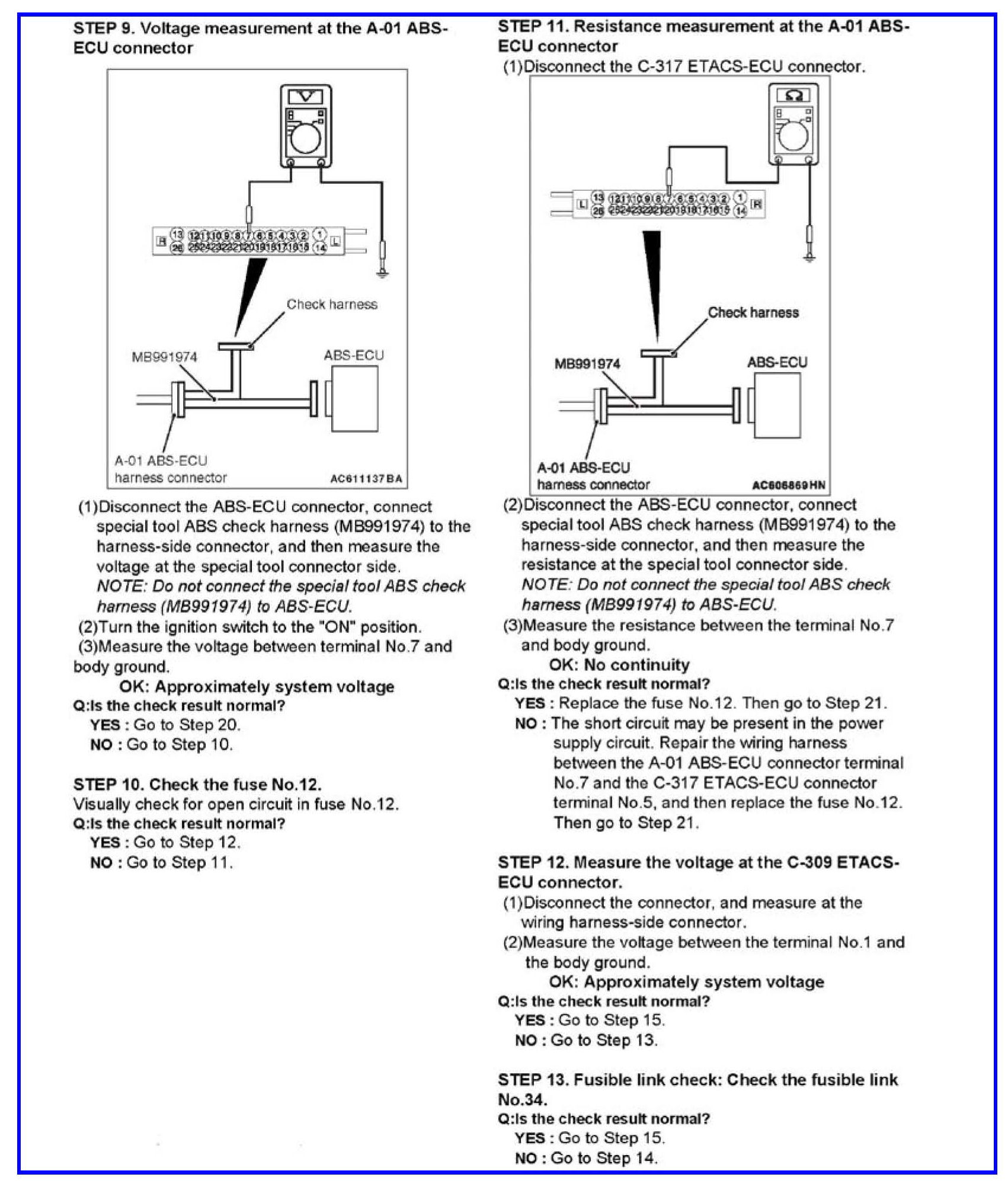

2008 Outlander page 35B-139; 2009 Outlander pages 35B-146 to -147,
2010 Outlander page 35B-133; 2011 Outlander page 35B-133, 2011 Outlander page 35B-128.

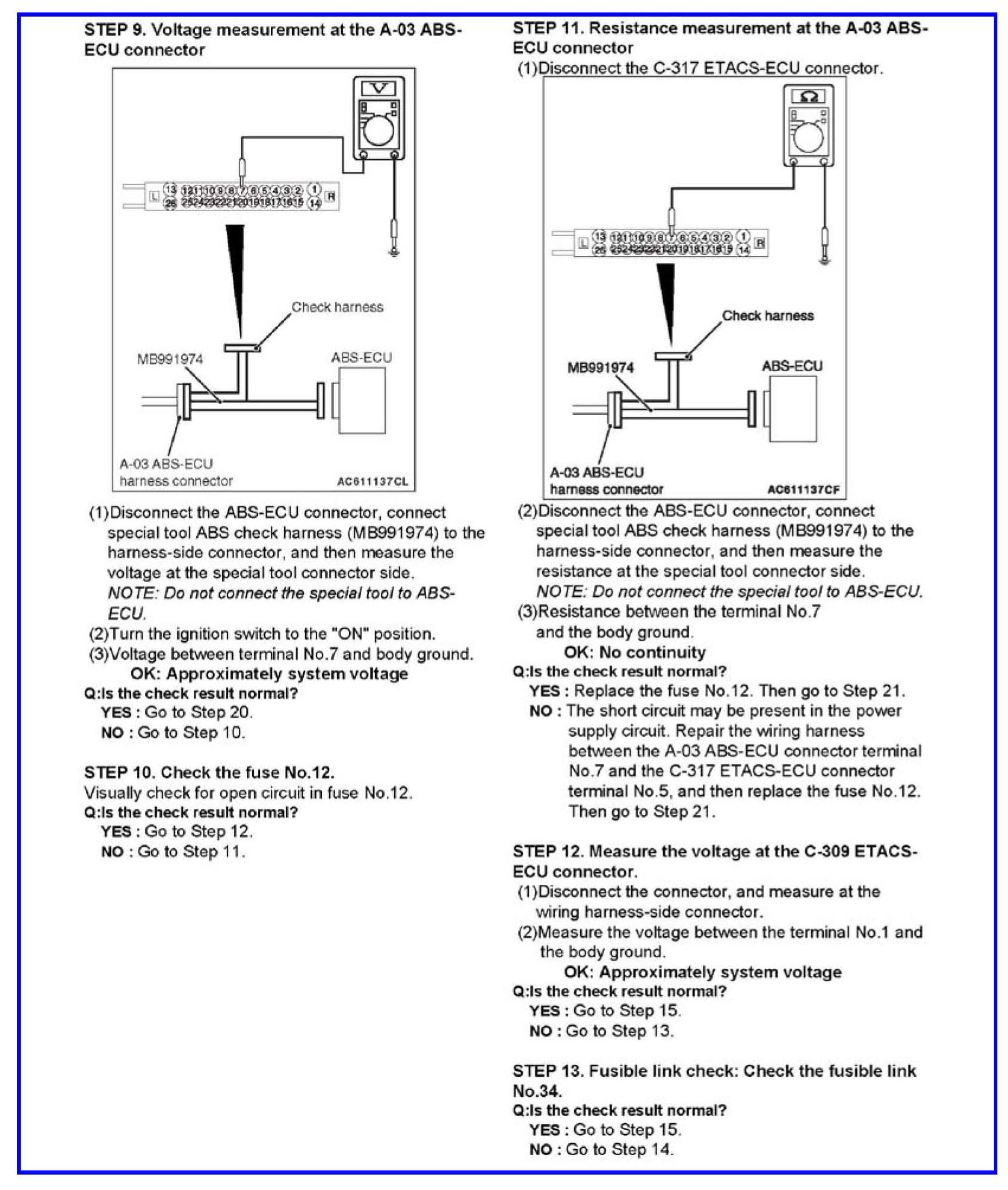

2008 Outlander page 35B-139; 2009 Outlander pages 35B-147 to -148.
2010 Outlander page 35B-134, 2011 Outlander page 35B - 129.
Report the following:

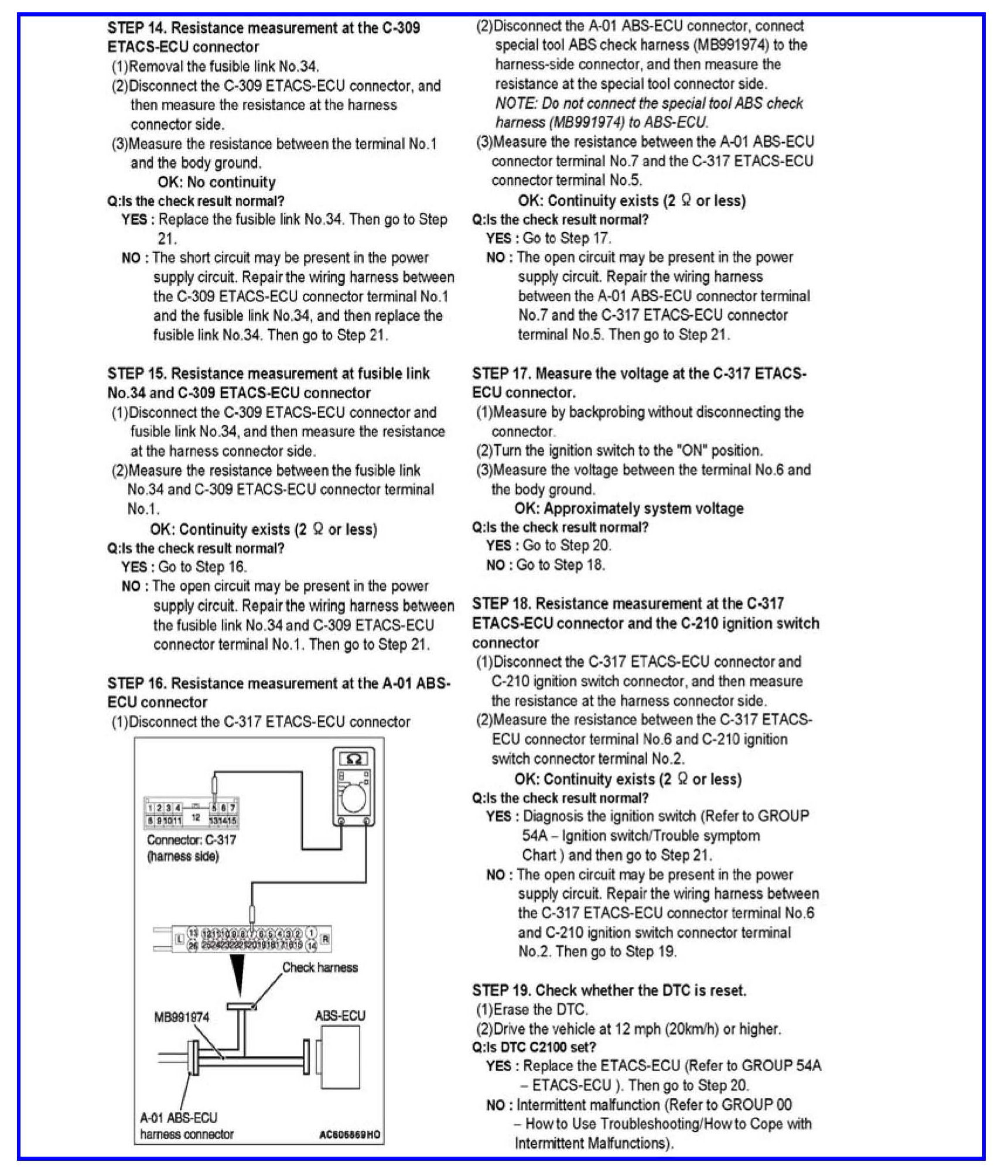

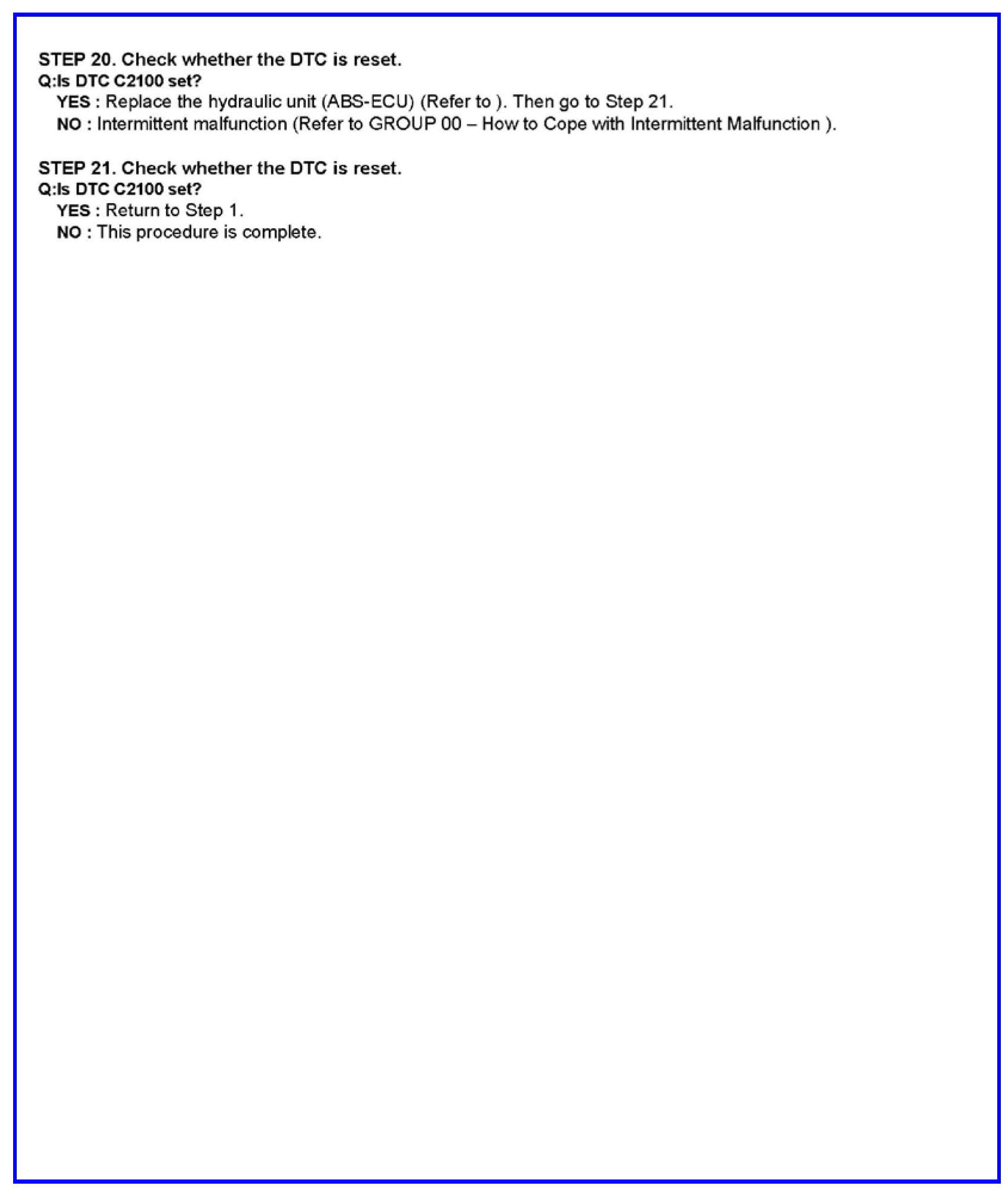

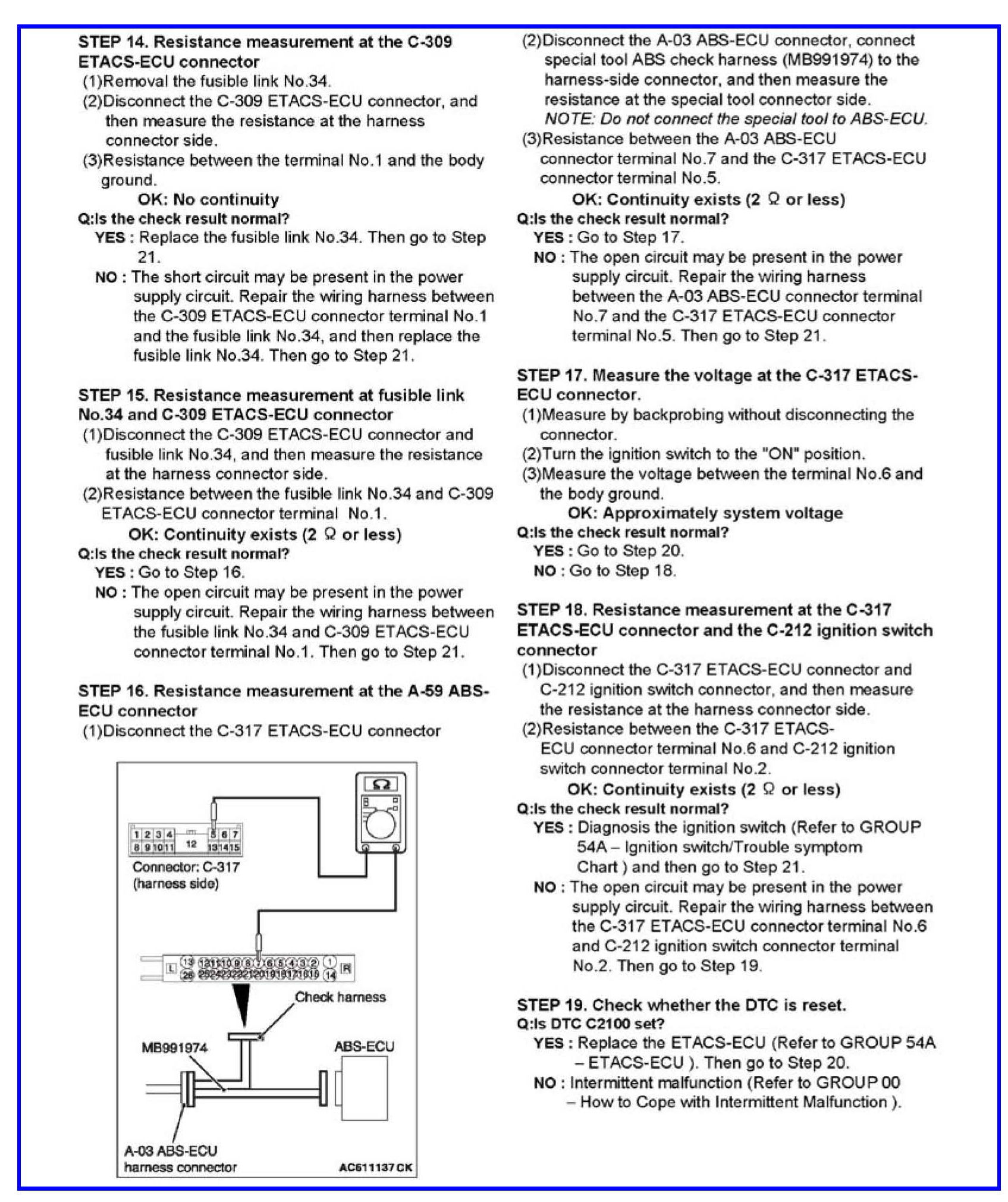

2008 Outlander page 35B-139; 2009 Outlander pages 35B-149 to -151;
2910 Outlander page 35B-135 to -137; 2011 Outlander paper 35V-130 to -132
Replace with the following:
