Parking Brake Cable: Service and Repair
PARKING BRAKE CABLEREMOVAL AND INSTALLATION [VEHICLES WITH REAR DRUM BRAKE]

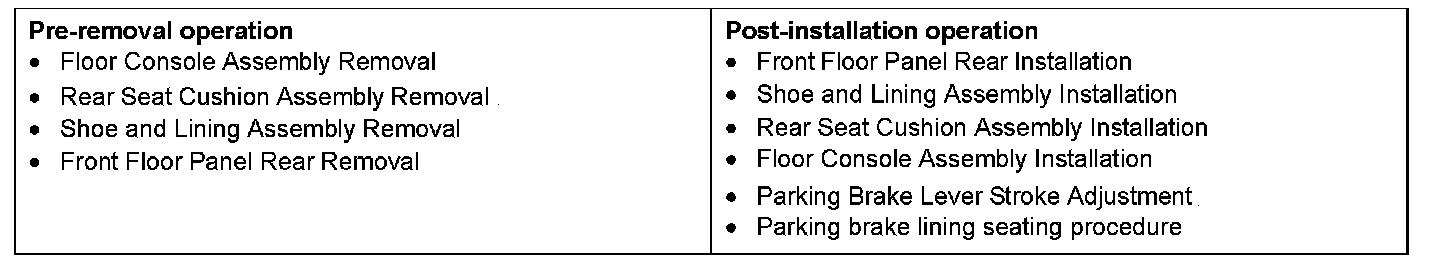

Pre-removal & Post-installation Operation:

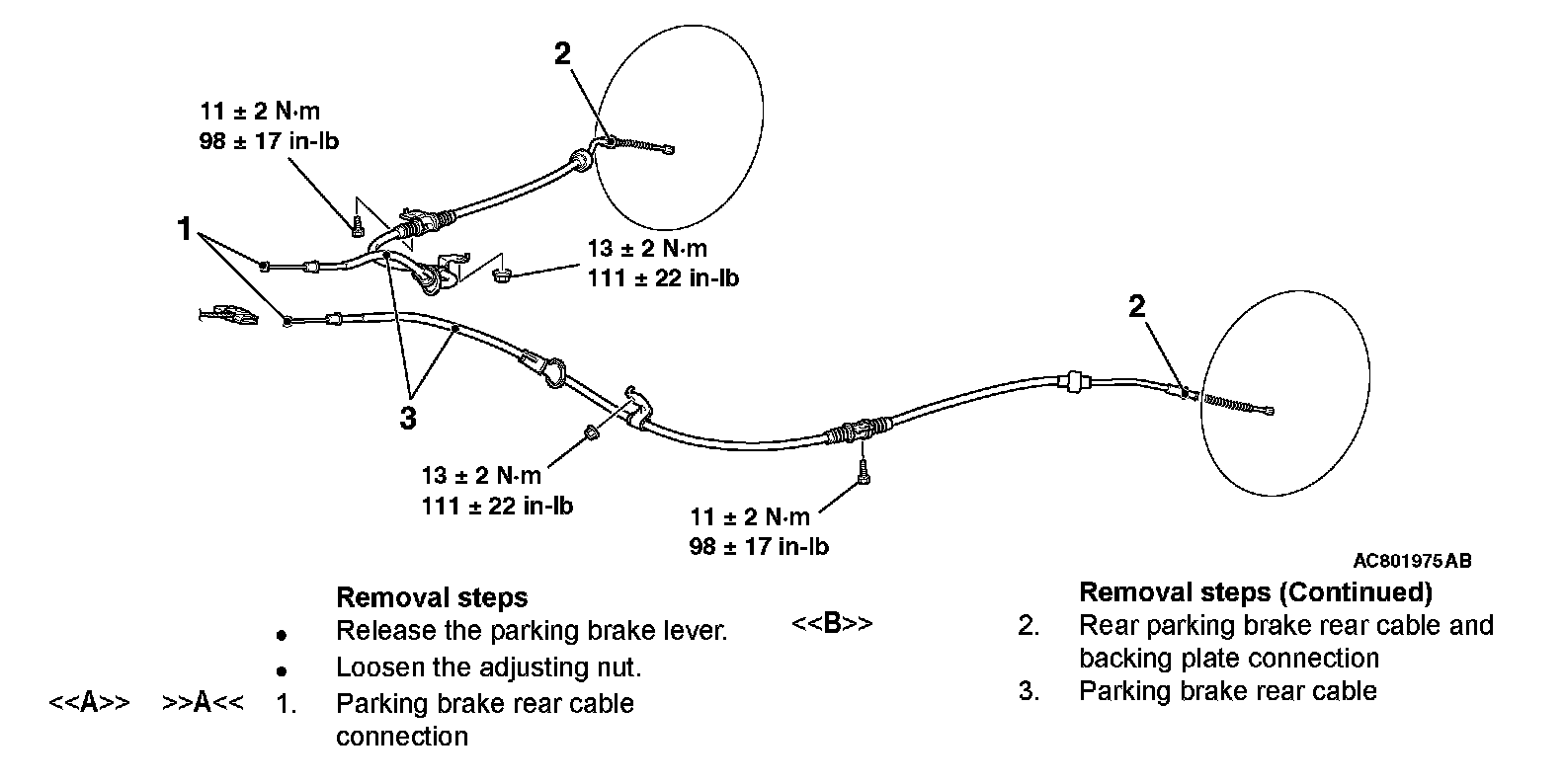

Removal Steps 1-3:
REMOVAL SERVICE POINTS
[[A]] PARKING BRAKE REAR CABLE DISCONNECTION
Disconnect the parking brake rear cable according to the procedure below.
1. Release the parking brake, and loosen the adjusting nut.

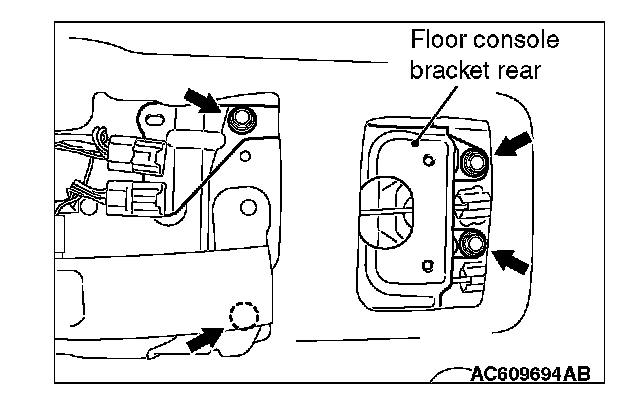

2. Remove the floor console bracket rear mounting bolts.

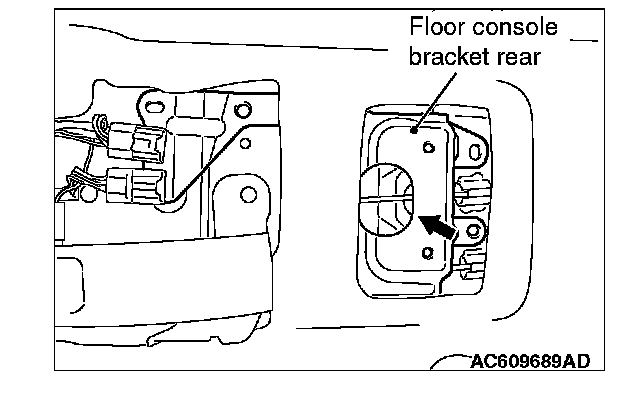

3. Slide the floor console bracket rear, and disconnect the parking brake rear cable from the hole shown by the arrows.
[[B]] PARKING BRAKE REAR CABLE AND BACKING PLATE CONNECTION REMOVAL

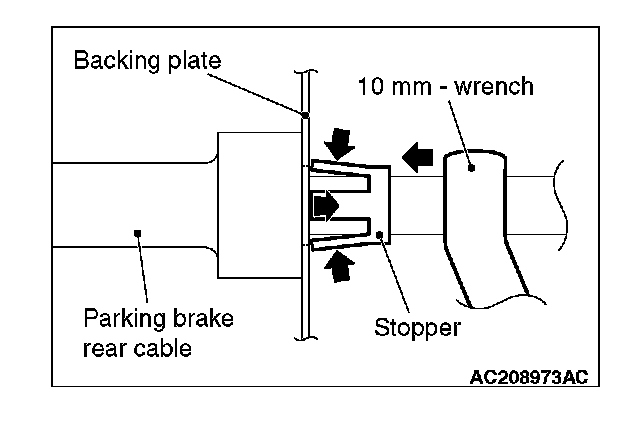

Withdraw the parking brake cable from the backing plate.
NOTE: Insert a 10 mm-wrench into the parking brake cable to facilitate the cable withdrawal.
INSTALLATION SERVICE POINT
]]A[[ PARKING BRAKE REAR CABLE CONNECTION INSTALLATION

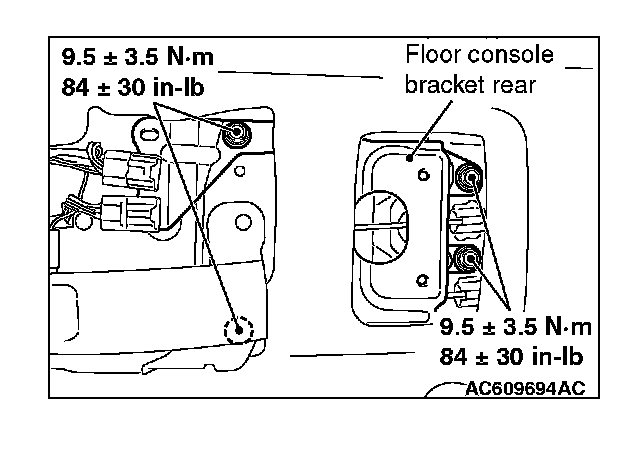

Install the parking brake rear cable connection, and then tighten the floor console bracket rear mounting bolts to the specified torque.
Tightening torque: 9.5 ± 3.5 Nm (84 ± 30 in-lb)
REMOVAL AND INSTALLATION [VEHICLES WITH REAR DISC BRAKE]

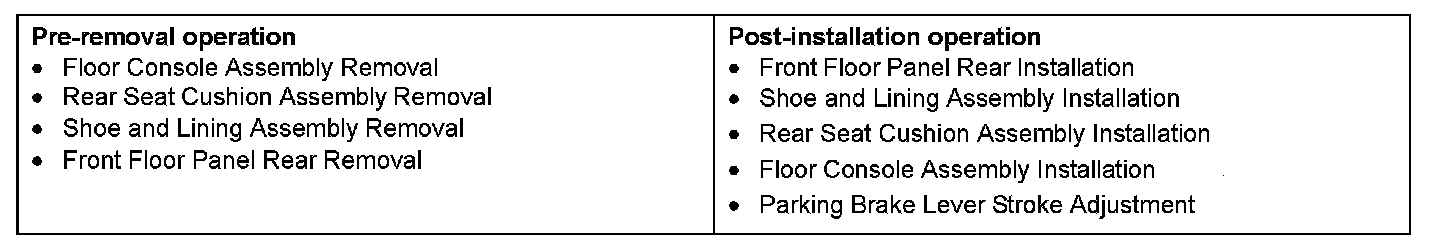

Pre-removal & Post-installation Operation:

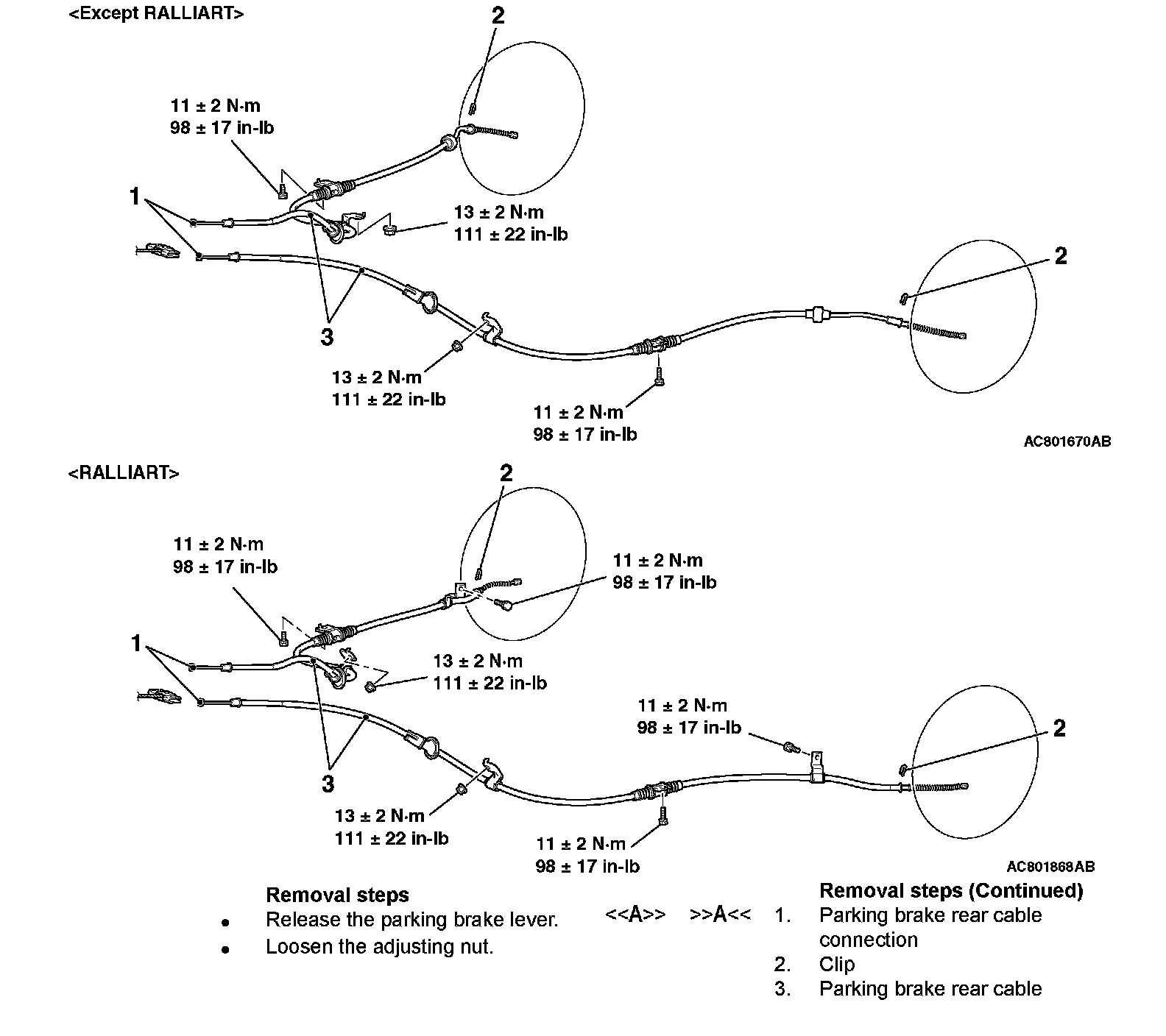

Removal Steps 1-3:
REMOVAL SERVICE POINT
[[A]] PARKING BRAKE REAR CABLE DISCONNECTION
Disconnect the parking brake rear cable according to the procedure below.
1. Release the parking brake, and loosen the adjusting nut.

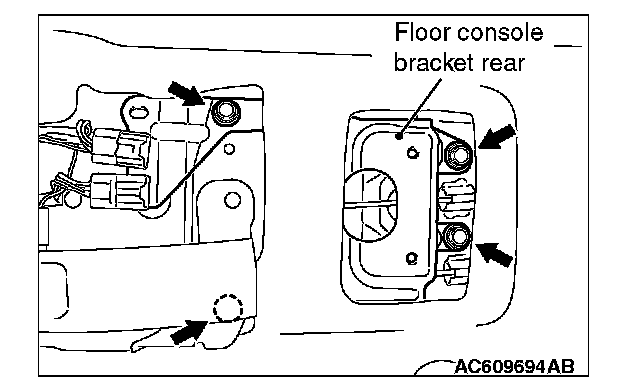

2. Remove the floor console bracket rear mounting bolts.

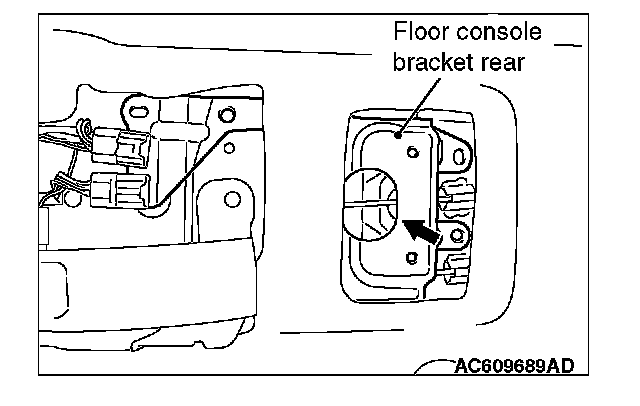

3. Slide the floor console bracket rear, and disconnect the parking brake rear cable from the hole shown by the arrows.
INSTALLATION SERVICE POINT
]]A[[ PARKING BRAKE REAR CABLE CONNECTION INSTALLATION

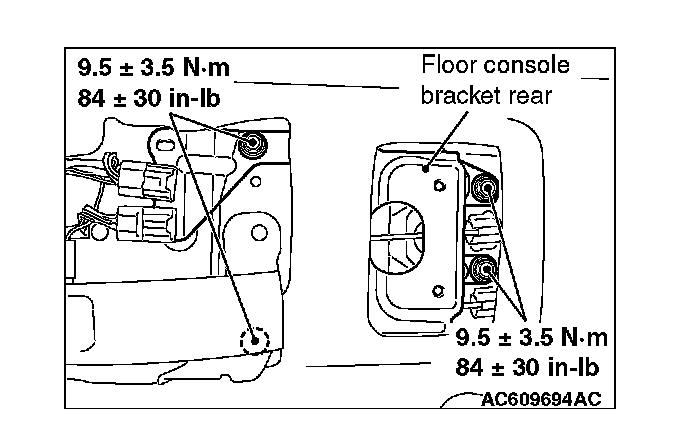

Install the parking brake rear cable connection, and then tighten the floor console bracket rear mounting bolts to the specified torque.
Tightening torque: 9.5 ± 3.5 Nm (84 ± 30 in-lb)
