Front

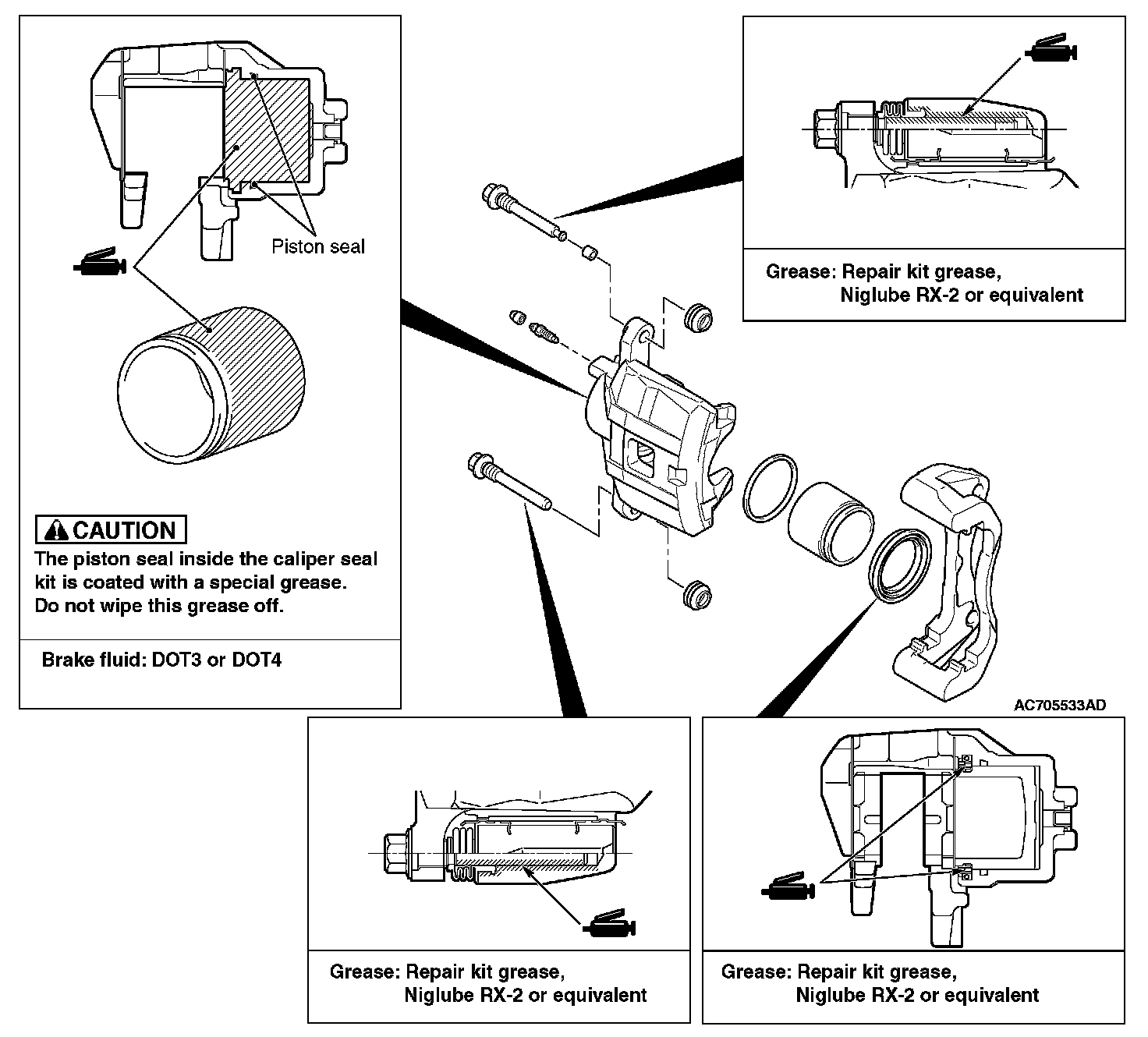

[15-INCH FRONT DISC BRAKE] LUBRICATION POINTS

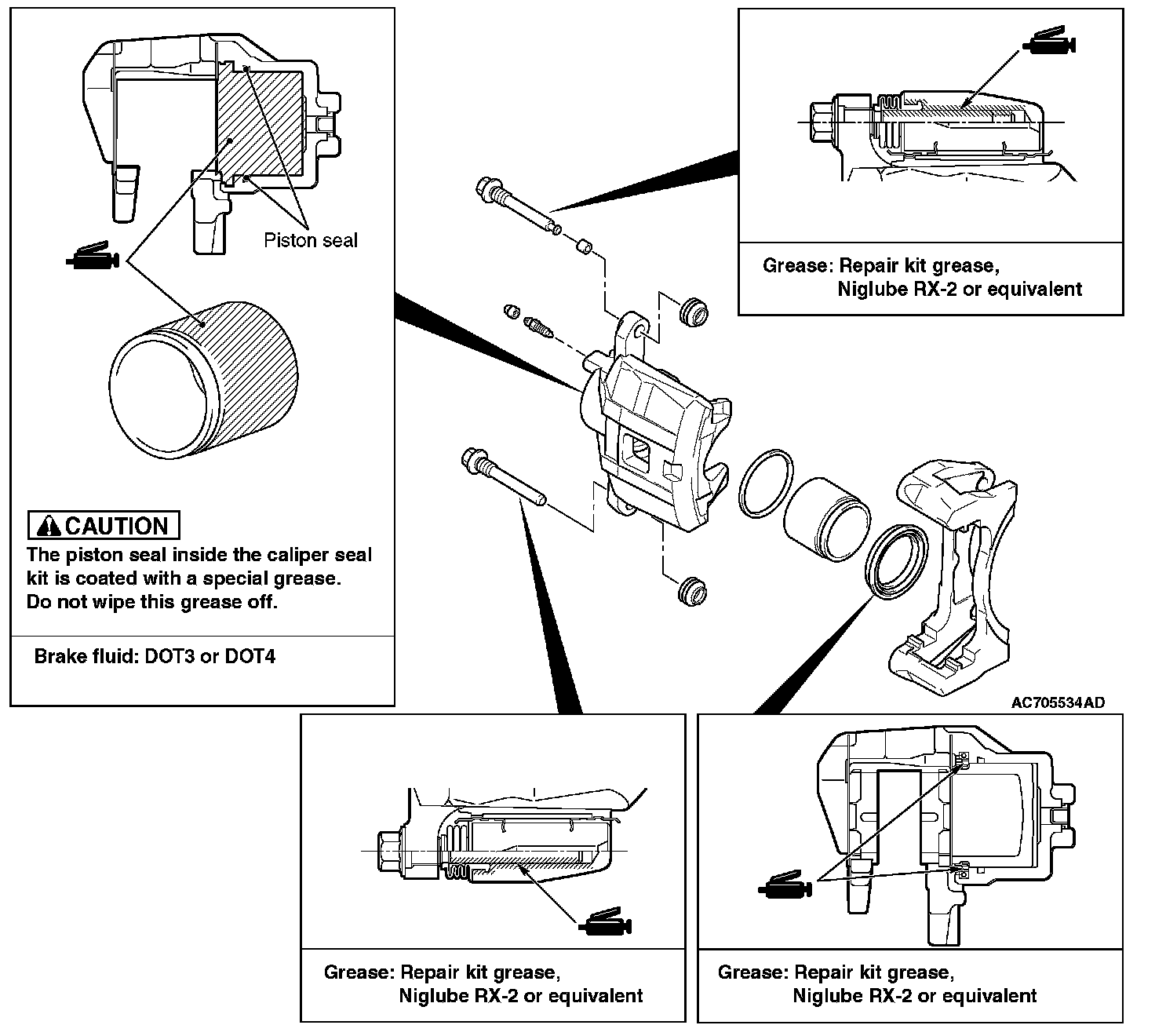

[16-INCH FRONT DISC BRAKE (EXCEPT RALLIART) LUBRICATION POINTS





[16-INCH FRONT DISC BRAKE (RALLIART) LUBRICATION POINTS
