Brakes - Revised Rear Brake Shim Count
No: TSB-09-35-007DATE: May, 2009
MODEL: 2008-2009 Lancer
SUBJECT:
NUMBER OF REAR DISC BRAKE SHIMS REDUCED - SERVICE MANUAL REVISION
PURPOSE
To change the service manuals to show the number of rear disc brake shims has been reduced from 4 to 1.
NOTE:
The shim is now installed in the outer pad only. The inner pad has no shims.
AFFECTED VEHICLE(S)
2008-2009 Lancer built from early October 2008.
NOTE:
This bulletin also applies to earlier models where the shims are replaced with new parts.

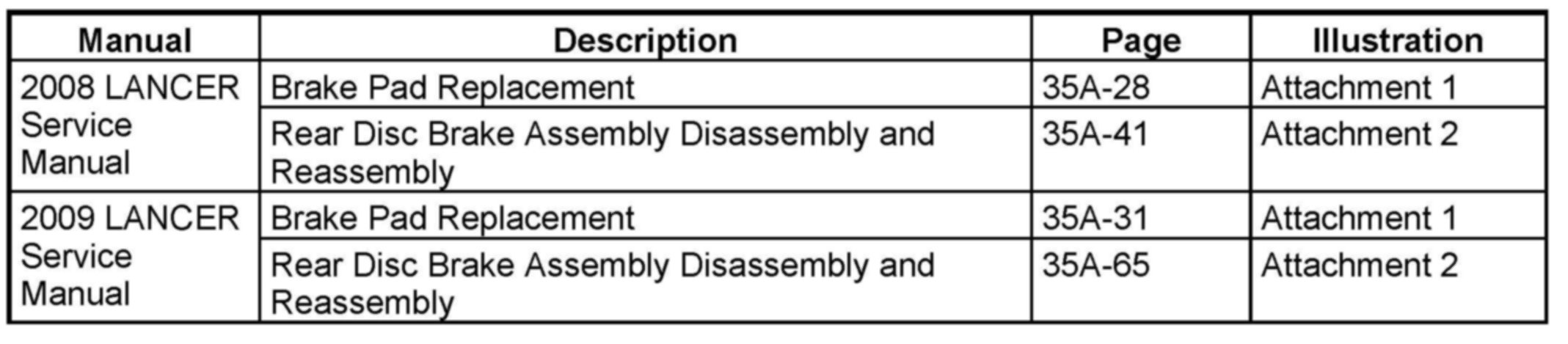

APPLICABLE MANUAL(S)

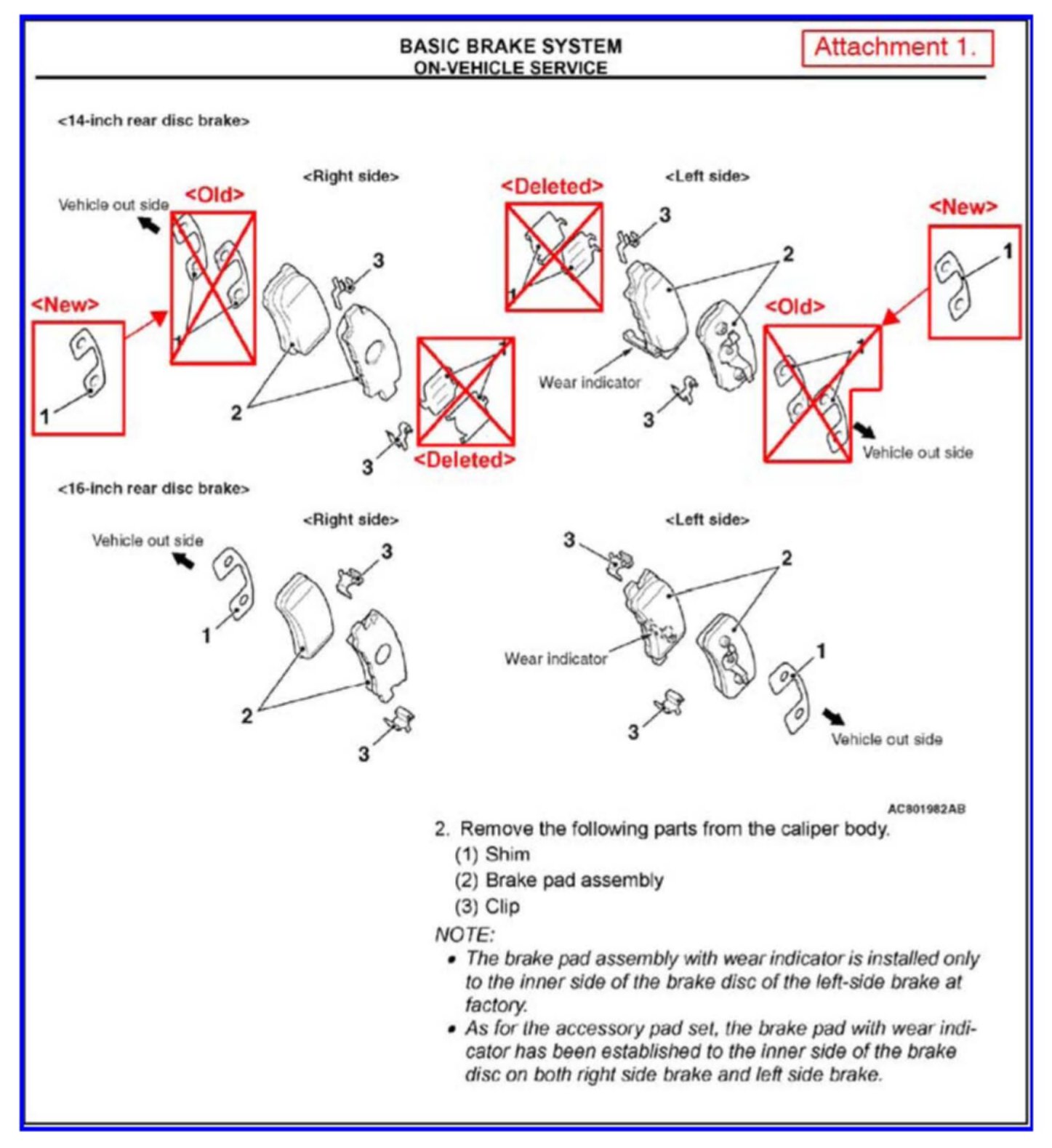

Service Manual Update - Attachment 1

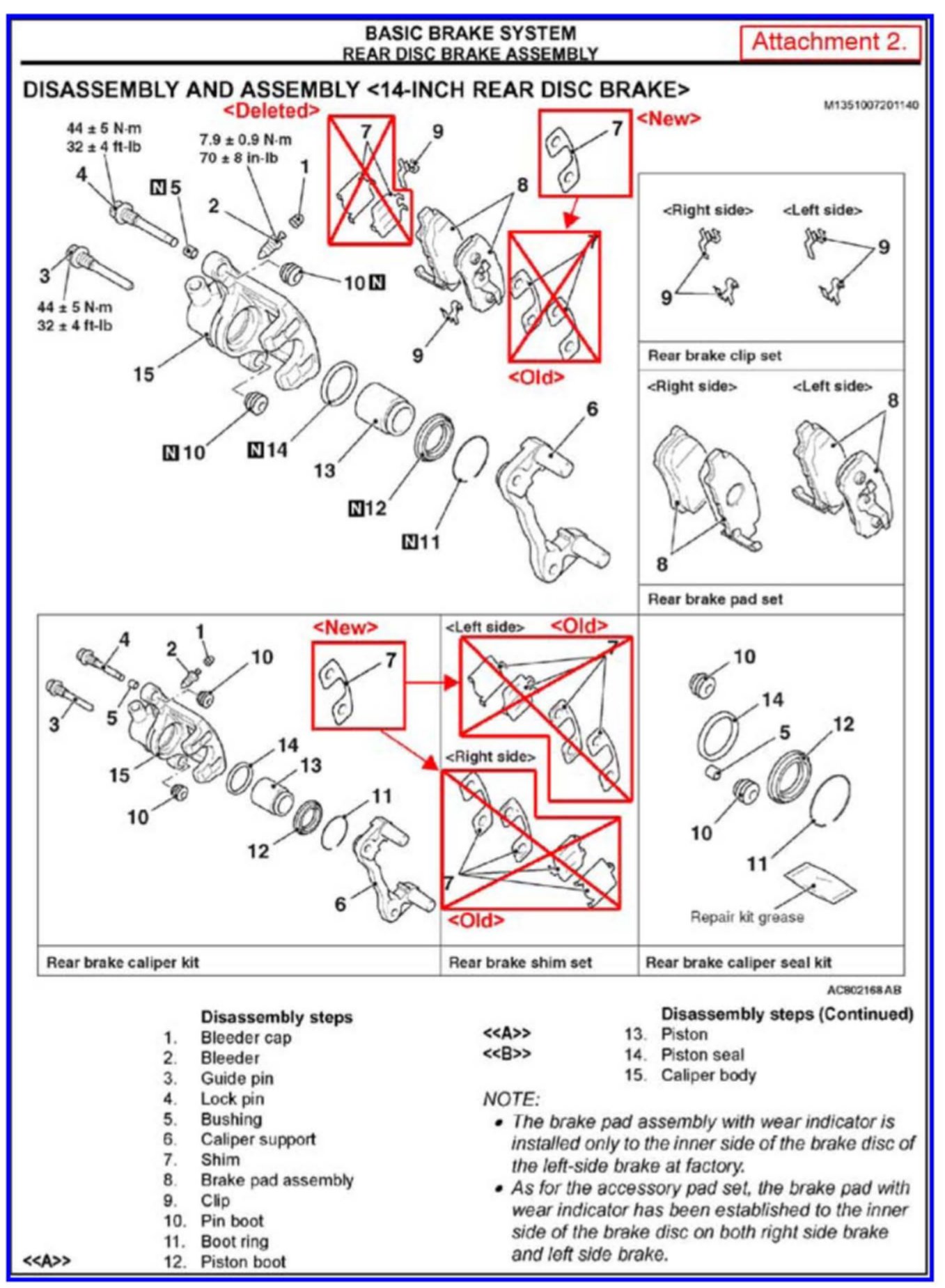

Service Manual Update - Attachment 2
