Brakes and Traction Control: Description and Operation
GENERAL INFORMATIONBrake systems with higher reliability and durability have achieved distinguished braking performance.
FEATURES
IMPROVEMENT OF BRAKING PERFORMANCE
^ A 10-inch single brake booster with the variable boost ratio mechanism has been used to assure maximum braking force with less pedal pressure in case of emergency. [Vehicles with ABS]
^ In addition to the 10-inch single brake booster, a small and long stroke-type master cylinder has been adopted to achieve downsizing and secure assist force.
^ 15-inch or 16-inch ventilated disc brakes have been adopted for the front.
^ 8-inch leading trailing-type drum brake, 14-inch or 16-inch solid disc brake has been adopted for the rear.
IMPROVEMENT IN SAFETY
^ X-type piping of brake lines have been adopted for the front and rear wheels.
^ Audible wear indicators are used on the front and rear brake pads to warn the driver of wear limit.

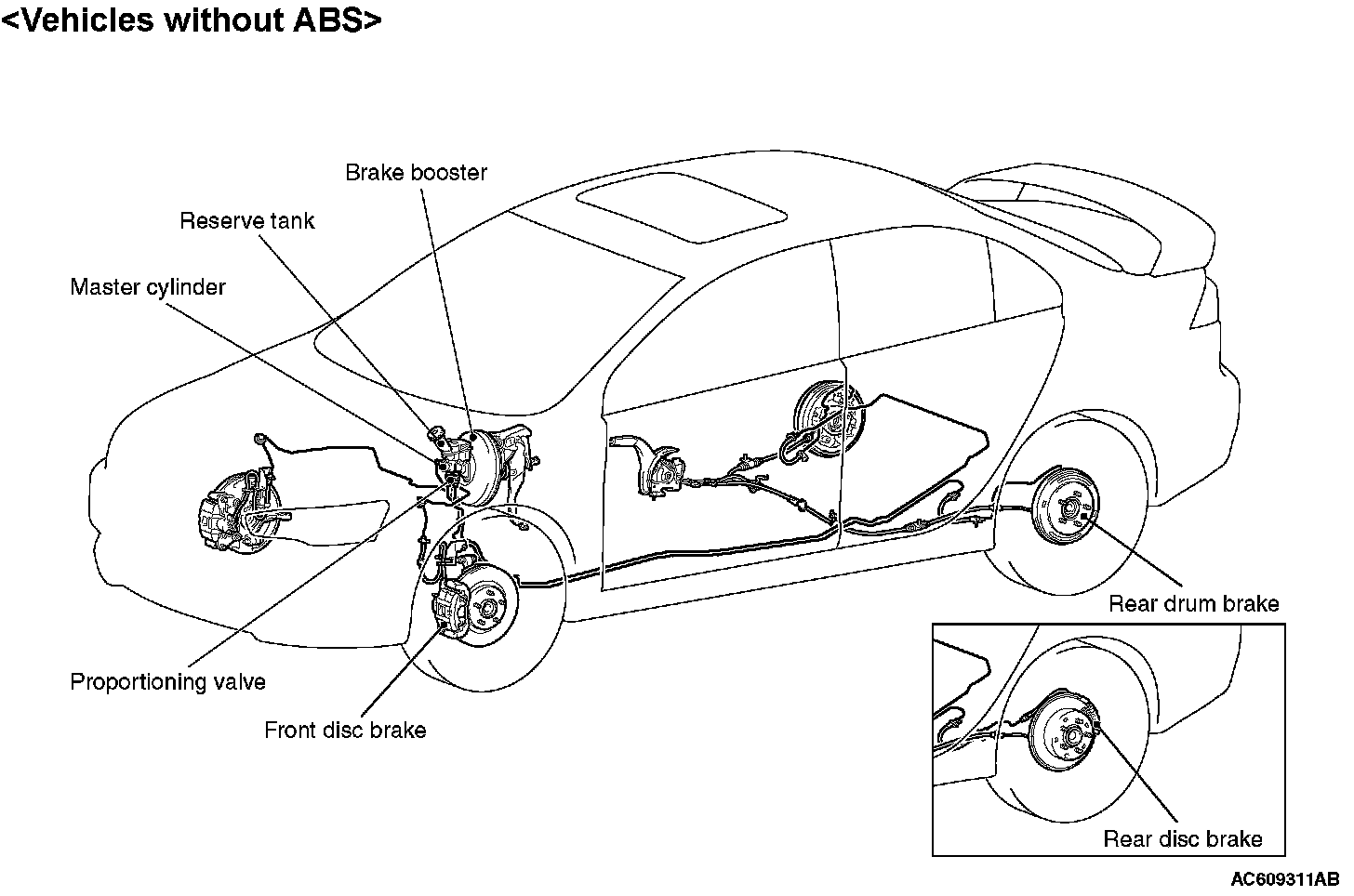

Vehicles without ABS:

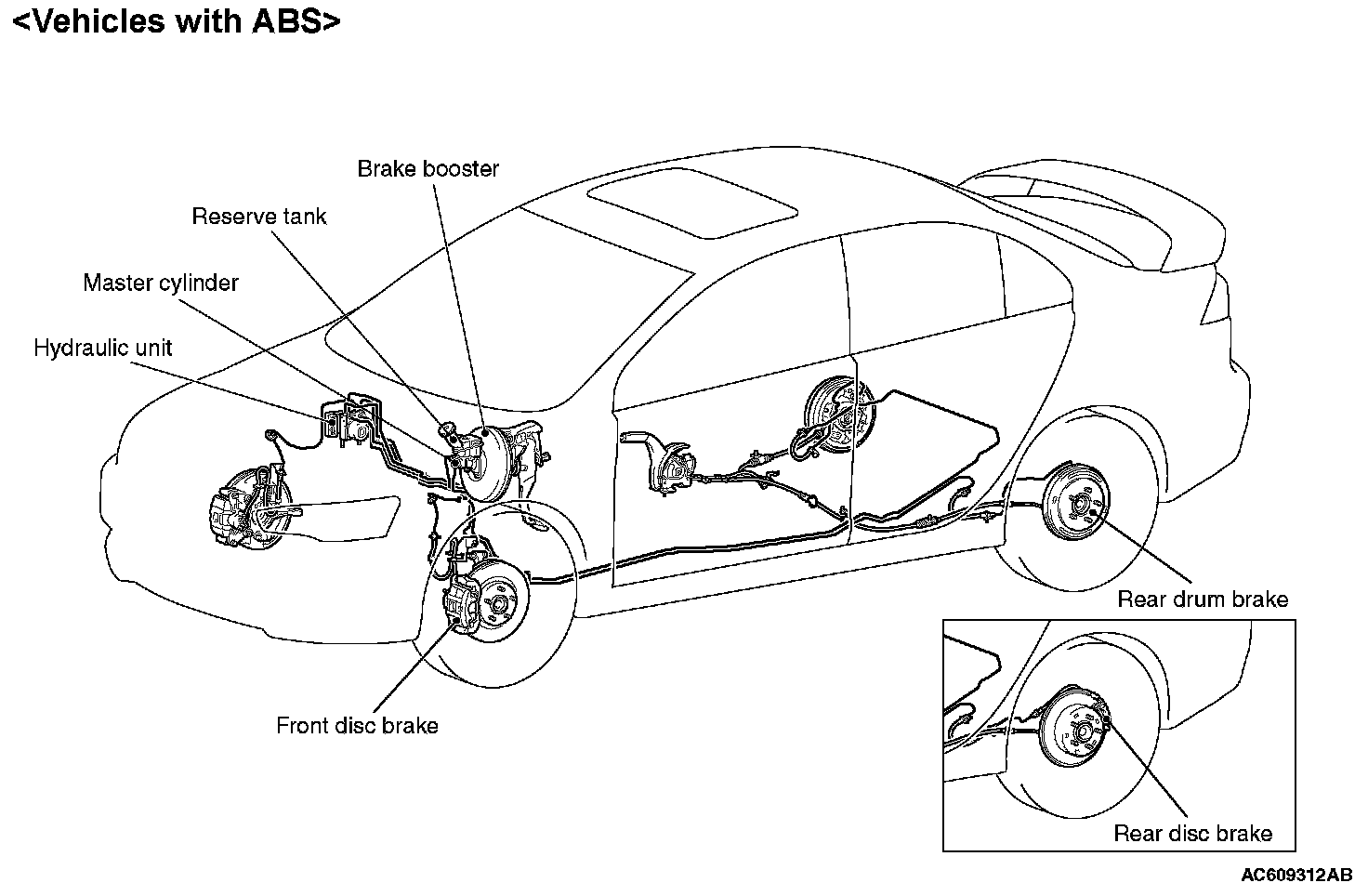

Vehicles with ABS:
