Brake Pedal Assy: Service and Repair

BRAKE PEDAL

REMOVAL AND INSTALLATION

Pre-removal & Post-installation Operation:

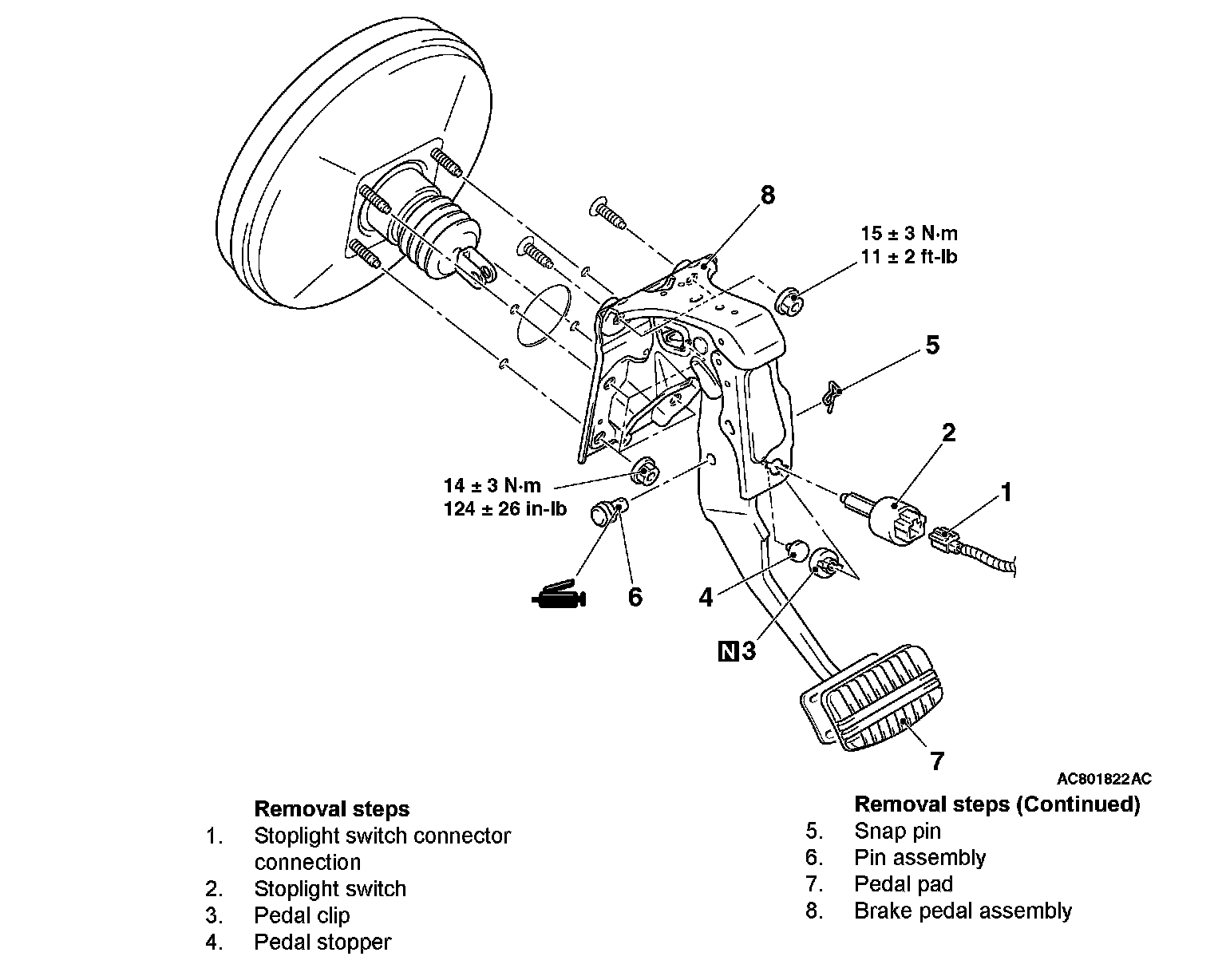

Removal Steps 1-8:

INSPECTION

STOPLIGHT SWITCH CHECK

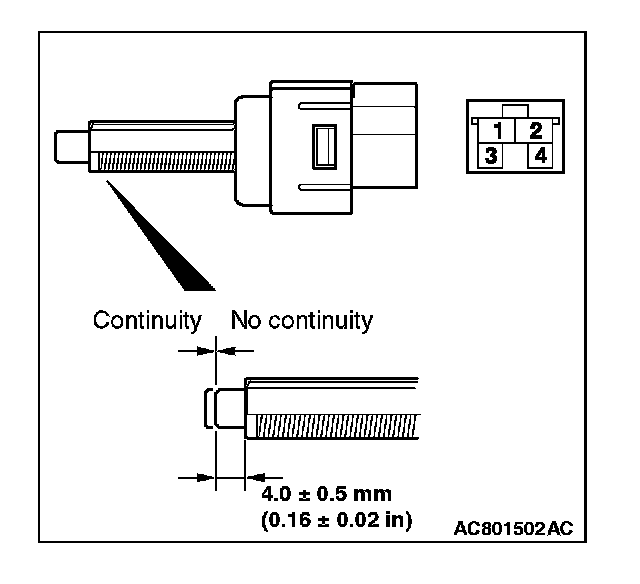

[VEHICLES WITHOUT CRUISE CONTROL SYSTEM]

CAUTION
Do not apply grease or lubricant to the switch and the switch installation section to avoid malfunction of the switch. In addition, do not use gloves which have grease on them.

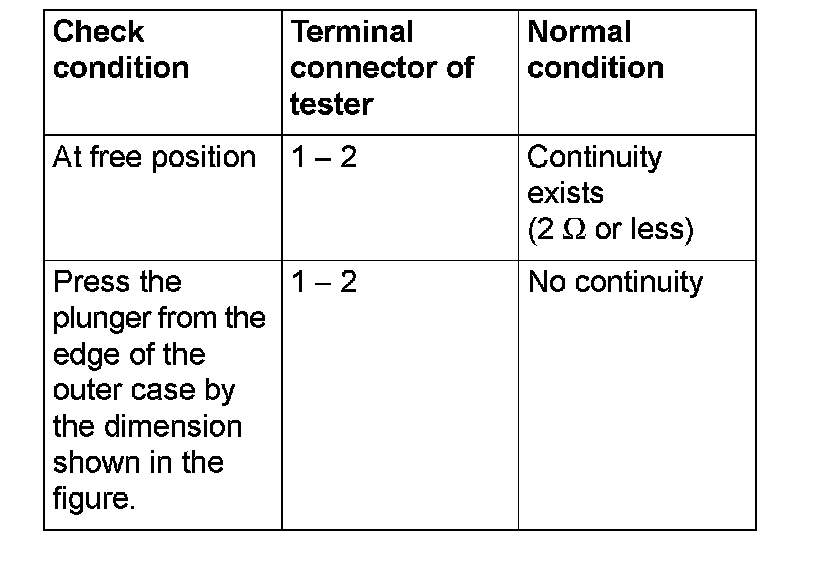

Check for continuity between the terminals of the switch.

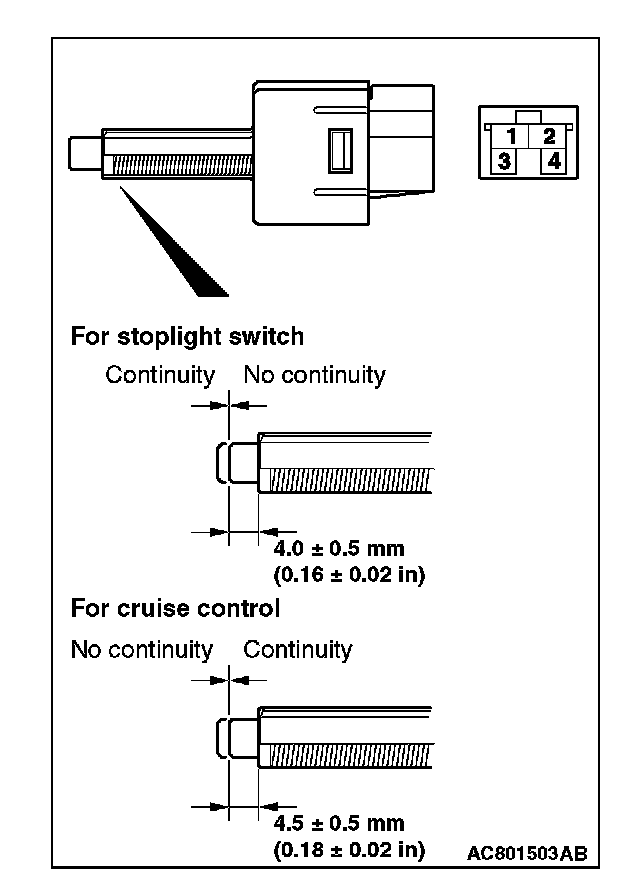

[VEHICLES WITH CRUISE CONTROL SYSTEM]

CAUTION
Do not apply grease or lubricant to the switch and the switch installation section to avoid malfunction of the switch. In addition, do not use gloves which have grease on them.

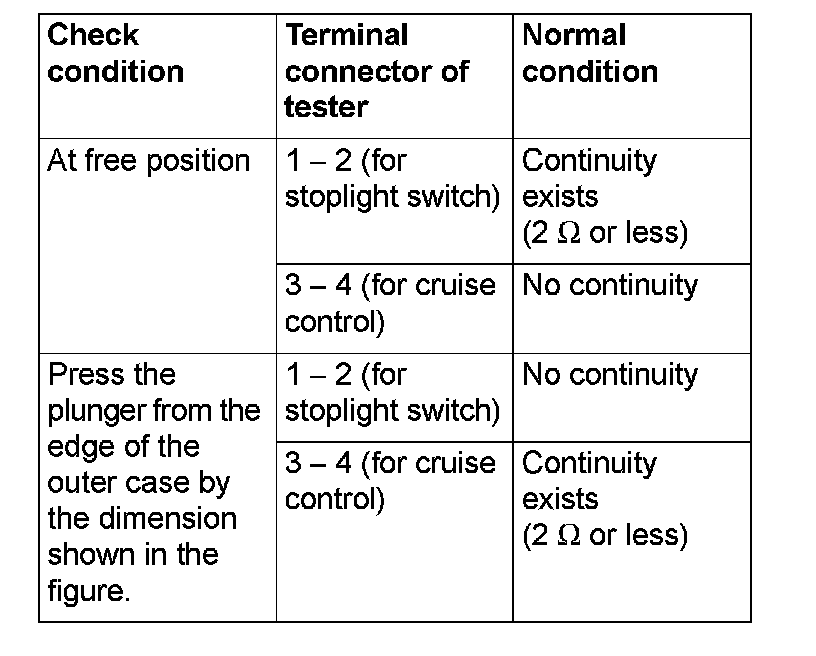

Check for continuity between the terminals of the switch.
