Fail-Safe Function

FAIL-SAFE FUNCTION
If any malfunction is detected by the self-diagnostic function, ABS-ECU illuminates the ABS warning light and brake warning light*, and it disables ABS and EBD control.

NOTE: *: The brake warning light and display are used as EBD control warning light.

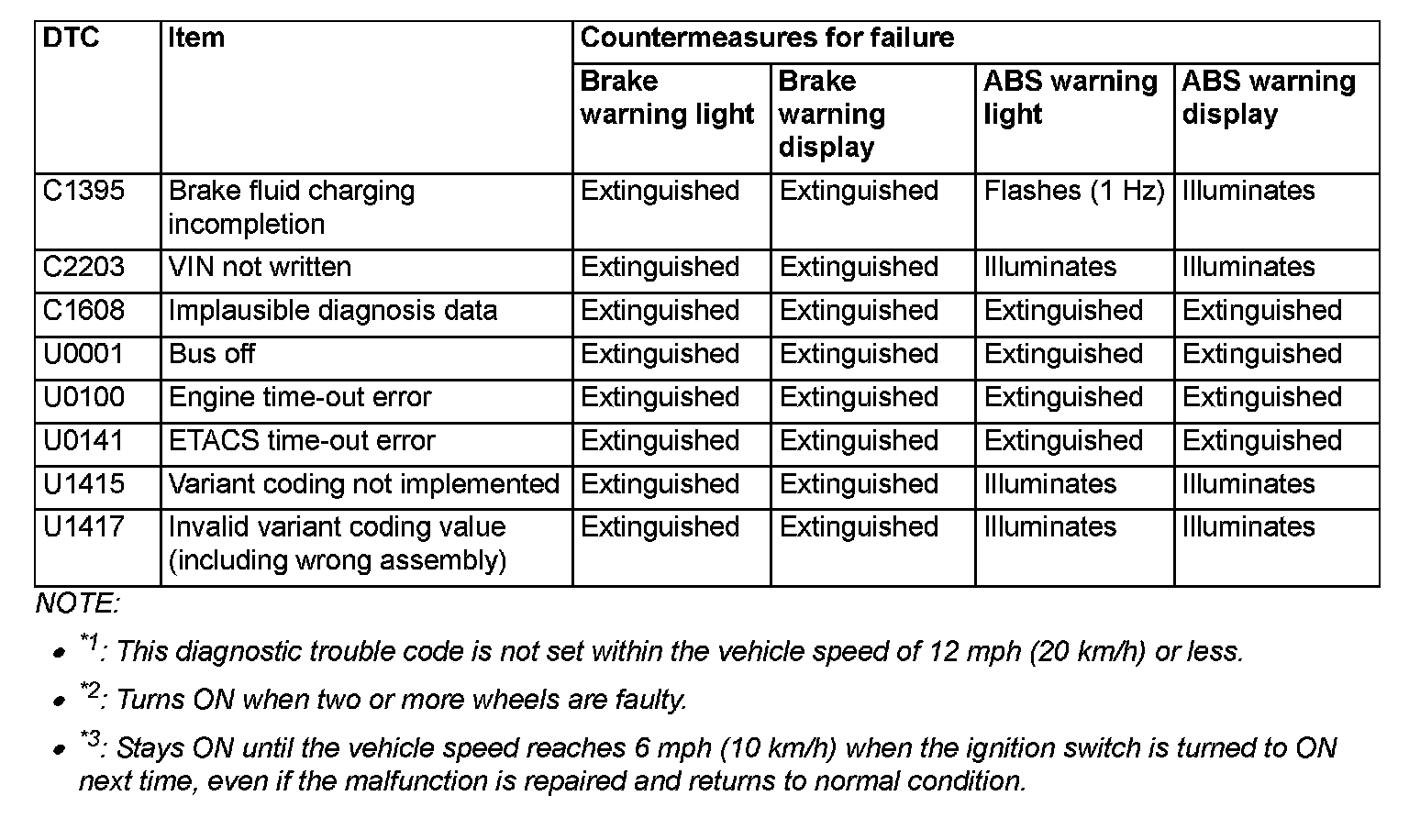

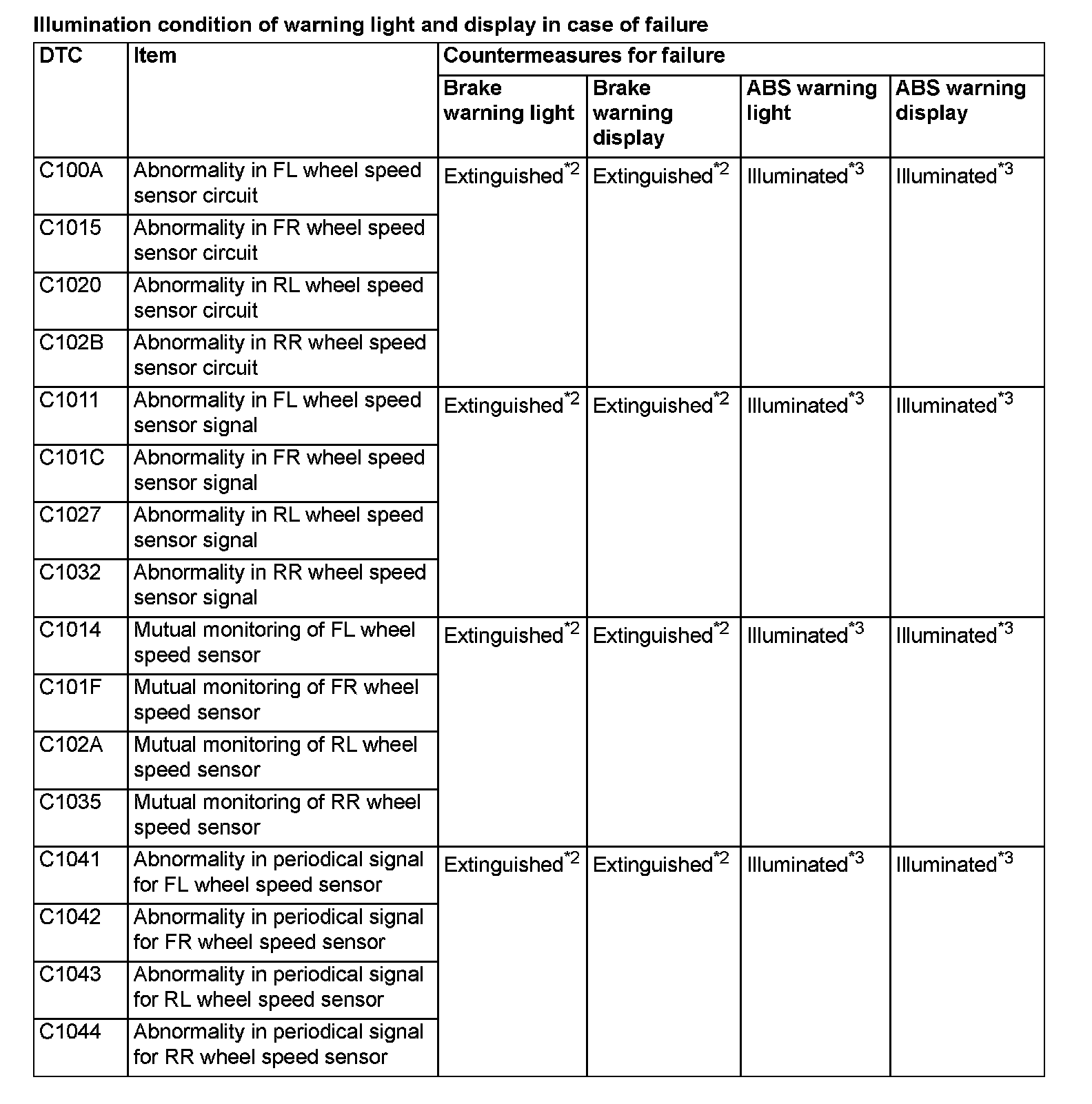

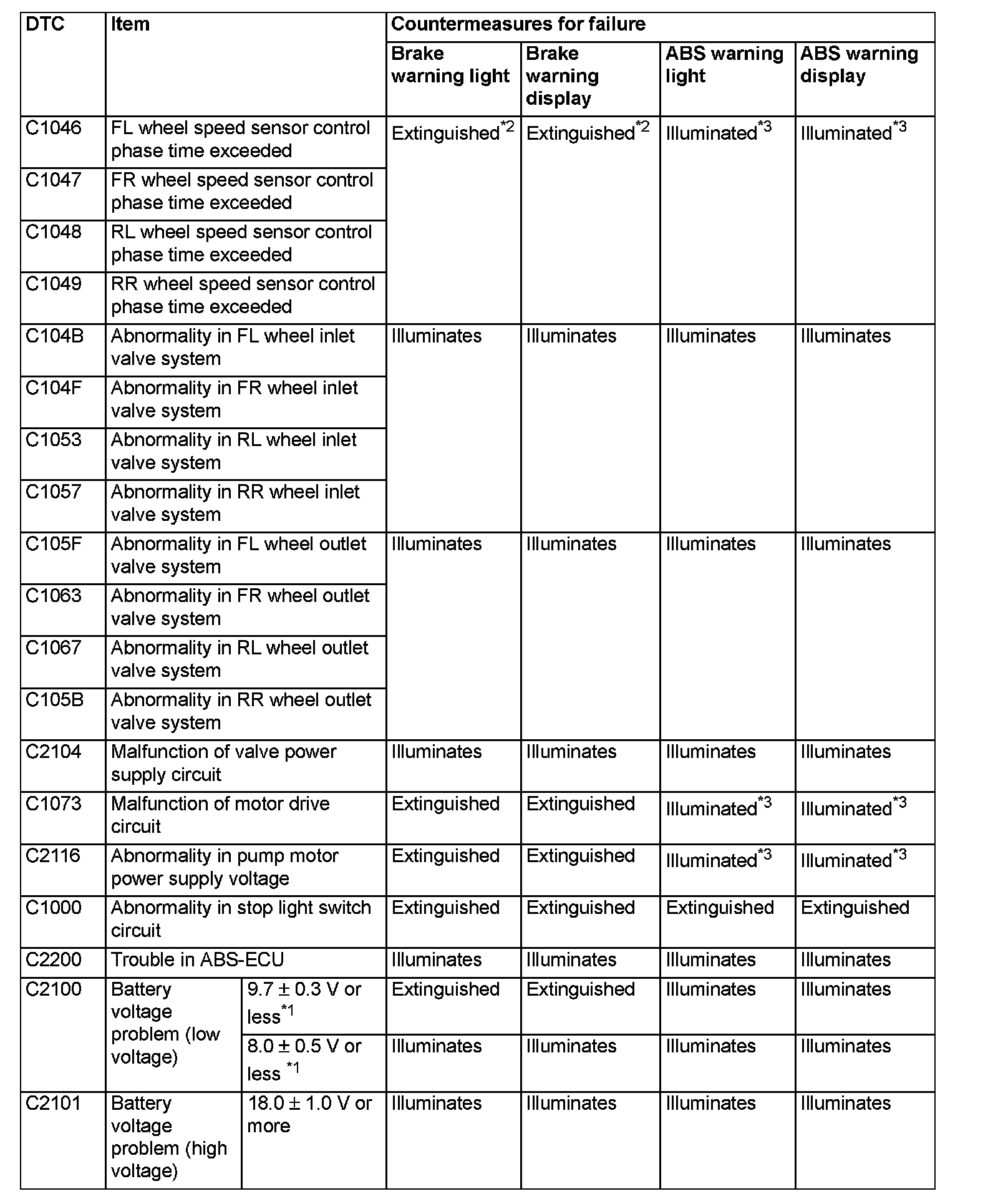

Illumination condition of warning light and display in case of failure

Part 1:




Part 2:




Part 3:

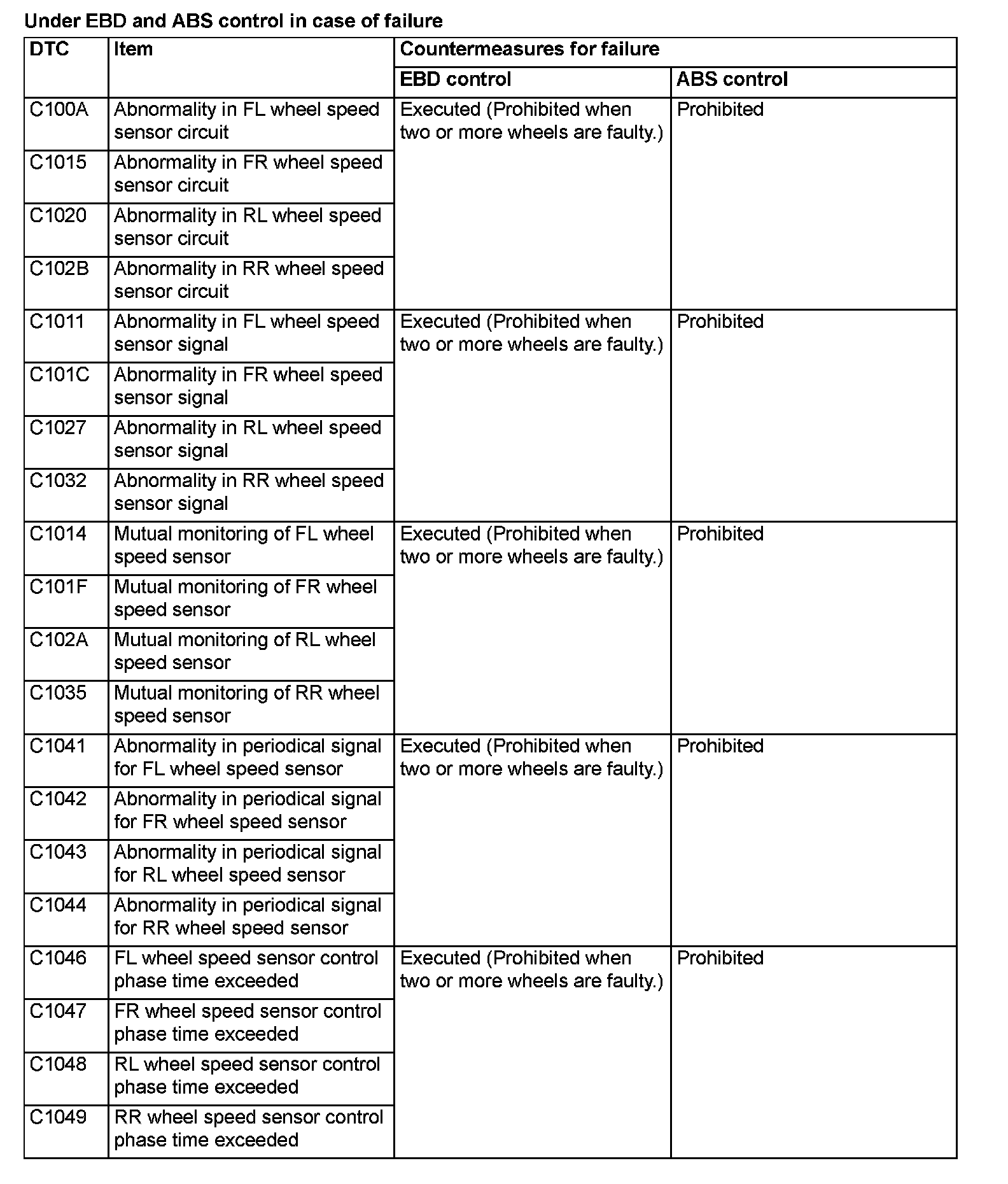

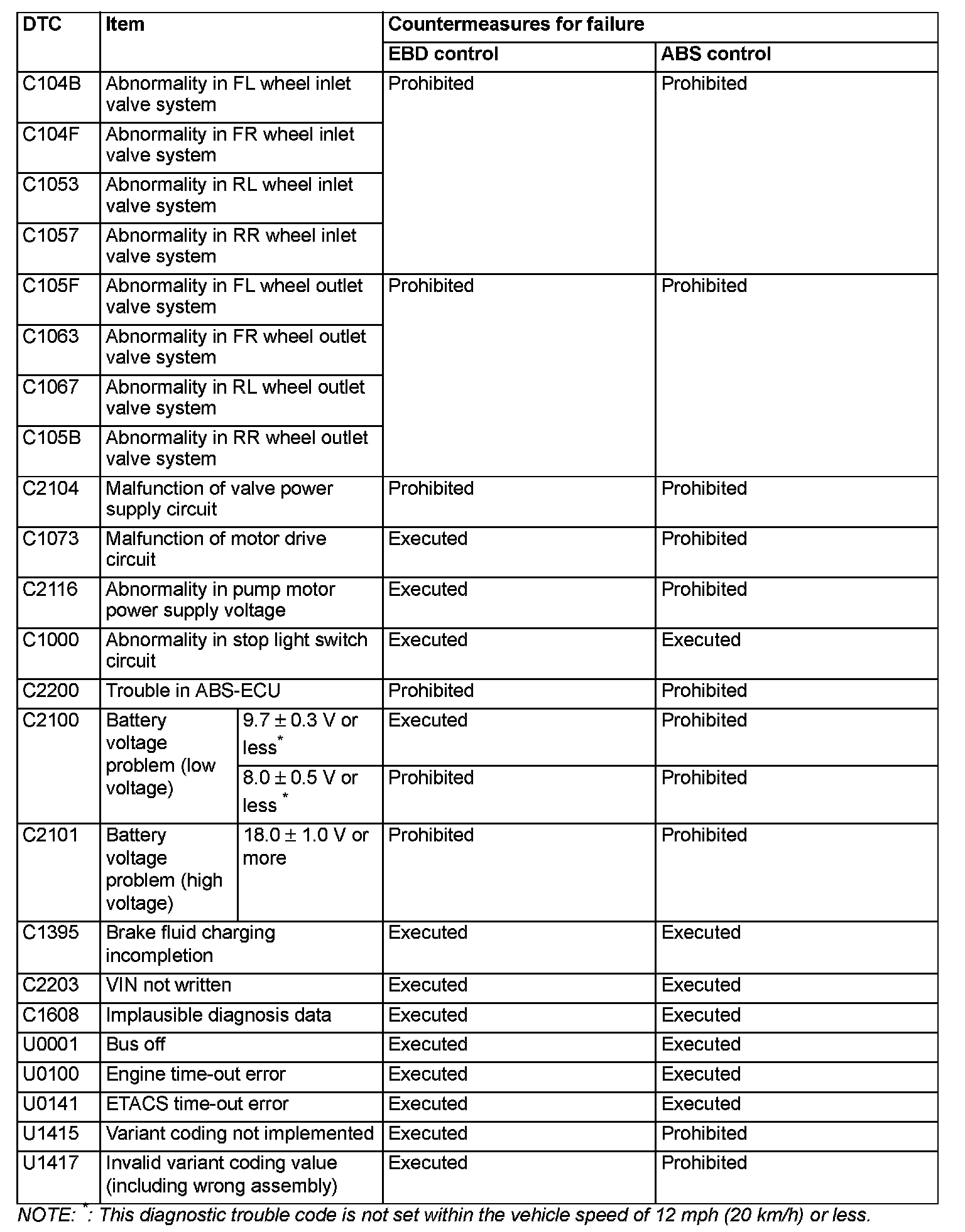

Under EBD and ABS control in case of failure

Part 1:




Part 2:
