Fail-Safe Function

FAIL-SAFE FUNCTIONS
ASC-ECU constantly monitors the input and output signals. If an error is detected in the system, ASC-ECU sends a fail signal and the corresponding indicator light is illuminated or blinks. Various controls are processed depending on the cause of malfunction as shown below.

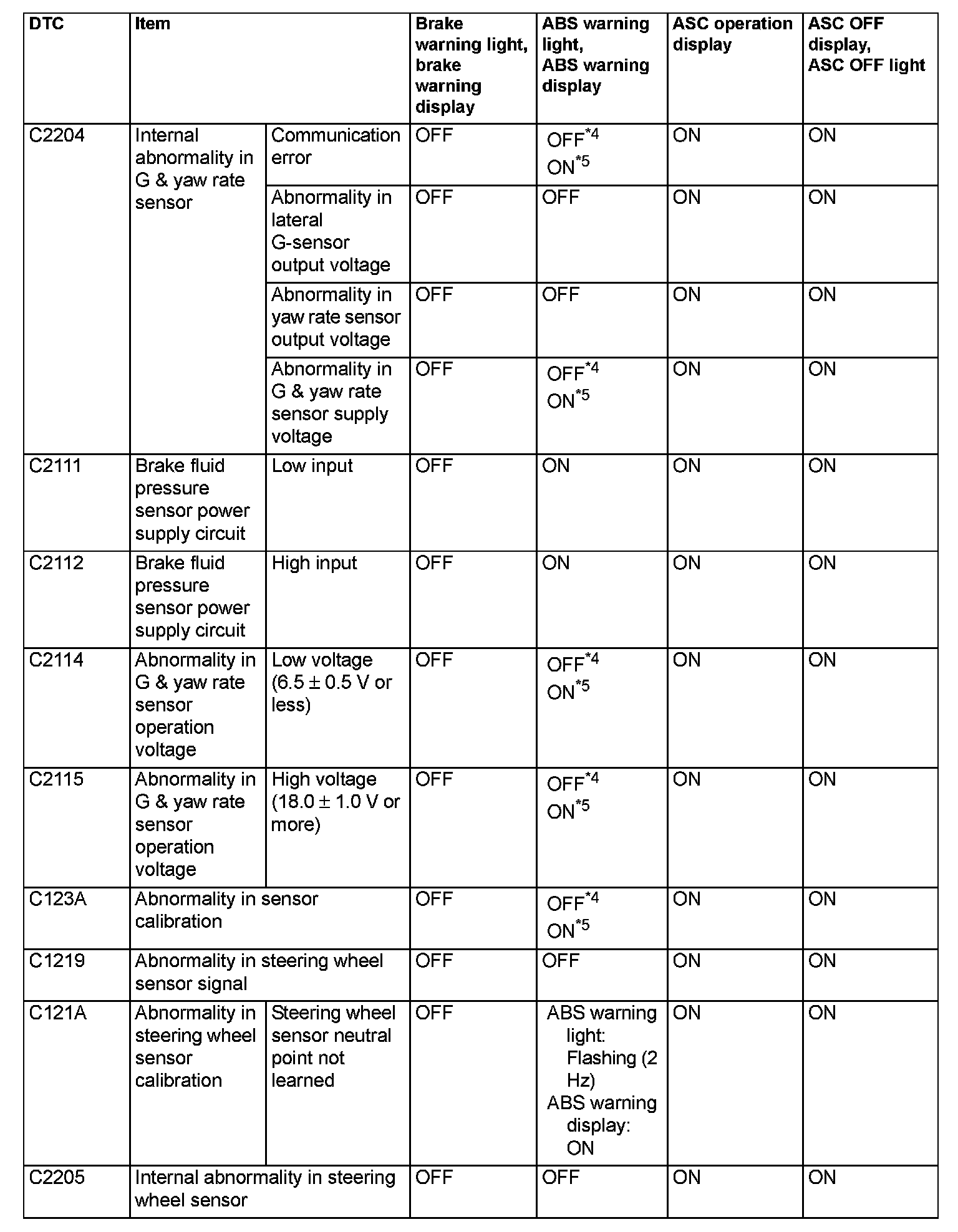

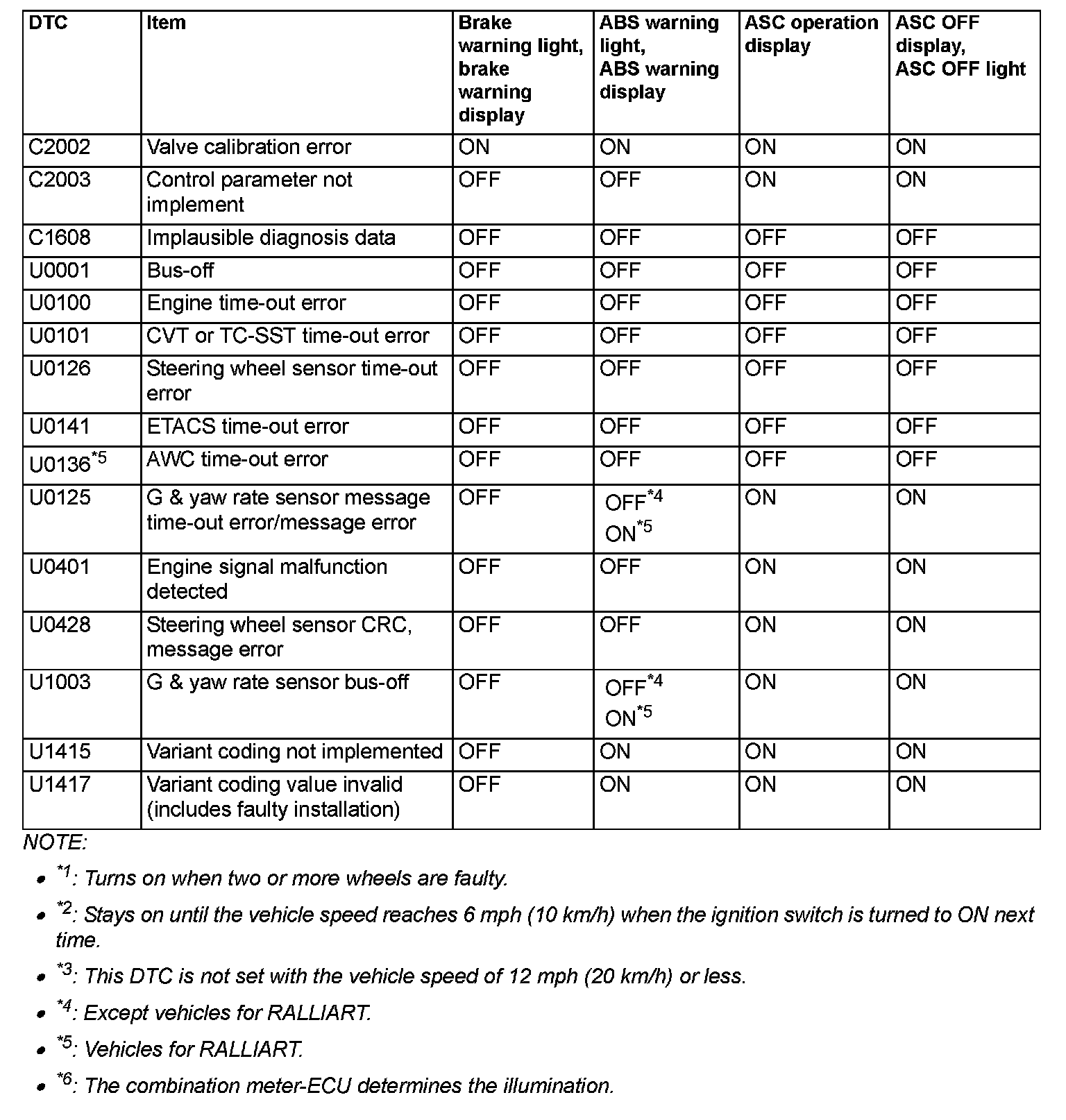

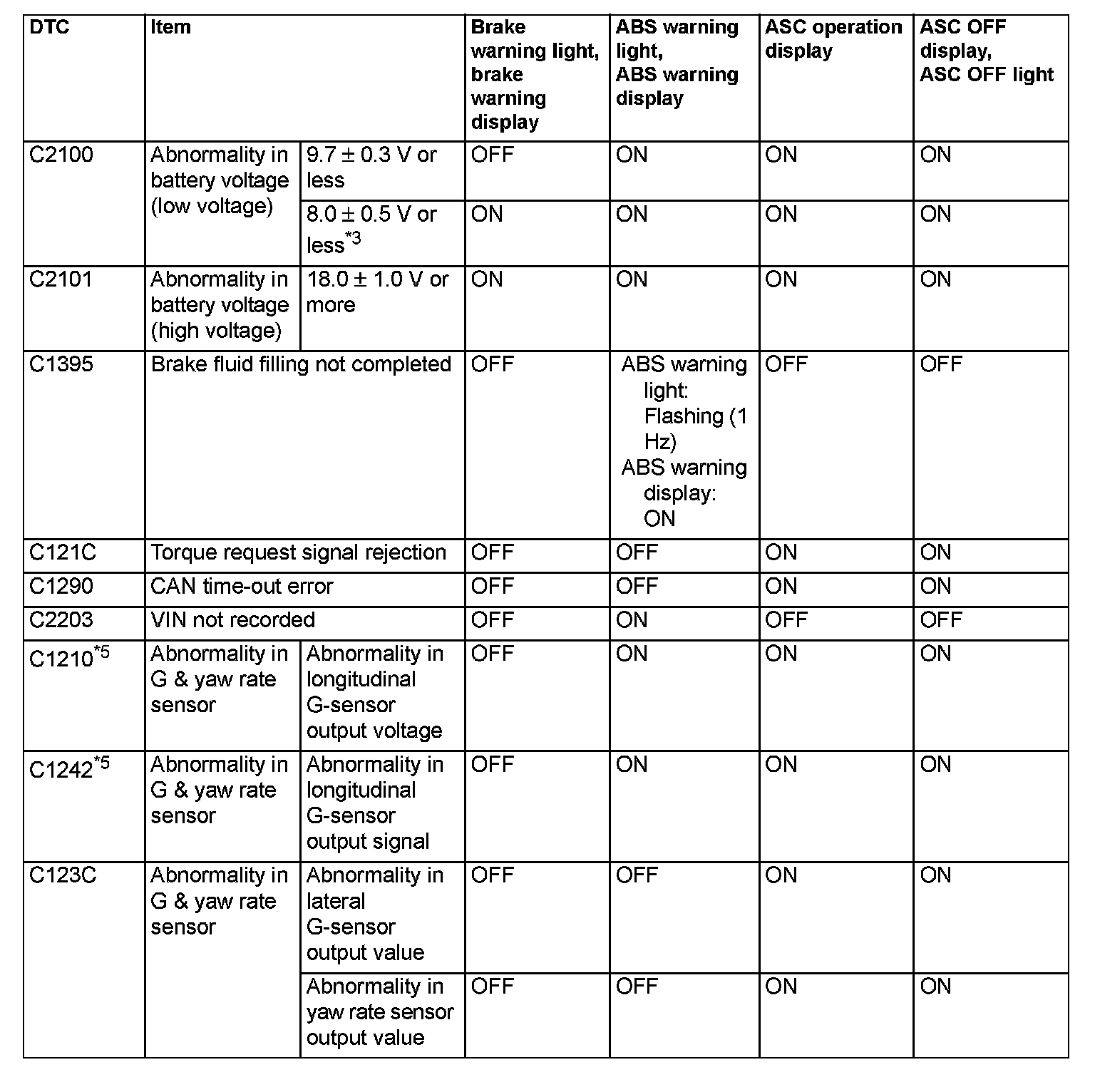

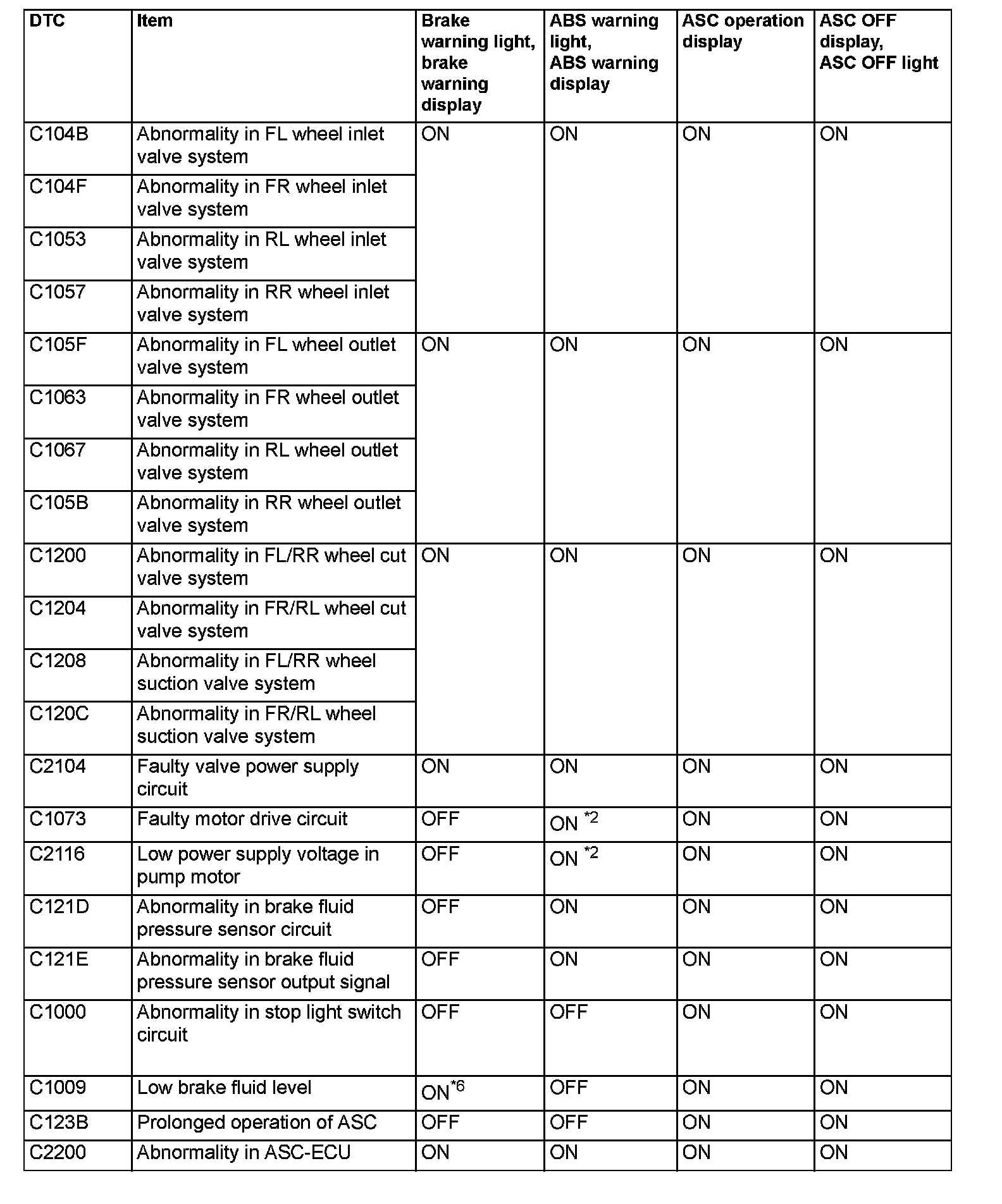

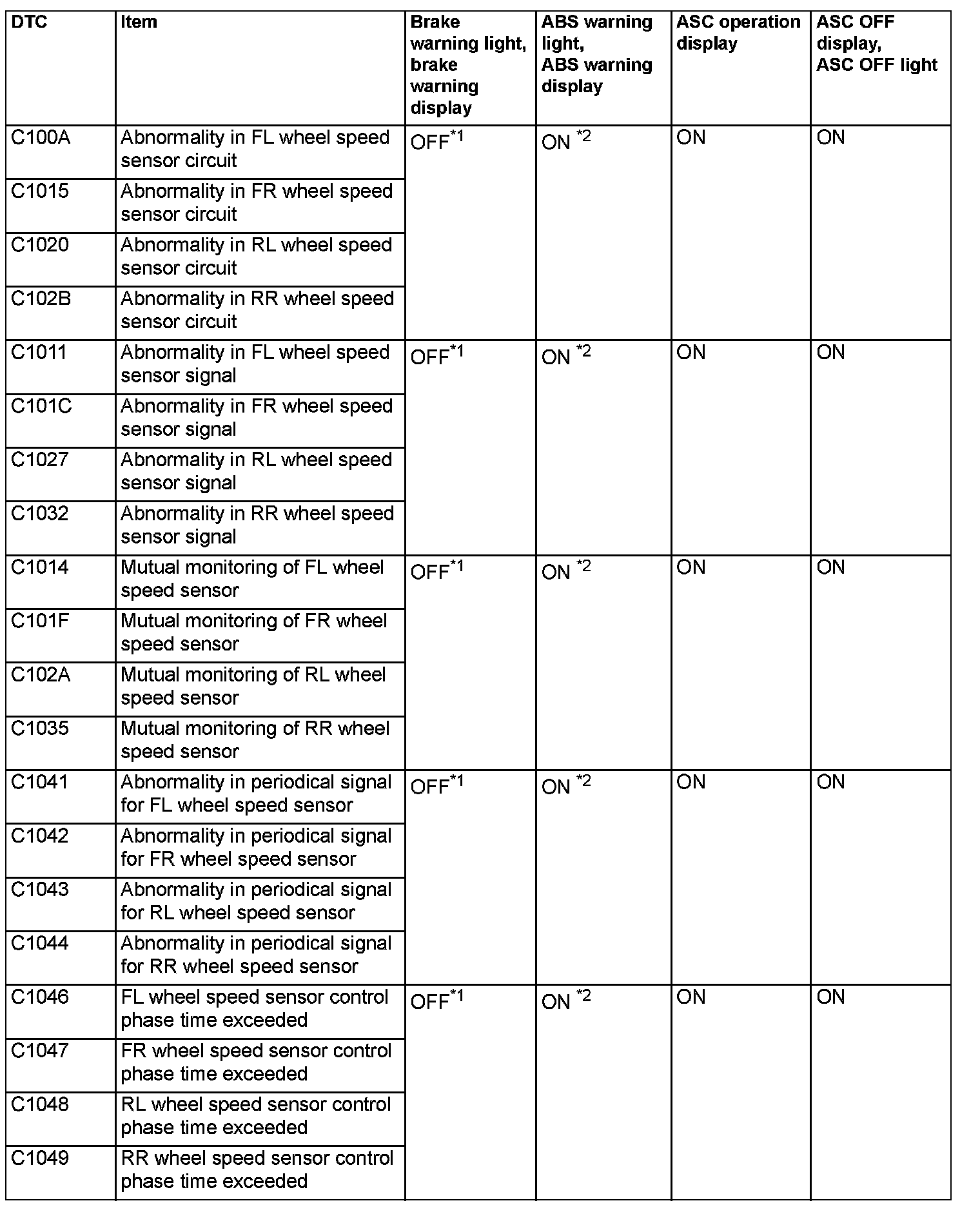

Illumination condition of warning light and display in case of failure

Part 1:

Part 2:

Part 3:

Part 4:

Part 5:

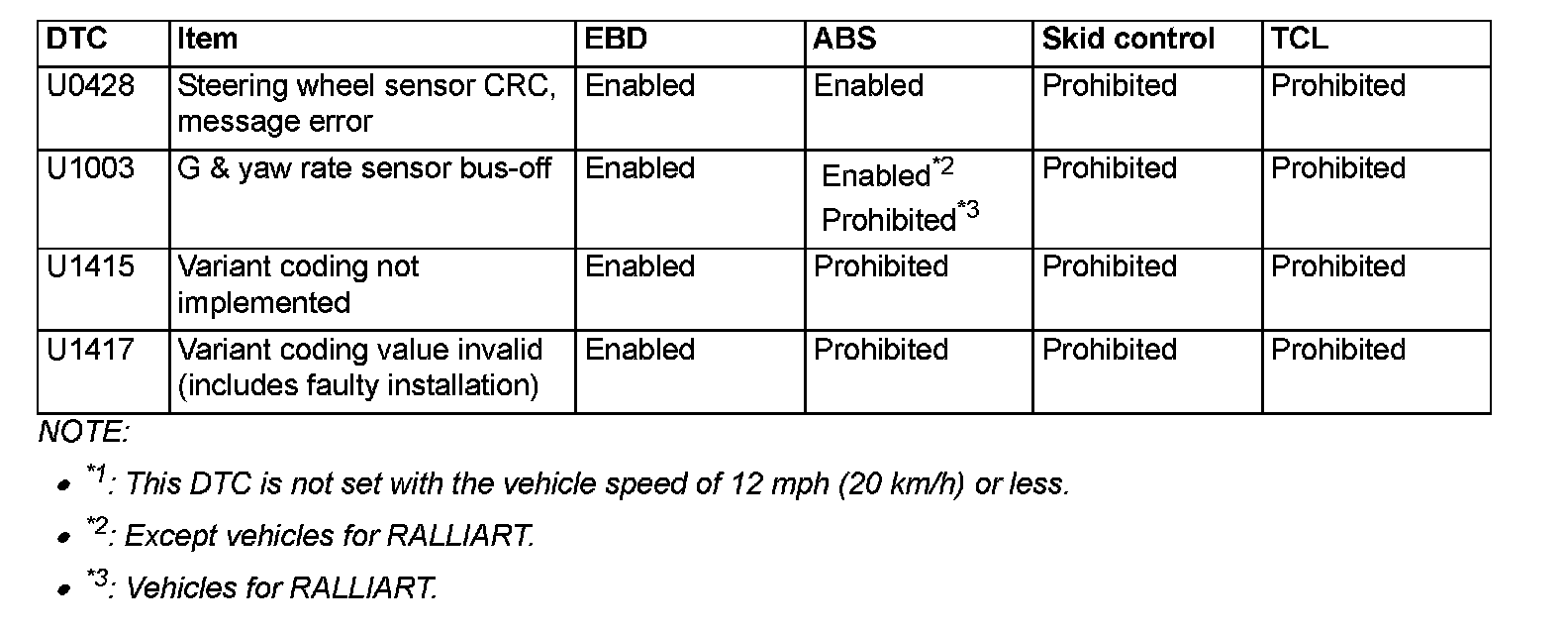

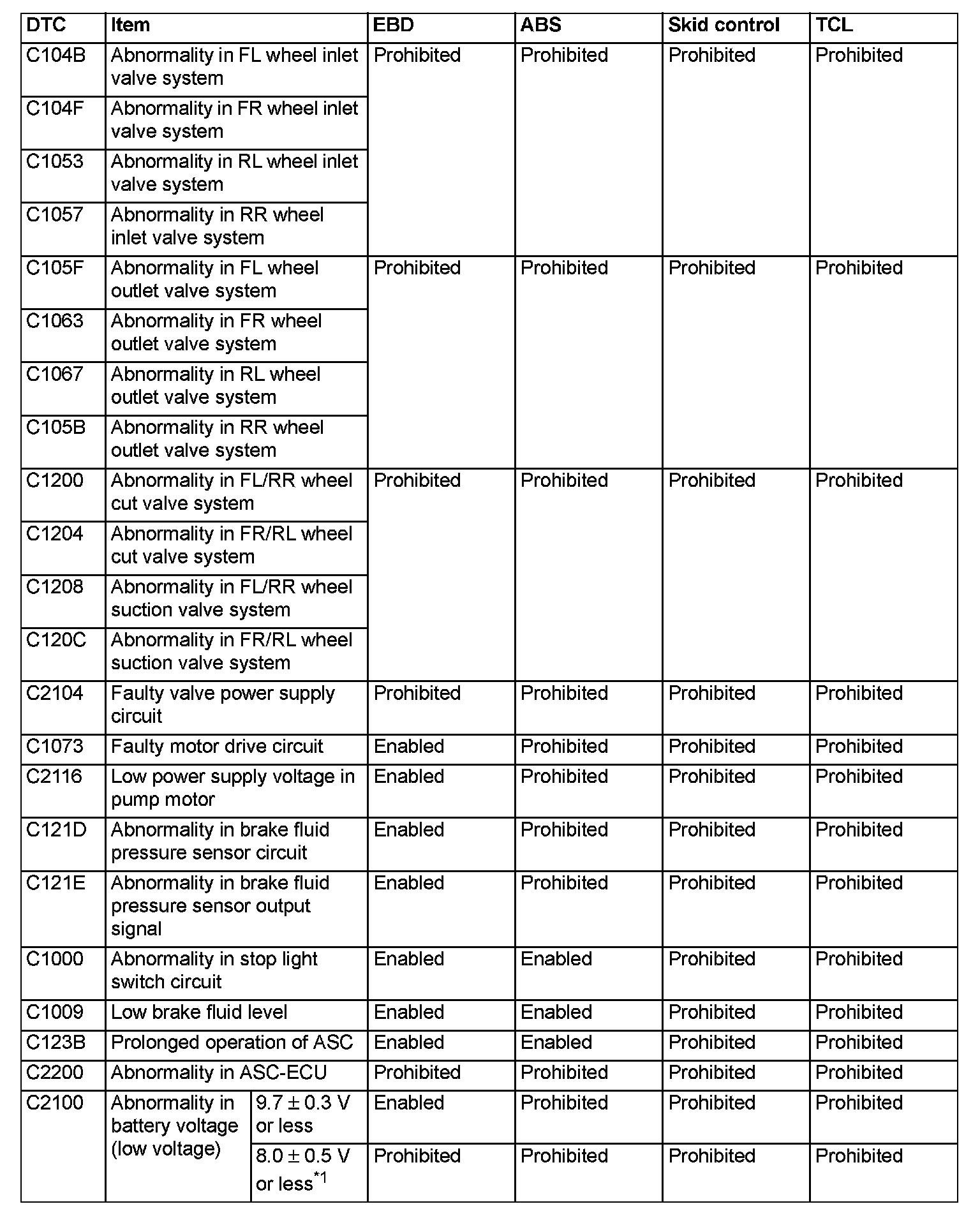

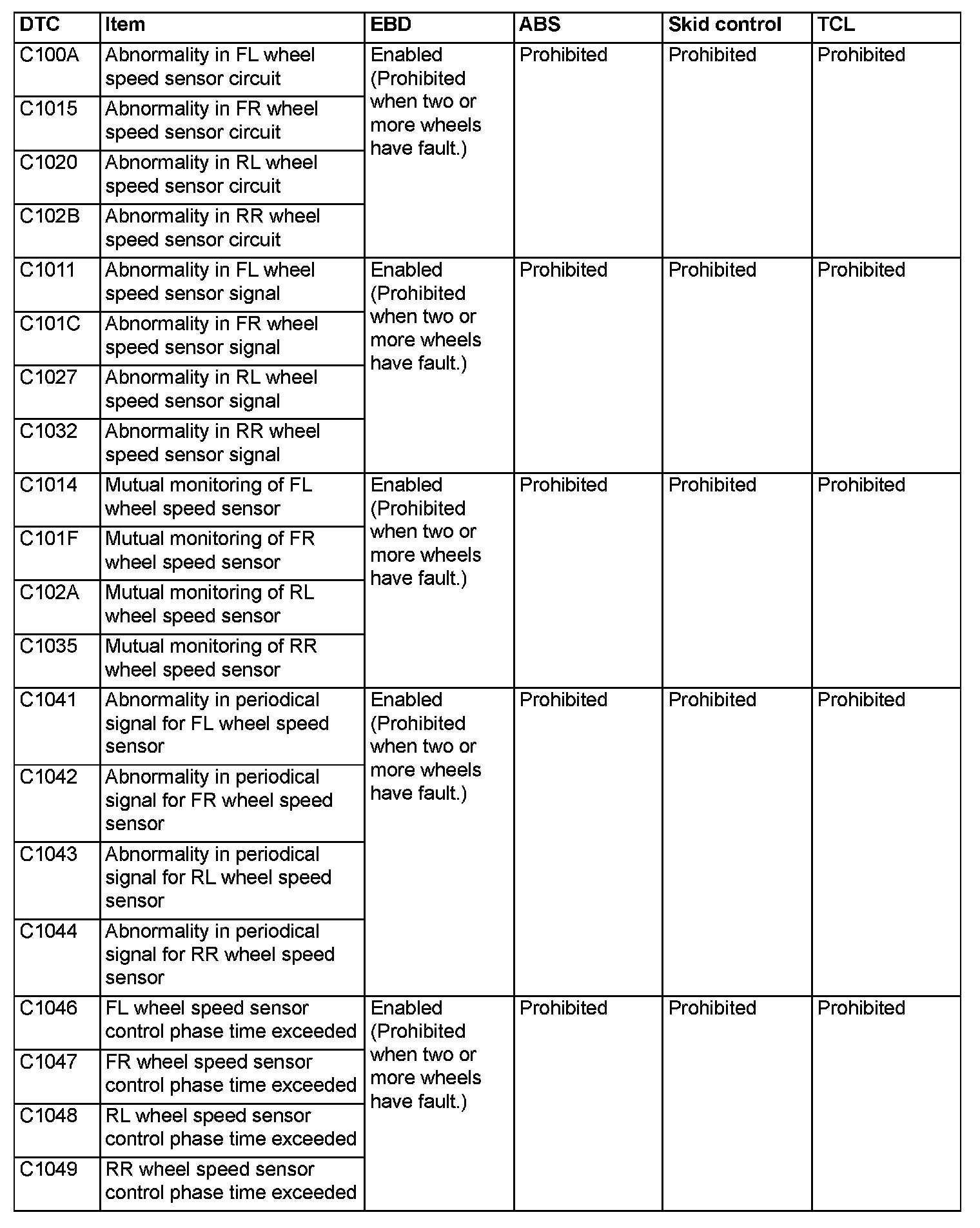

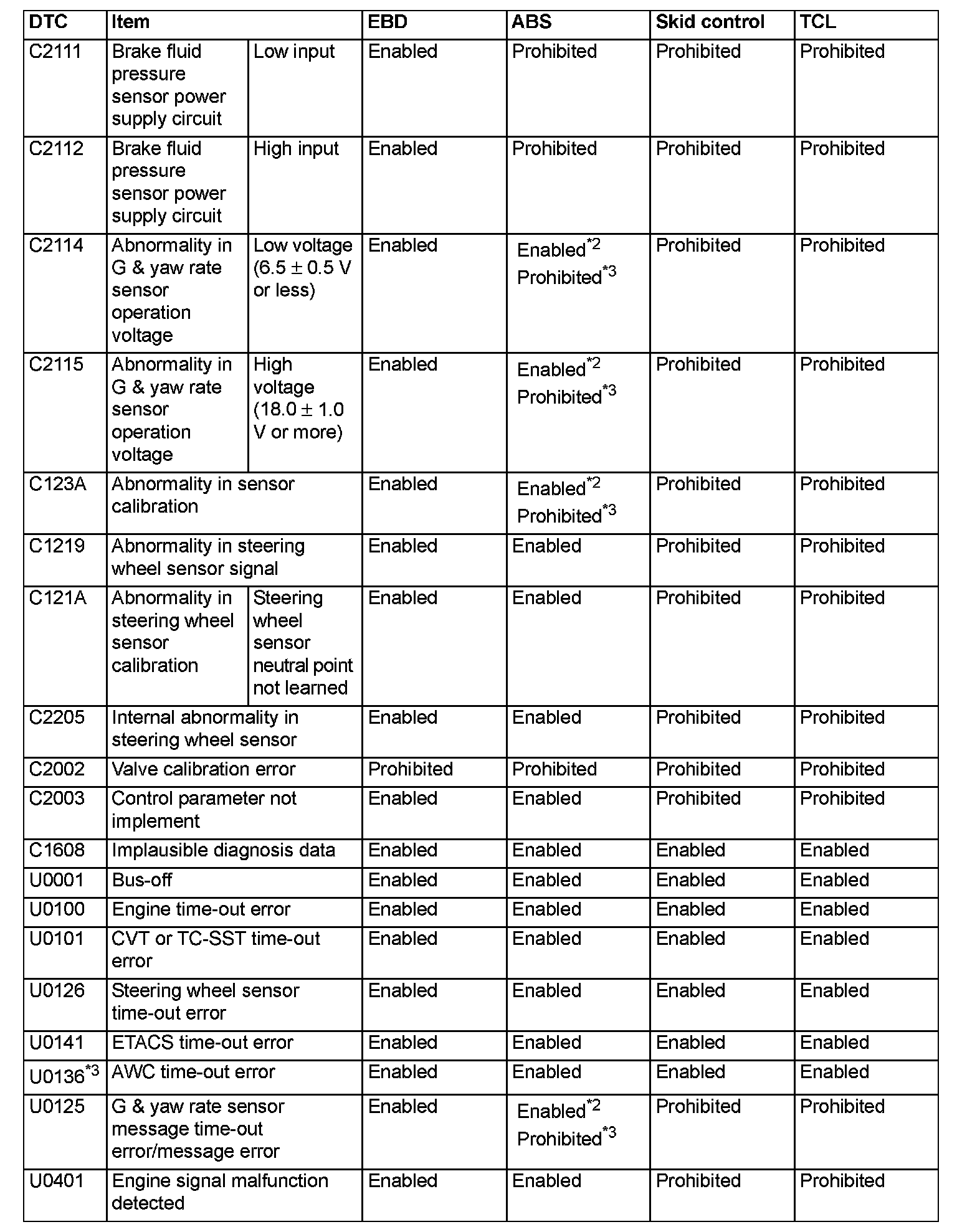

Under EBD, ABS, skid control, and TCL control in case of failure

Part 1:

Part 2:

Part 3:

Part 4:

Part 5:
