Anti-Lock Brake System (ABS)

GENERAL INFORMATION
The ABS that ensures directional stability and controllability during hard braking. ABS is standard equipment on the ES and GTS models but is optional equipment on the DE model.

This ABS employs a 4-sensor system that controls the right and left front wheels respectively, and has the following features:
^ EBD *1 control that can obtain ideal rear wheel brake force has been employed.
^ The magnetic encoder for detecting the wheel speed has been installed instead of the rotor as the wheel speed sensor.
^ For wiring harness saving and secure data communication, CAN *2 bus has been adopted as a tool of communication with other ECUs.

NOTE:
^ *1: EBD (Electronic Brake-force Distribution)
^ *2: CAN (Controller Area Network)

SPECIFICATIONS

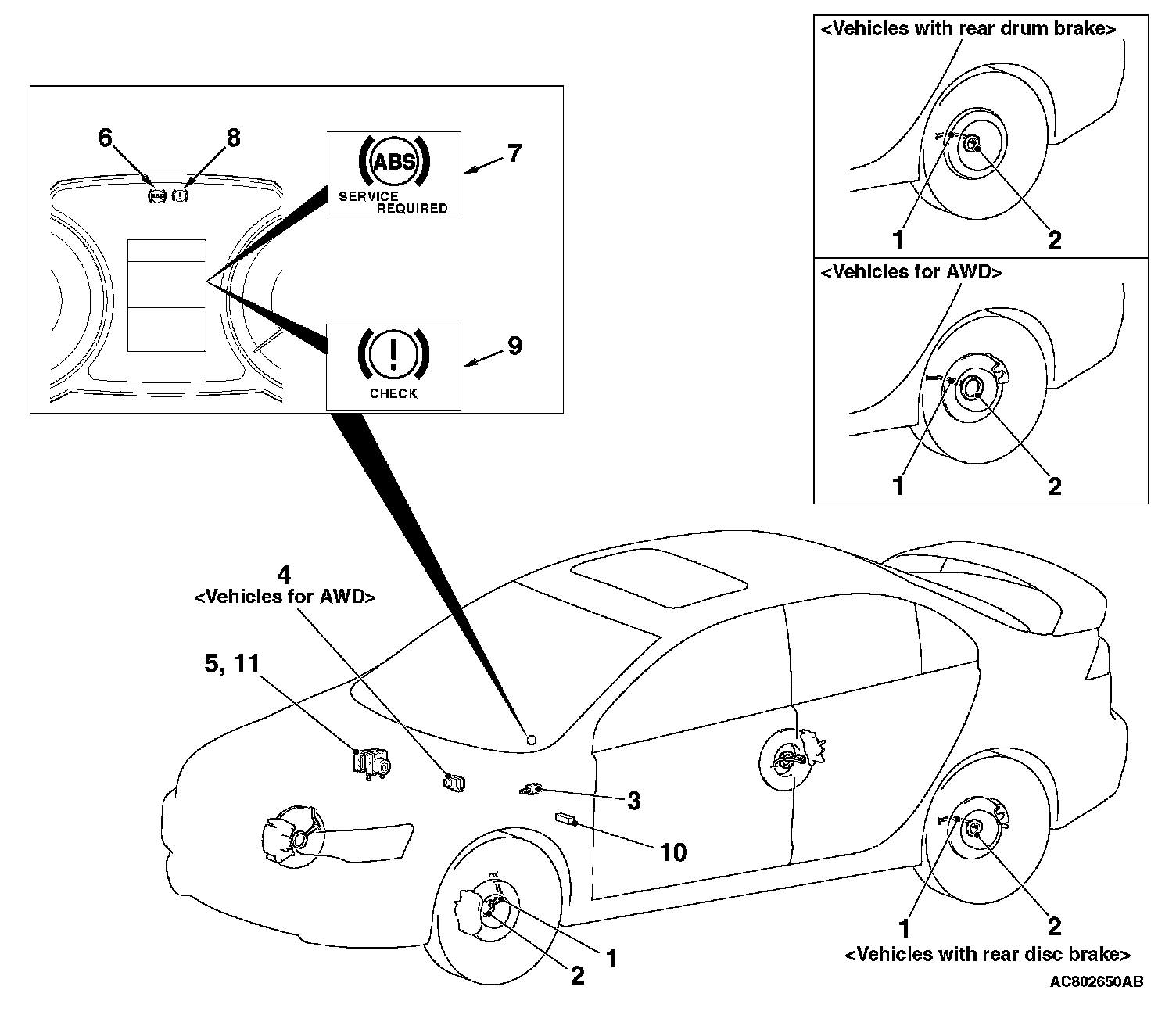

CONSTRUCTION DIAGRAM

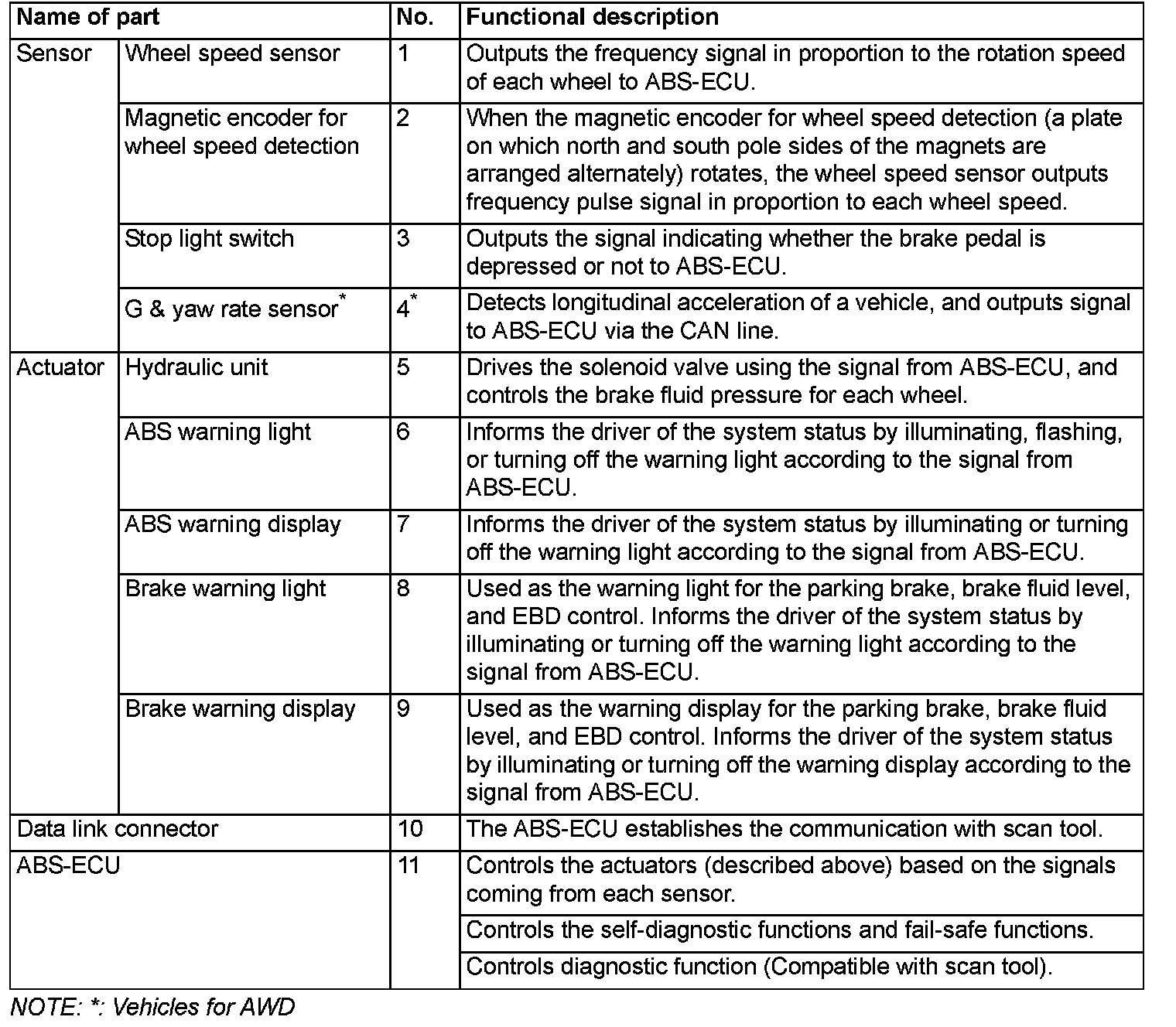

MAIN COMPONENTS AND FUNCTIONS

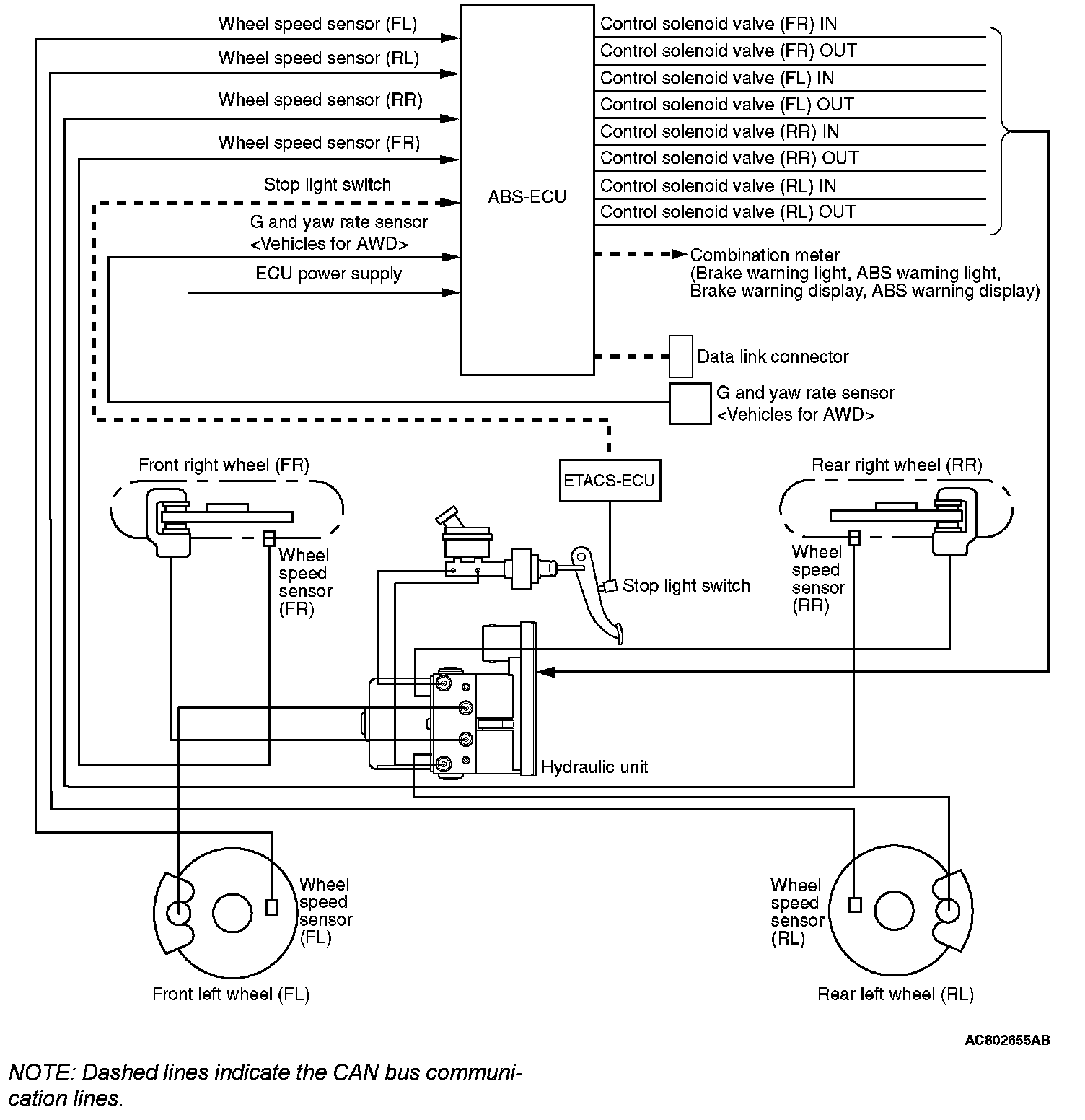

SYSTEM CONFIGURATION
