Active Skid Control System (ASC)

GENERAL INFORMATION
Active Skid Control System (ASC) has been installed.
^ ASC is the system which has the function to ensure the stability at the limit of steering with TCL function as well as ABS (Anti-skid Brake System) and EBD (Electronic Brake-force Distribution). To realize that, the suction valve, cut valve and the pressure sensor have been added.
^ When TCL detects the slip of the driving wheel (ex. during start-up on low u road), it automatically applies the brakes to the slipping driving wheel. At the same time, TCL reduces the engine output and prevents the wheel spin when it determines that the engine torque is too high for the road surface u.
^ When the ASC determines that the vehicle is in a dangerous condition, it reduces the engine output and applies brake force to four wheels independently to control the vehicle behavior, avoiding the critical state.
^ ASC has been added to the active center differential (ACD)*2 control, and the controls are integrated to improve the vehicle stability (Vehicles for RALLIART).

NOTE:
^ *1: For the details on twin clutch sport shift transmission (TC-SST), refer to Twin Clutch Sport Shift Transmission (TC-SST.
^ *2: For the details on active center differential (ACD), refer to Active Center Differential (ACD).
^ By the integrated control with the anti-skid brake system (ABS), the system stabilizes the vehicle attitude and at the same time secures the driving force.

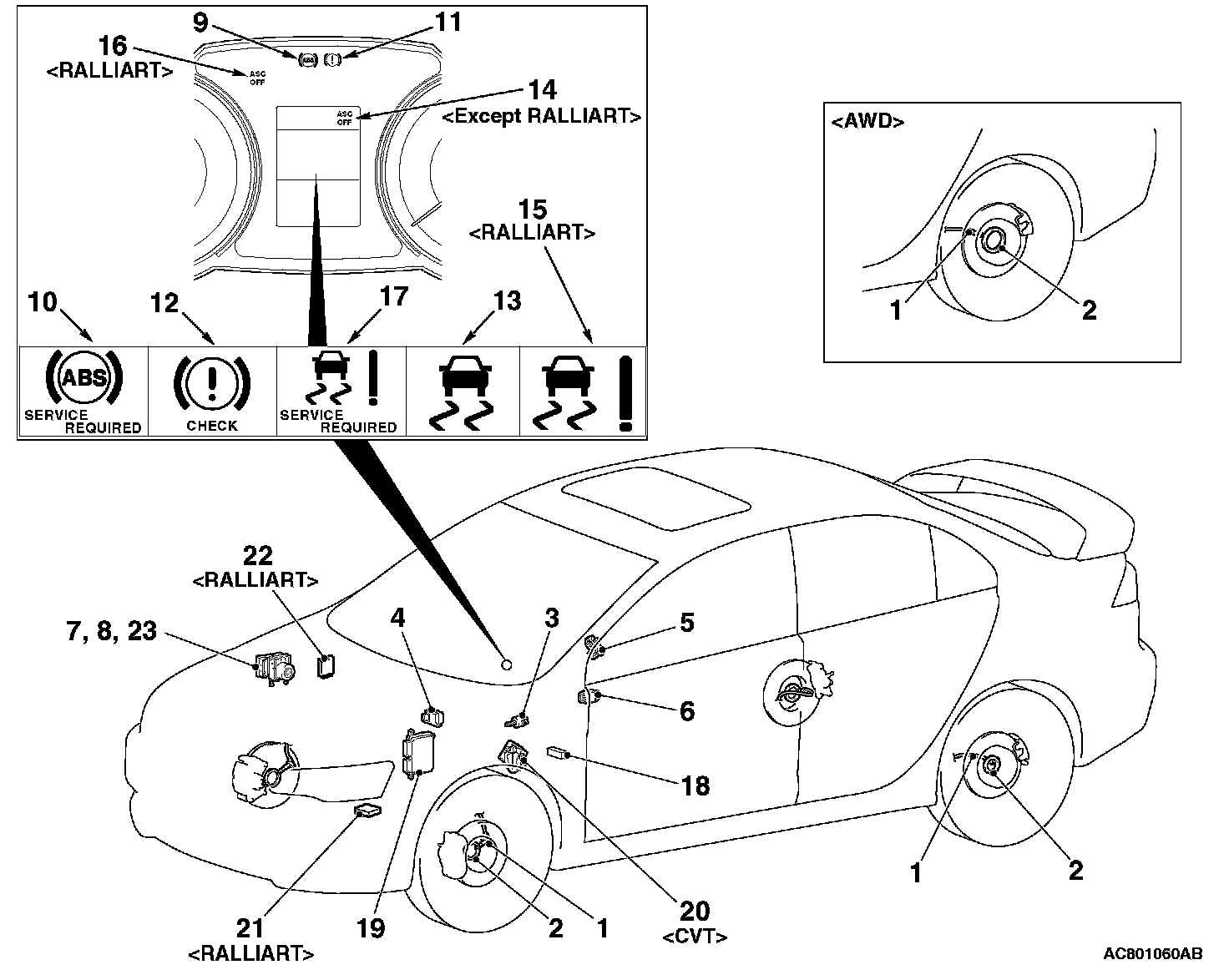

CONSTRUCTION DIAGRAM





MAIN COMPONENTS AND FUNCTIONS

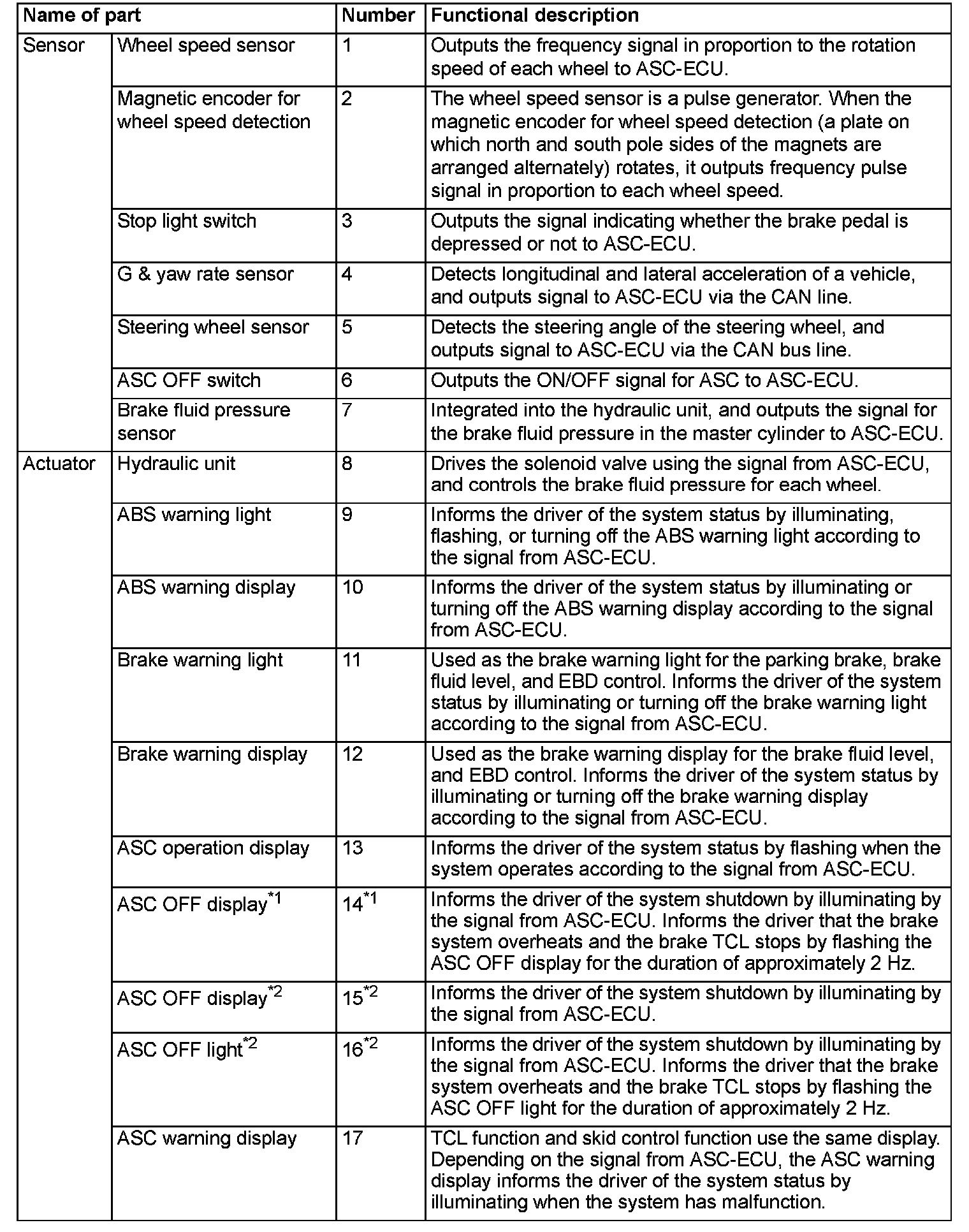

Part 1:

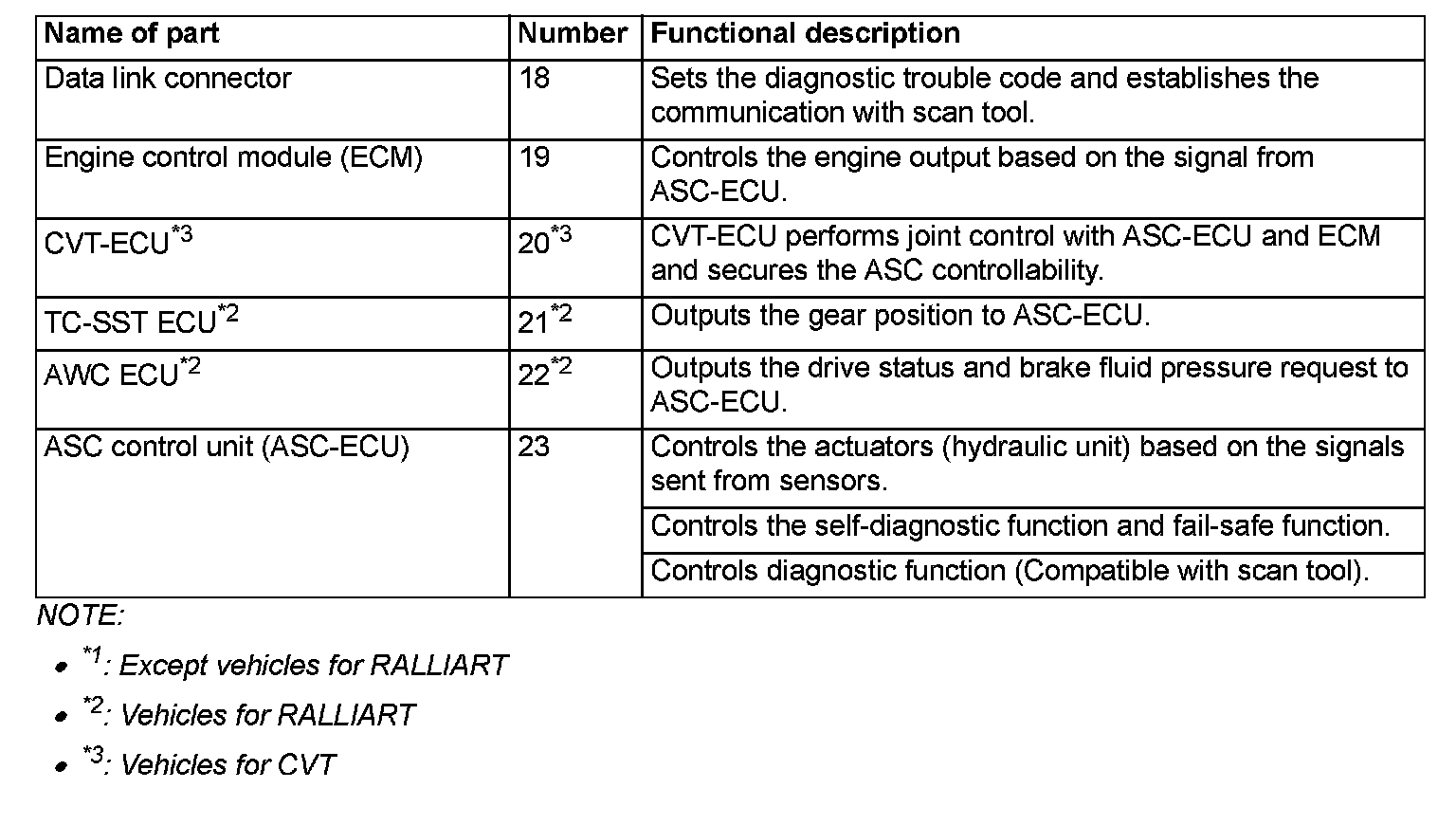

Part 2:

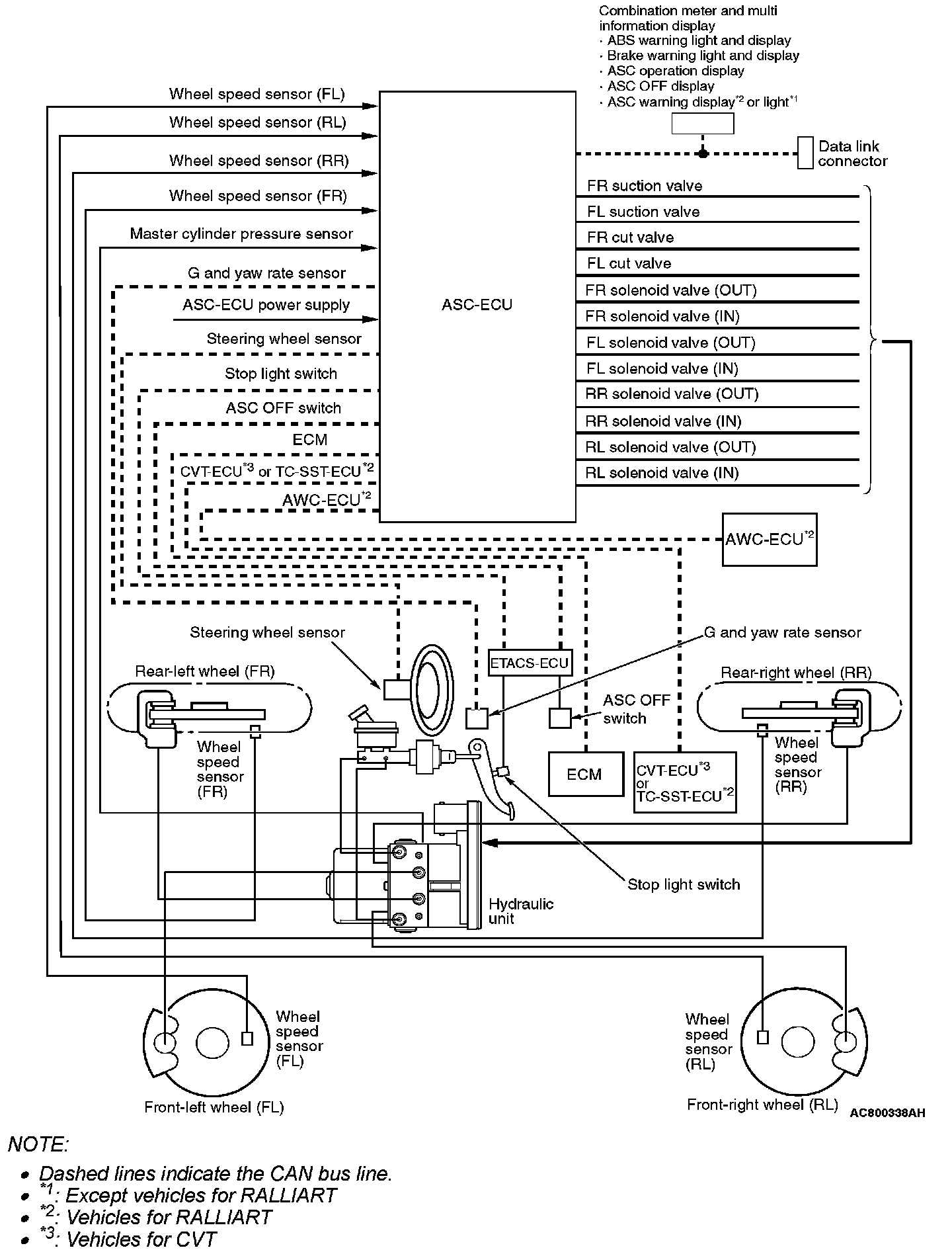

SCHEMATIC DIAGRAM





ASC ELECTRICAL DIAGRAM

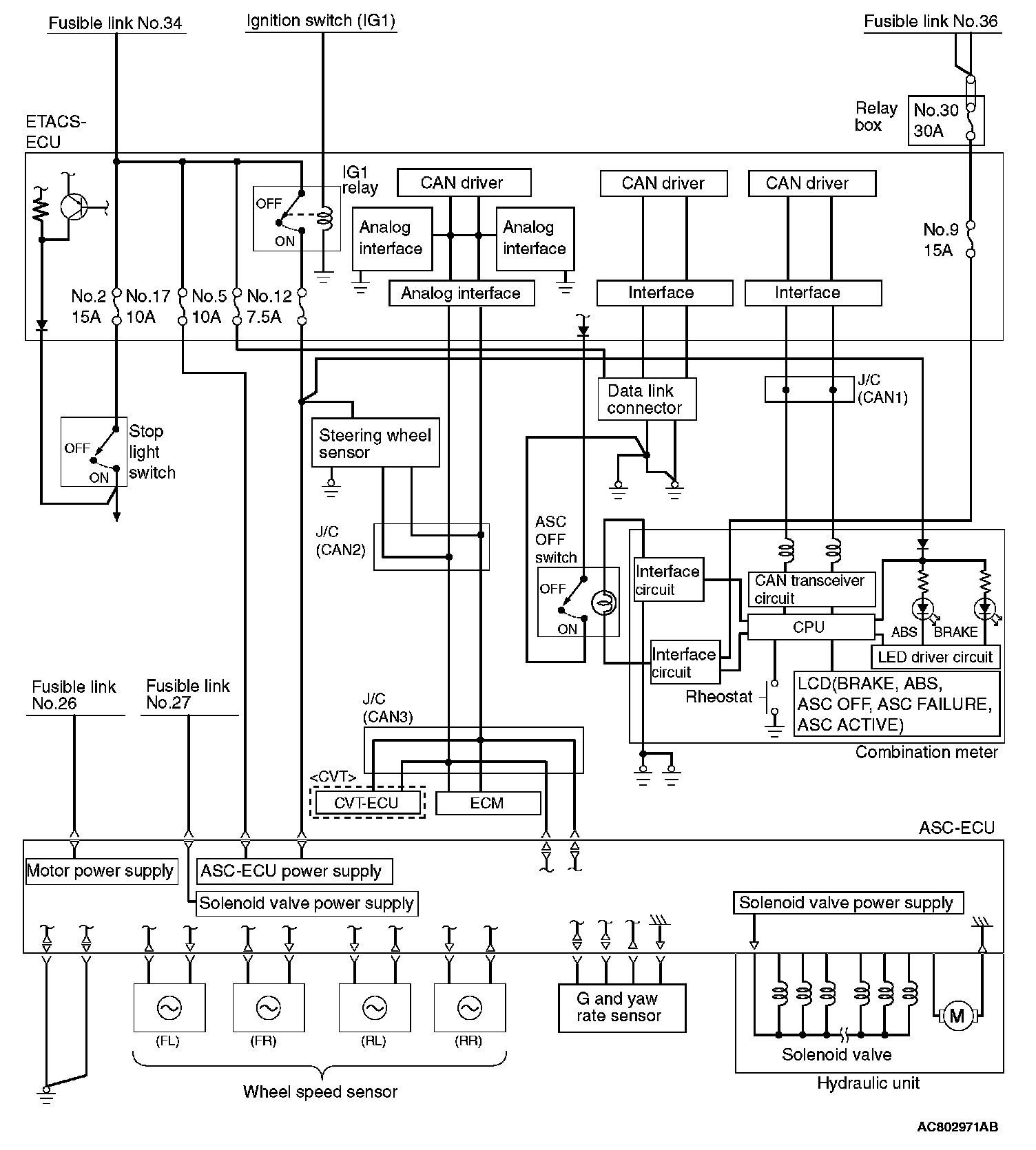

Except vehicles for RALLIART

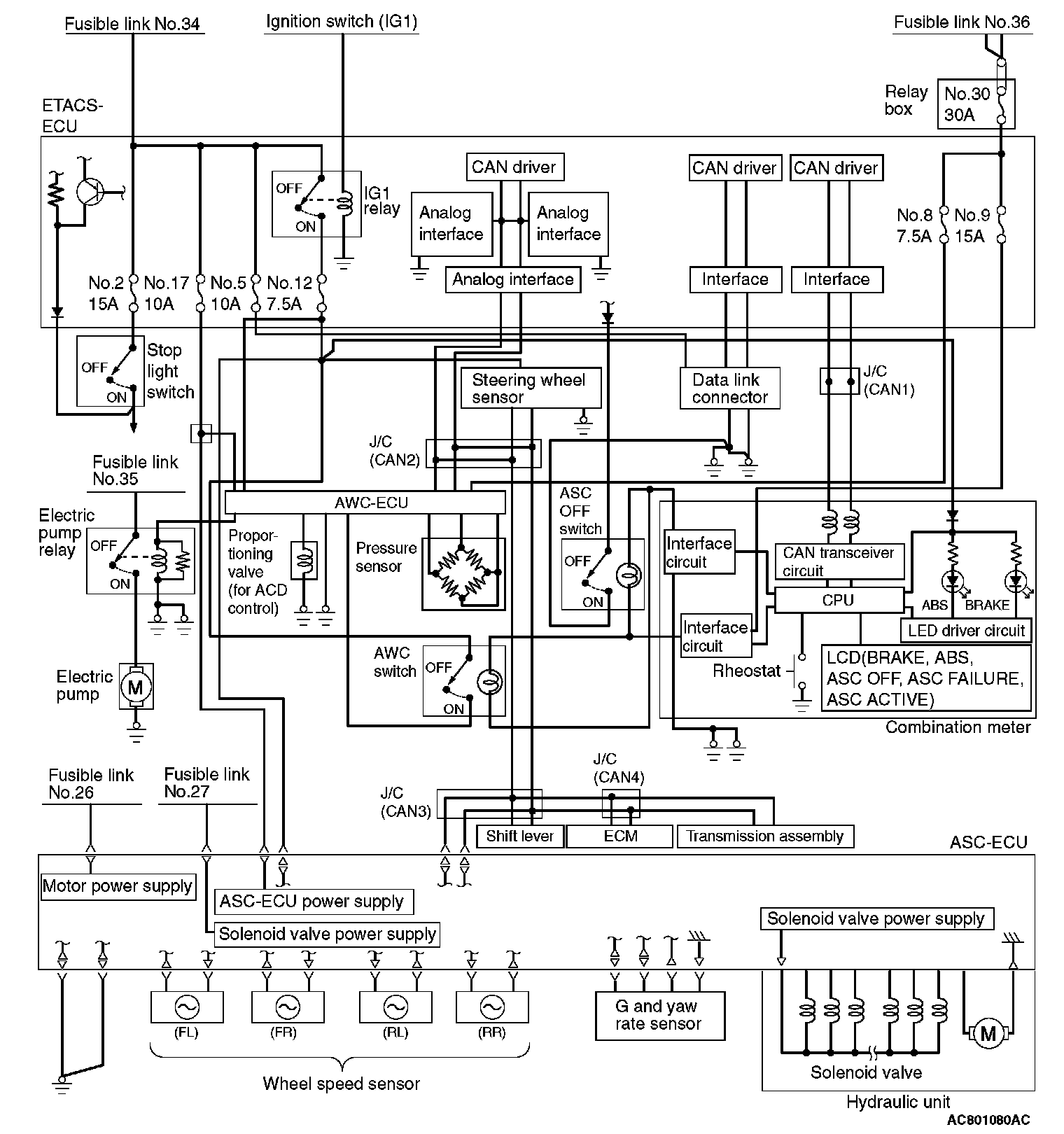

Vehicles for RALLIART
