Body - Body Repair Manual Updates

No: TSB-08-42B-008

DATE: December, 2008

MODEL: 2009 Lancer

SUBJECT:
BODY REPAIR MANUAL UPDATES FOR 2009 LANCER RALLIART - SMR

PURPOSE

To update the 2008 Technical Information and Body Repair Manual with information specific to the 2009 Lancer RALLIART.

AFFECTED VEHICLE(S)
2009 Lancer RALLIART

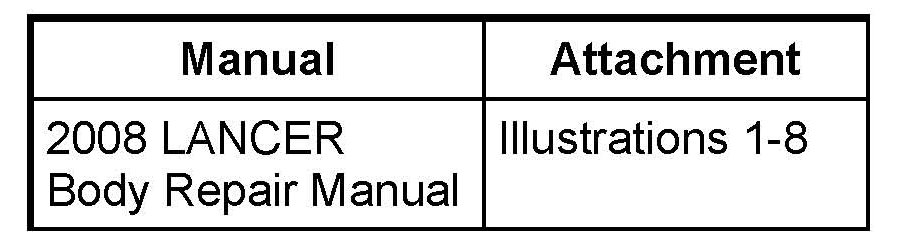

APPLICABLE MANUAL(S)





Illustrations 1

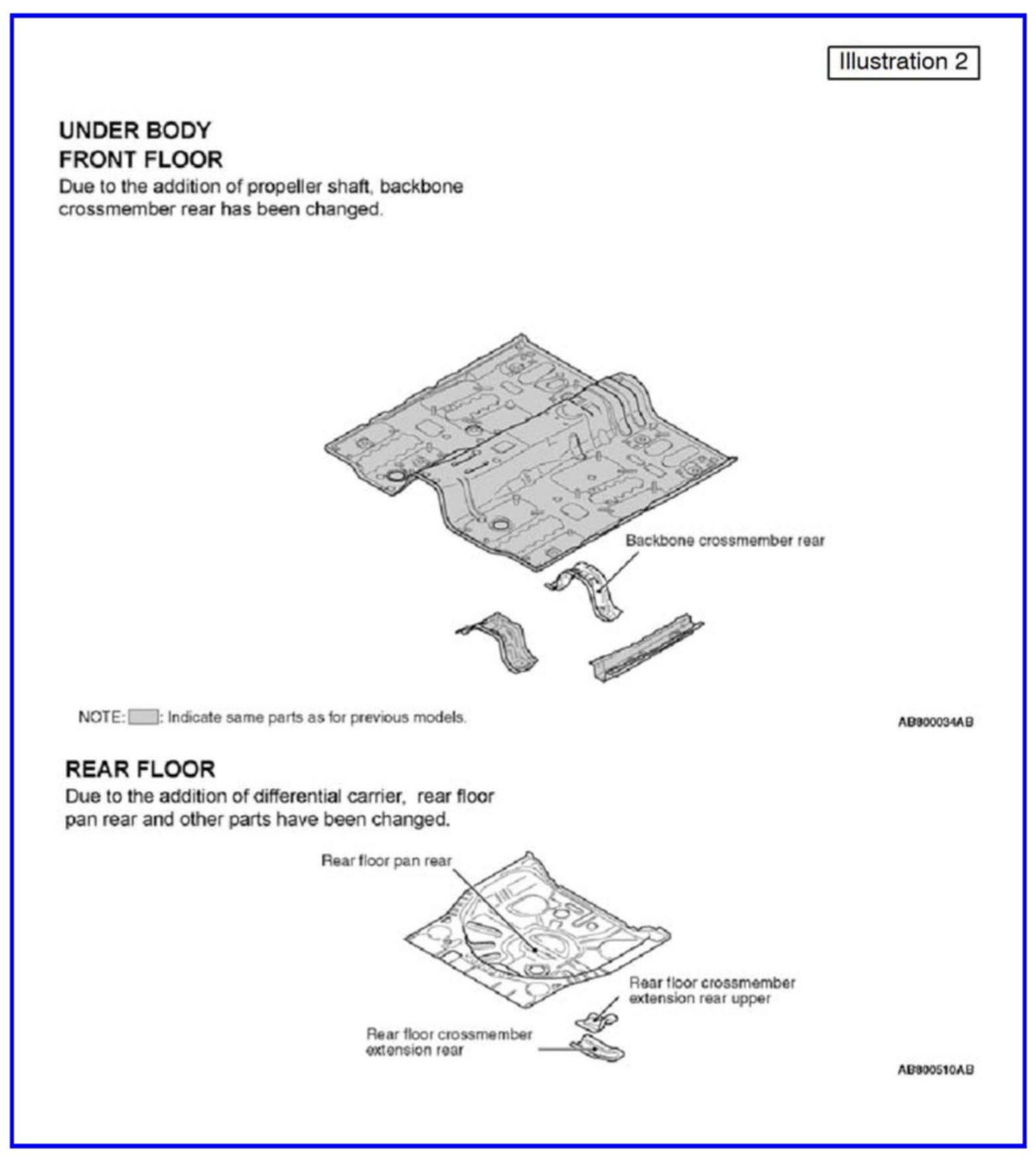

Illustrations 2

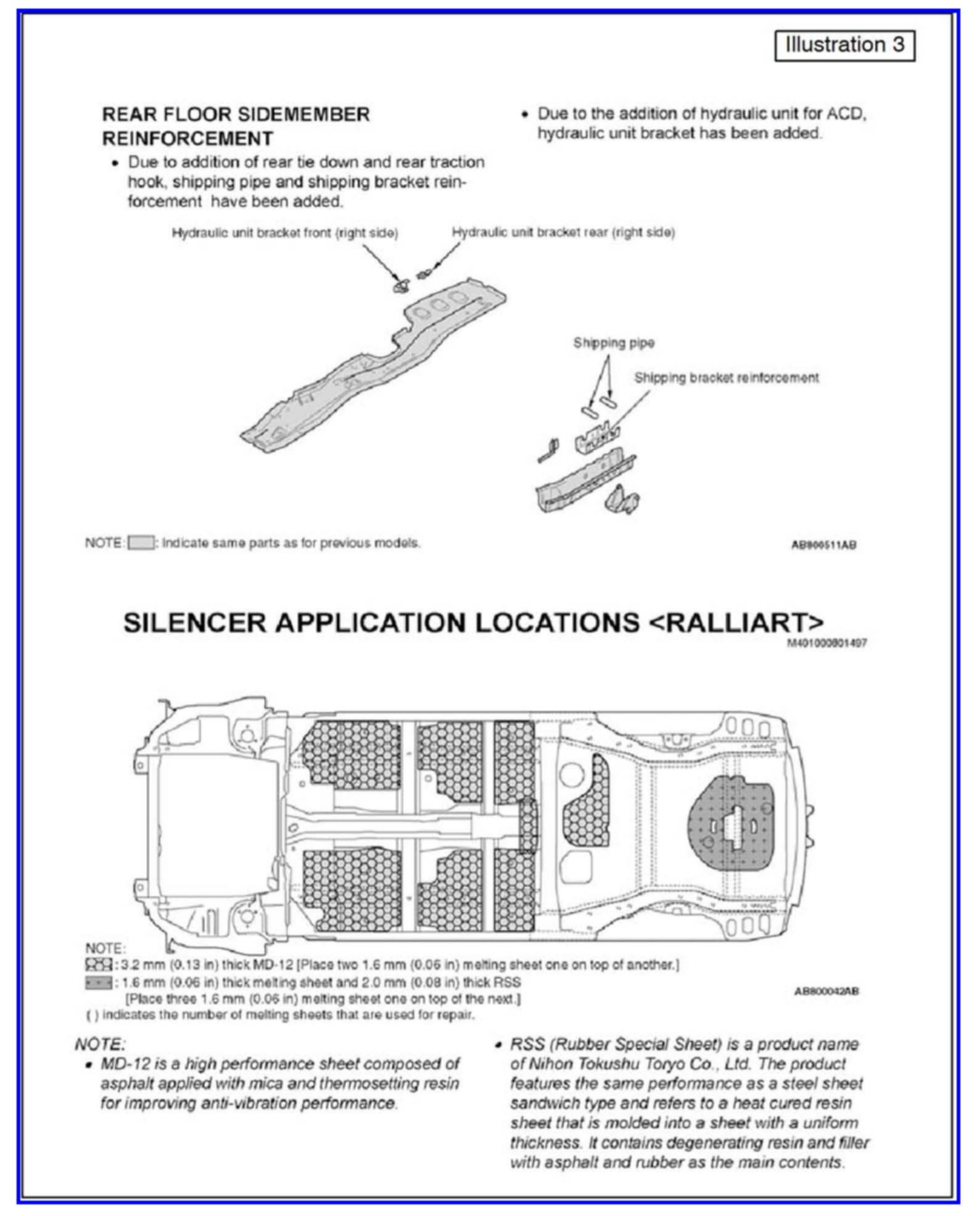

Illustrations 3

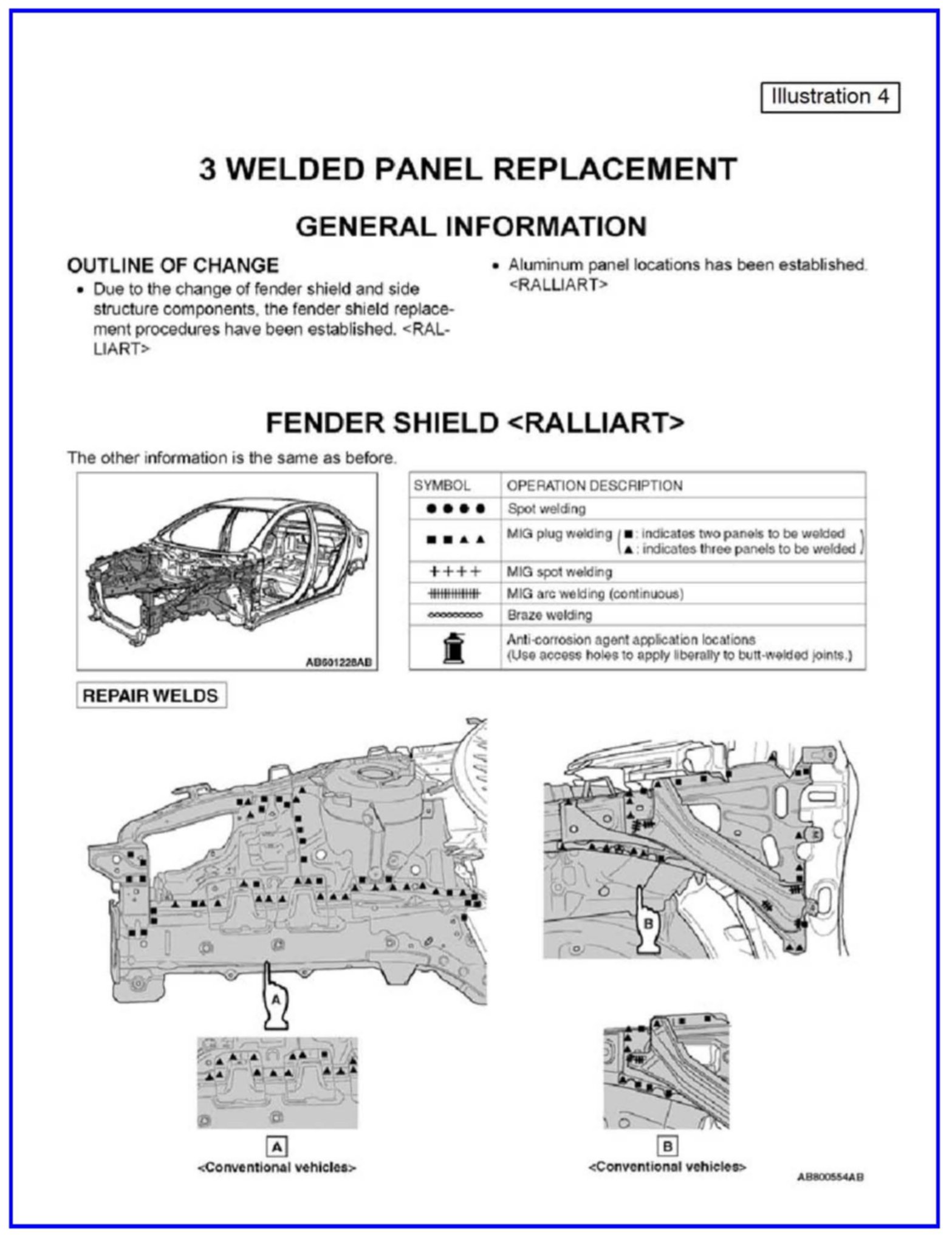

Illustrations 4

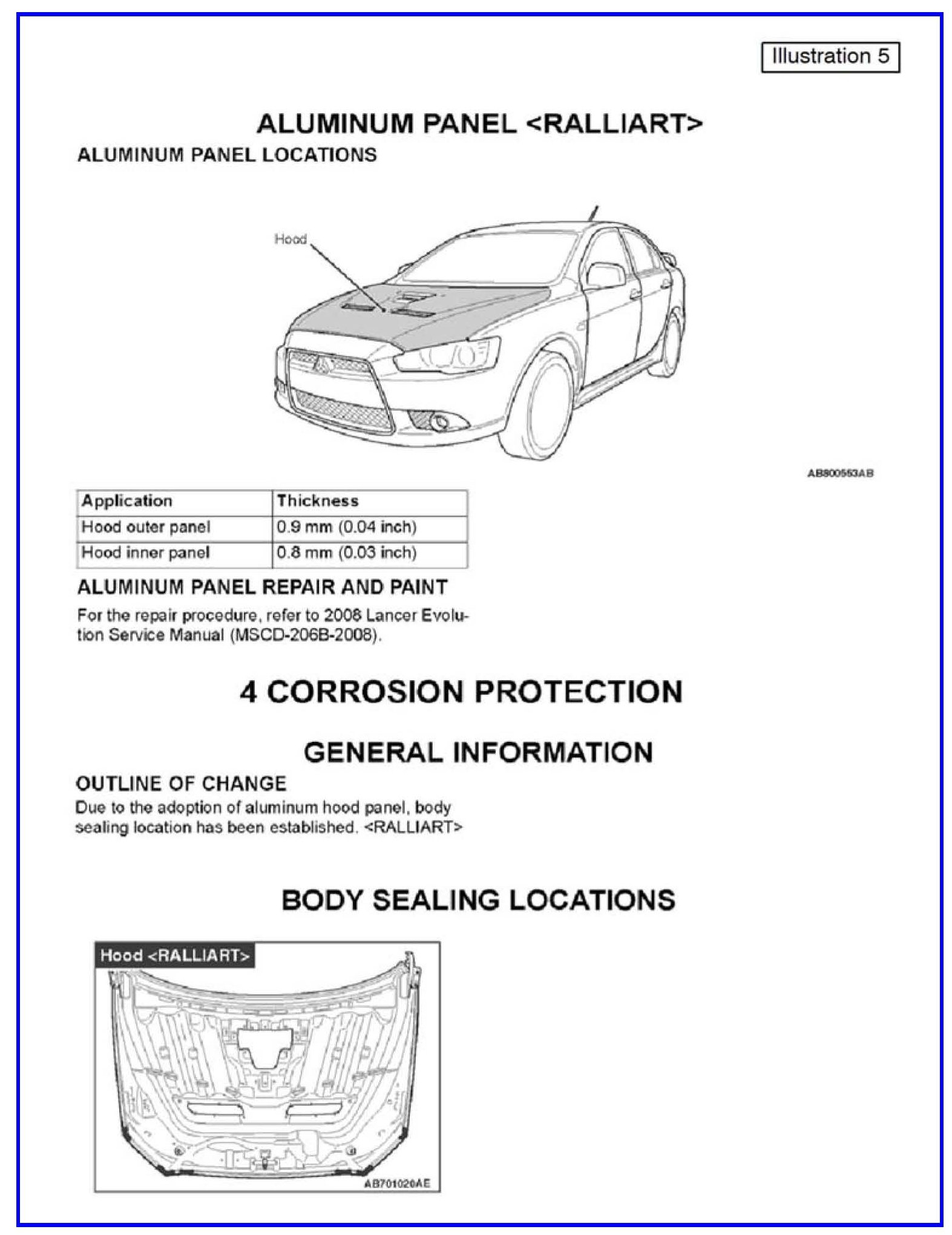

Illustrations 5

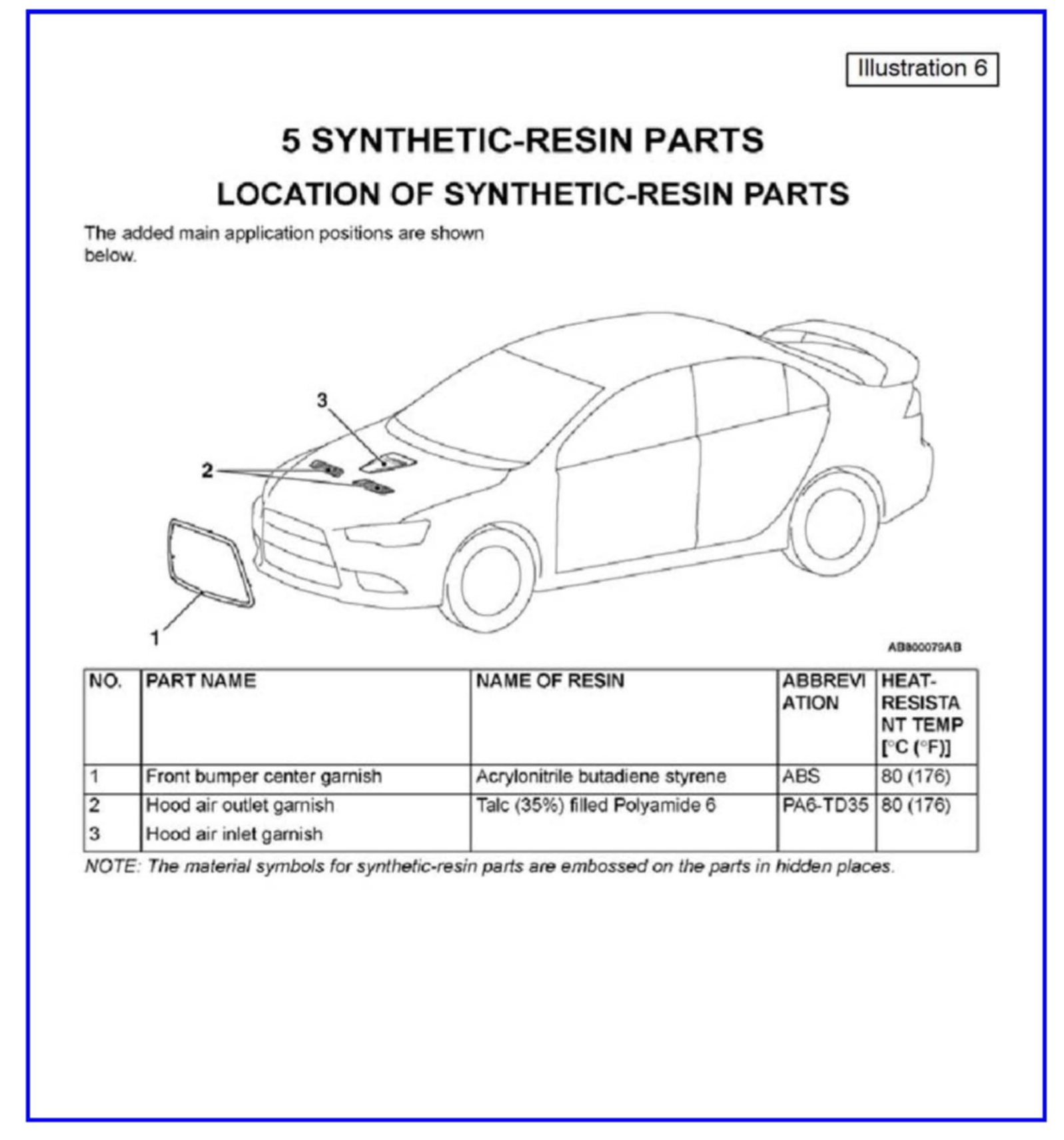

Illustrations 6

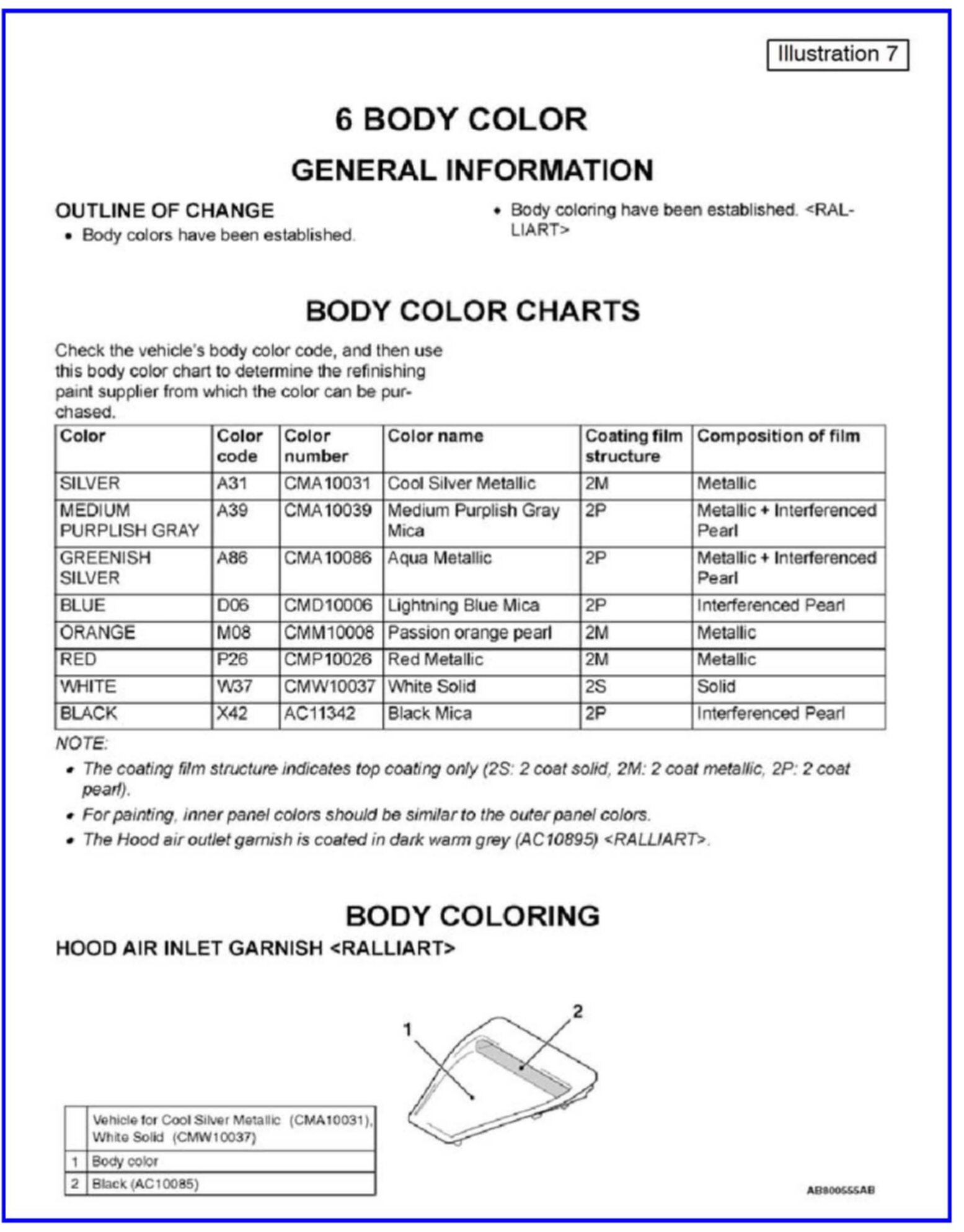

Illustrations 7

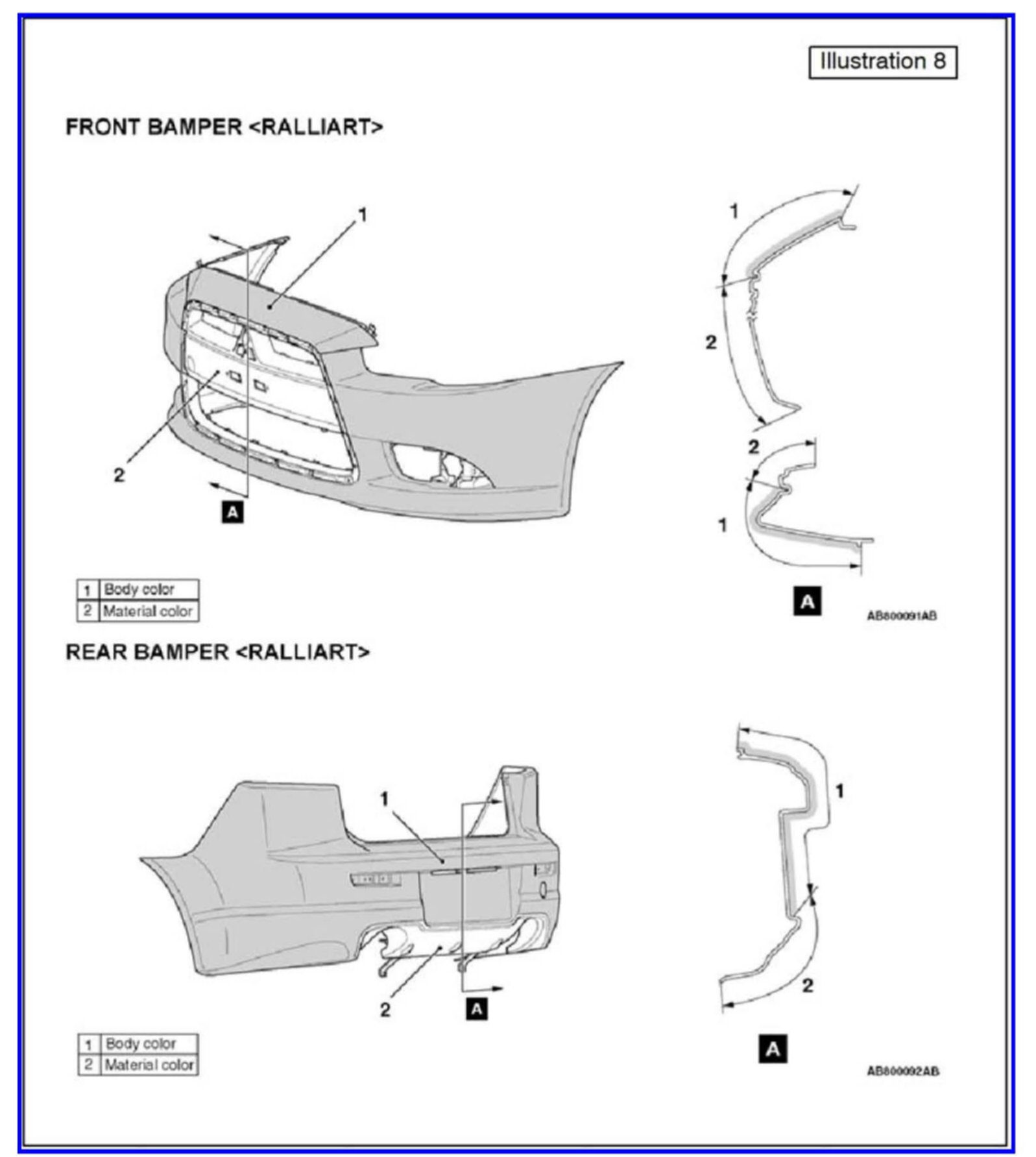

Illustrations 8
