Rear Seat

DISASSEMBLY AND ASSEMBLY

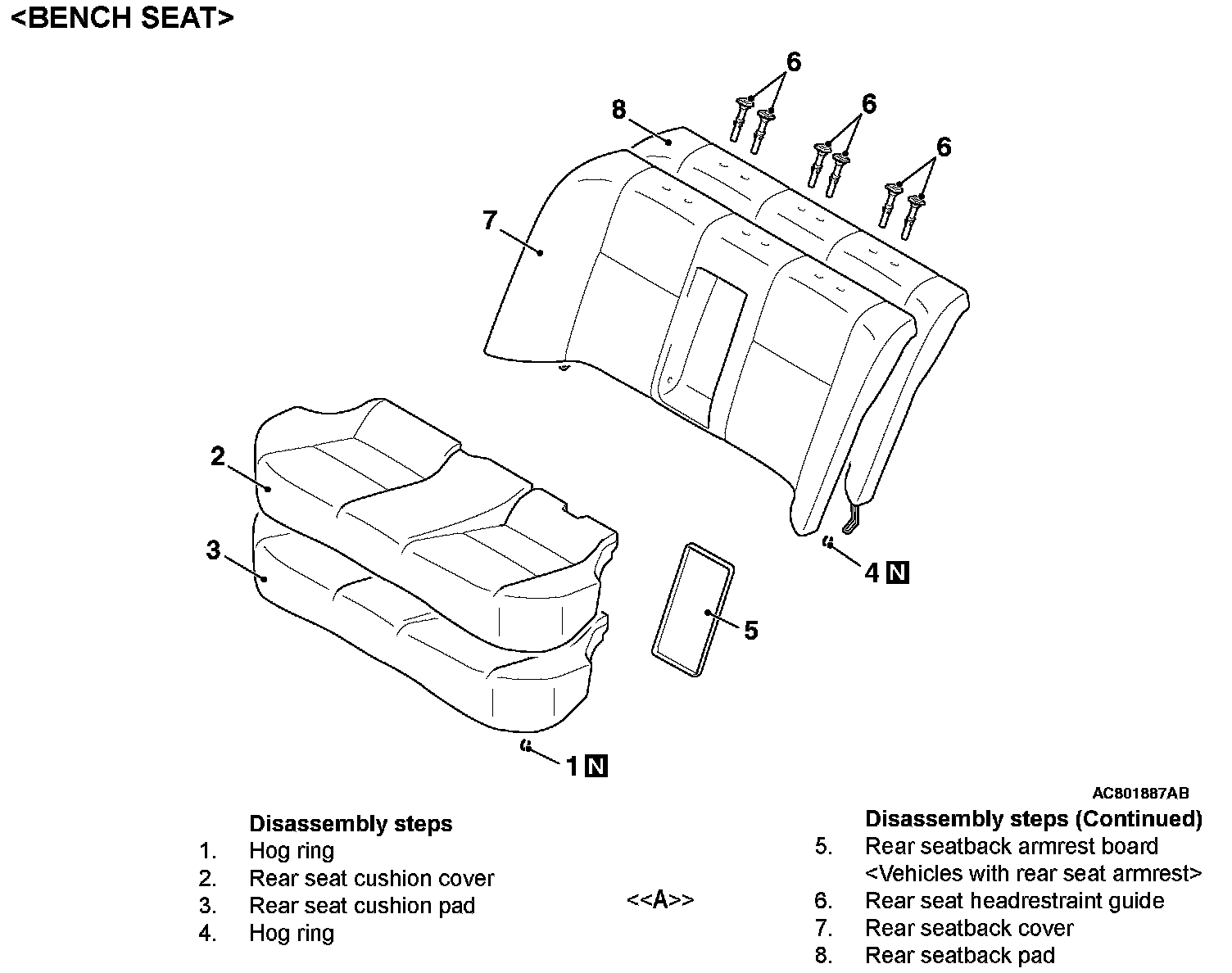

Disassembly Steps 1-8:

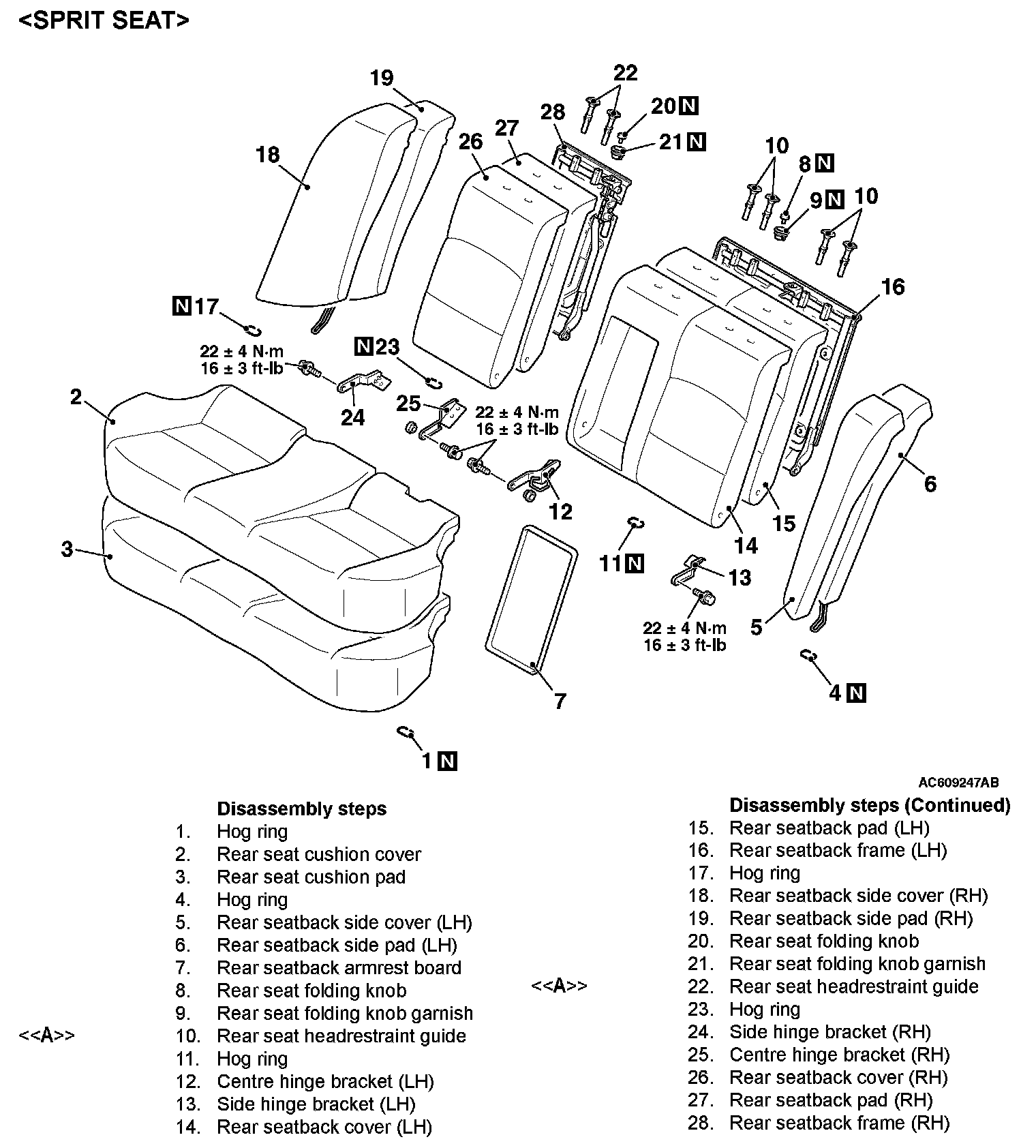

Disassembly Steps 1-28:

DISASSEMBLY SERVICE POINT

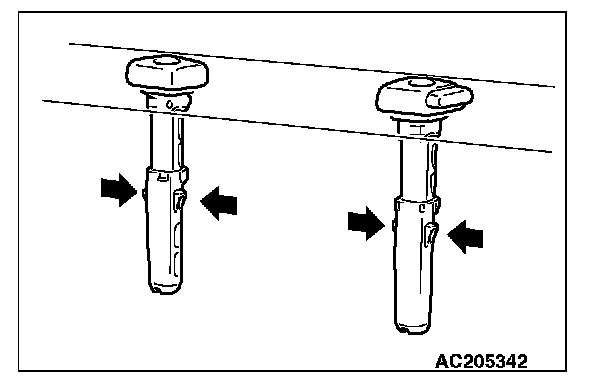

[[A]] HEADRESTRAINT GUIDE REMOVAL







Peel off the rear seatback cover and pad to access the head-restraint guides. Pull off the guides upwards while pushing the tabs (arrows) as shown.
