Front Seat

DISASSEMBLY AND ASSEMBLY

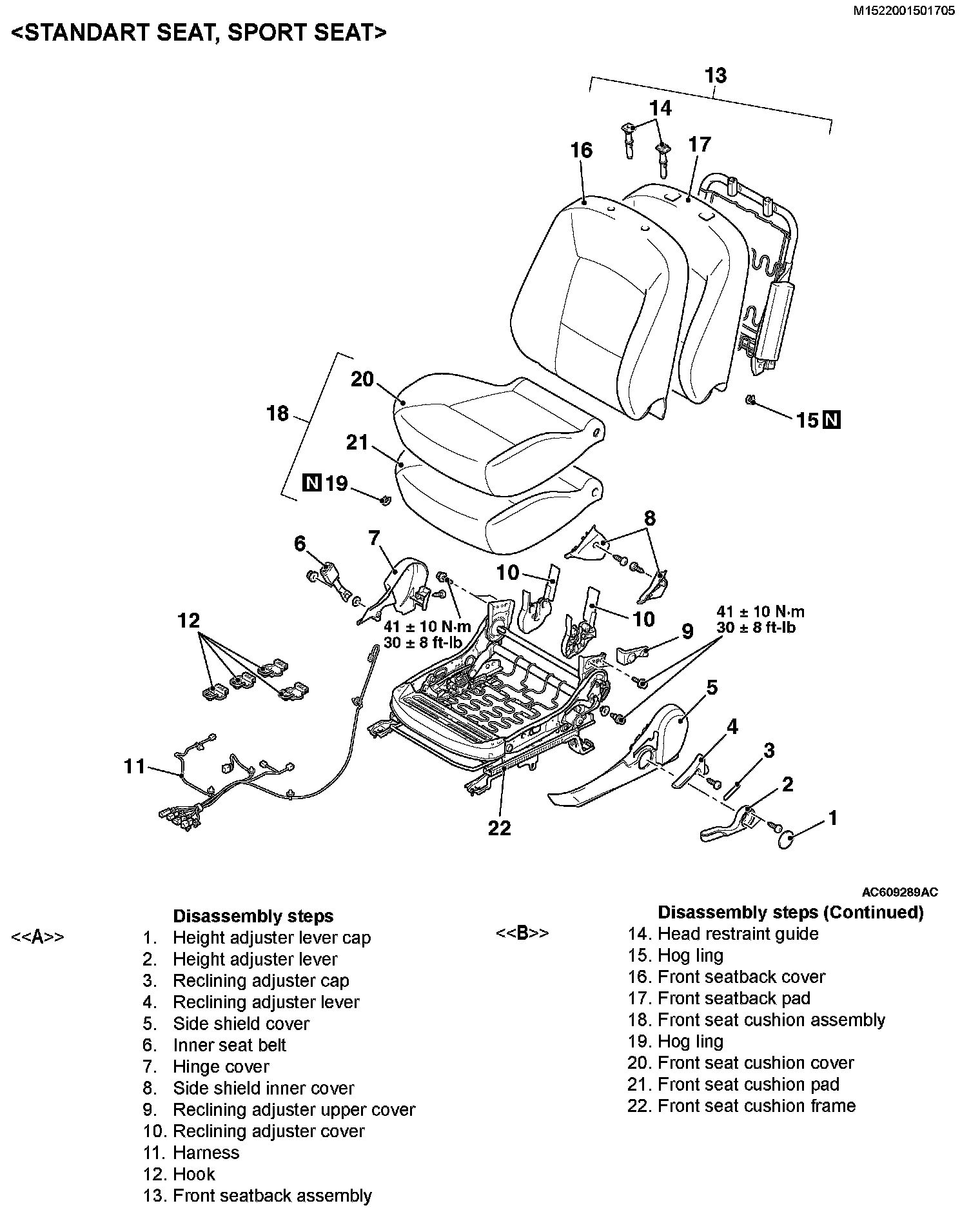

Disassembly Steps 1-22:

Required Special Tool:
- MB990784: Ornament Remover

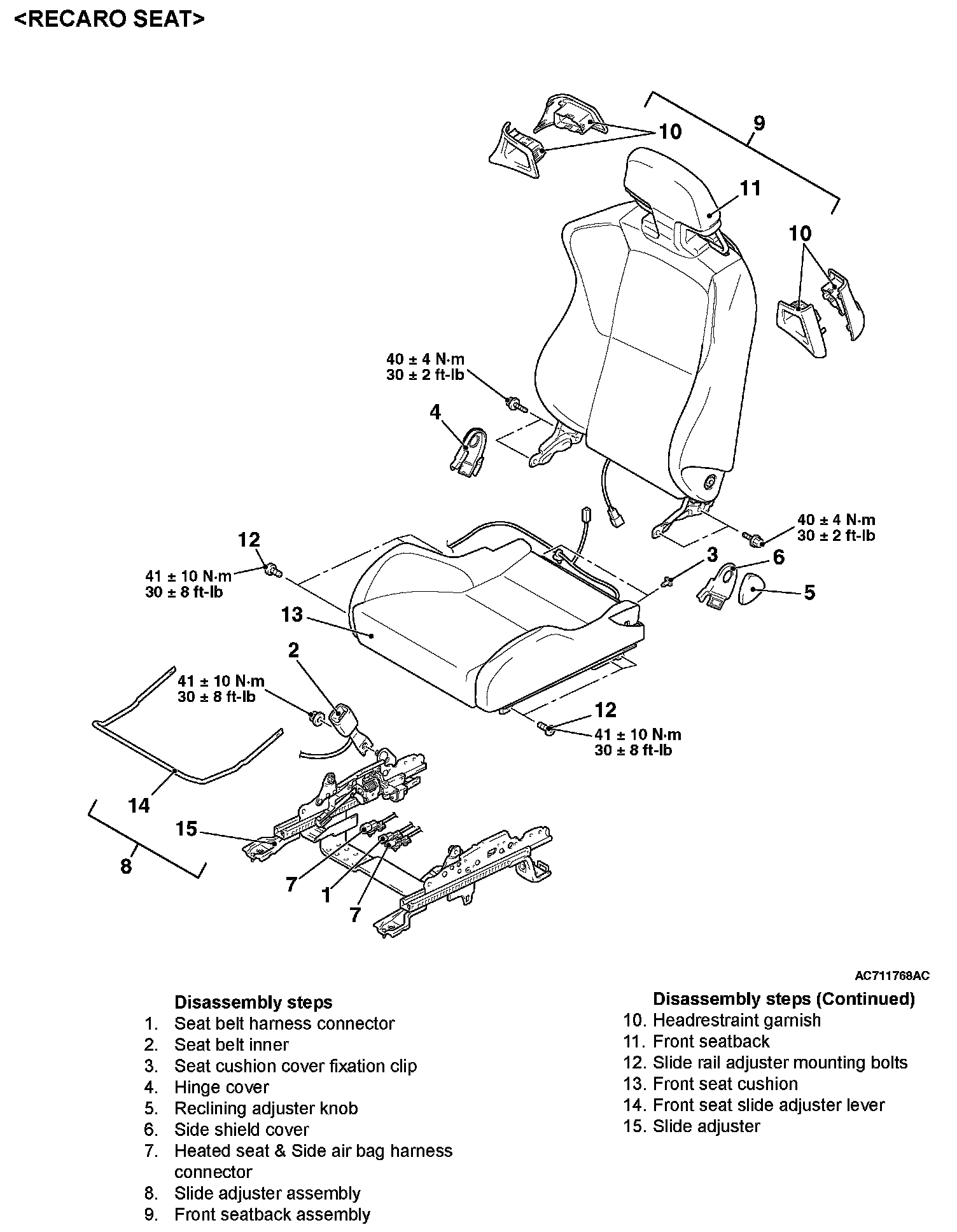

Removal Steps 1-15:

Required Special Tool:
- MB990784: Ornament Remover

DISASSEMBLY SERVICE POINTS

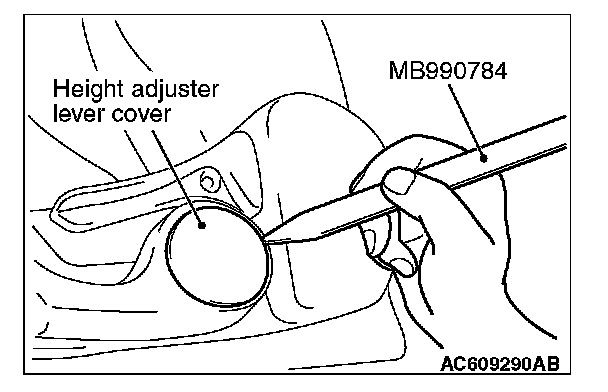

[[A]] HEIGHT ADJUSTER CAP REMOVAL







Use special tool MB990784 as shown to remove the height adjuster lever cover.

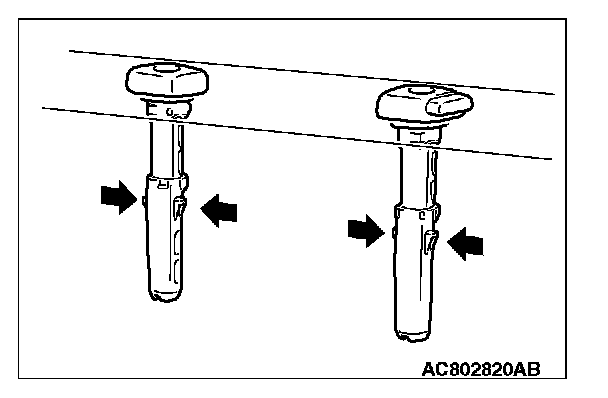

[[B]] HEADRESTRAINT GUIDE REMOVAL







Peel of the front seatback cover and pad to access the head restraint guides. Pull off the guides upwards while pushing the tabs (arrows) as shown.
