Removal and Replacement

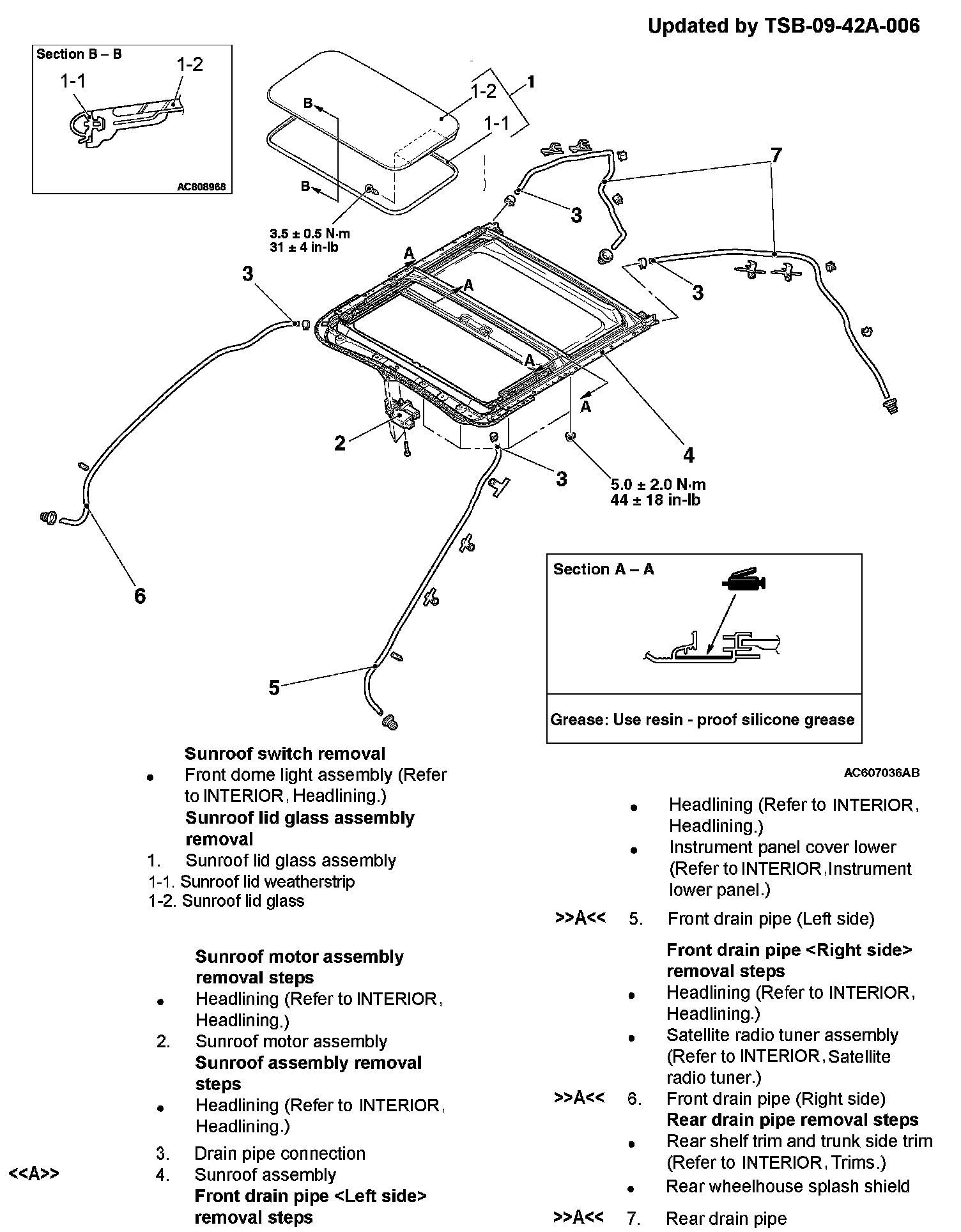

SUNROOFSUNROOF ASSEMBLY REMOVAL AND INSTALLATION
Post-installation Operation:
Removal Steps 1-2:
REMOVAL SERVICE POINT

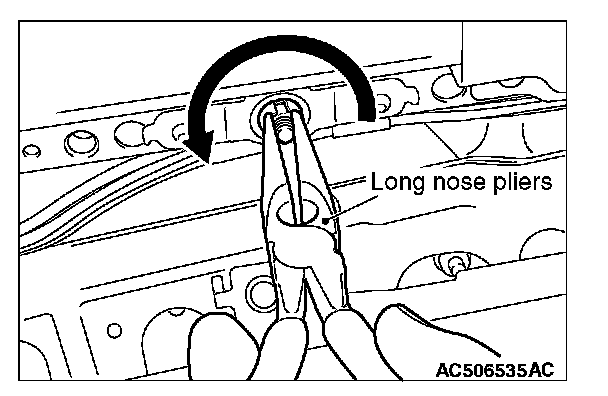

[[A]] SUNROOF ASSEMBLY REMOVAL
Use a pair of long nose pliers or the like to remove the sunroof assembly while turning it in the direction shown in the figure.
INSTALLATION SERVICE POINT

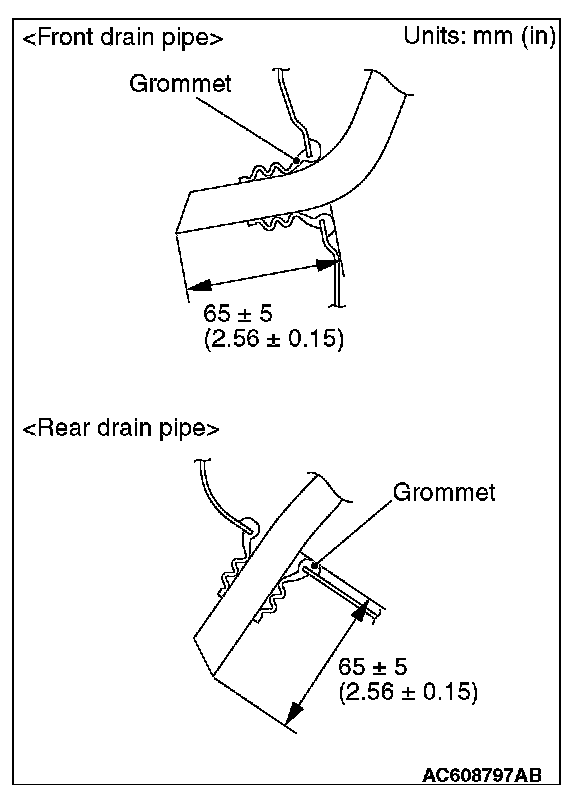

]]A[[ FRONT DRAIN PIPE/REAR DRAIN PIPE INSTALLATION
Install the grommet, and adjust the drain pipe projection as shown.
