Front Fender: Service and Repair
FENDERREMOVAL AND INSTALLATION

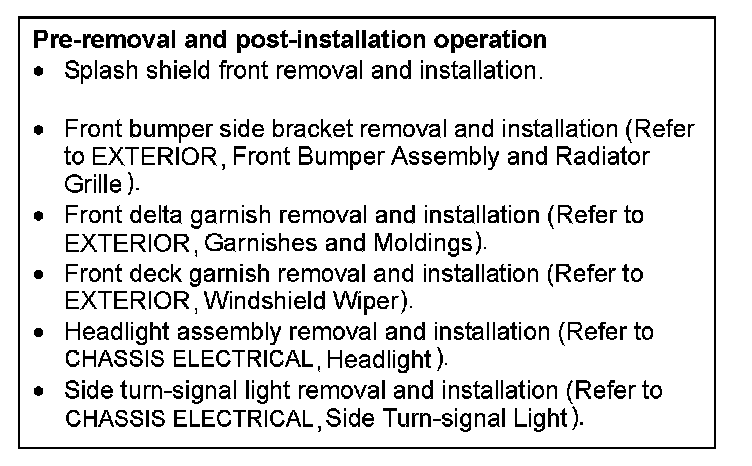

Pre-removal And Post-installation Operation:

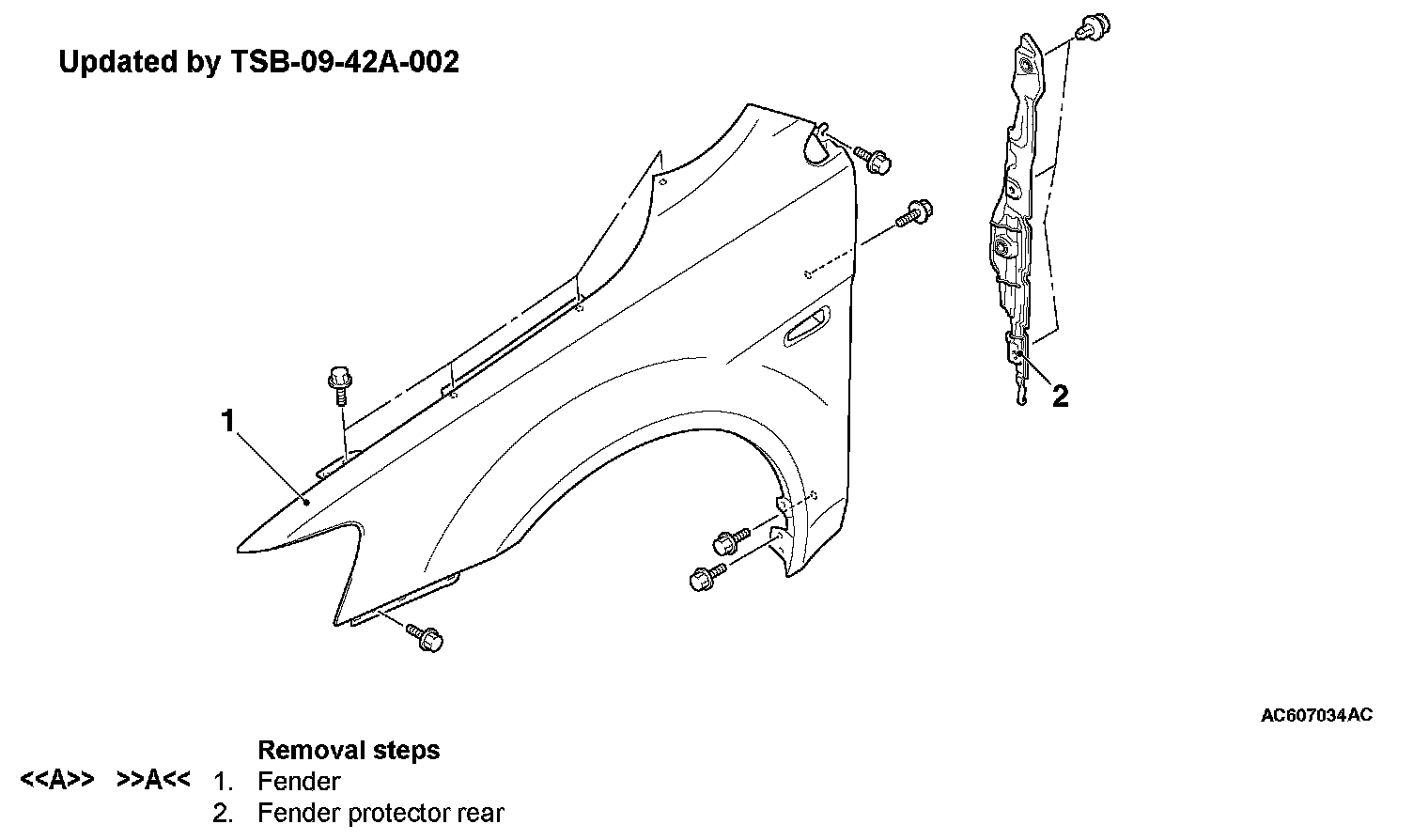

Removal Steps 1-2:
REMOVAL SERVICE POINT
[[A]] FENDER REMOVAL
1. Remove the fender protector rear clips.

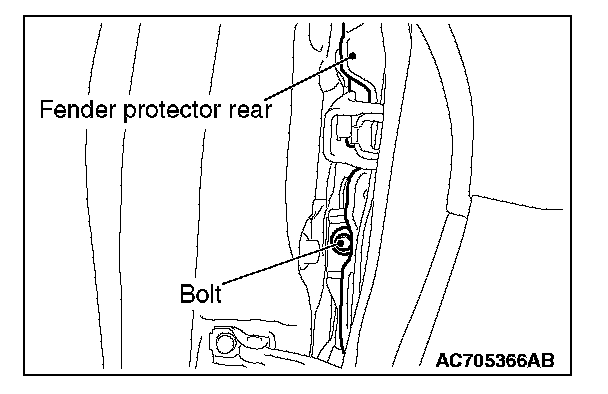

2. Slide the fender protector rear to access and remove the bolt as shown in the illustration.
INSTALLATION SERVICE POINT
]]A[[ FENDER INSTALLATION
1. Temporarily install the fender protector rear to the fender.
2. Install the fender to the body with the bolt shown not installed.
3. Slide the temporarily-installed fender protector rear and tighten the bolt.
