Garnishes and Moldings

GARNISHES AND MOLDINGS

REMOVAL AND INSTALLATION

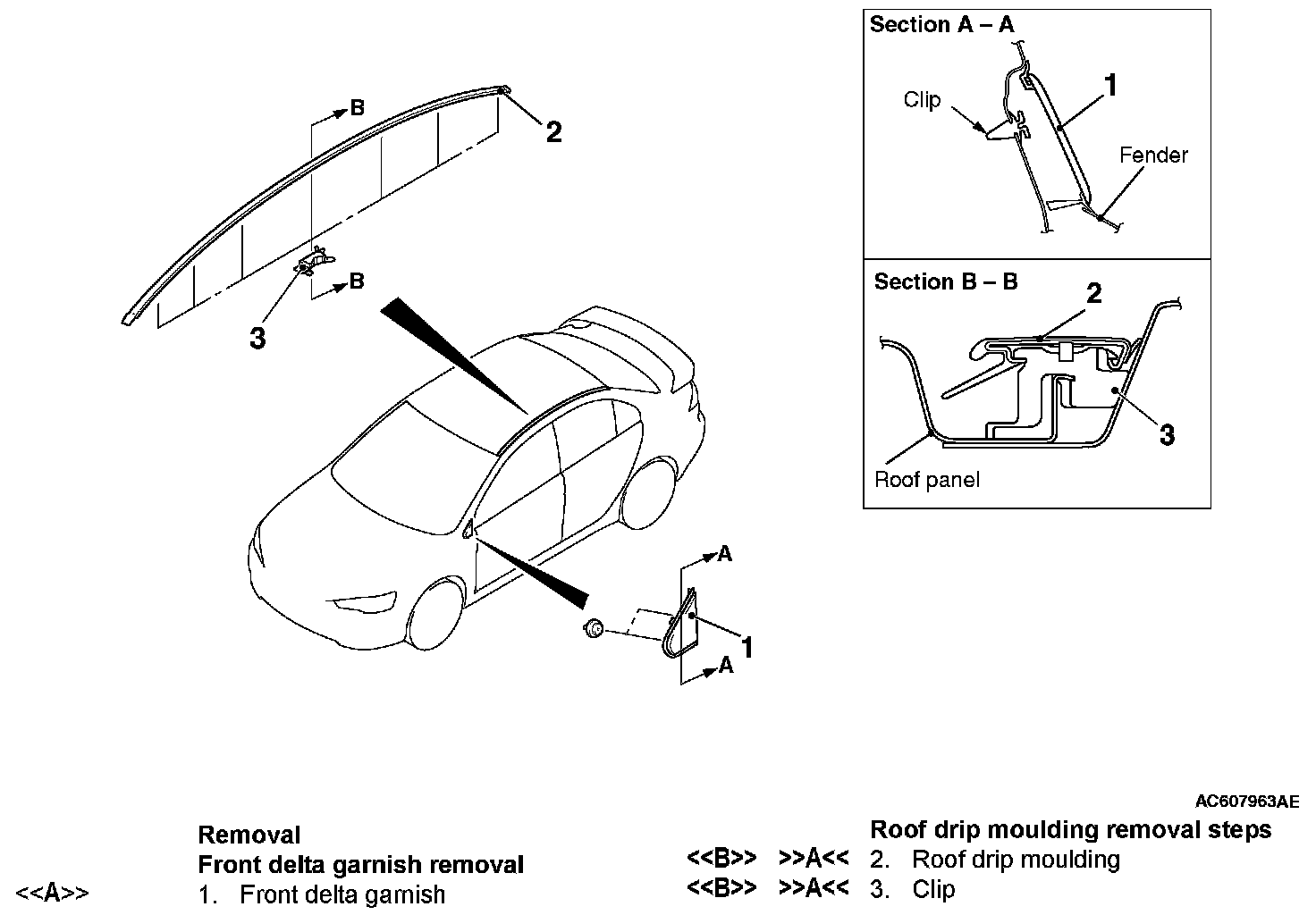

Removal Steps 1-3:

Required Special Tool:
- MB990784: Ornament remover

REMOVAL SERVICE POINTS

[[A]] FRONT DELTA GARNISH REMOVAL

Use the special tool ornament remover (MB990784) to pry out the front delta garnish.

[[B]] CLIPS/ROOF DRIP MOULDING REMOVAL

CAUTION: Remove the roof drip moulding from front to rear or opposite direction in order.

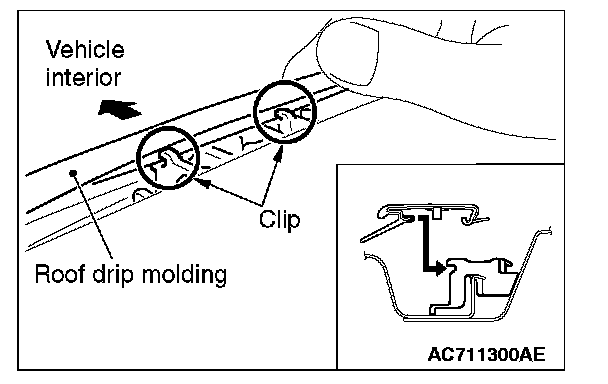

1. Pull up the roof drip moulding inner side to remove the clips beneath it attached on the roof channel.

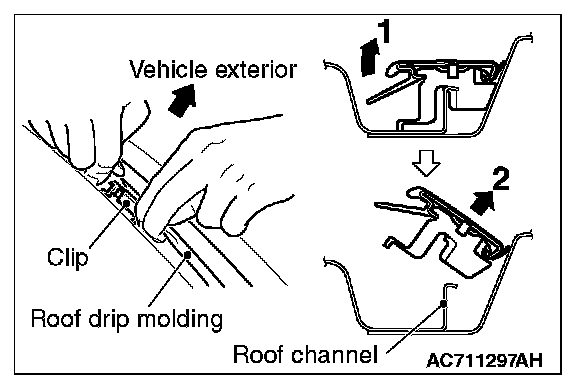

2. Rotate the roof drip moulding together with clips toward vehicle exterior and remove them from roof channel.

INSTALLATION SERVICE POINT

]]A[[ CLIPS/ROOF DRIP MOULDING INSTALLATION

CAUTION: Install the roof drip moulding from front to rear or opposite direction in order.

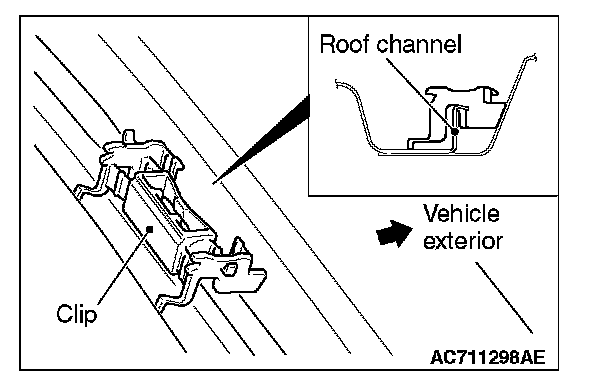

1. Remove the clips from the roof drip moulding and attach them to the roof channel.







2. Engage the projected portion of the roof drip moulding to the 2 recessed portions of each clip.
3. Push down the roof drip moulding securely so that it is installed to the clips on the roof channel.
