Trunk / Liftgate: Adjustments

ON-VEHICLE SERVICE

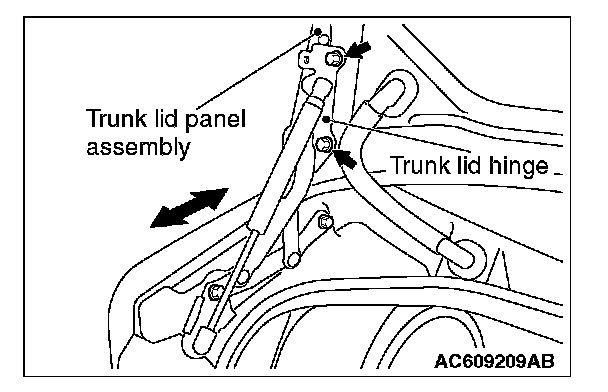

ADJUSTMENT OF CLEARANCE AROUND TRUNK LID







Loosen the trunk lid panel assembly mounting bolts and move the trunk lid panel assembly to make the clearance around the trunk lid uniform.

TRUNK LID HEIGHT ADJUSTMENT

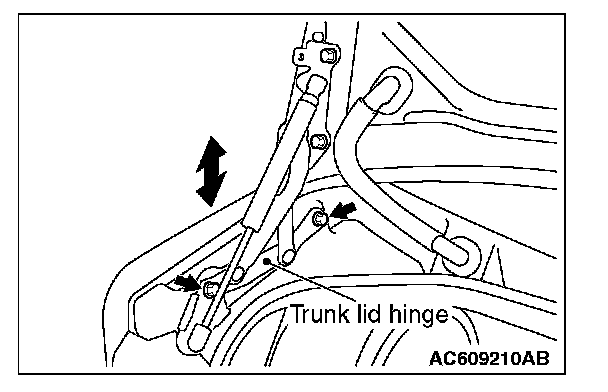

ADJUSTMENT AT BODY-SIDE







If the height between the trunk lid and the body is uneven, adjust the height in the following manner.
1. Loosen the body-side trunk lid hinge mounting bolts.
2. Adjust the height.
3. Tighten the hinge mounting bolts

Specified torque: 23 ± 6 N.m (17 ± 4 ft-lb)
