Hood: Service and Repair

HOOD

Hood Removal And Installation [Except Ralliart]

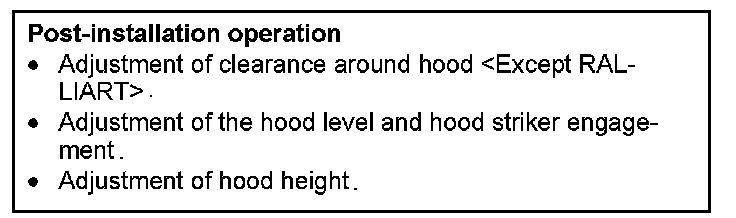

Post-installation Operation:

Removal Steps 1-12 (Part 1):

Removal Steps 1-12 (Part 2):

REMOVAL SERVICE POINTS

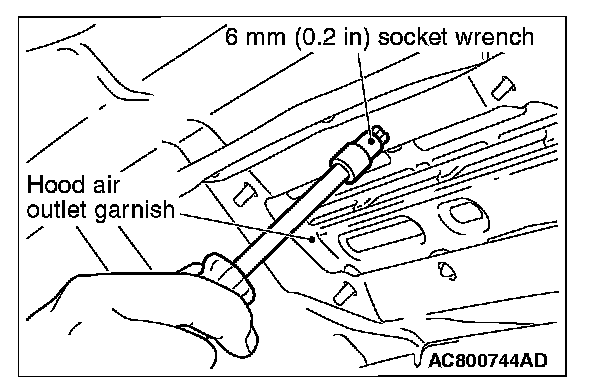

[[A]] HOOD AIR OUTLET GARNISH REMOVAL







Using 6 mm (0.2 in) socket wrench, push out the hood air outlet garnish assembling clips.

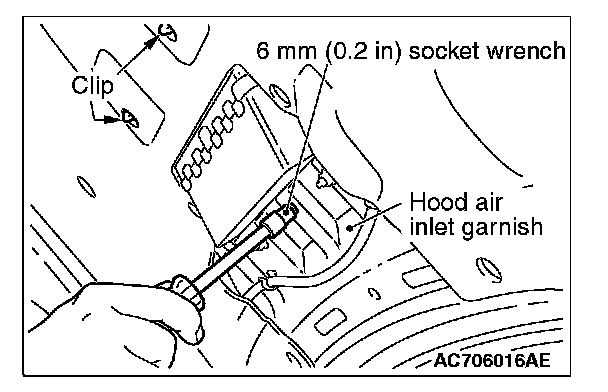

[[B]] HOOD AIR INLET GARNISH REMOVAL







Using 6 mm (0.2 in) socket wrench, push out the hood air inlet garnish assembling clips.
