Home >> Mitsubishi >> 2009 >> Lancer L4-2.0L (4B11) >> Repair and Diagnosis >> Body and Frame >> Body Control Systems >> Testing and Inspection >> Scan Tool Testing and Procedures >> Trouble Symptom Chart For Input Signal

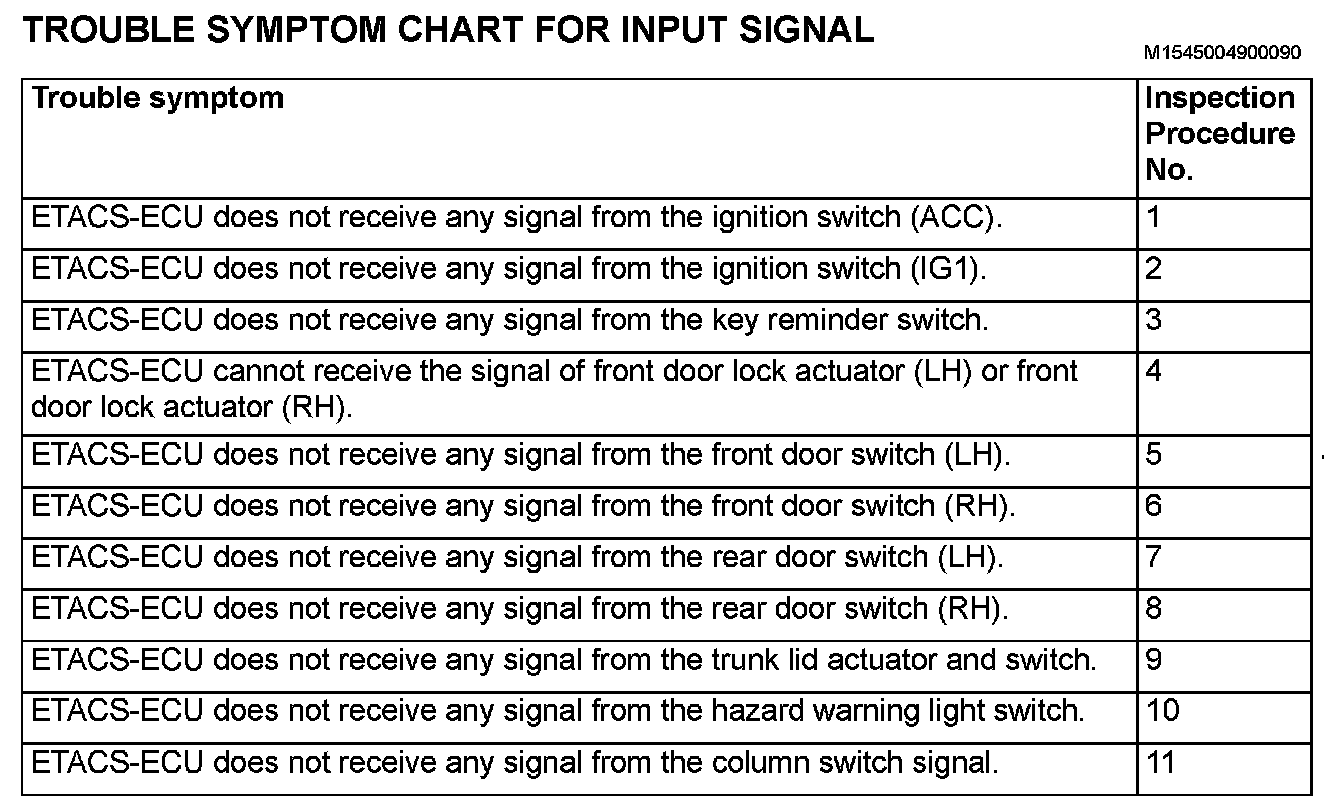

Trouble Symptom Chart For Input Signal

Trouble Symptom Chart For Input Signal:
