Repair and Diagnosis: Application and ID

VEHICLE IDENTIFICATION

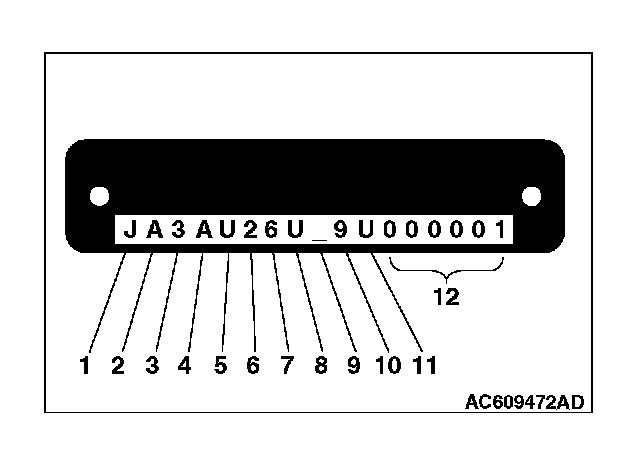

VEHICLE IDENTIFICATION NUMBER PLATE

VEHICLES IDENTIFICATION NUMBER LOCATION

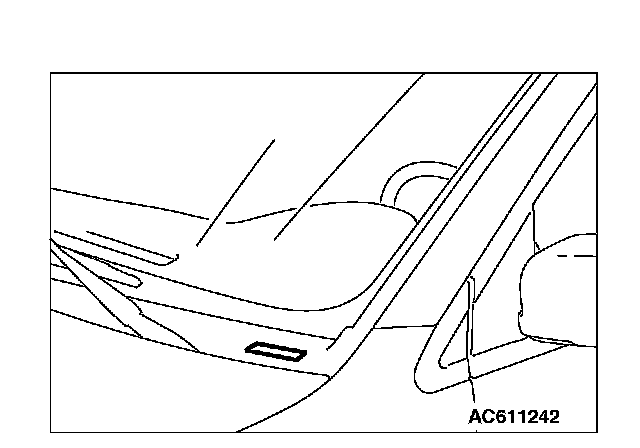

The vehicle identification number (VIN) plate is located on a plate attached to the left top side of the instrument panel.

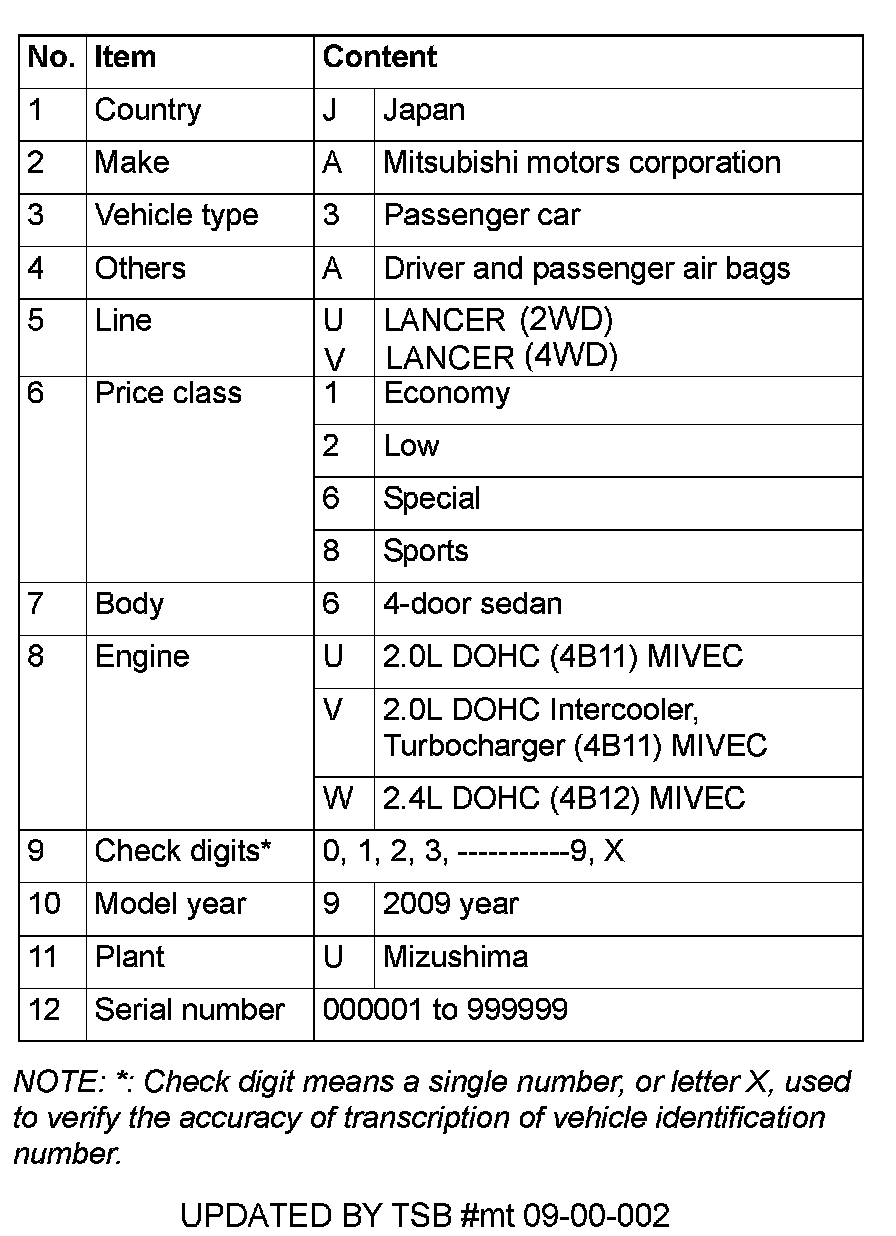

CODE CHART








VEHICLE IDENTIFICATION NUMBER LIST

VEHICLES FOR USA

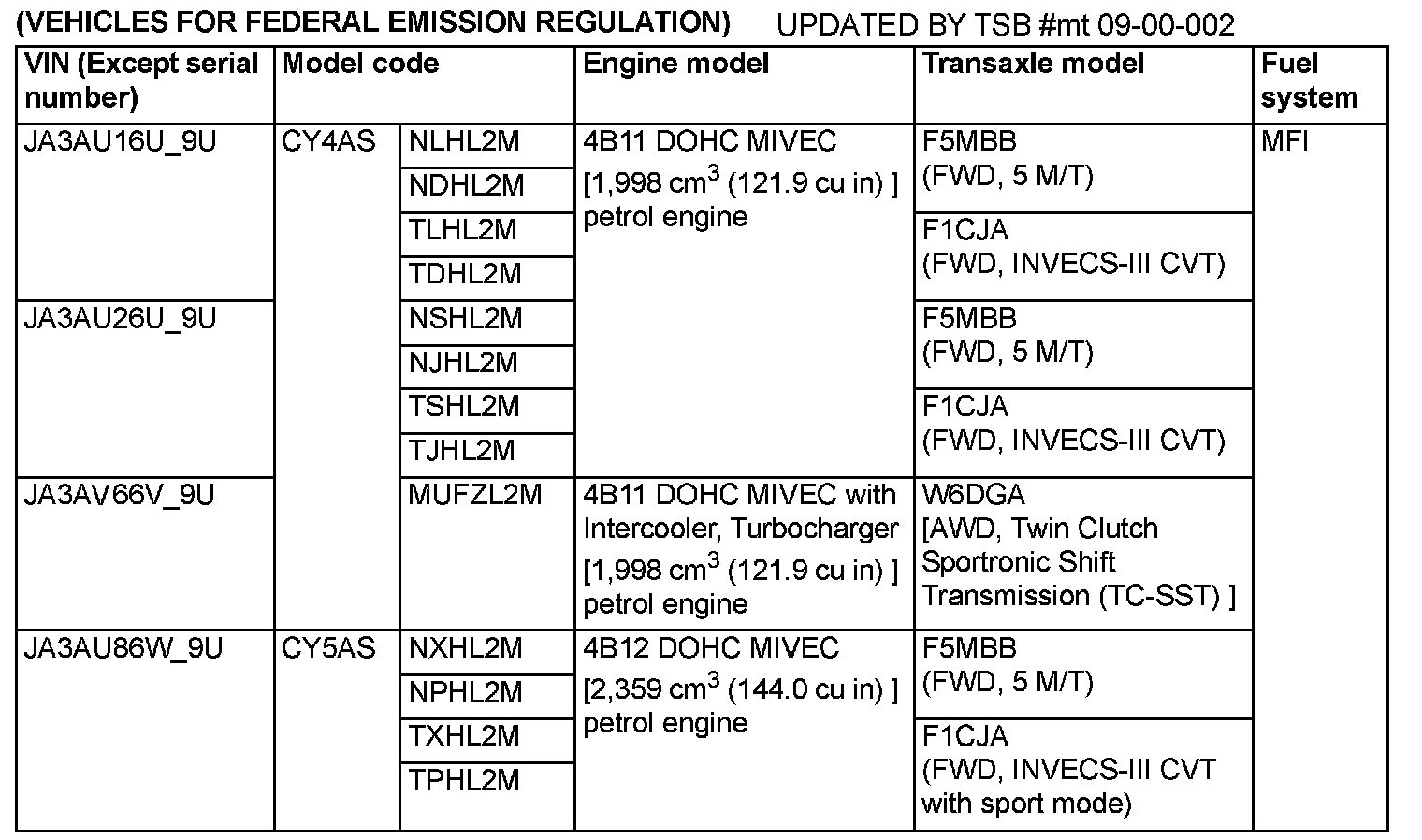

VEHICLES FOR FEDERAL EMISSION REGULATION:

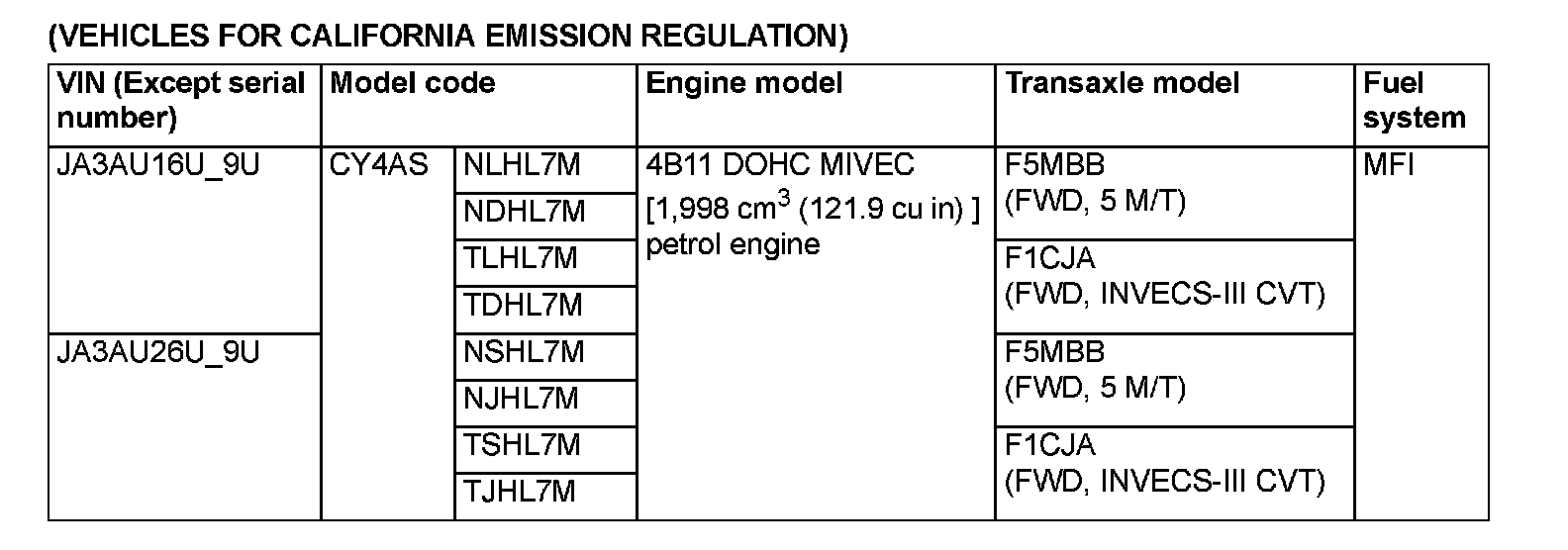

VEHICLES FOR CALIFORNIA EMISSION REGULATION:

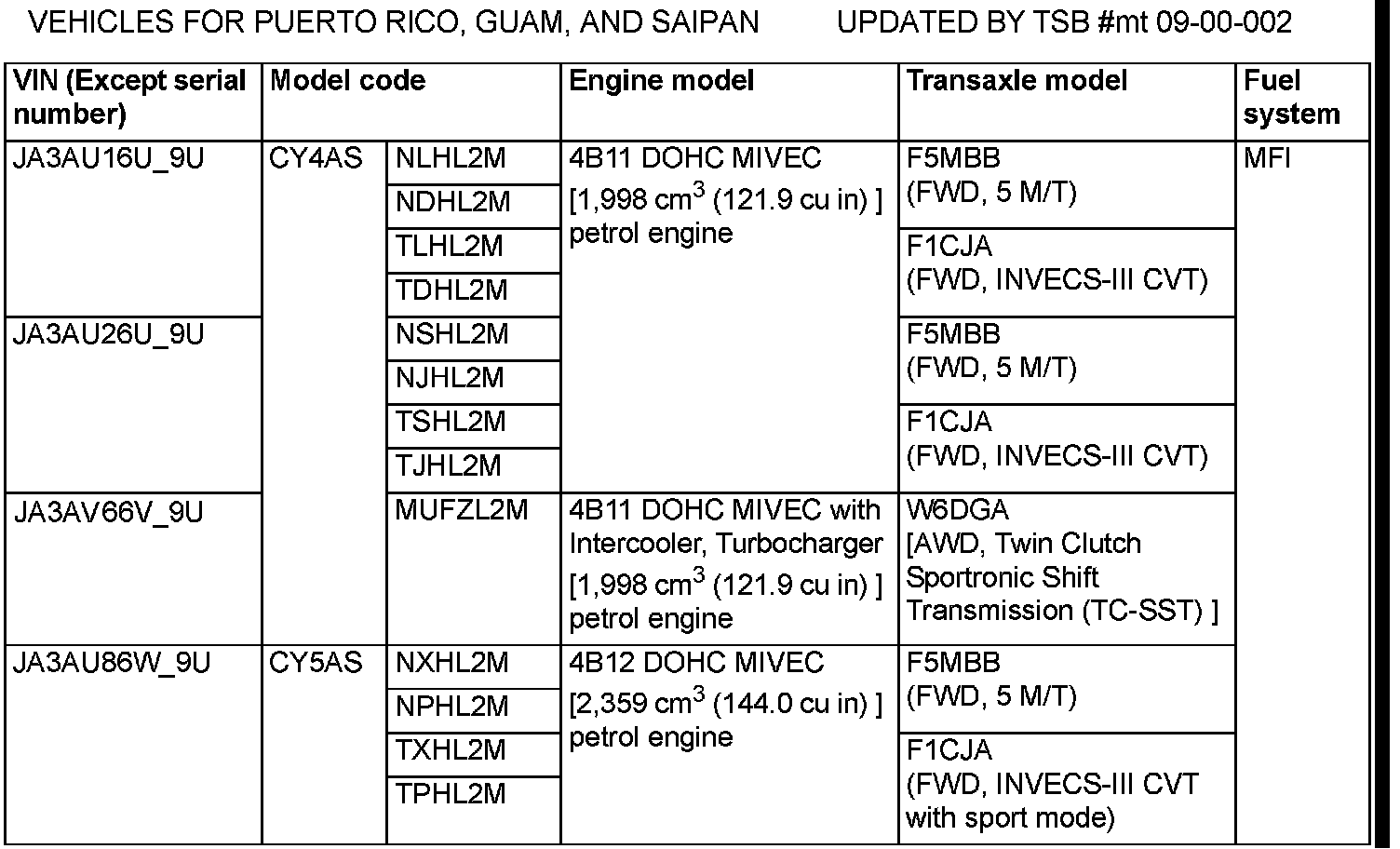

VEHICLES FOR PUERTO RICO, GUAM AND SPAIN

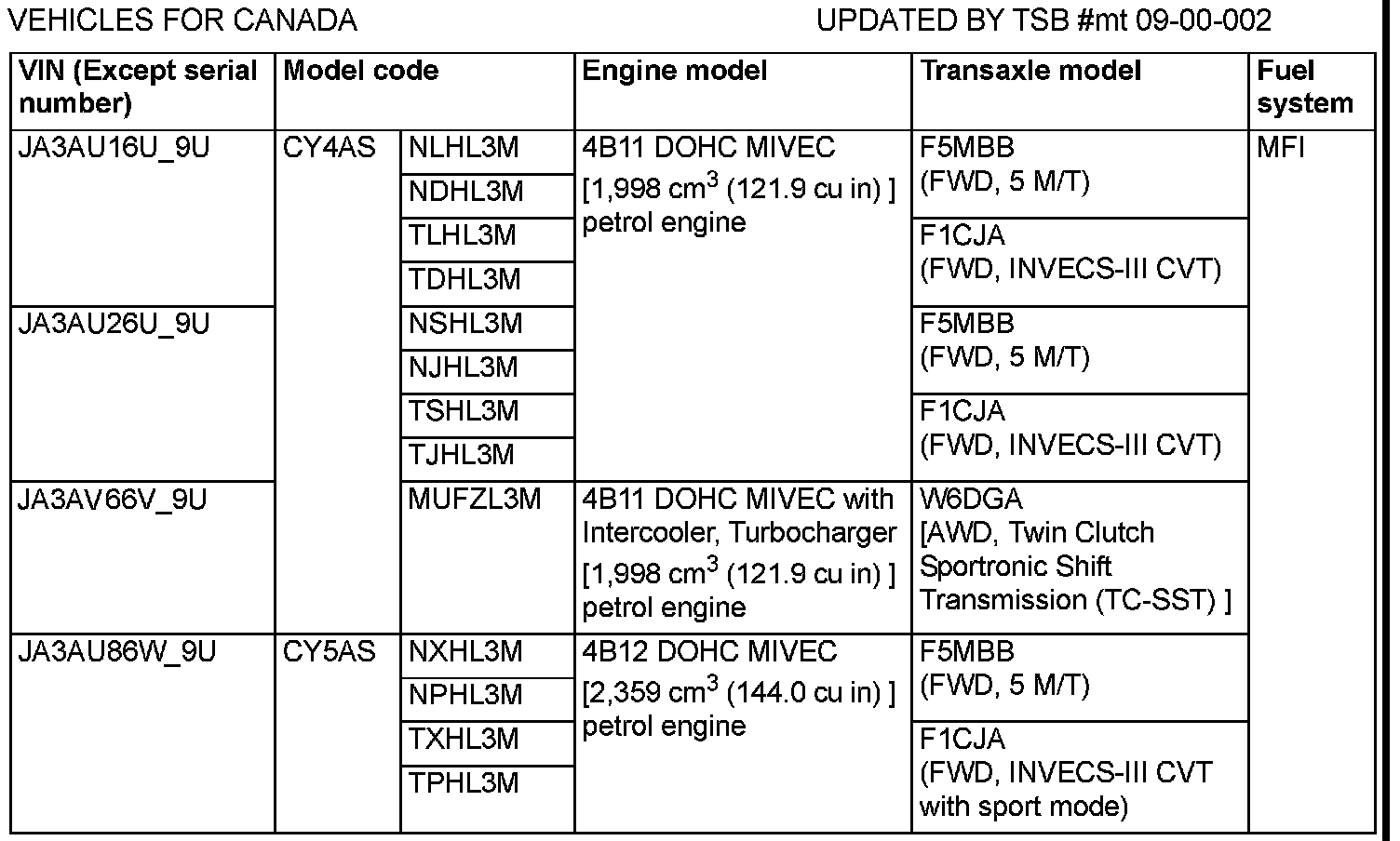

VEHICLES FOR CANADA





CHASSIS NUMBER

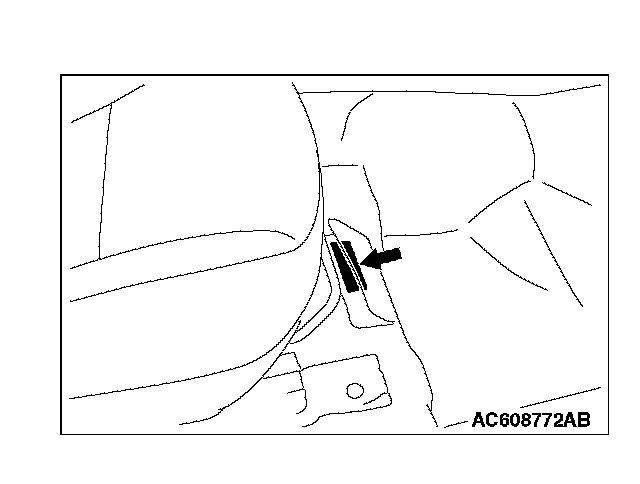

The chassis number is stamped on the front floor pan.

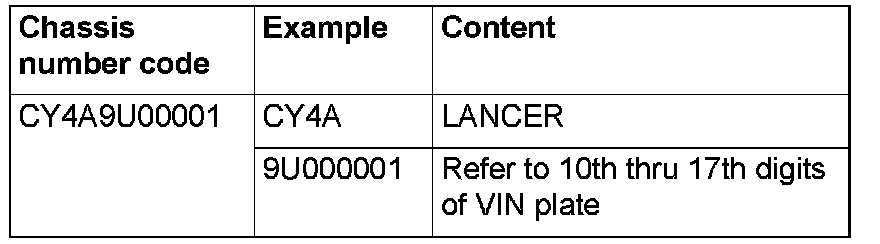

CHASSIS NUMBER CODE CHART

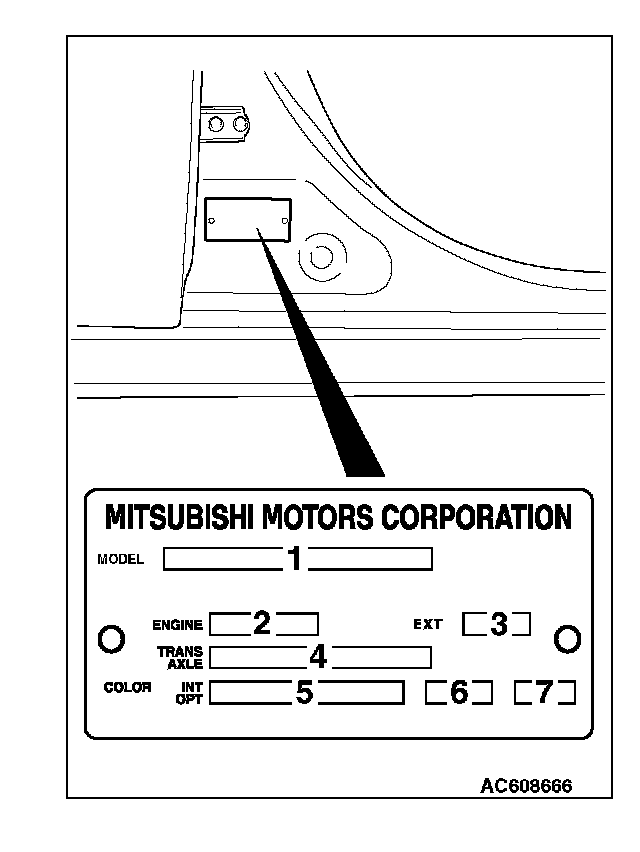

VEHICLE IDENTIFICATION CODE PLATE





The vehicle information code plate is riveted to the face of the passenger's door sill.

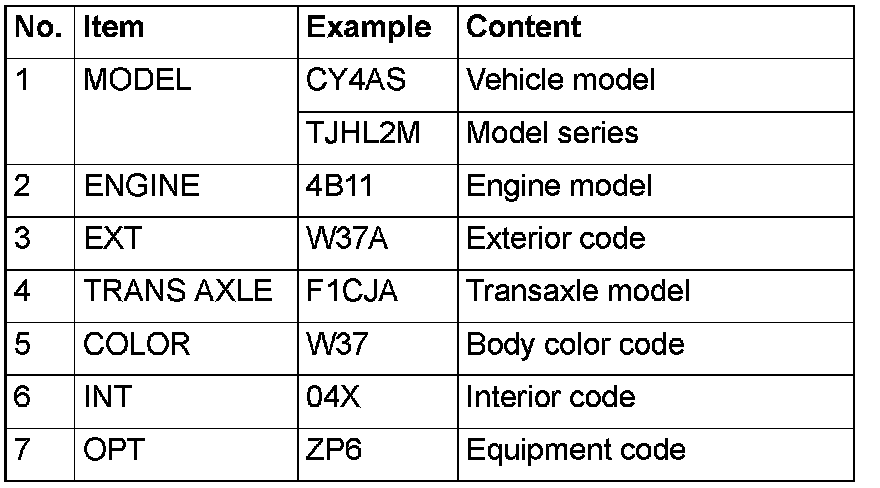

CODE CHART





For monotone color vehicles, the body color code shall be indicated.

VEHICLE SAFETY CERTIFICATION LABEL

[EXCEPT VEHICLE FOR CANADA]

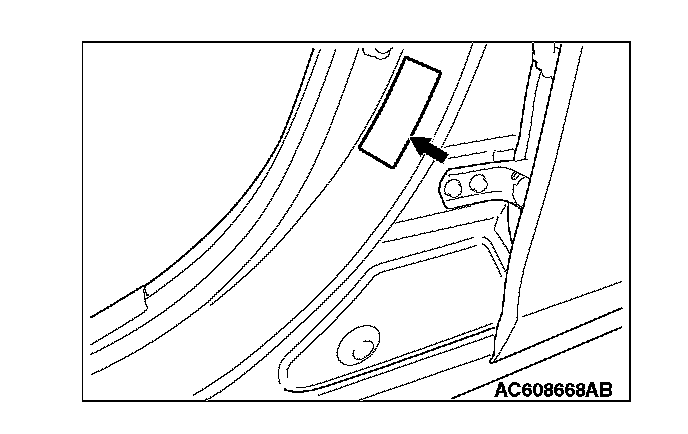

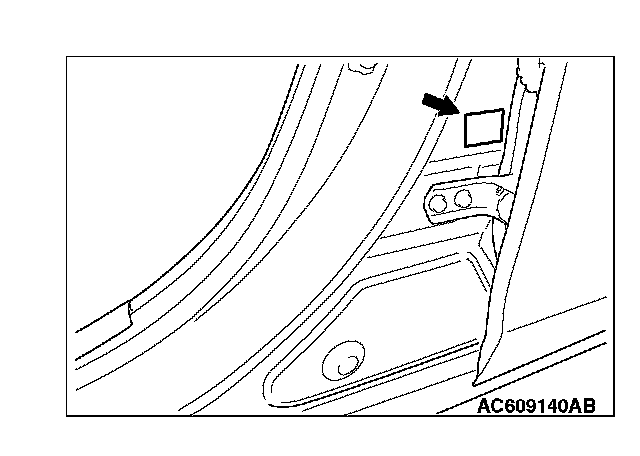

The vehicle safety certification label is attached to the face of the left door sill.

This label indicates the month and year of manufacture, Gross Vehicle Weight Rating (GVWR), front and rear Gross Axle Weight Rating (GAWR), and Vehicle Identification Number (VIN).

NATIONAL SAFETY MARK [VEHICLE FOR CANADA]

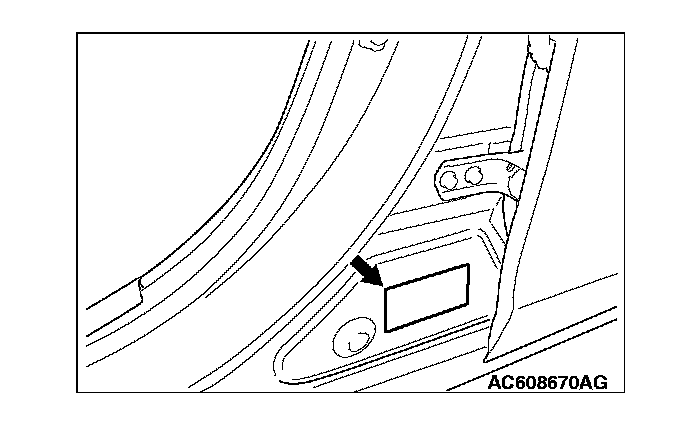

The tire and loading information placard is located on the inside sill of the driver's door.

TIRE AND LOADING INFORMATION PLACARD [VEHICLES FOR USA AND PUERTO RICO]





The tire and loading information placard is located on the inside sill of the driver's door.

ENGINE MODEL STAMPING





The engine model is stamped on the cylinder block. These engine model numbers are as shown as follows.

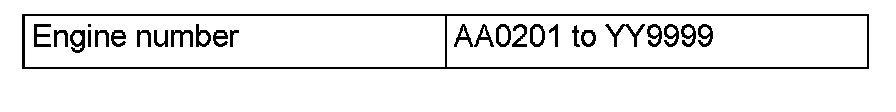

The engine serial number is stamped near the engine model number.

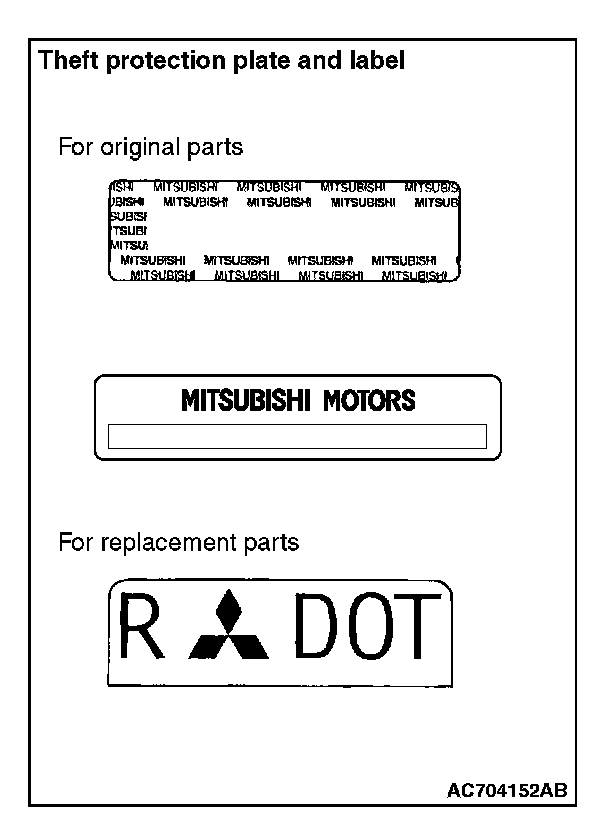

THEFT PROTECTION LABEL

CAUTION
When replacing a part that has the theft protection plate, label or stamp on it, be sure that the part has either A or B shown in the figure. It is illegal if both A and B are attached, or neither A nor B is attached.

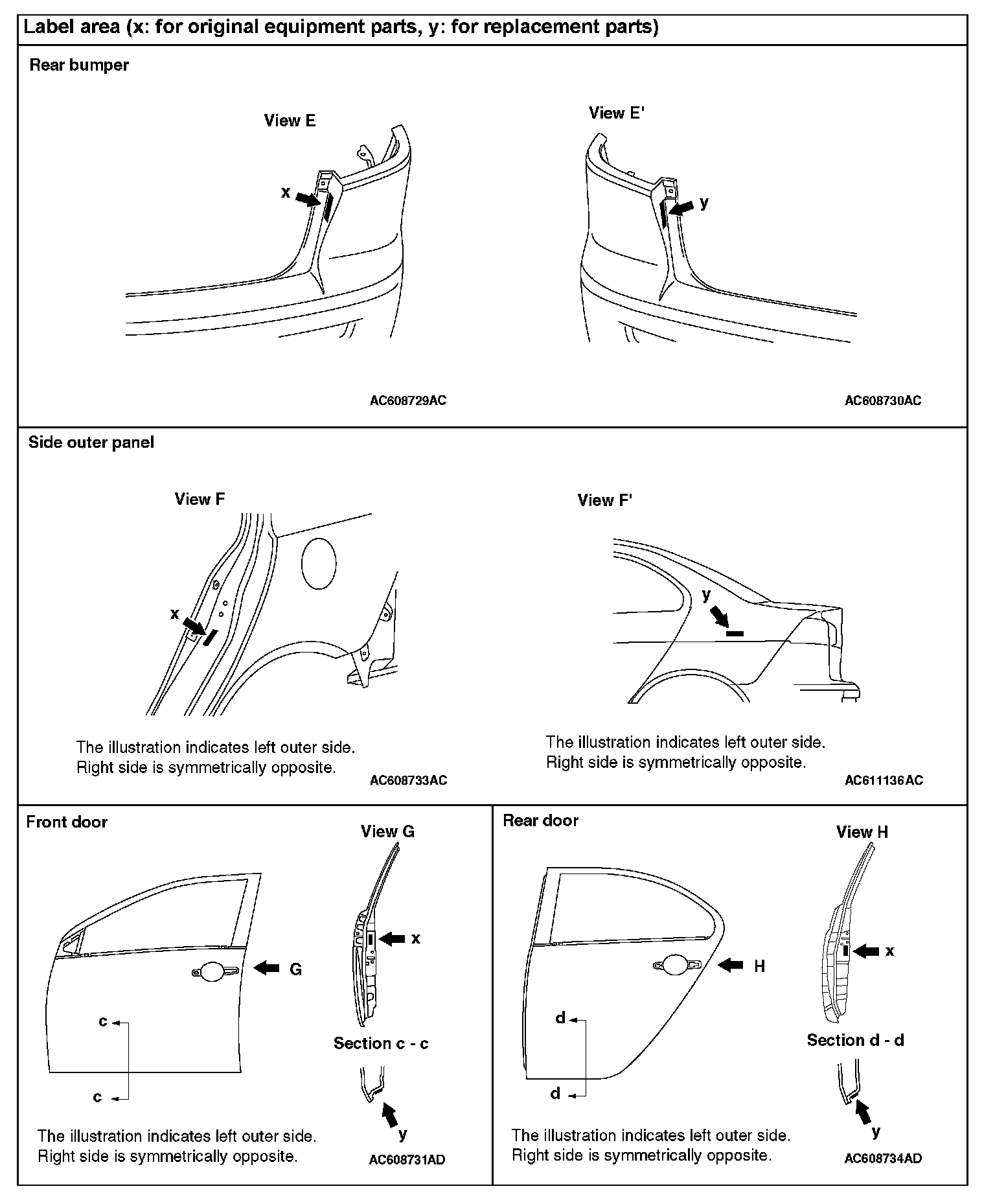

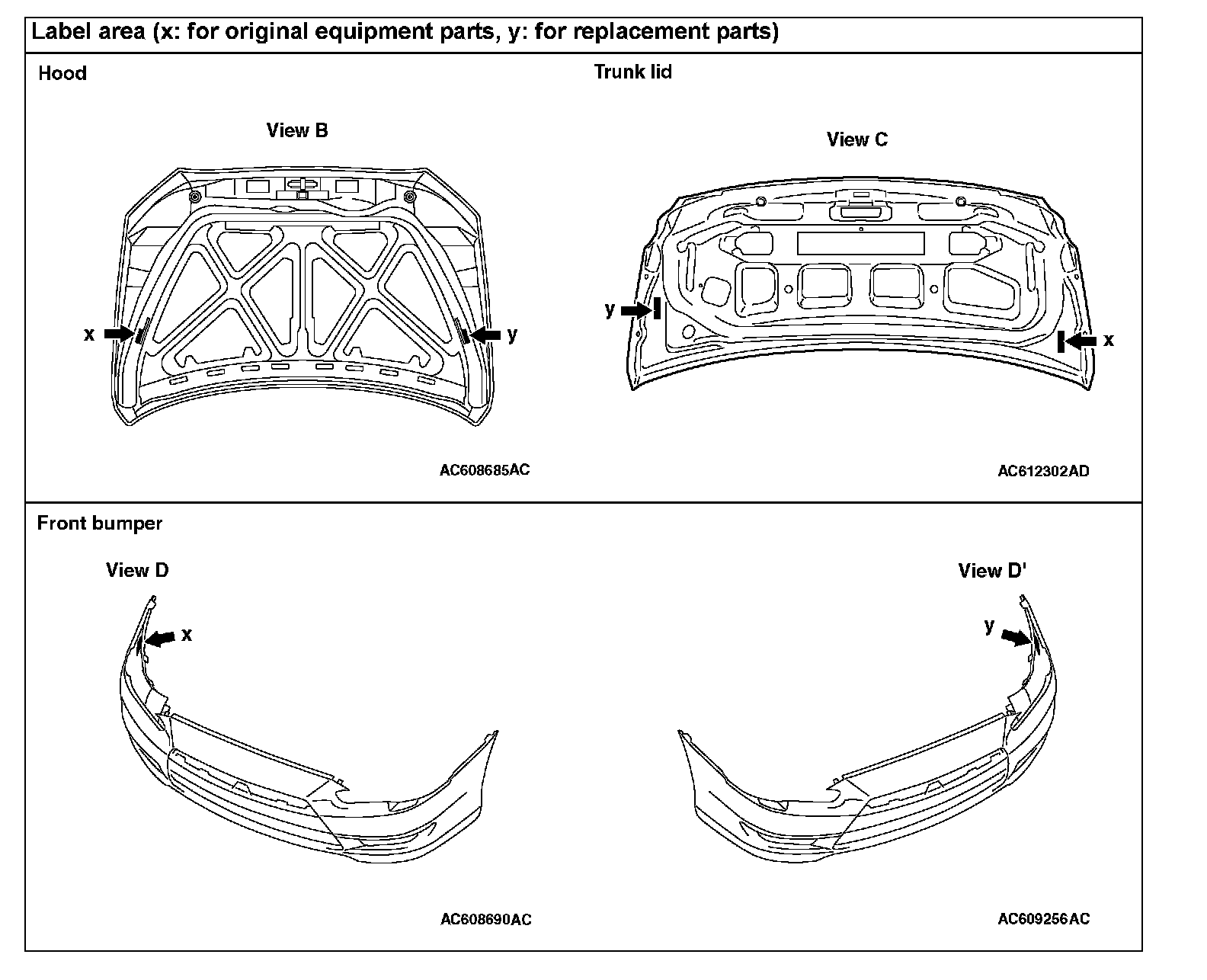

In order to protect against theft, a Vehicle Identification Number (VIN) is attached as a plate or label to the following major parts of the engine and transaxle, as well as main outer panels:
Engine cylinder block, Transaxle housing, Hood, Bumpers, Front end crossmember, Front fender, Doors
In addition, a theft-protection label is attached to replacement parts for the body outer panel main components, and the same data is stamped into replacement parts for the engine and the transaxle.

CAUTION
Cautions regarding panel repairs:
^ When repainting original parts, do so after first masking the theft-protection label. After painting, be sure to peel off the masking tape.
^ The theft-protection label for replacement parts is covered by masking tape, so such parts can be painted as is. The masking tape should be removed after painting is finished.
^ The theft-protection label should not be removed from original parts or replacement parts.

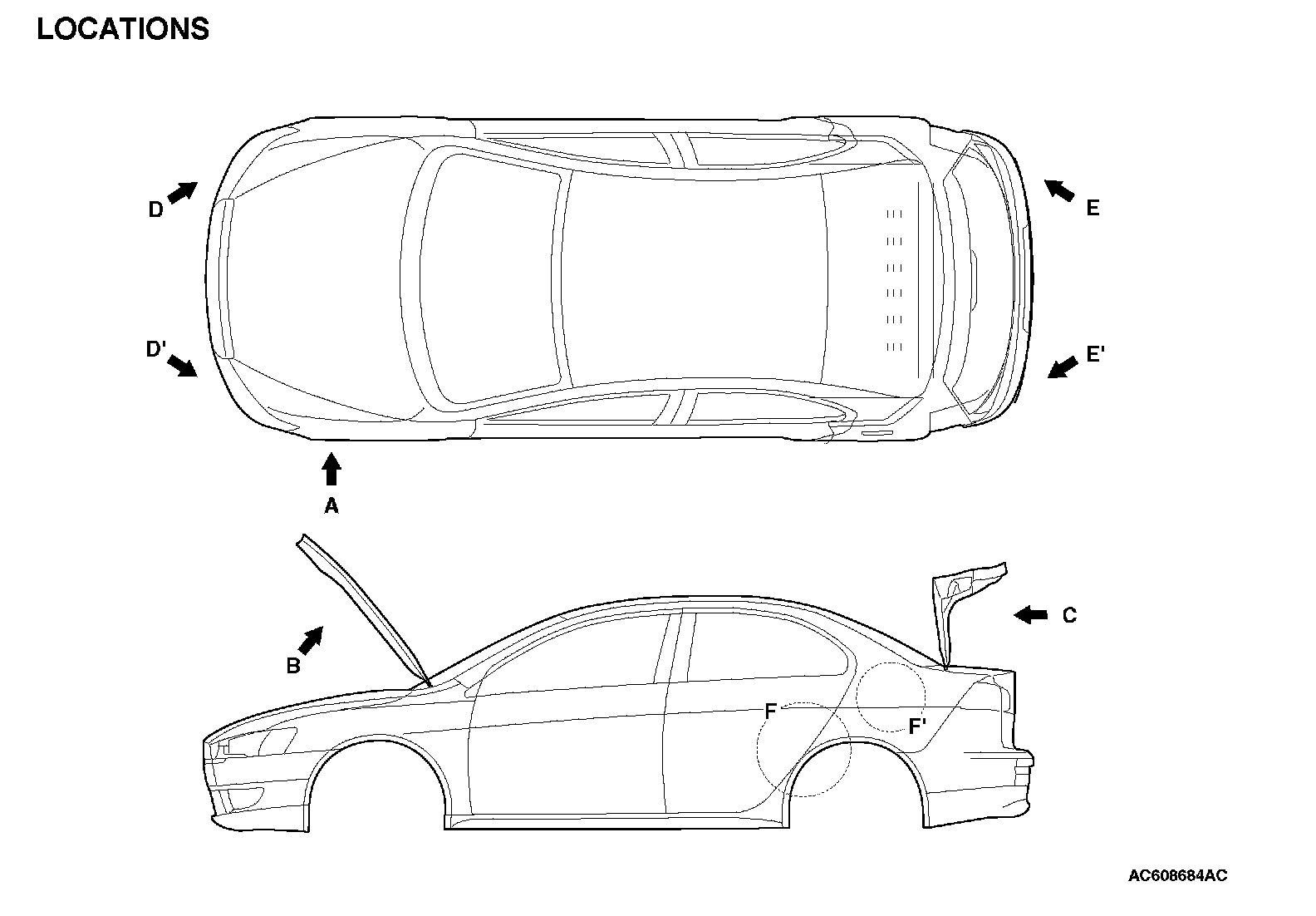

LOCATIONS
