Audio Adapter Inspection

INSPECTION

AUDIO ADAPTER INSPECTION

1. Remove the audio adapter.

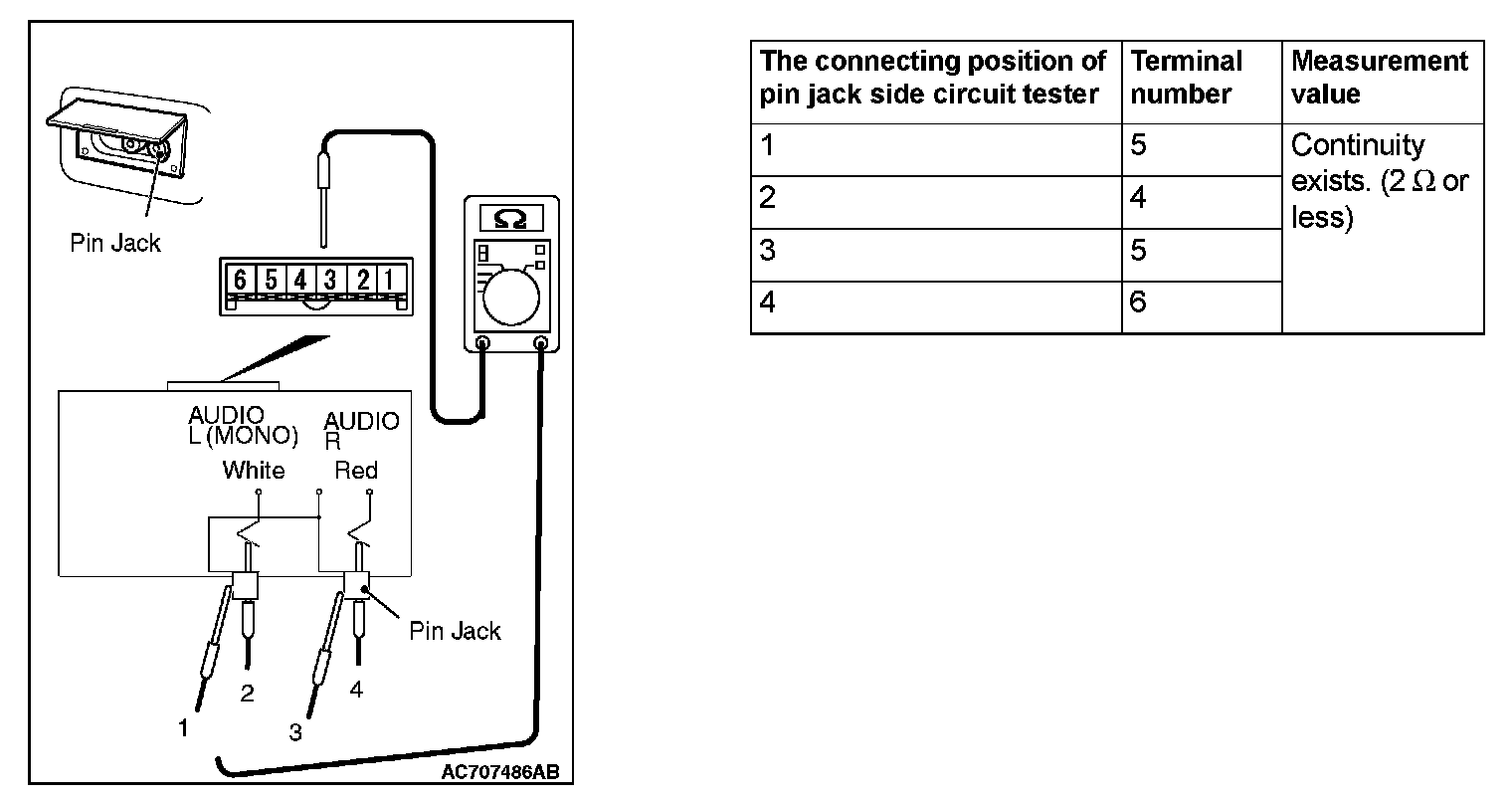

2. Check the continuity between terminals of audio adapter and pin jack.
