Audio System - Revised Audio Adapter/Circuit Information
No: TSB-08-54-013DATE: December, 2008
MODEL: 2009 Lancer
SUBJECT:
CHANGES TO AUDIO ADAPTOR INFORMATION AND CIRCUIT DIAGRAM - SERVICE MANUAL REV.
PURPOSE
To provide general information and correct the optional audio adaptor circuit diagram.
AFFECTED VEHICLE(S)
2009 Lancer

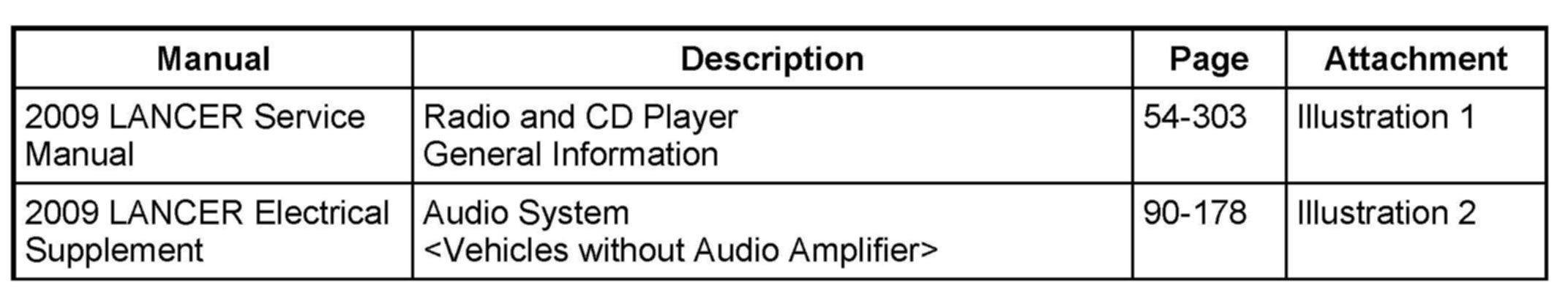

APPLICABLE MANUAL(S)

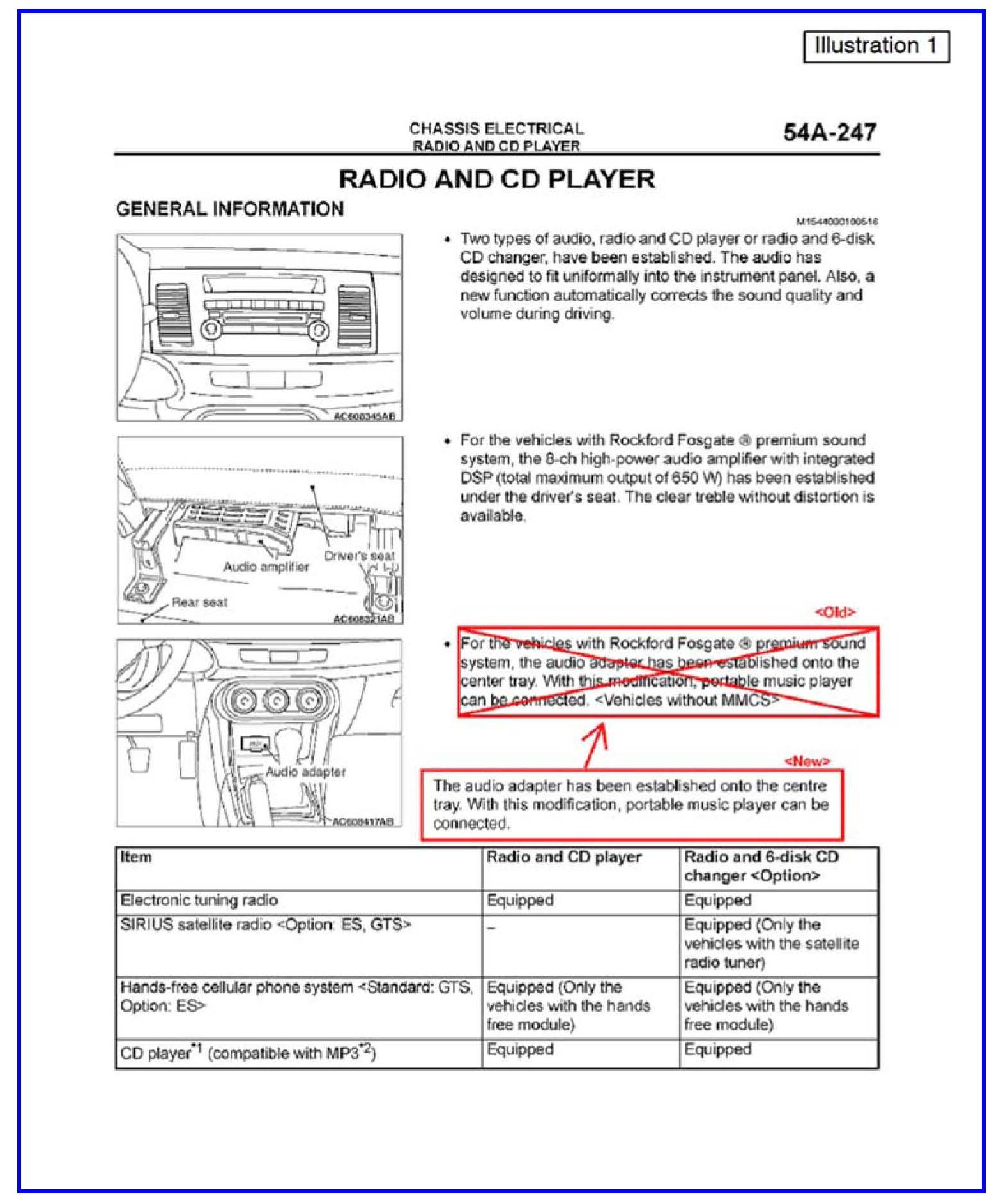

Page 54A-247 - Illustration 1
Page 90-178 - Illustration 2
