Home >> Mitsubishi >> 2009 >> Lancer L4-2.0L (4B11) >> Repair and Diagnosis >> Accessories and Optional Equipment >> Radio, Stereo, and Compact Disc >> Service and Repair >> Removal and Replacement

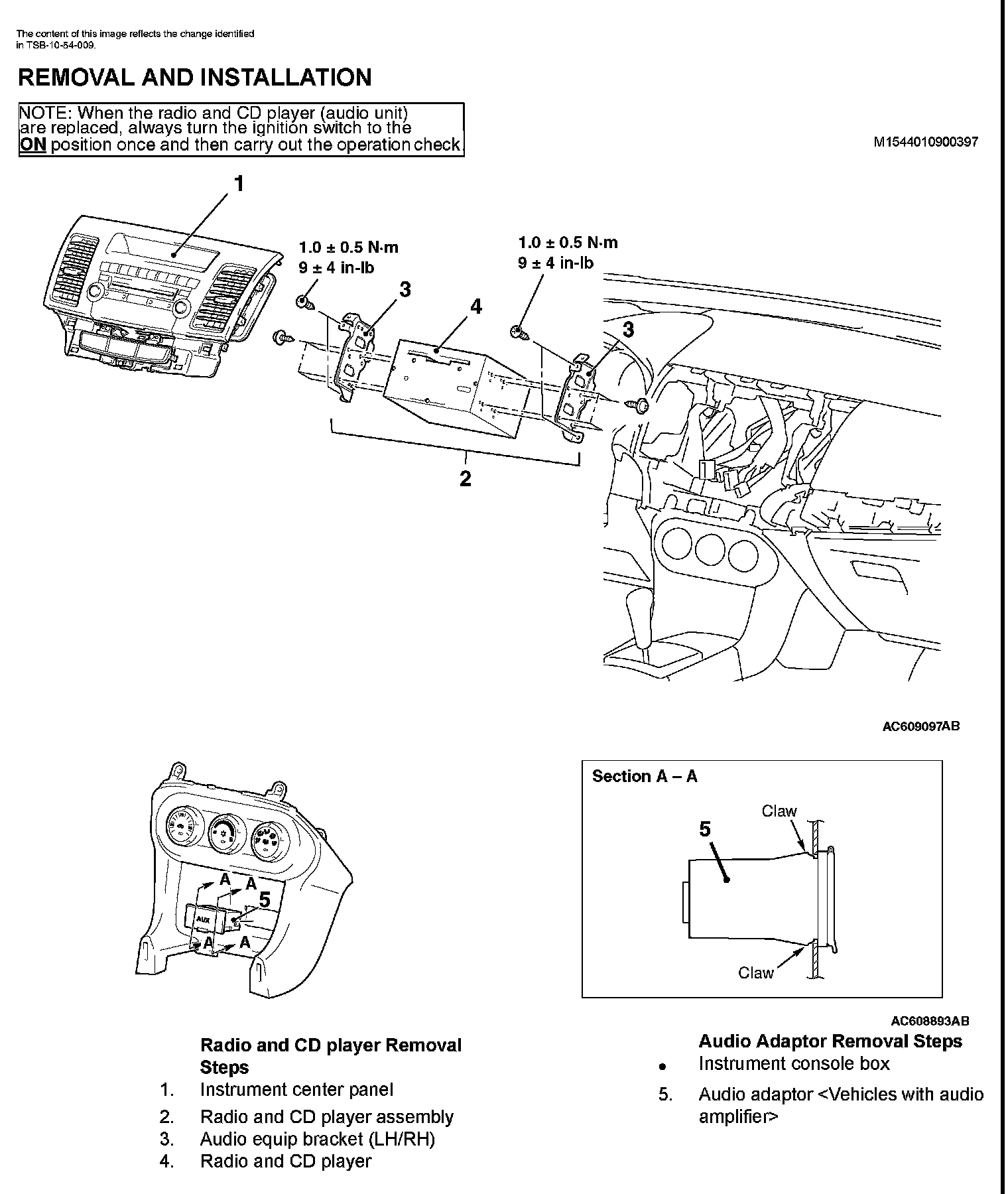

Removal and Replacement

Removal Steps 1-5:
