General Information

RADIO AND CD PLAYER

GENERAL INFORMATION

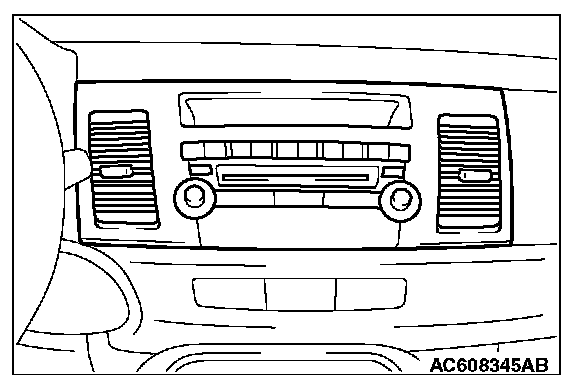

- Two types of audio, radio and CD player, CD changer built-in type radio and CD player have been established. Radio and CD player, CD changer built-in type radio and CD player have designed to fit uniformally into the instrument panel. Also, a new function automatically corrects the sound quality and volume during driving.

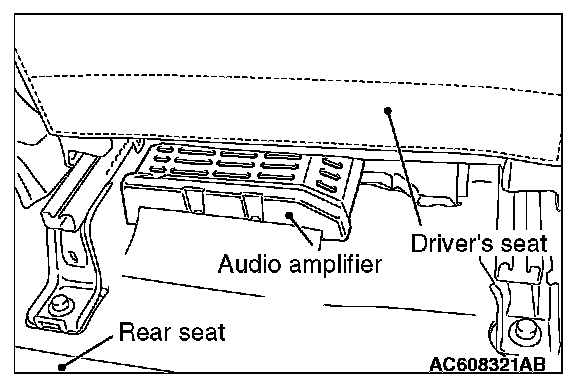

- For the vehicles with Rockford Fosgate (R) premium sound system, the 8-ch high-power audio amplifier with integrated DSP (total maximum output of 650 W) has been established under the driver's seat. The clear treble without distortion is available.

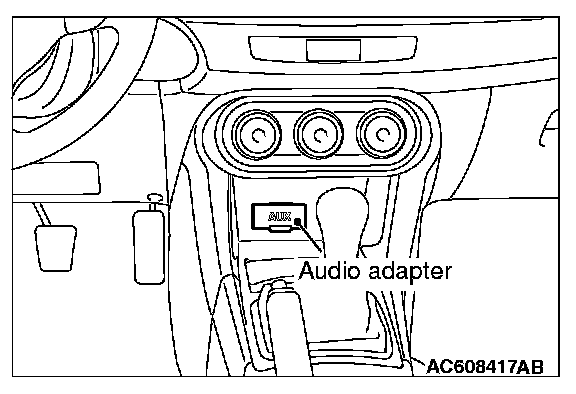

- The audio adapter has been established onto the center tray. With this modification, portable music player can be connected. [Vehicles without MMCS, Except for DE]
