CVT

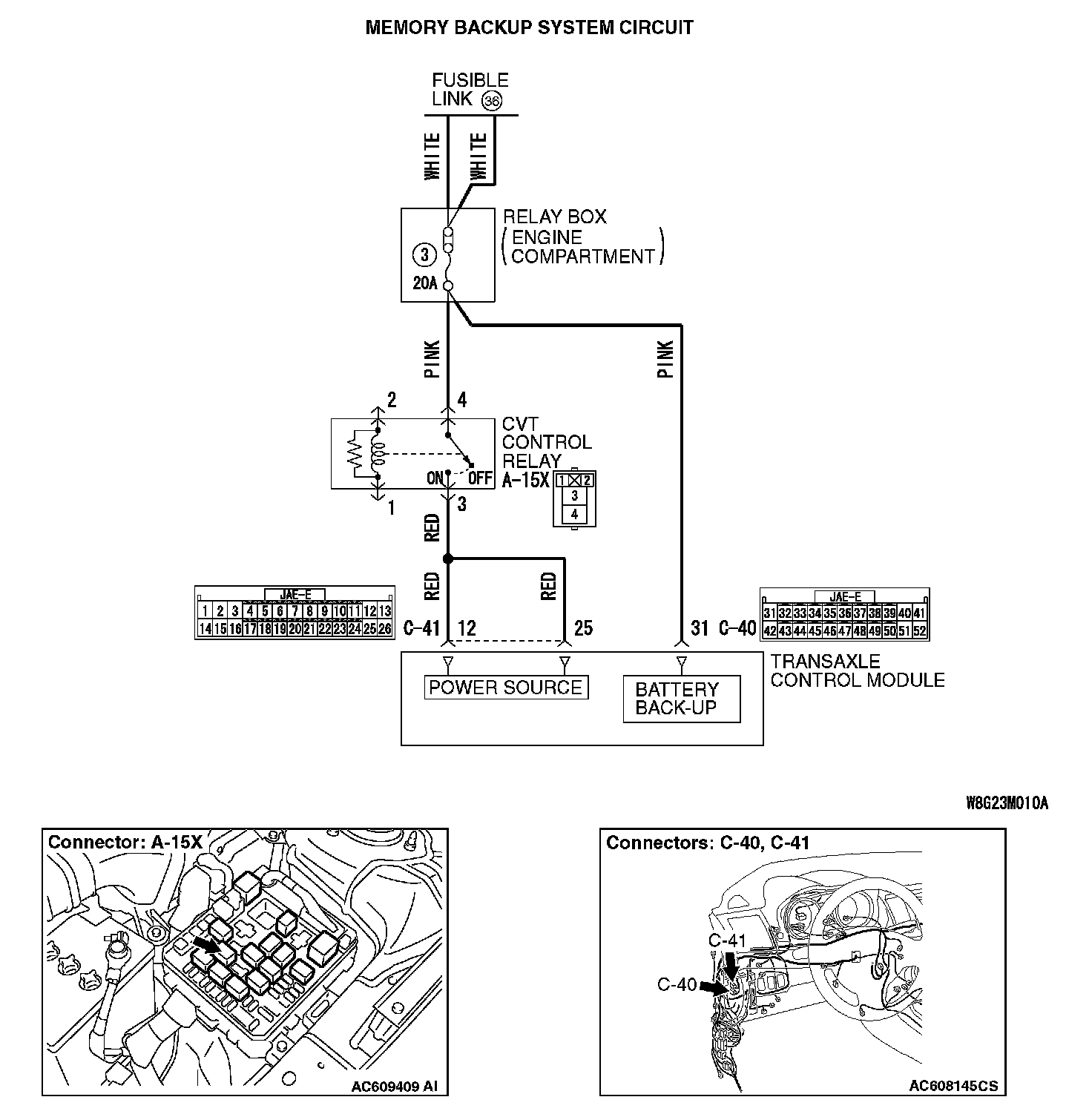

DTC P1637: Malfunction of Memory BackupMEMORY BACKUP SYSTEM CIRCUIT
DIAGNOSTIC FUNCTION
TCM checks the consistency between EEPROM and the backup memory.
DESCRIPTIONS OF MONITOR METHODS
^ When the ignition switch is turned to the "ON" position, TCM determines that the writing to the EEPROM area had failed last time the ignition switch was turned to the "LOCK" (OFF) position.
MONITOR EXECUTION
^ Continuous
MONITOR EXECUTION CONDITIONS (OTHER MONITOR AND SENSOR)
Other Monitor (There is no temporary DTC stored in memory for the item monitored below)
^ Not applicable
Sensor (The sensor below is determined to be normal)
^ Not applicable

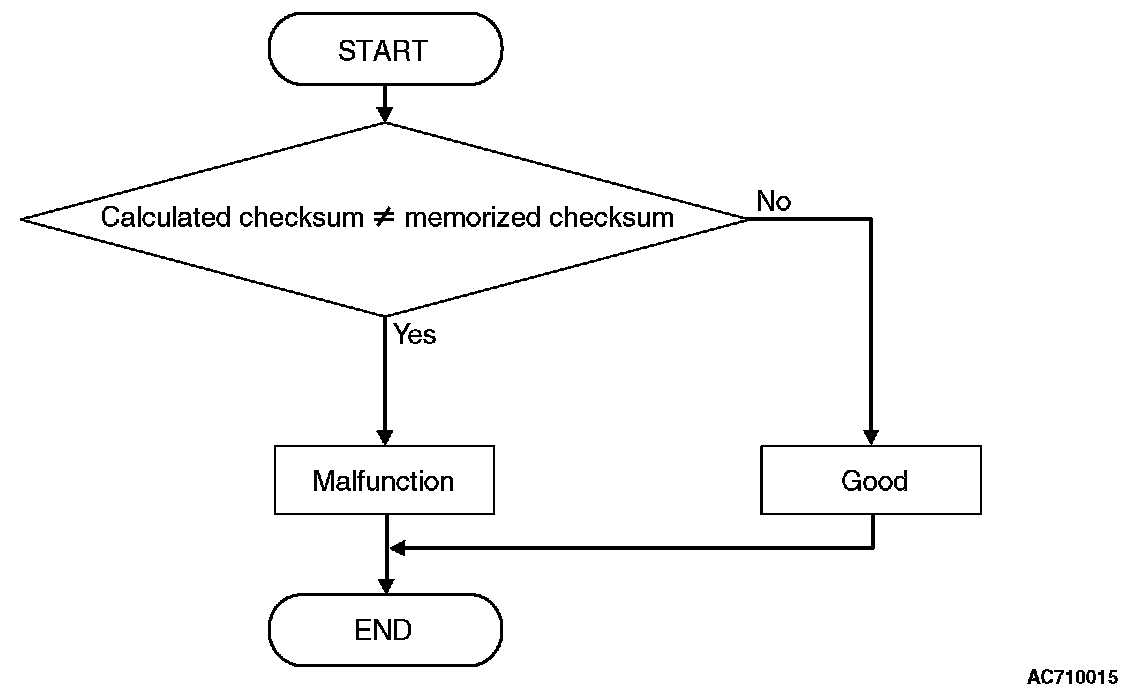

LOGIC FLOW CHARTS (Monitor Sequence)
DTC SET CONDITIONS
Judgment Criteria
^ Calculated checksum is not same as memorized checksum.
OBD-II DRIVE CYCLE PATTERN
Ignition switch: ON (start the engine and keep it for 10 seconds or more)
PROBABLE CAUSES
^ Damaged wiring harness and connectors
^ Malfunction of TCM (Faulty EEPROM)
DIAGNOSTIC PROCEDURE
STEP 1. Check if diagnosis code P1637 is erased by turning the ignition switch from the "LOCK" (OFF) position to the "ON" position.
Q: Is the check result normal?
YES: This diagnosis code will be set by disconnecting the battery. If the diagnosis code is not erased by turning the ignition switch to the "ON" position, it is judged to be normal.
NO: Go to Step 2.
STEP 2. Check for open circuit in power supply wiring harness
^ Between relay box and C-40 TCM backup power supply connector (terminal No.31)
^ Between relay box and A-15X CVT control relay (terminal No.4)
Q: Is the check result normal?
YES: Go to Step 3.
NO: Repair the wiring harness.
STEP 3. Symptom recheck after erasing diagnosis code
Q: Is the check result normal?
YES: Intermittent malfunction
NO: Replace TCM.
