P0300
The content of this article reflects the changes identified in TSB - 10-13-007.DTC P0300: Random/Multiple Cylinder Misfire Detected
TECHNICAL DESCRIPTION
- If a misfire occurs while the engine is running, the engine speed changes for an instant.
- The ECM checks for such changes in engine speed.
DESCRIPTIONS OF MONITOR METHODS
Monitor angular acceleration of crankshaft and detect malfunction when negative variation of the angular acceleration is large.
MONITOR EXECUTION
Continuous
MONITOR EXECUTION CONDITIONS (Other monitor and Sensor)
Other Monitor (There is no temporary DTC stored in memory for the item monitored below)
- Not applicable
Sensor (The sensor below is determined to be normal)
- Camshaft position sensor
- Mass airflow sensor
- Engine coolant temperature sensor
- Intake air temperature sensor
- Barometric pressure sensor
- Throttle position sensor
DTC SET CONDITIONS

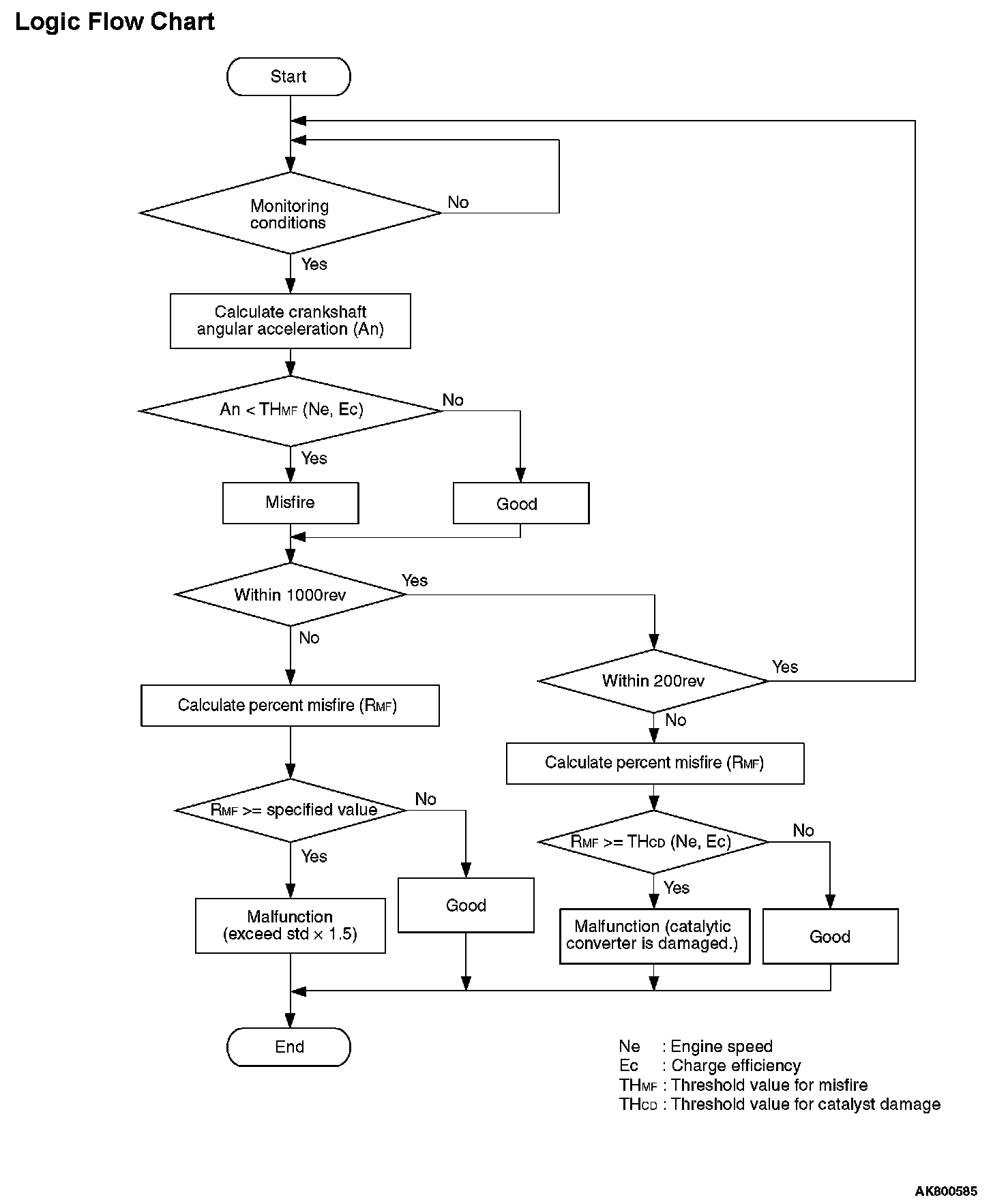

Logic Flow Chart:
Check Conditions
- Engine speed is between 438 and 6,594 r/min.
- Engine coolant temperature is higher than -10 °C (14 °F).
- Barometric pressure is higher than 76 kPa (22.4 in.Hg).
- The engine load is with in the positive torque load.
- Adaptive learning is complete for the vane which generates a crankshaft position signal.
- While the engine is running, excluding rough road driving [M/T], sudden acceleration/deceleration and fuel shut-off operation.
Judgement Criteria (change in the angular acceleration of the crankshaft is used for misfire detection)
- Misfire has occurred more frequently than allowed during the last 200 revolutions [when the catalyst temperature is higher than 1,000 °C (1,832 °F)].
or
[Except for California]
- Misfire has occurred in 1.7 percent or more of the last 1,000 revolutions (corresponding to 1.5 times the limit of emission standard).
[California]
- Misfire has occurred in 1.6 percent [M/T] or 1.0 percent [CVT] or more of the last 1,000 revolutions (corresponding to 1.5 times the limit of emission standard).
OBD-II DRIVE CYCLE PATTERN
Refer to Diagnostic Function - OBD-II Drive Cycle - Pattern 15. OBD-II Drive Cycle
TROUBLESHOOTING HINTS (The most likely causes for this code to be set are:)
- Fuel aeration due to low fuel level.
- Ignition system related part(s) failed.
- Poor crankshaft position sensor.
- Incorrect air/fuel ratio.
- Low compression pressure.
- Skipping of timing belt teeth.
- EGR system and EGR valve failed. [California]
- ECM failed.
DIAGNOSIS
Required Special Tools:
- MB991958: Scan Tool (M.U.T.-III Sub Assembly)
- MB991824: V.C.I.
- MB991827: USB Cable
- MB991910: Main Harness A
Check whether fuel may be aerated due to low fuel level.
^ Check whether users have experienced the lack of fuel or not.
Q: Has the user ever experienced the lack of fuel?
YES: Ensure fuel level is not low, erase the DTC, and re-evaluate for misfire condition using the appropiate OBD-II Drive Cycle Procedure.
NO: Go to Step 1.
STEP 1. Using scan tool MB991958, check data list item 2: Crankshaft Position Sensor.
CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.
1. Connect scan tool MB991958 to the data link connector.
2. Start the engine and run at idle.
3. Set scan tool MB991958 to the data reading mode for item 2, Crankshaft Position Sensor.
- The tachometer and engine speed indicated on the scan tool should match.
4. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the sensor operating properly?
YES : Go to Step 2.
NO : Refer to, DTC P0335 - Crankshaft Position Sensor Circuit.
STEP 2. Using scan tool MB991958, check data list item 26: Long-Term Fuel Trim.
1. Start the engine and run at idle.
2. Set scan tool MB991958 to the data reading mode for item 26, Long-Term Fuel Trim.
- The fuel trim should be between -12.5 and +12.5 percent when the engine is 2,500 r/min (during closed loop) after the engine is warmed.
3. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the specification normal?
YES : Go to Step 3.
NO : Refer to DTC P0171 - System too Lean, DTC P0172 - System too Rich.
STEP 3. Using scan tool MB991958, check data list item 28: Short-Term Fuel Trim.
1. Start the engine and run at idle.
2. Set scan tool MB991958 to the data reading mode for item 28, Short-Term Fuel Trim.
- The fuel trim should be between -7.4 and +7.4 percent when the engine is 2,500 r/min (during closed loop) after the engine is warmed.
3. Turn the ignition switch to the "LOCK" (OFF) position.
Q: Is the specification normal?
YES : Go to Step 4.
NO : Refer to DTC P0171 - System too Lean, DTC P0172 - System too Rich.
STEP 4. Visual check of ignition spark.

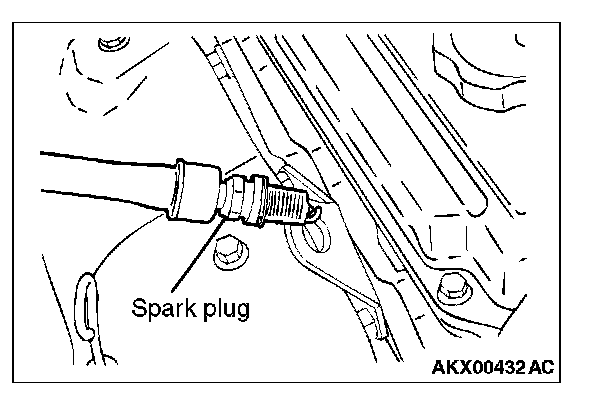

1. Remove the spark plug and install it to the ignition coil.
2. Connect the ignition coil connector.
3. Remove all injector connector.
4. At the engine start, check each spark plug produces a spark.
Q: Did it spark?
YES : Go to Step 6.
NO : Go to Step 5.
STEP 5. Check the spark plugs.
Refer to Ignition System - On-vehicle Service - Spark Plug Check And Cleaning.
Q: Is the spark plug normal?
YES : Refer to Symptom Procedures 25 - Ignition Circuit System. Inspection Procedure 25
NO : Replace the faulty spark plug. Then go to Step 8.
STEP 6. Check the following items.
1. Check the following items, and repair or replace the defective component.
a. Check for skipped timing belt teeth.
b. Check compression.
c. EGR valve failed. [California]
Q: Are there any abnormalities?
YES : Repair or replace it. Then go to Step 8.
NO : Go to Step 7.
STEP 7. Check the trouble symptoms.
1. Carry out a test drive with the drive cycle pattern. Refer to Diagnostic Function - OBD-II Drive Cycle - Pattern 15. OBD-II Drive Cycle
2. Check the diagnostic trouble code (DTC).
Q: Is DTC P0300 set?
YES : Replace the ECM. When the ECM is replaced, register the ID code. Then go to Step 8.
NO : It can be assumed that this malfunction is intermittent.
STEP 8. Test the OBD-II drive cycle.
1. Carry out a test drive with the drive cycle pattern. Refer to Diagnostic Function - OBD-II Drive Cycle - Pattern 15. OBD-II Drive Cycle
2. Check the diagnostic trouble code (DTC).
Q: Is DTC P0300 set?
YES : Retry the troubleshooting.
NO : The inspection is complete.
