Home >> Mitsubishi >> 2009 >> Lancer L4-2.0L (4B11) >> Repair and Diagnosis >> A L L Diagnostic Trouble Codes ( DTC ) >> Testing and Inspection >> Diagnostic Trouble Code Descriptions >> Controller Area Network (CAN) Communication-Related DTC (U-Code) Table

Controller Area Network (CAN) Communication-Related DTC (U-Code) Table

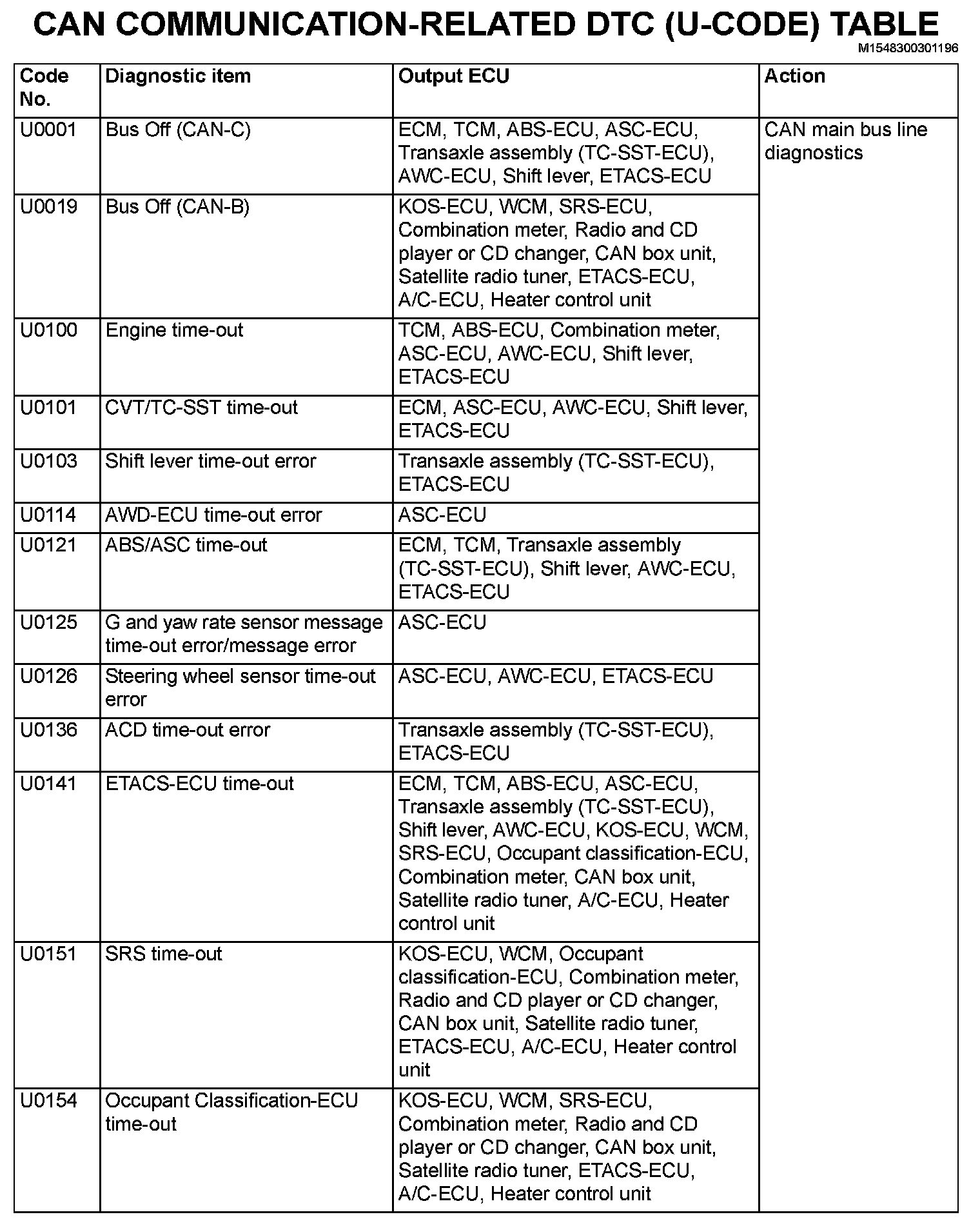

U0001-U0154:



U0155-U1003:

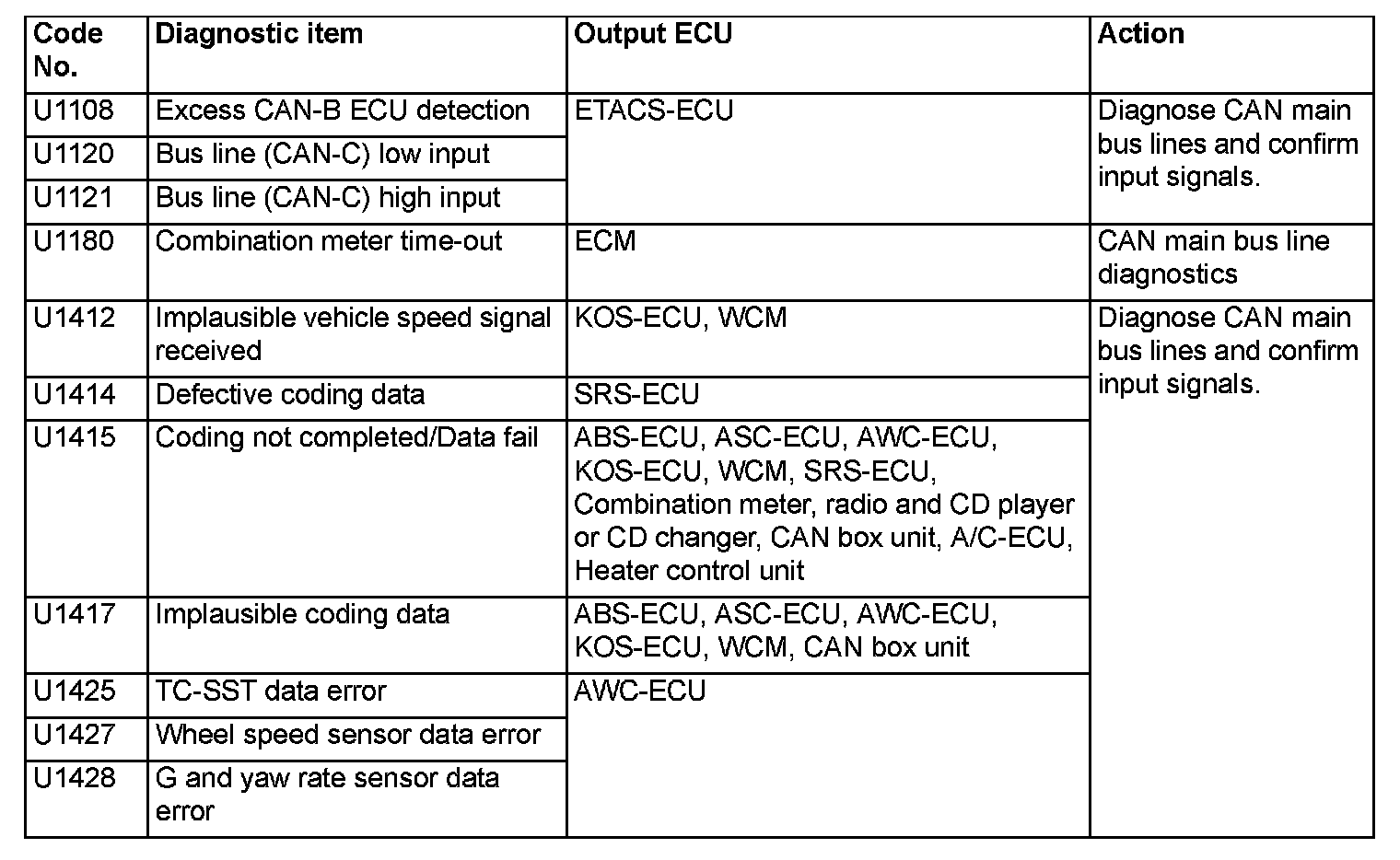

U1108-U1428:
