Front Door Window Glass: Service and Repair

DOOR GLASS AND REGULATOR

REMOVAL AND INSTALLATION

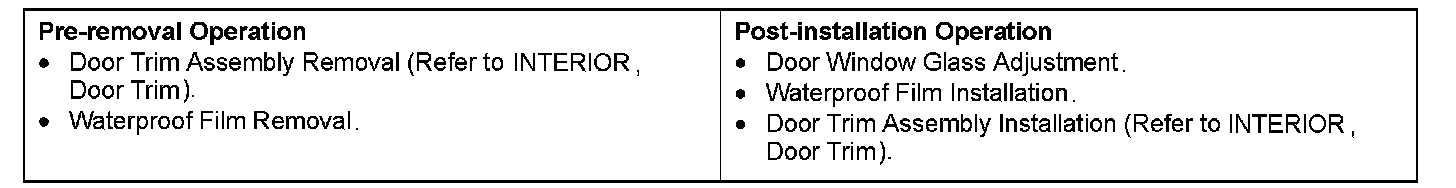

Pre-removal And Post-installation Operation:

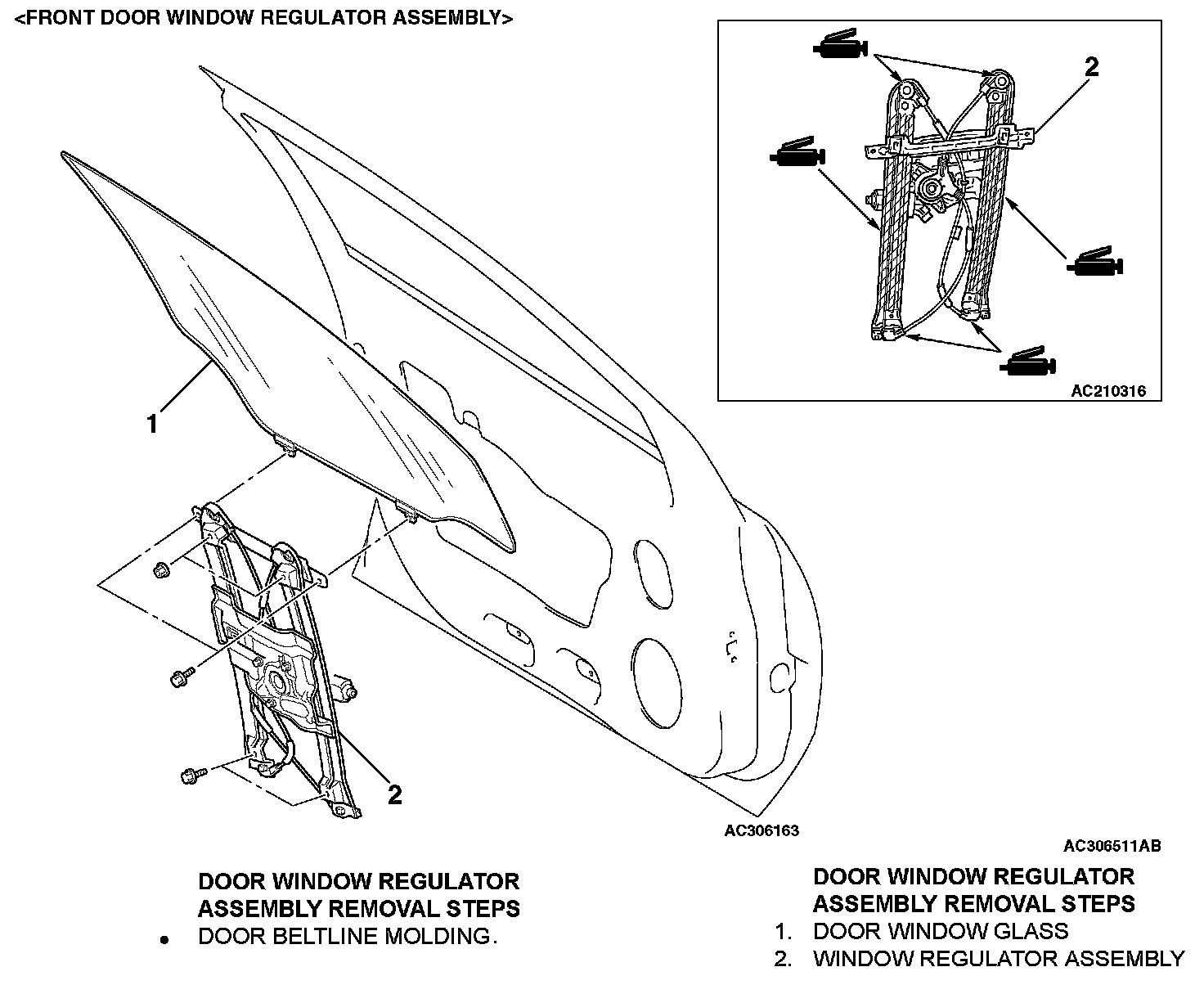

Removal Steps 1-2:

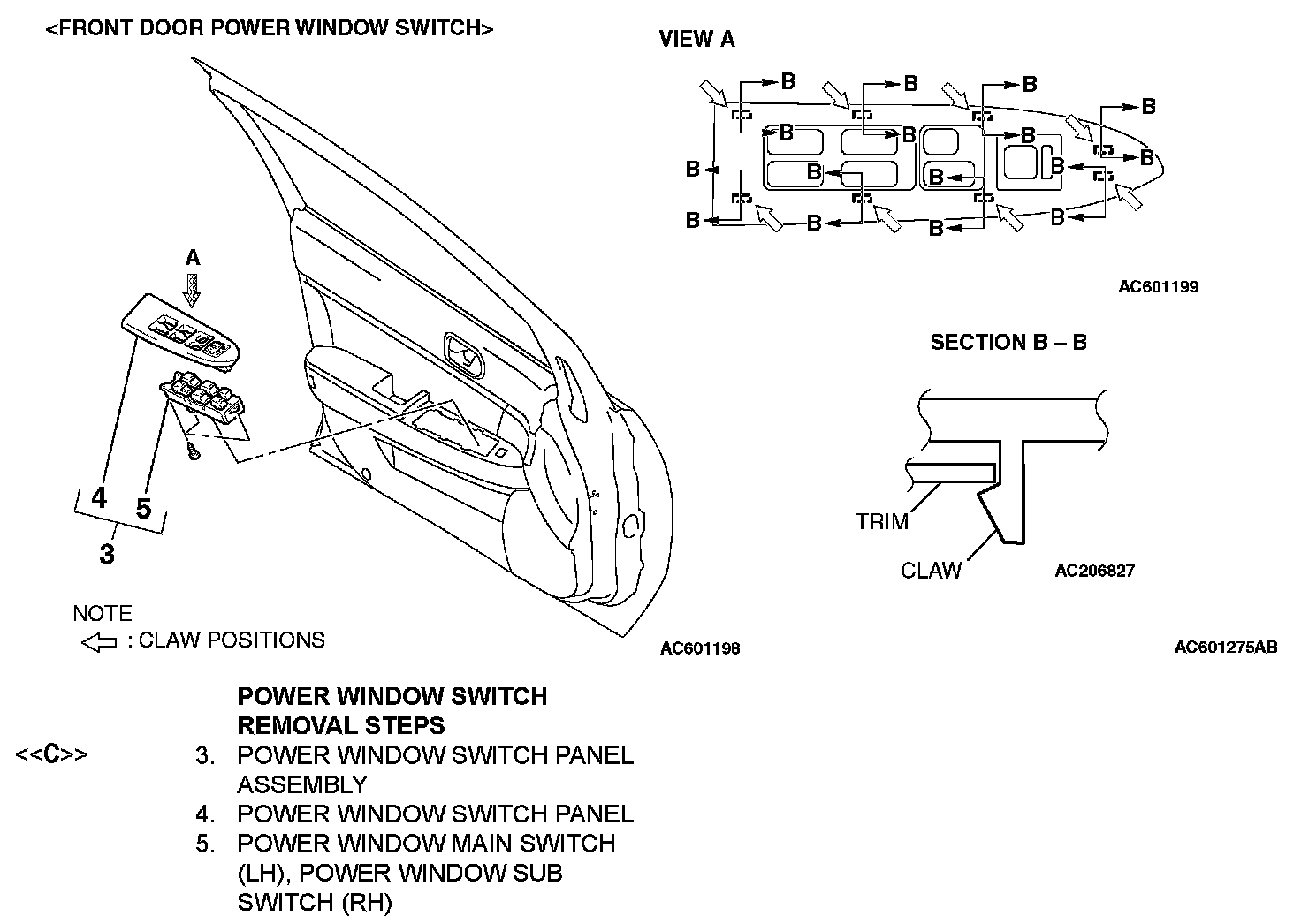

Removal Steps 3-5:

Required Special Tool:
- MB990784: Ornament Remover

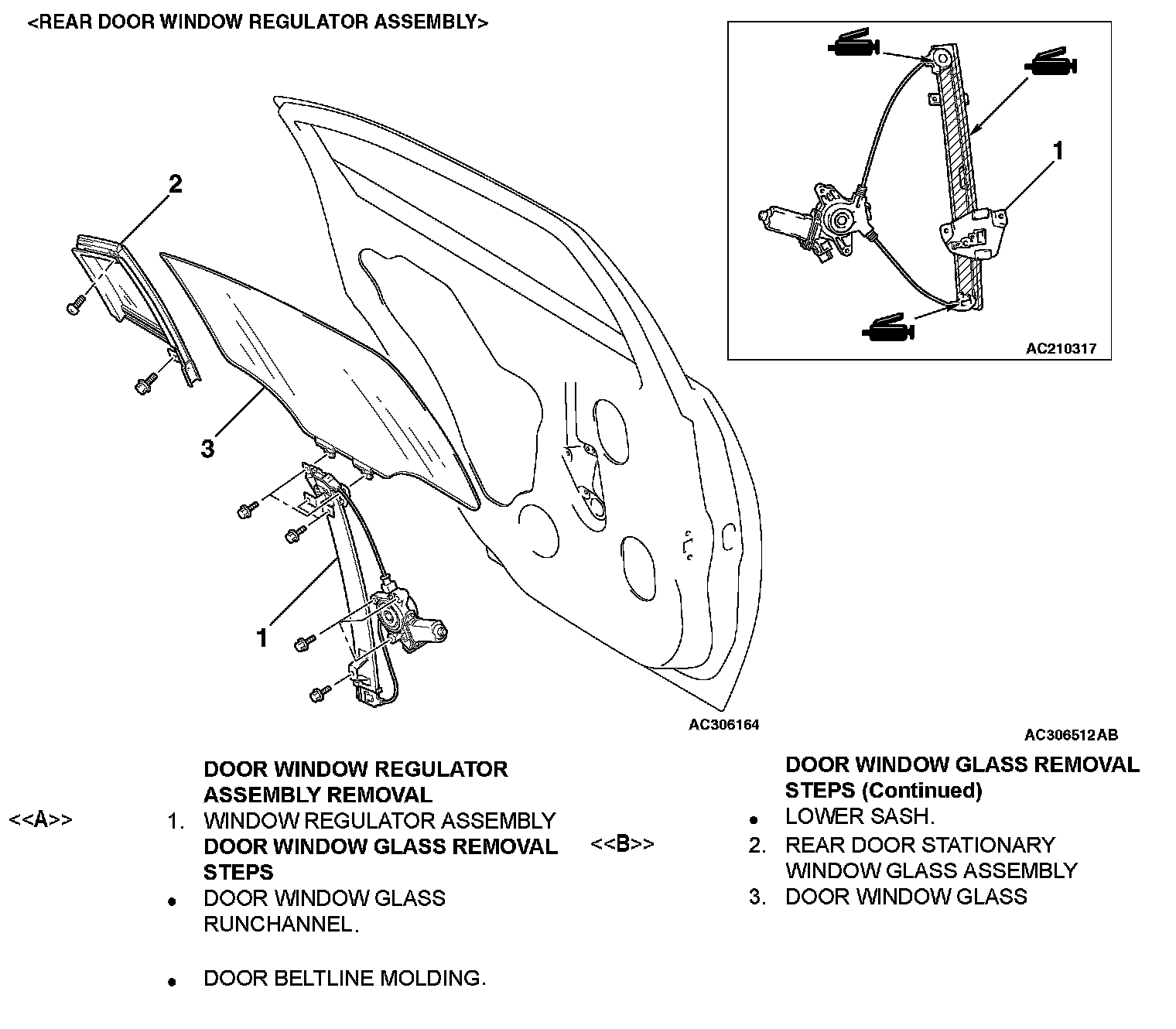

Removal Steps 1-3:

Required Special Tool:
- MB990480: Window Glass Holder

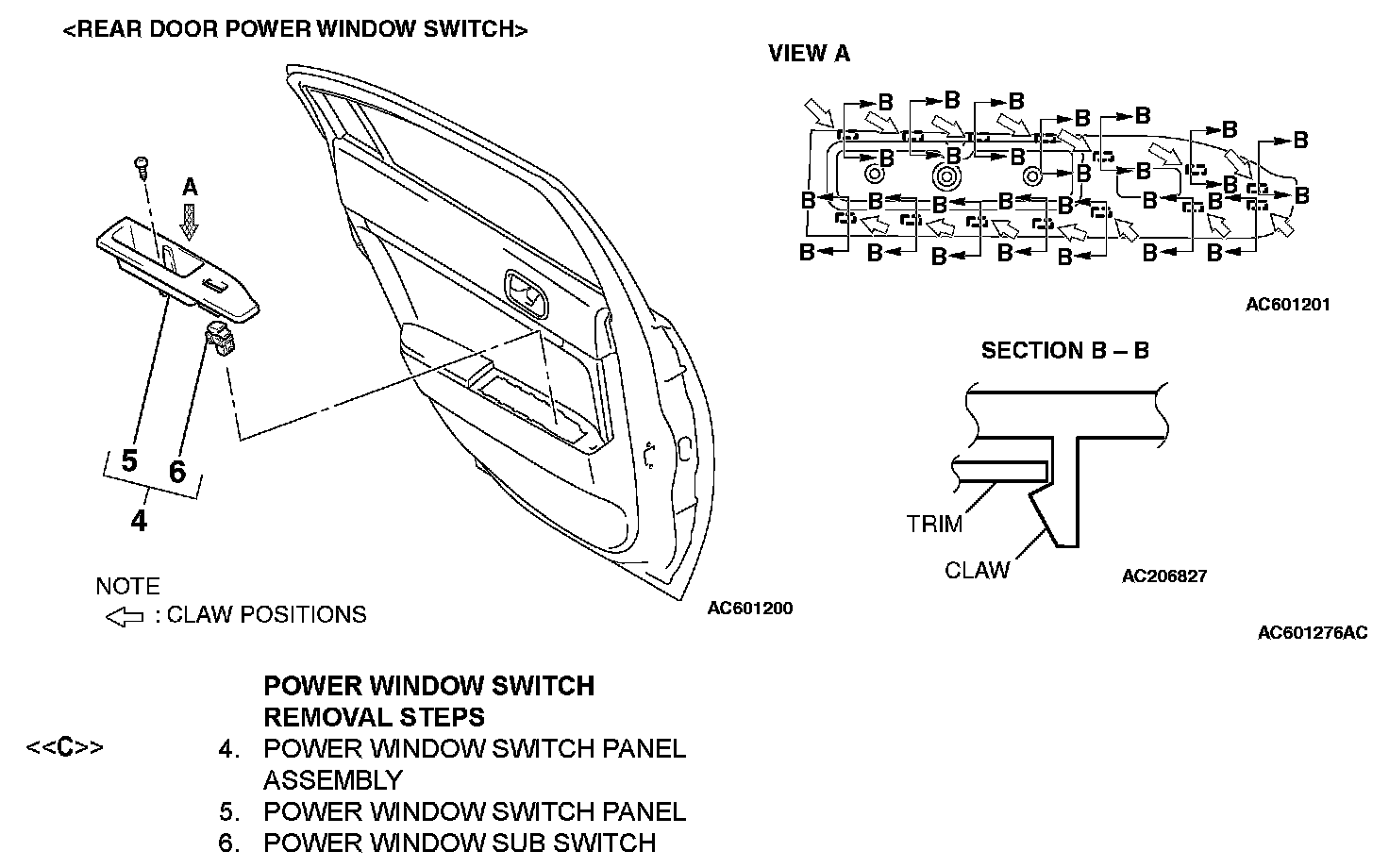

Removal Steps 4-6:

Required Special Tool:
- MB990784: Ornament Remover

REMOVAL SERVICE POINTS

[[A]] WINDOW REGULATOR ASSEMBLY REMOVAL

1. Remove the door window glass installation bolts.

CAUTION: If tinting film is adhered to the door window glass, attach special tool MB990480 to the outside of the glass to prevent the film from peeling off.

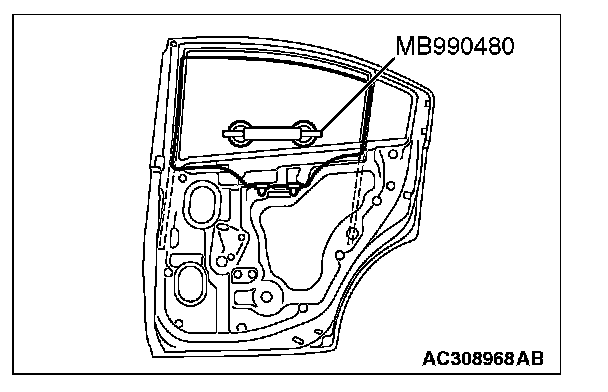

2. Lift the door window glass, and attach special tool MB990480 to the glass as shown to prevent the glass from falling.
3. Remove the window regulator assembly and power window motor assembly.

[[B]] REAR DOOR STATIONARY WINDOW GLASS ASSEMBLY REMOVAL

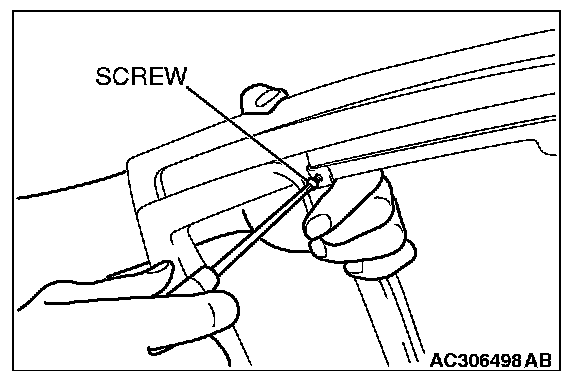

Remove the mounting screw of the top of the rear door stationary window glass assembly (the screw is hidden by the molding).

[[C]] POWER WINDOW SWITCH PANEL ASSEMBLY REMOVAL

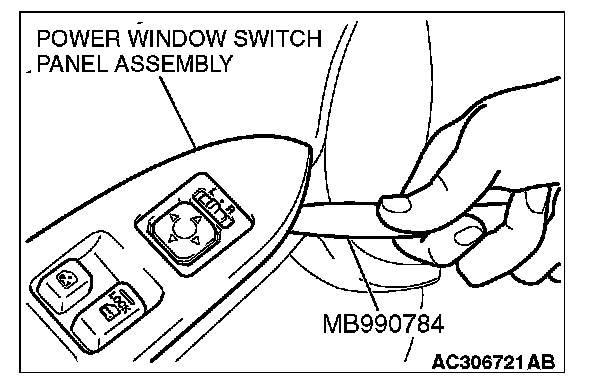

Insert special tool MB990784 as shown to remove the power window switch panel assembly.
