Combination Switch: Service and Repair

COLUMN SWITCH

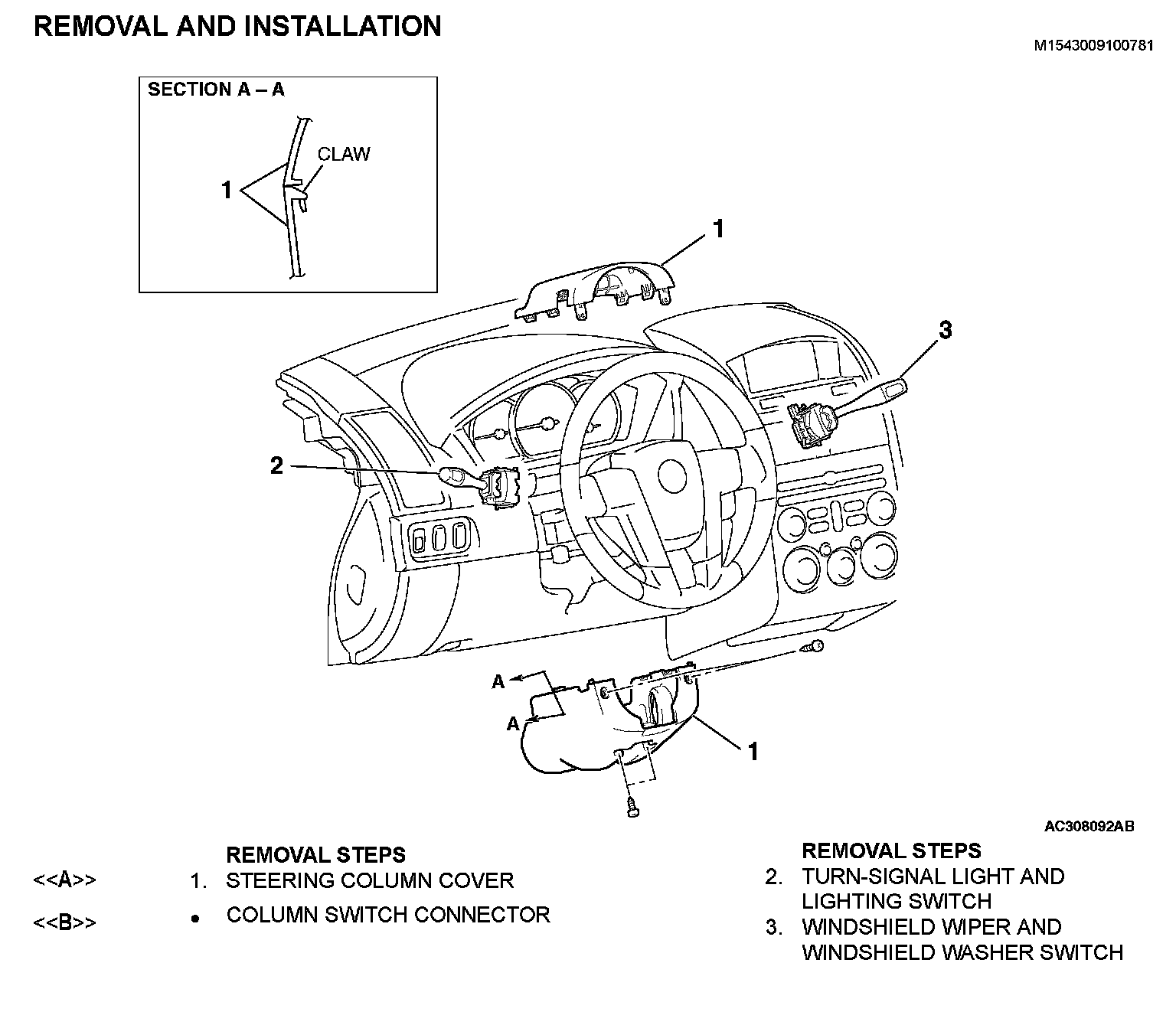

REMOVAL AND INSTALLATION

Removal Steps 1-3:

REMOVAL SERVICE POINTS

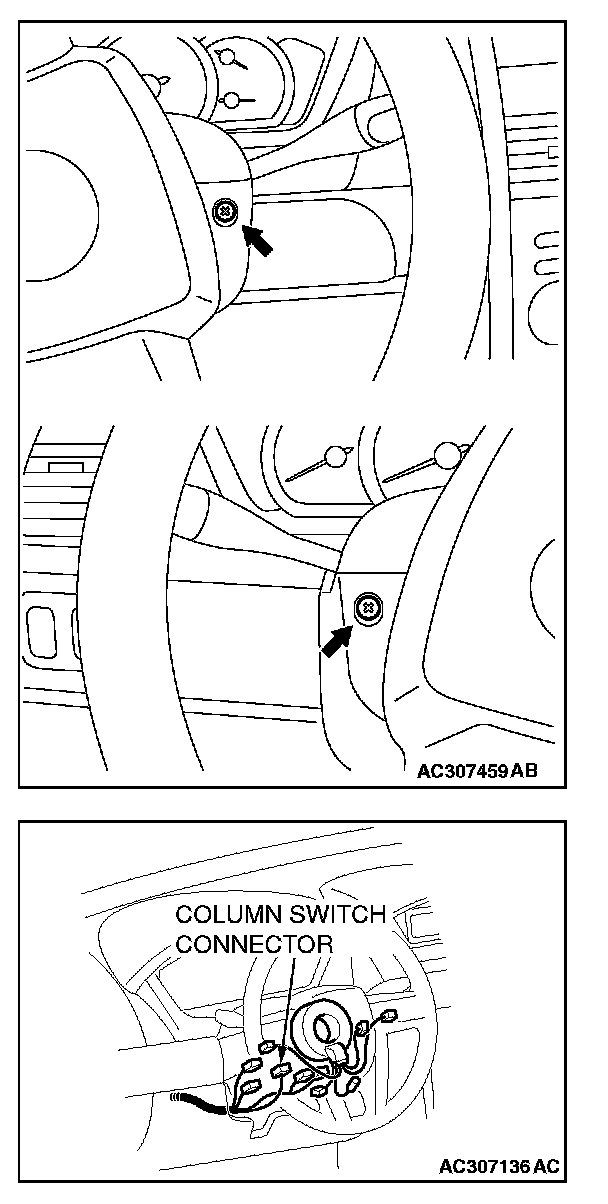

[[A]] STEERING COLUMN UPPER COVER/STEERING COLUMN LOWER COVER REMOVAL







Rotate the steering wheel with a slightly side-to-side to access and remove the mounting screws.

[[B]] COLUMN SWITCH CONNECTOR REMOVAL
