Engine Controls - DTC P001A/P003C Manual Revisions

No: TSB-09-13-007

DATE: August, 2009

MODEL: See below

SUBJECT:

DTCS P001A AND P003C - SERVICE MANUAL REVISION

TSB Revision TSB-09-13-007

PURPOSE

Some information for DTCs P001A and POO3C is incorrect in the affected service manuals. This bulletin contains corrected service manual pages for these diagnostic trouble codes.

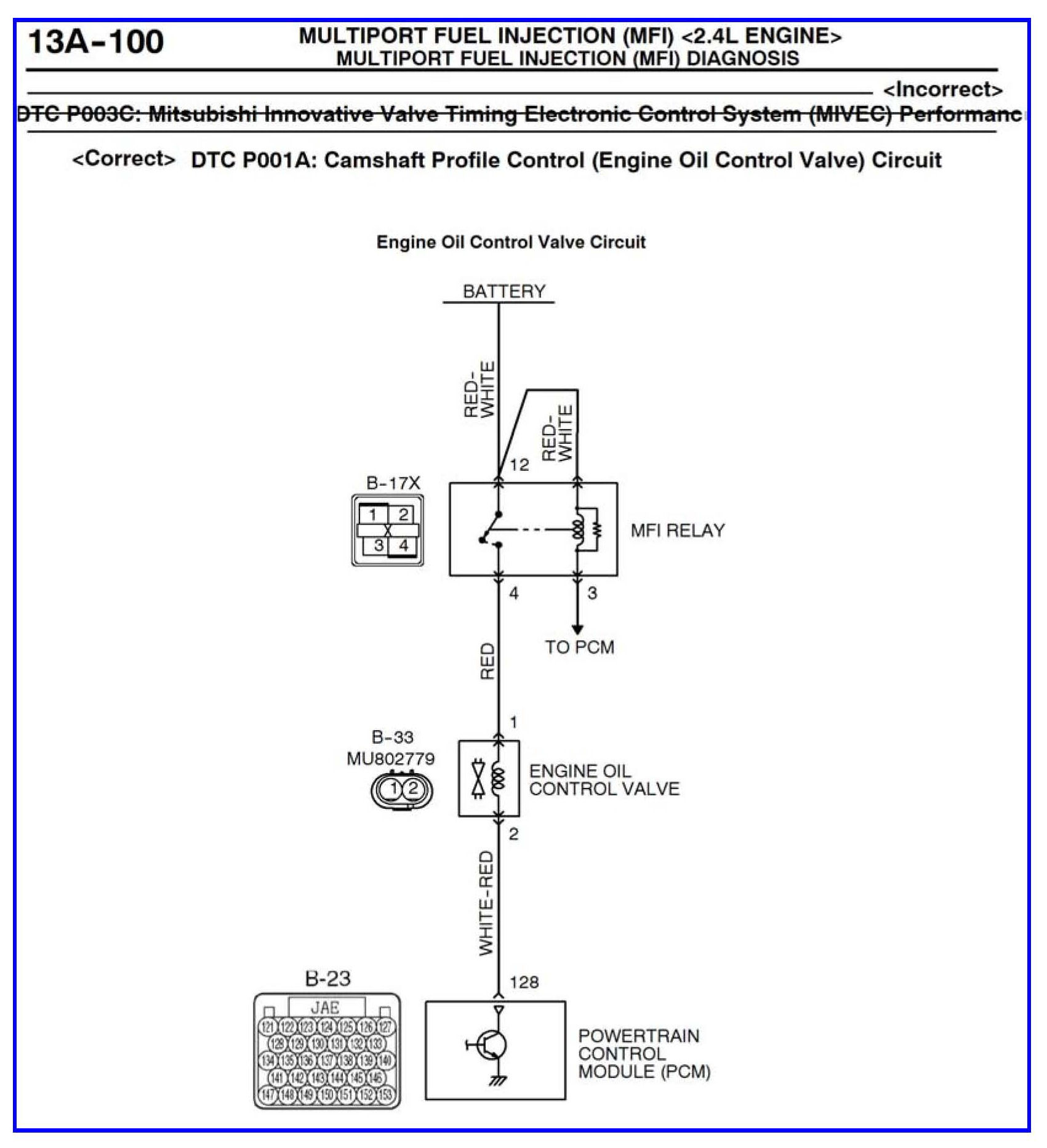

DTC P001A - Camshaft profile control (engine oil control valve) circuit

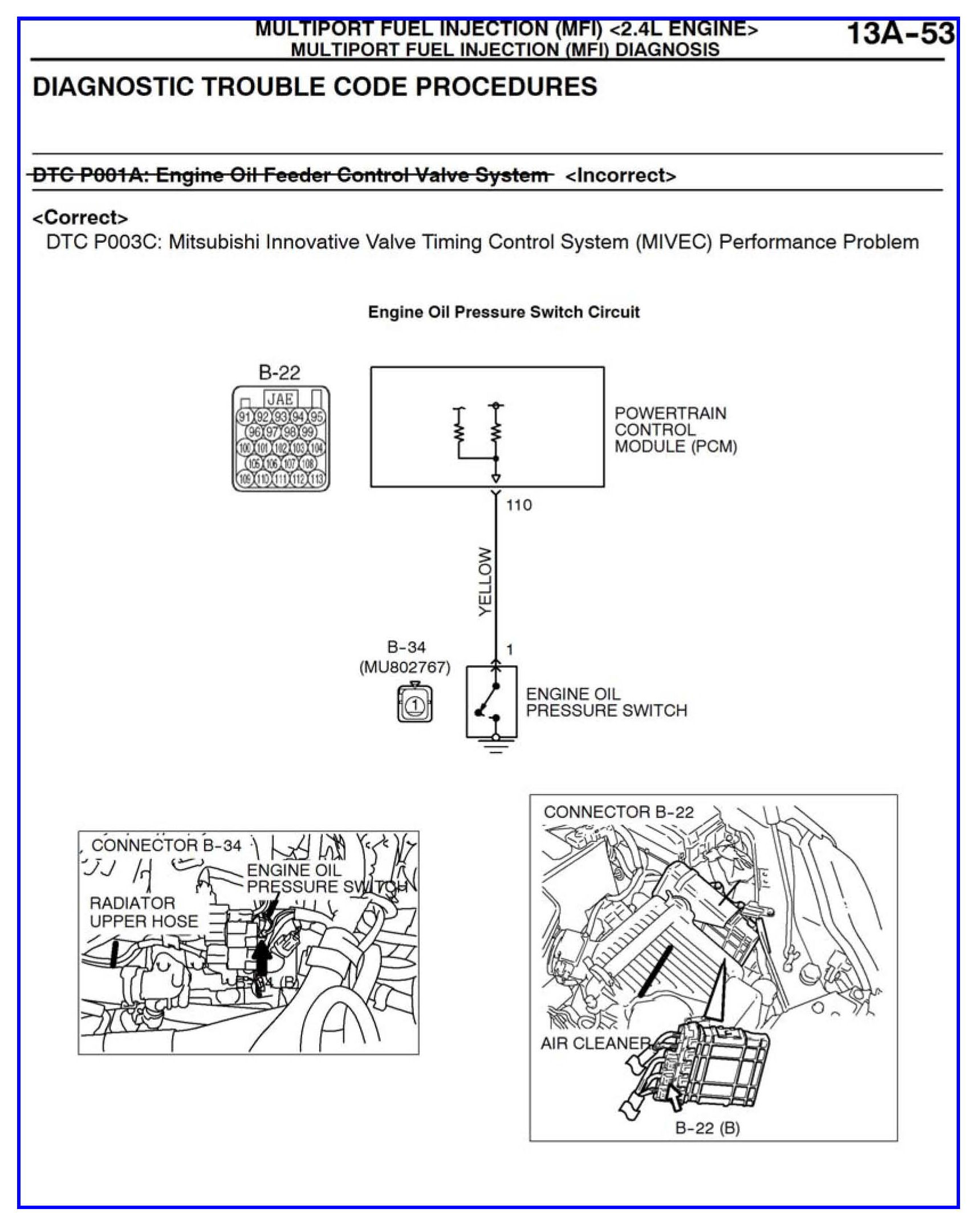

DTC P003C - MIVEC Performance problem

AFFECTED VEHICLES

2009 and 2009.5 Galant

NOTE:
To determine if the vehicle is 2009 or 2009.5 model:

a. Look for the lower grille (screen) in the front fascia that was added in 2009.5.

b. Check the factory option group (FOG) on the VIN super screen or in the lower RH corner of the driver's door label. 2009 models start with "A" (i.e. A01). 2009.5 models start with "T" (i.e. T21).

c. Check the production date of the vehicle:

- Up to June 2008 = 2009 model

- July 2008 could be either 2009 or 2009.5 50 check the FOG

- August 2008 and after = 2009.5 model

AFFECTED SERVICE MANUALS

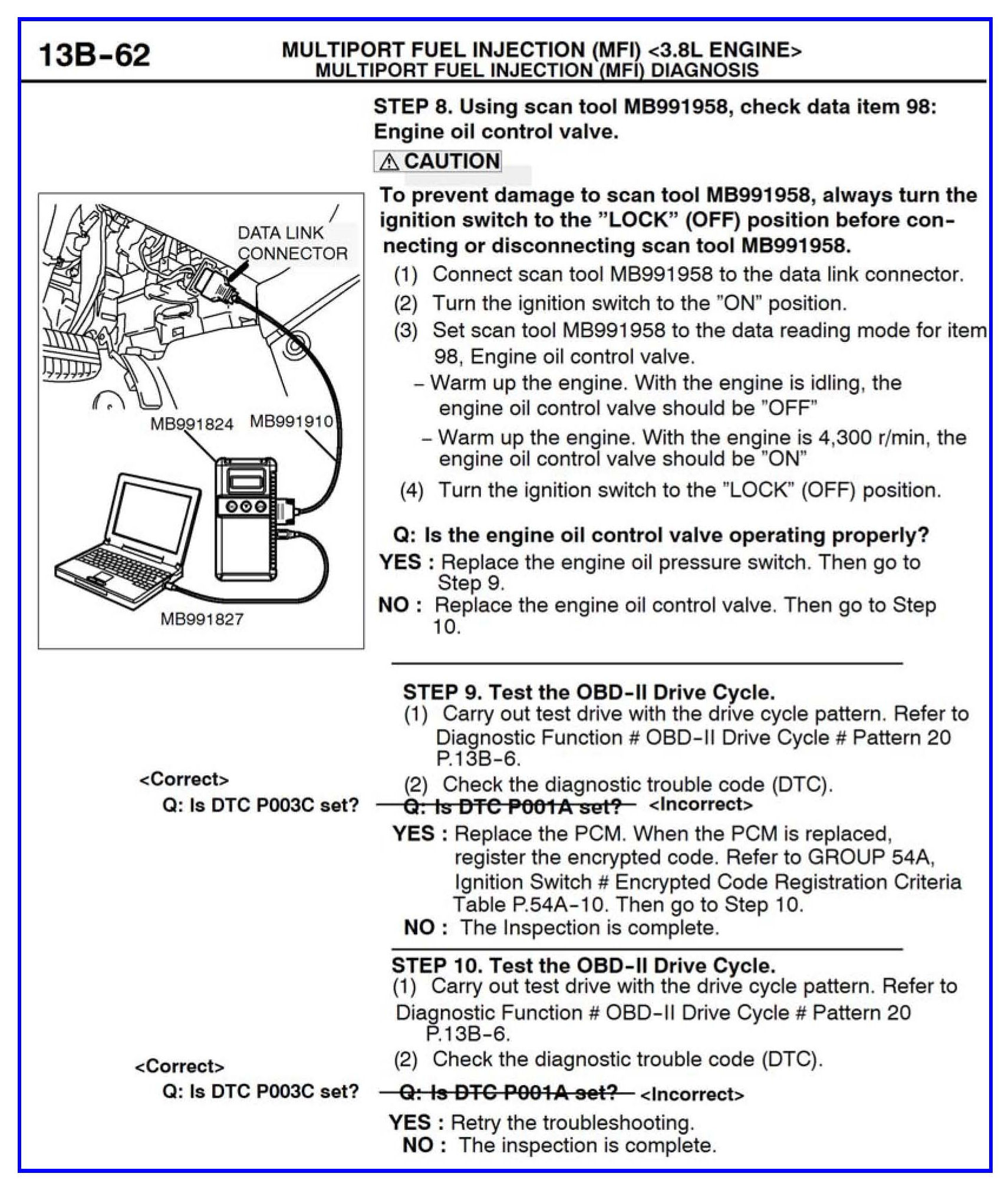

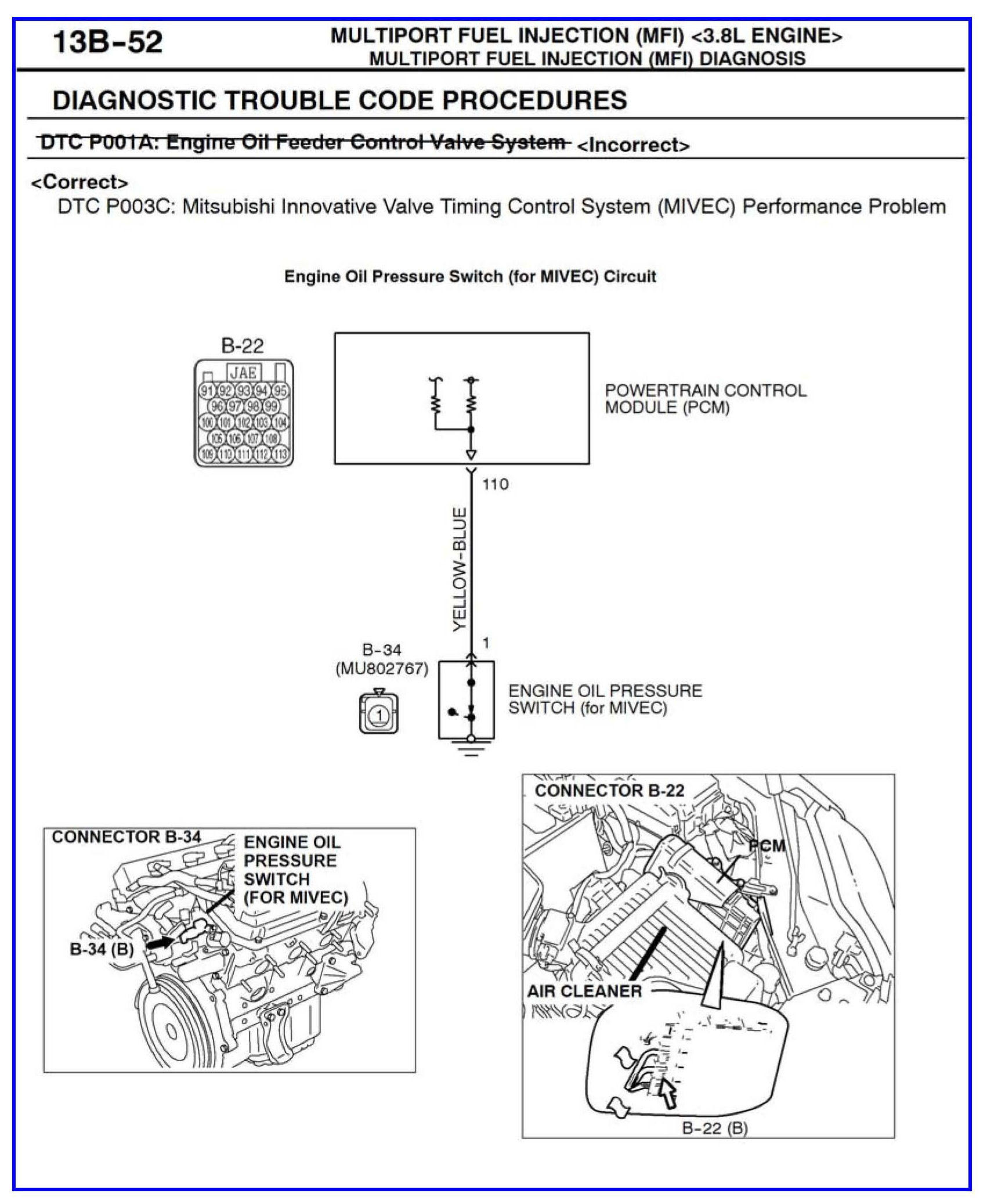

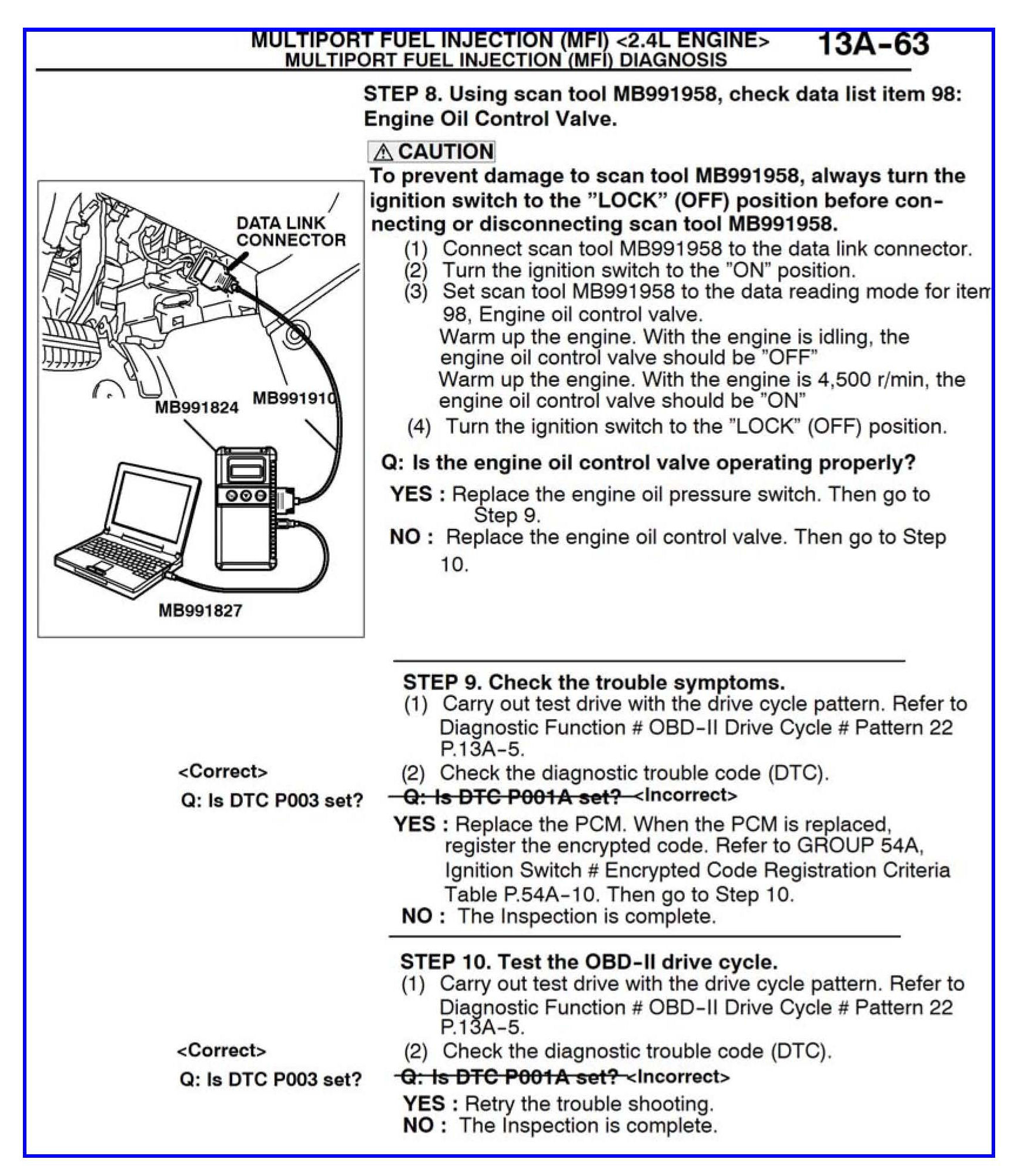

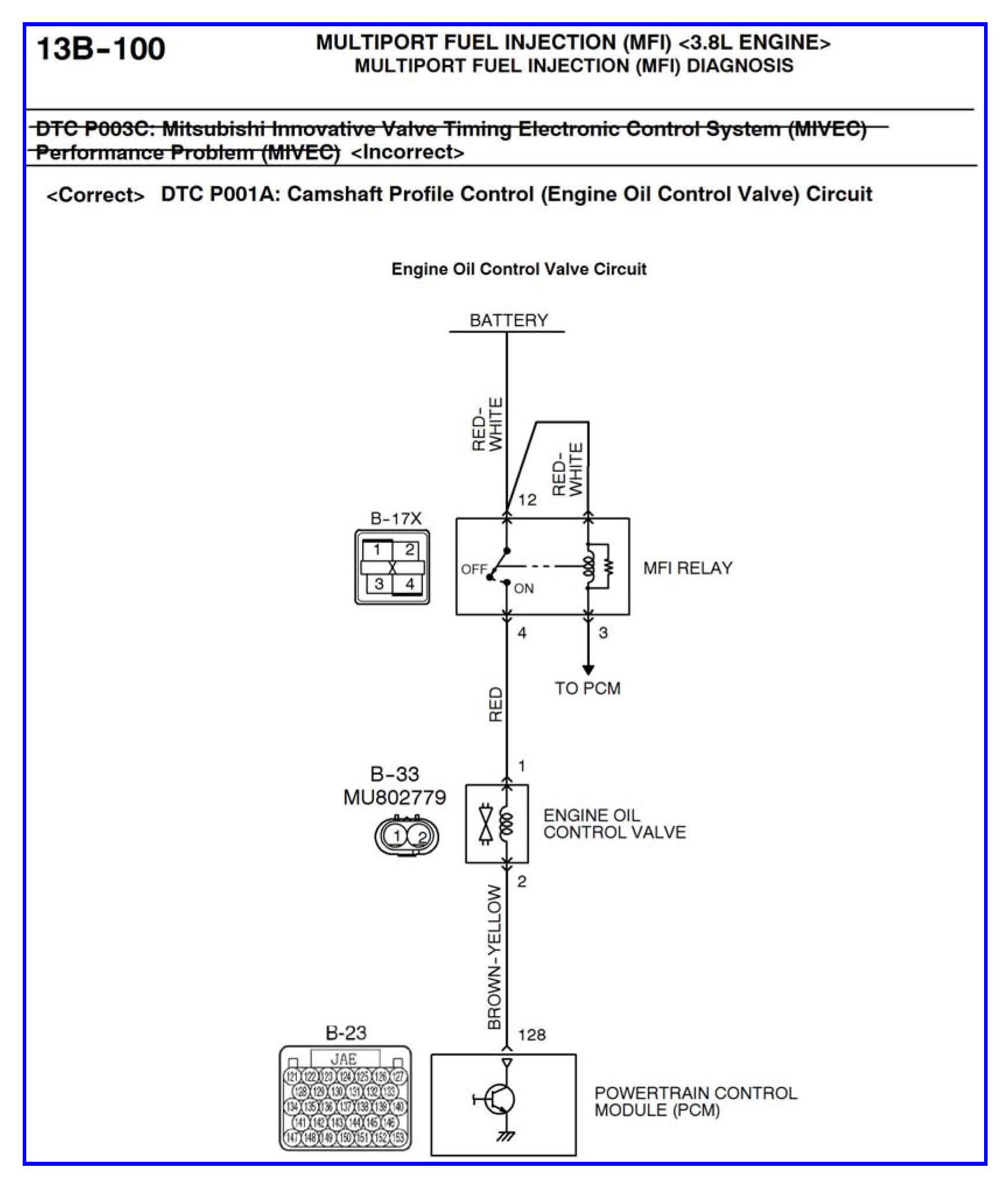

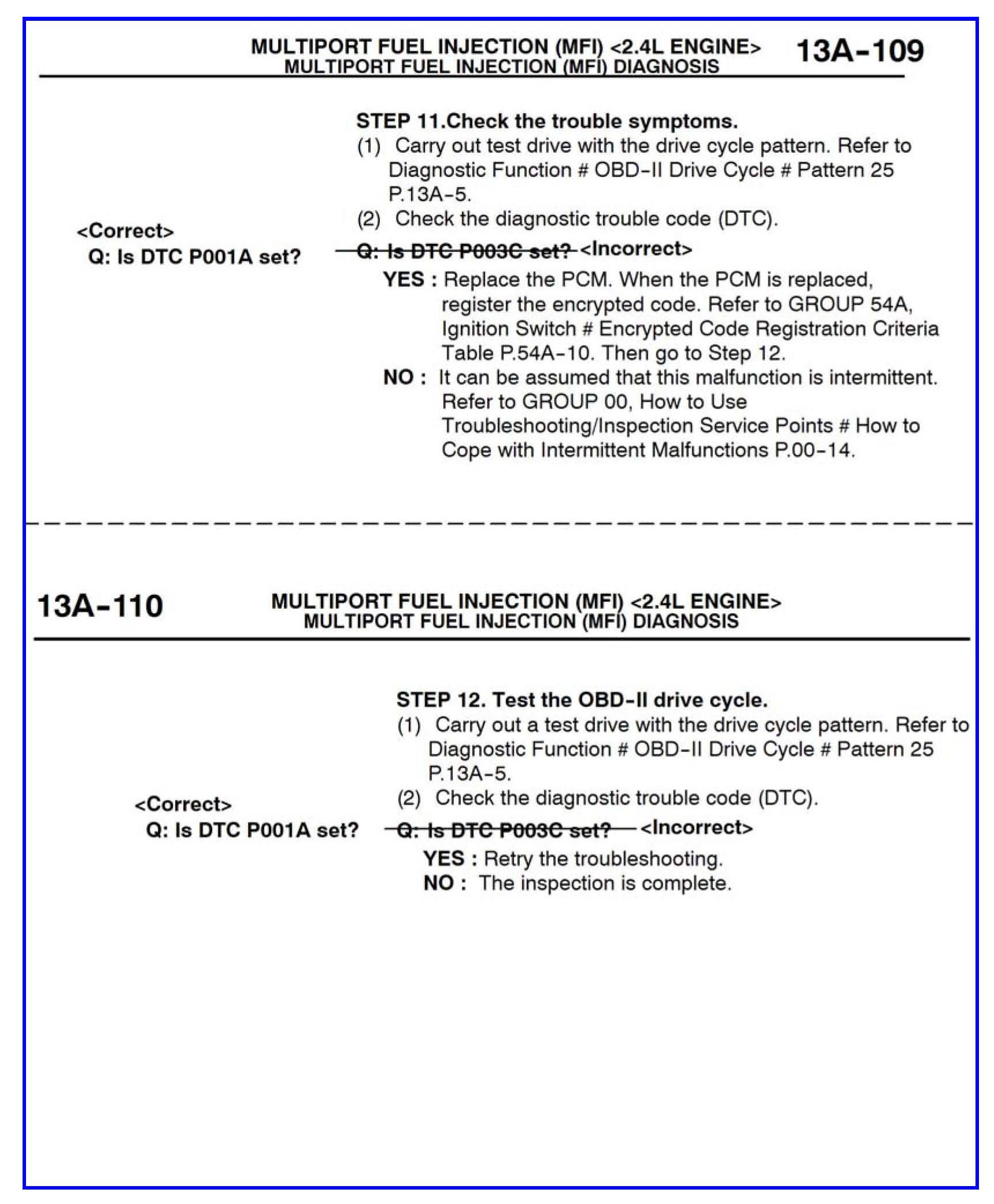

2009 Galant pages 13A-6, 13A-44, 13A-53, 13A-63, 13A-100, 13A-109, 13A-110 13B-7, 13B-42, 13B-52, 13B-62, 13B-100, 13B-111

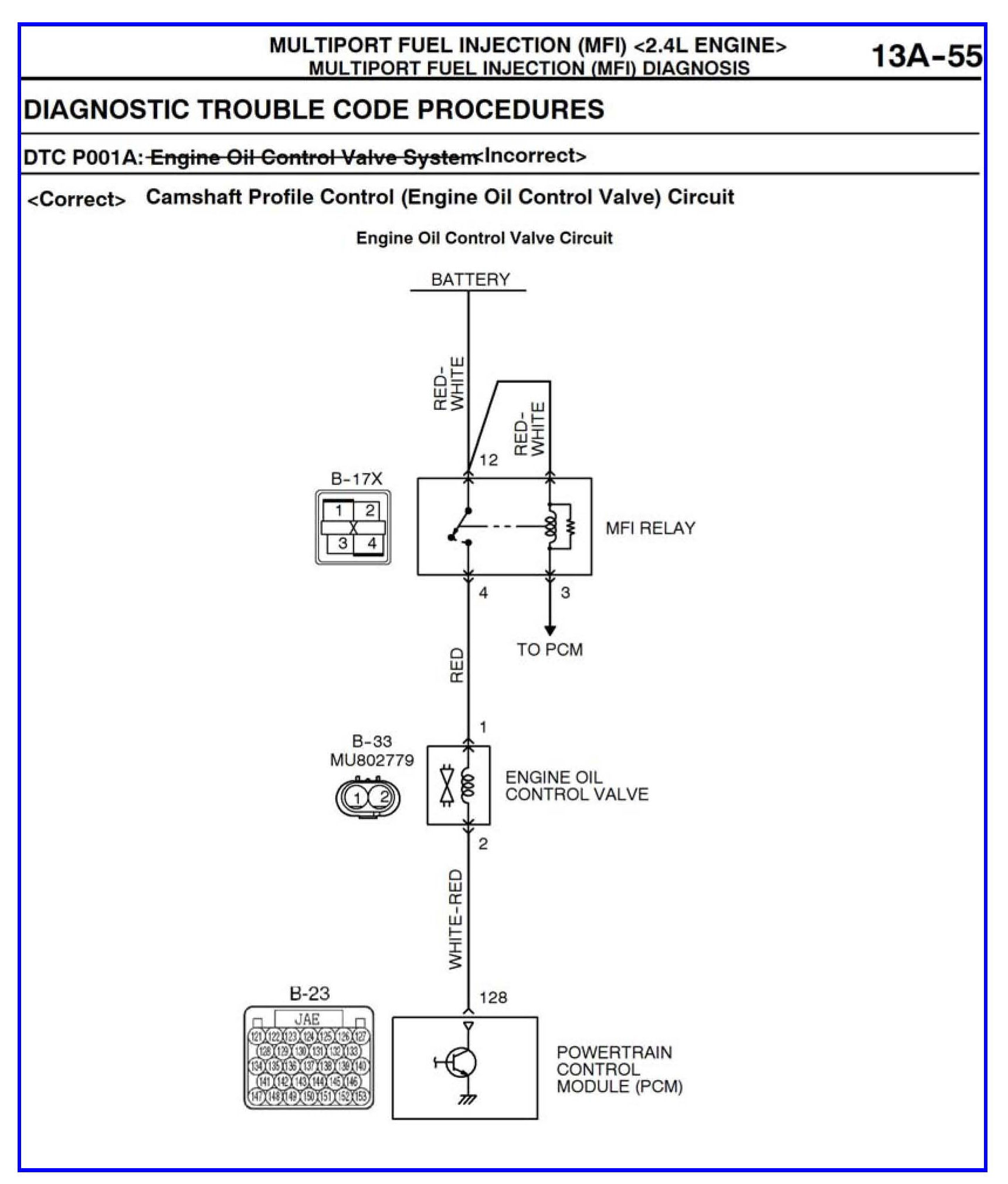

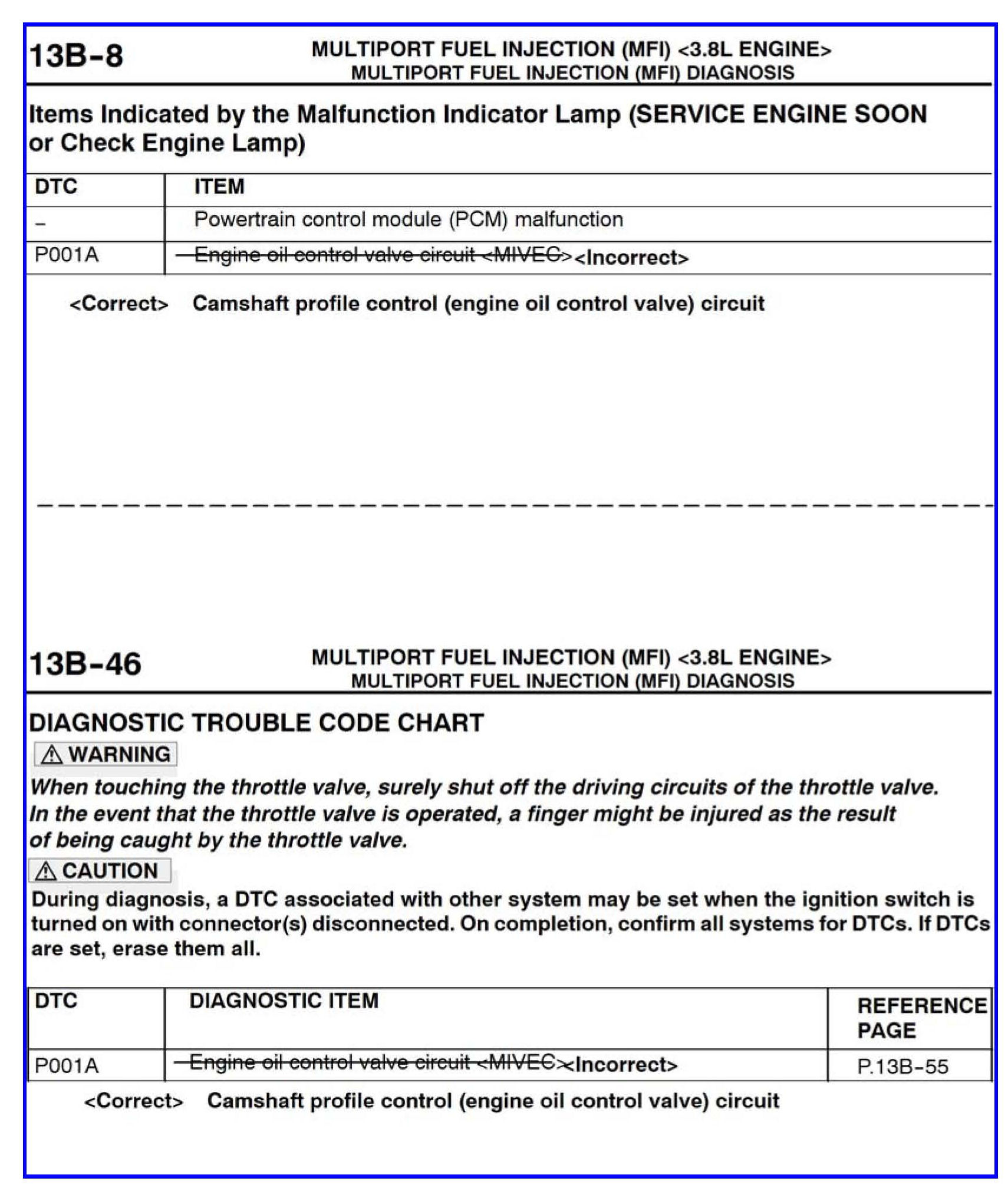

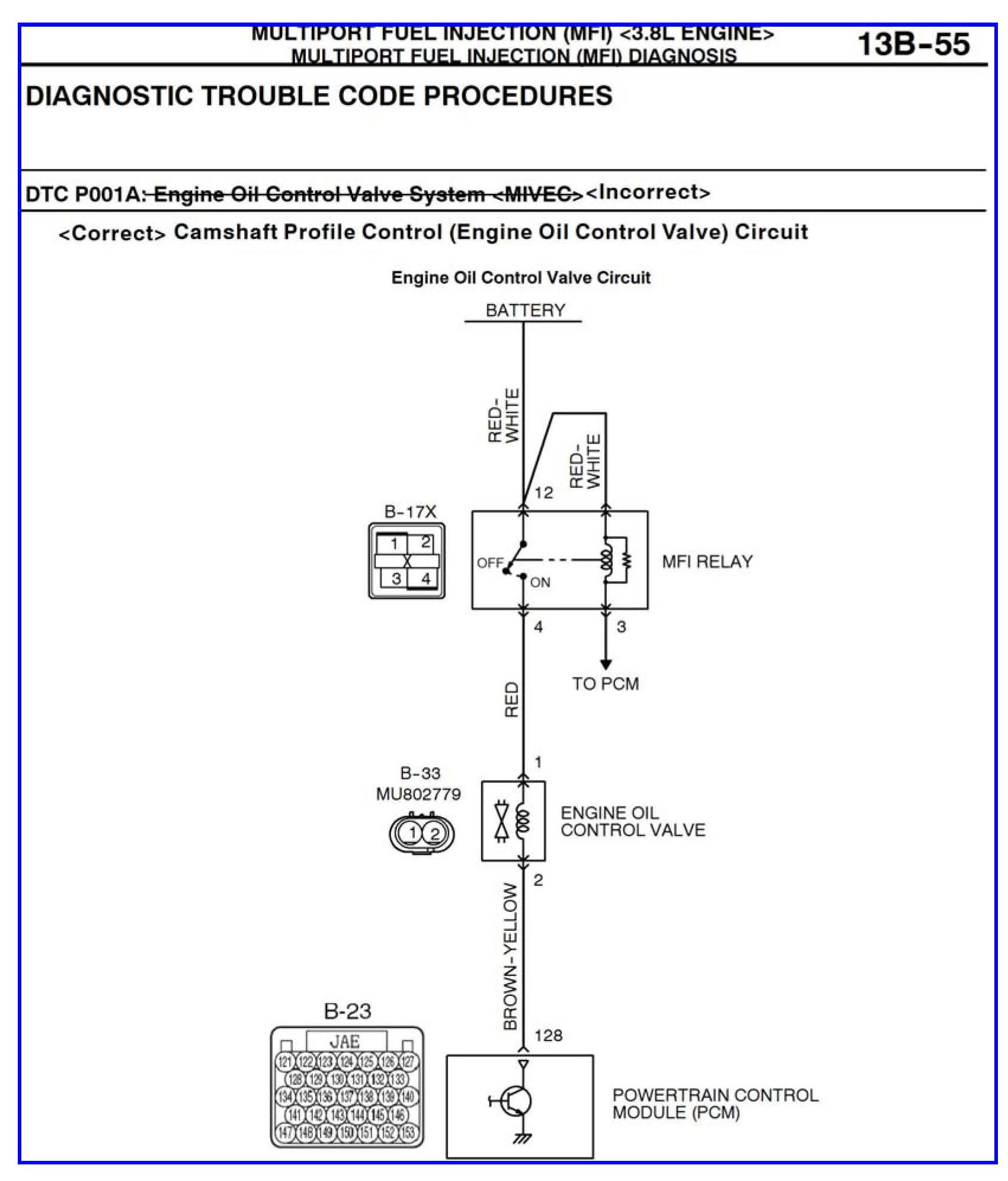

2009.5 Galant pages 13A-6 13A-46 13A-55 13B-8 13B-46 13B-55

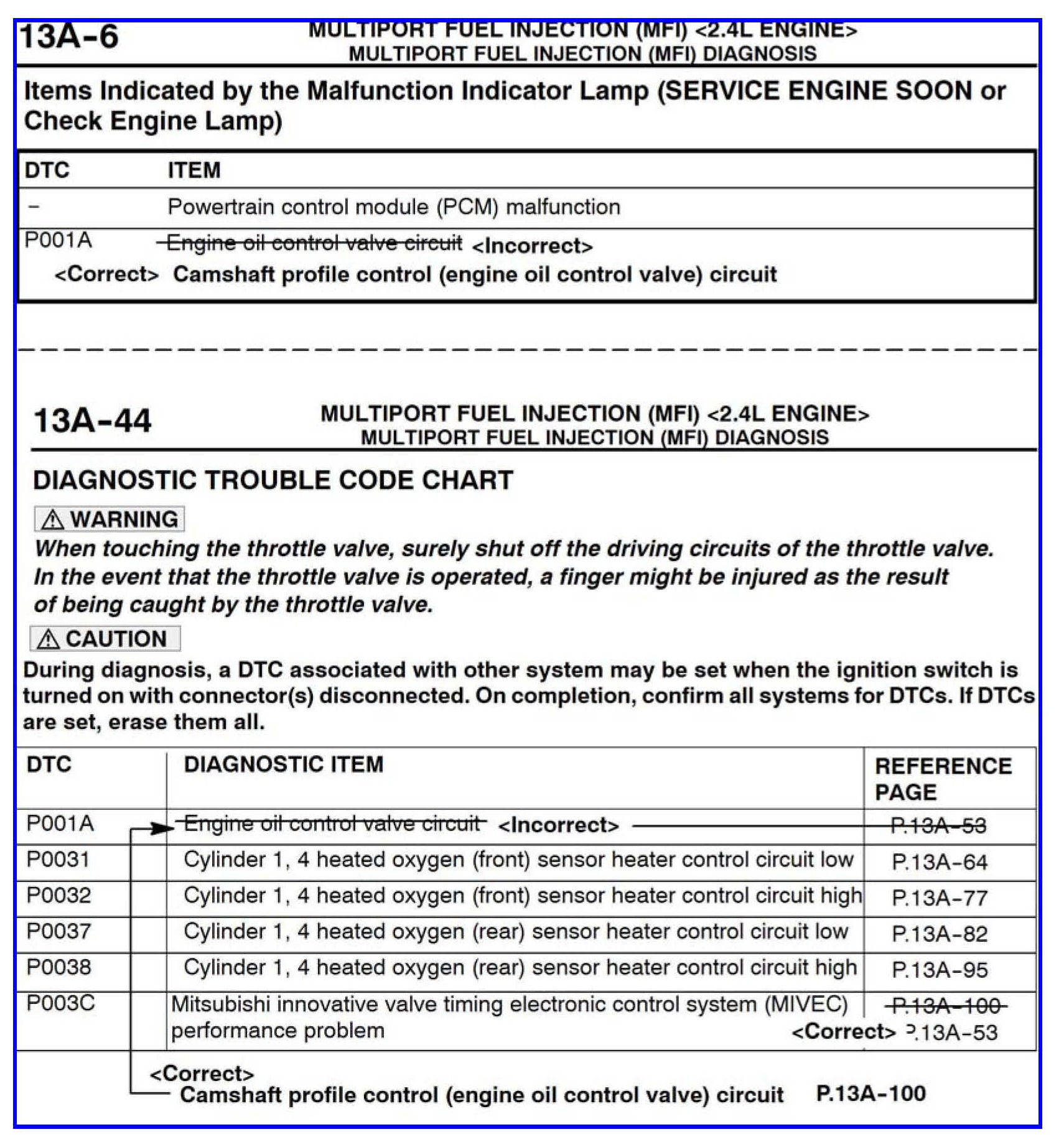

2009 Galant pages 13A-6 and 13A-44
