Component Tests and General Diagnostics

TPMS WARNING LIGHT CHECK

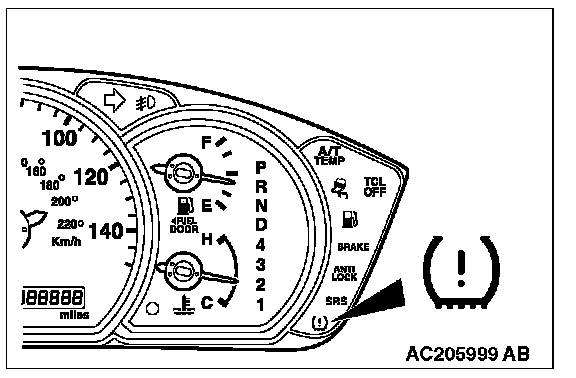

1. Check that the TPMS warning light illuminates for approximately three seconds when the ignition switch is turned to the "ON" position.
2. Check that it illuminates for approximately three seconds and then goes out (If the warning light does not turn off and stays on, perform troubleshooting for TPMS Inspection Procedure No. 1. Inspection Procedure 1: The TPMS Warning Light Stays On
(If the warning light does not turn off and flashes, perform troubleshooting for TPMS Inspection Procedure No.2. Inspection Procedure 2: The TPMS Warning Light Flash For About 1 Minute and Then Remain Illuminated

NOTE: Flash for about 1 minute and then remain illuminated.
