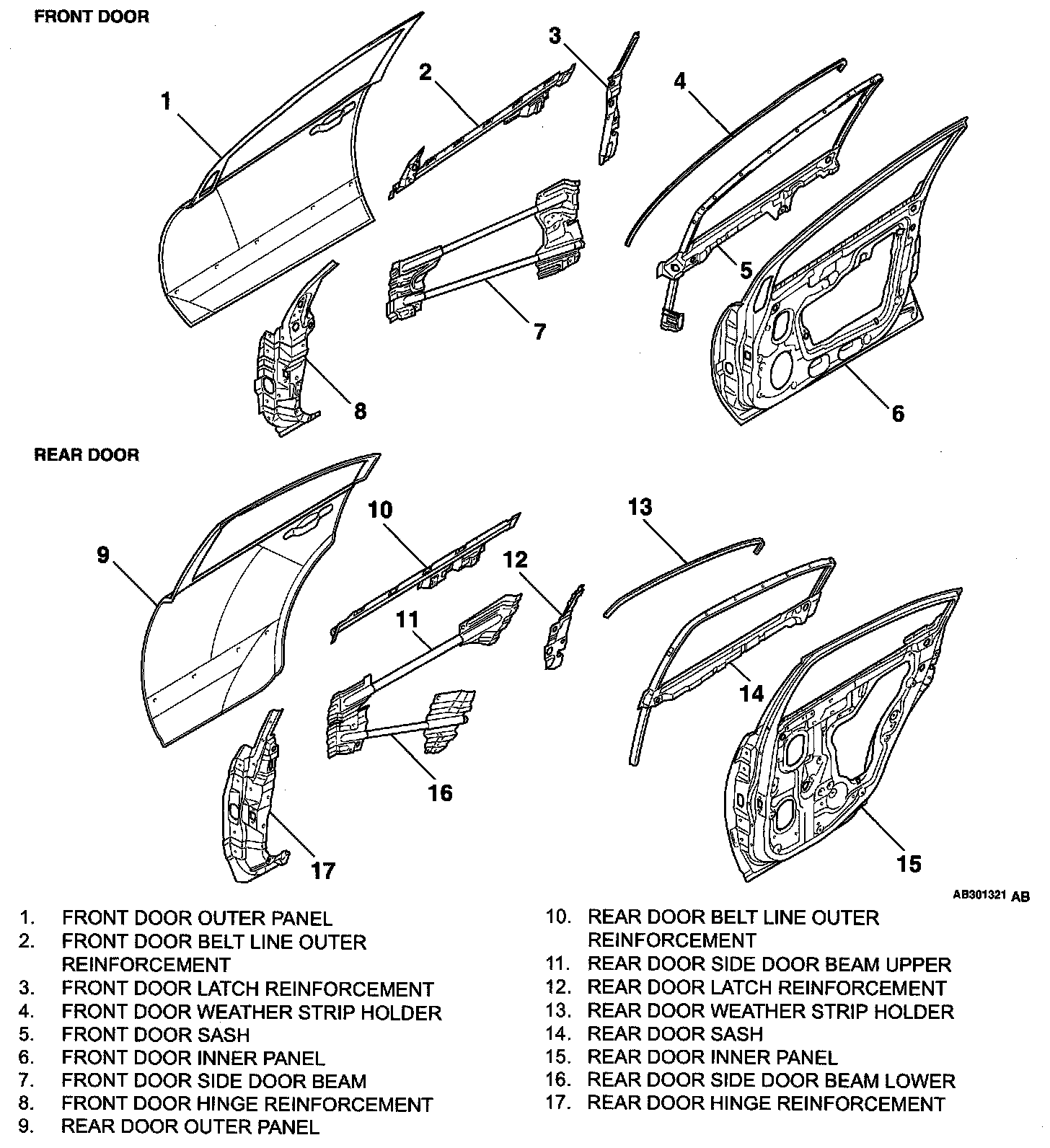

Exploded Views
>>
Body and Frame
>>
Front Door
Front Door
DOOR
Two side door beams have been installed to improve the safety upon side impact.
