Data List Reference Table

DATA LIST REFERENCE TABLE

The following items can be read by the scan tool from the ABS/TCL-ECU input data. Scan Tool Testing and Procedures

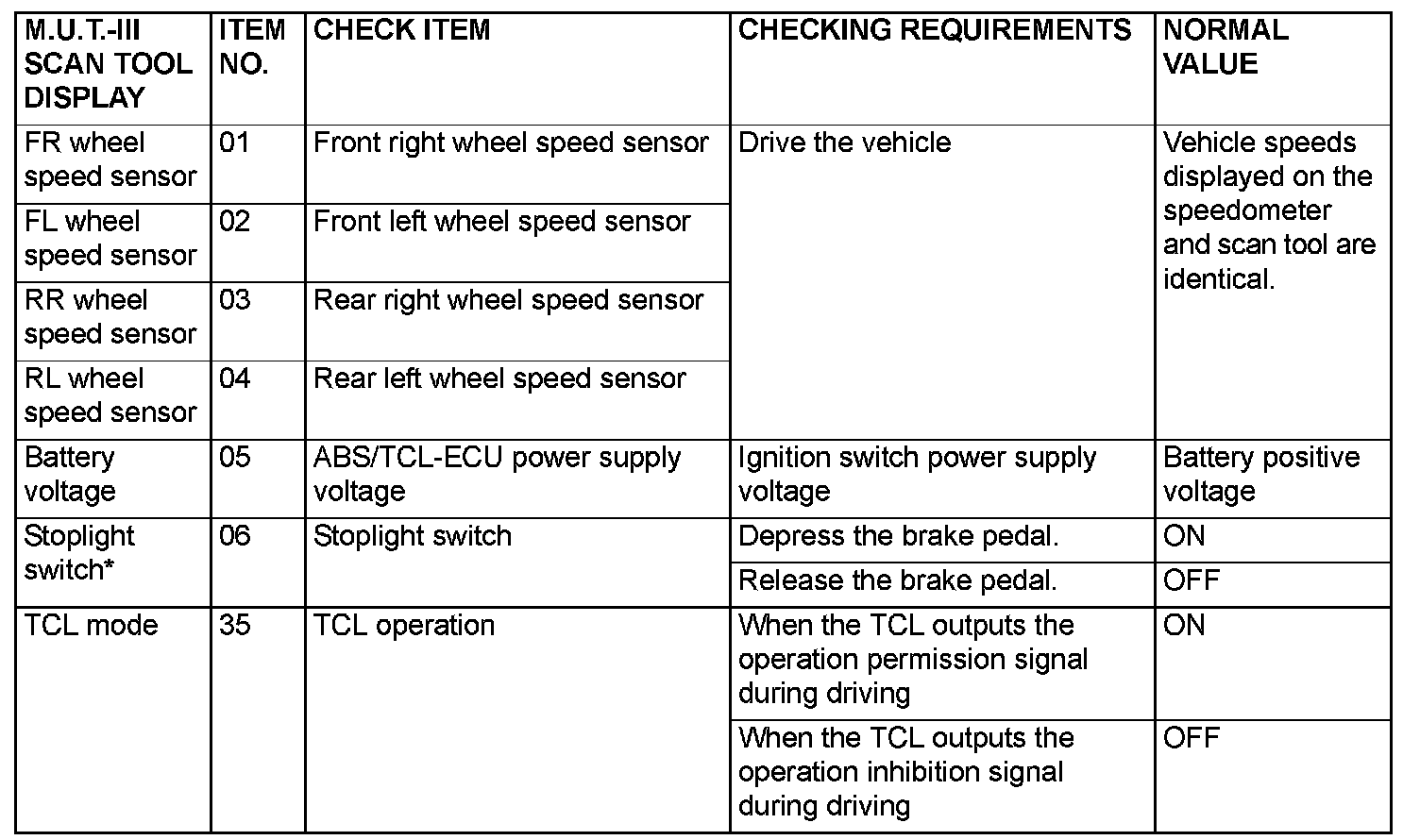

Data List Reference Table:

NOTE: Since the TCL is controlled with the same ABS/TCL-ECU used to control the ABS, the stoplight switch check item (No.6) used only for the ABS also appear.
