Removal and Replacement

SUNROOF ASSEMBLY

REMOVAL AND INSTALLATION

WARNING: When removing and installing the front passenger seat, be sure to carry out accuracy check occupant classification sensor after the seat has been installed in the vehicle. (Refer to Simplified Wiring System (SWS), On-Vehicle Service.)

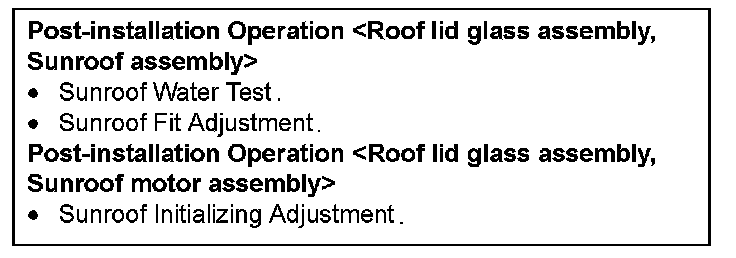

Post-installation Operation:

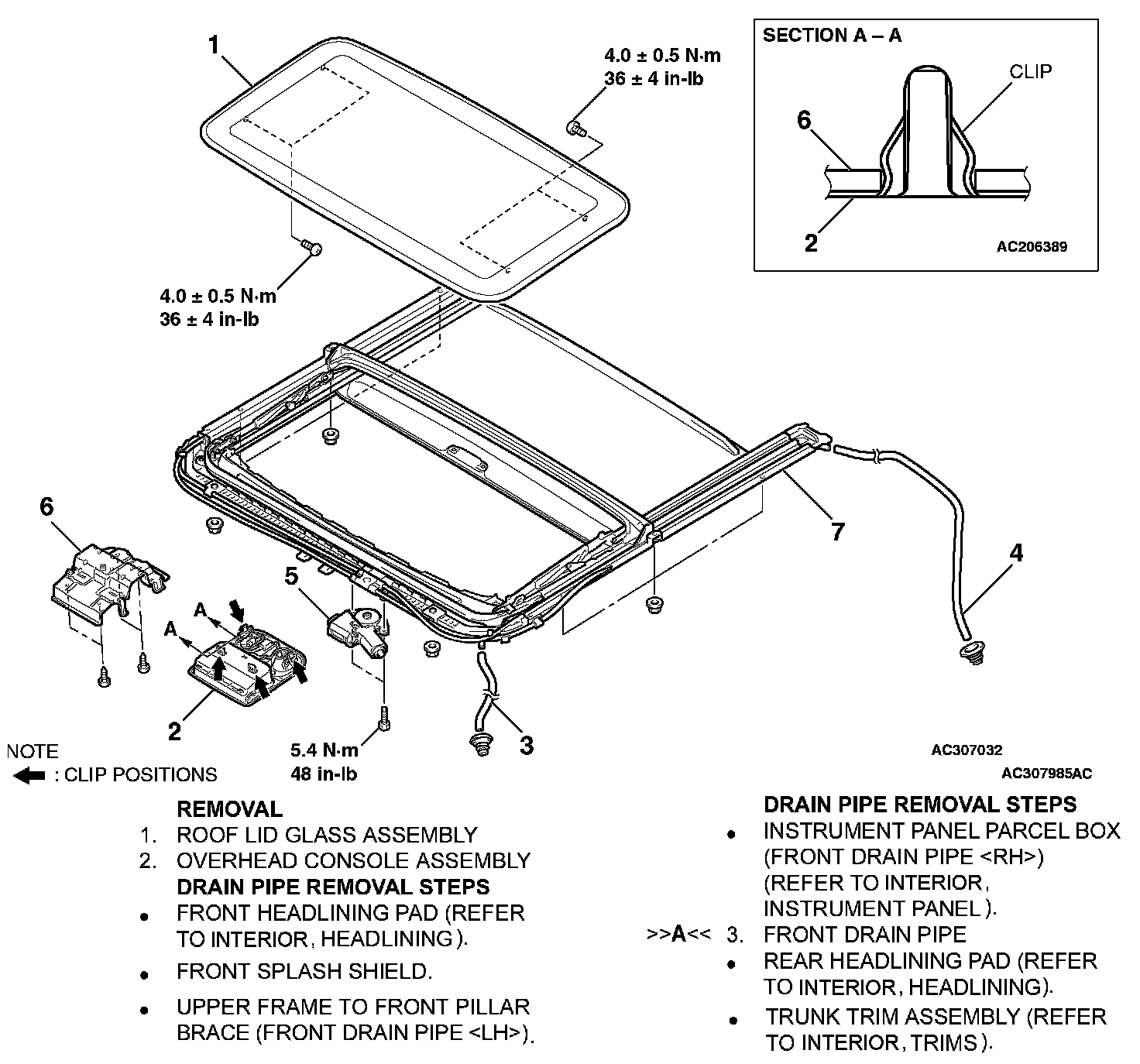

Removal Steps 1-7 (Part 1):

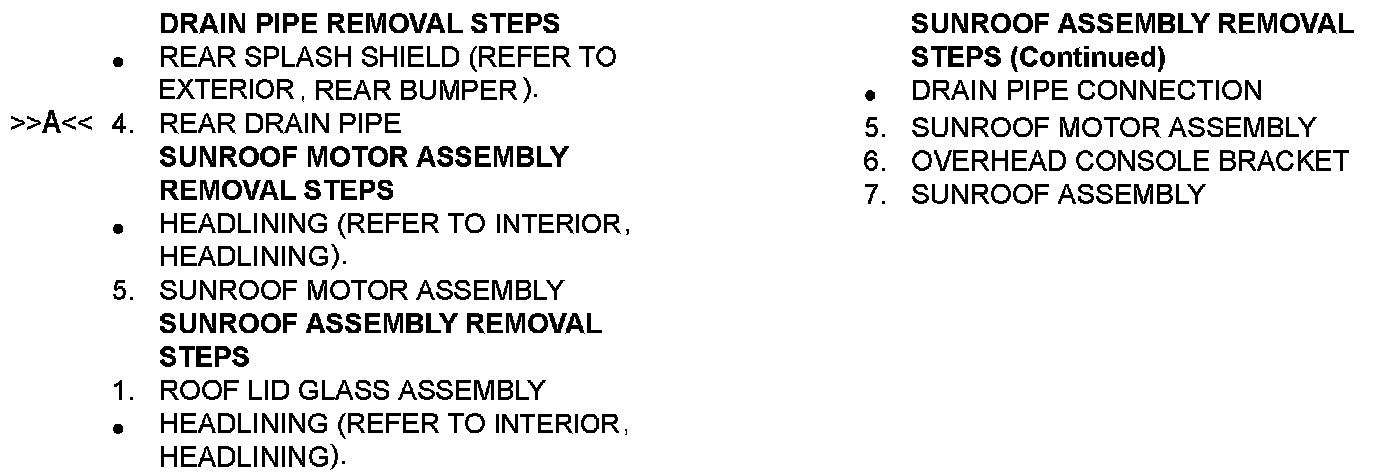

Removal Steps 1-7 (Part 2):

Required Special Tool:
- MB991223: Harness set

INSTALLATION SERVICE POINT

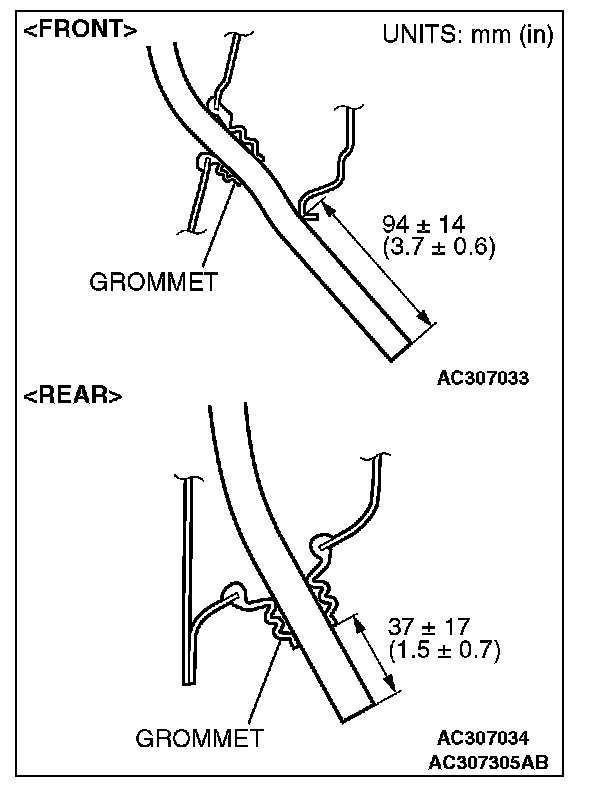

]]A[[ REAR DRAIN PIPE/FRONT DRAIN PIPE INSTALLATION







Install the grommet, and then position the drain pipe so that it protrudes from the grommet as shown in the illustration.
