Rear Door Lock Actuator Check

REAR DOOR LOCK ACTUATOR CHECK

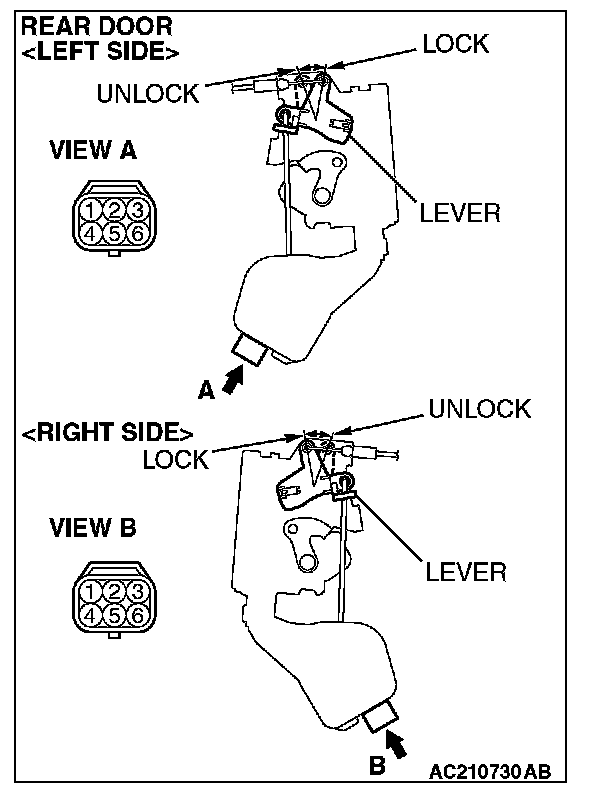

The illustration shows when the door lock actuator is viewed from outside the door.

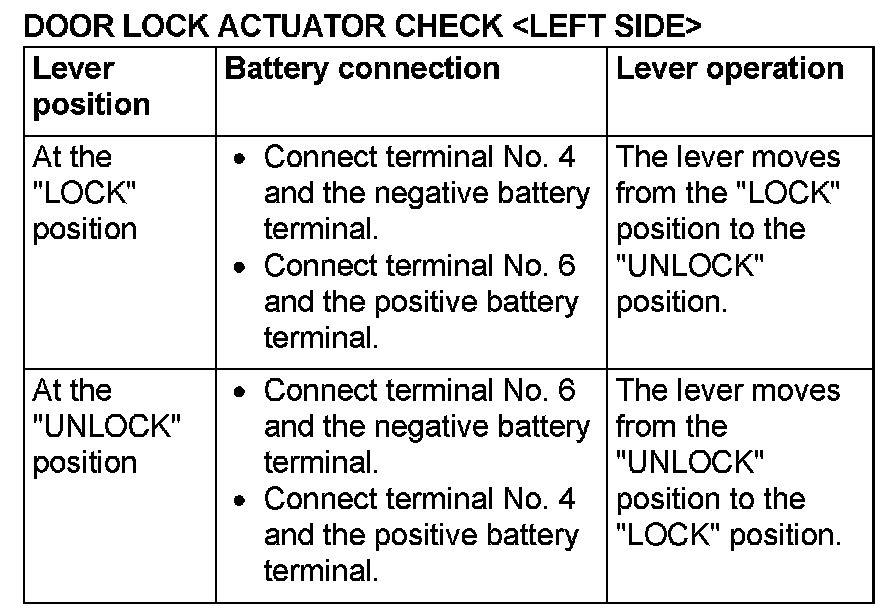

Door Lock Actuator Check <Left Side>:

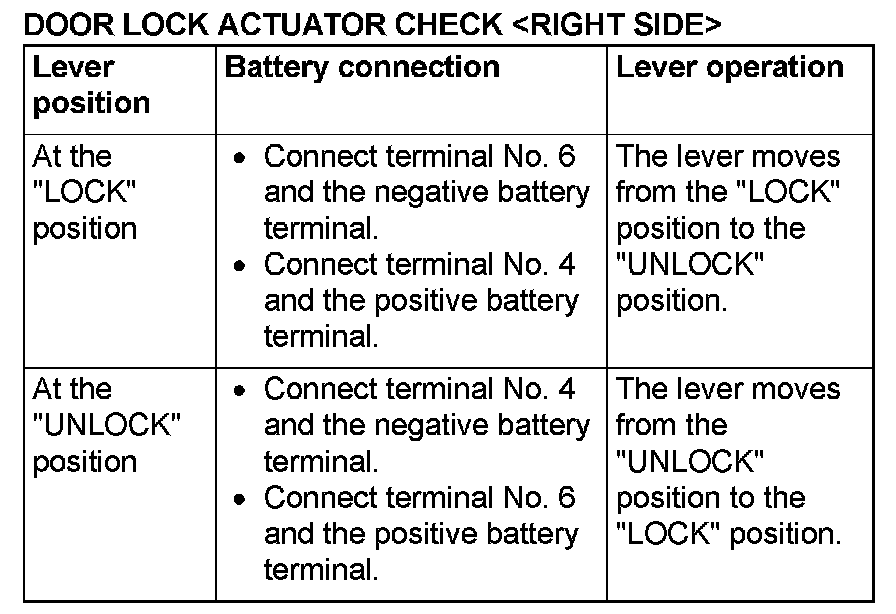

Door Lock Actuator Check <Right Side>:
