Front Door Lock Actuator Check
INSPECTIONFRONT DOOR LATCH CHECK

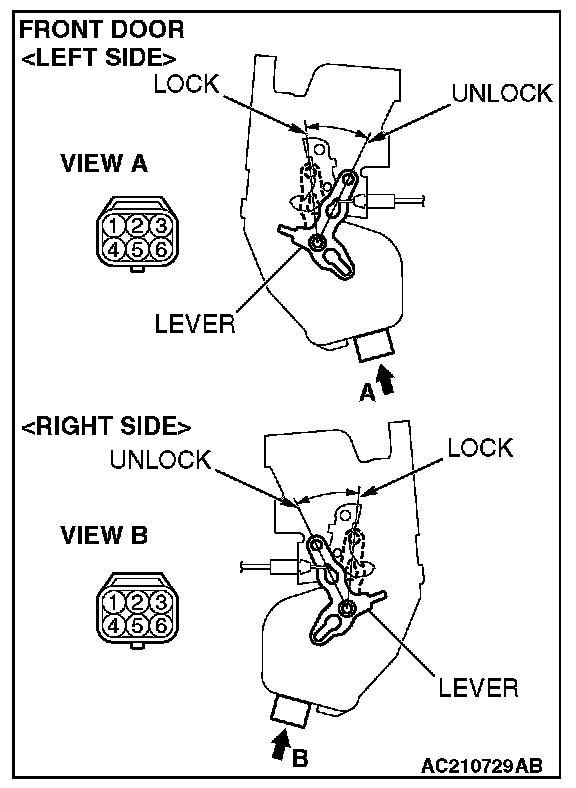

The illustration shows when the door lock actuator is viewed from inside the door.

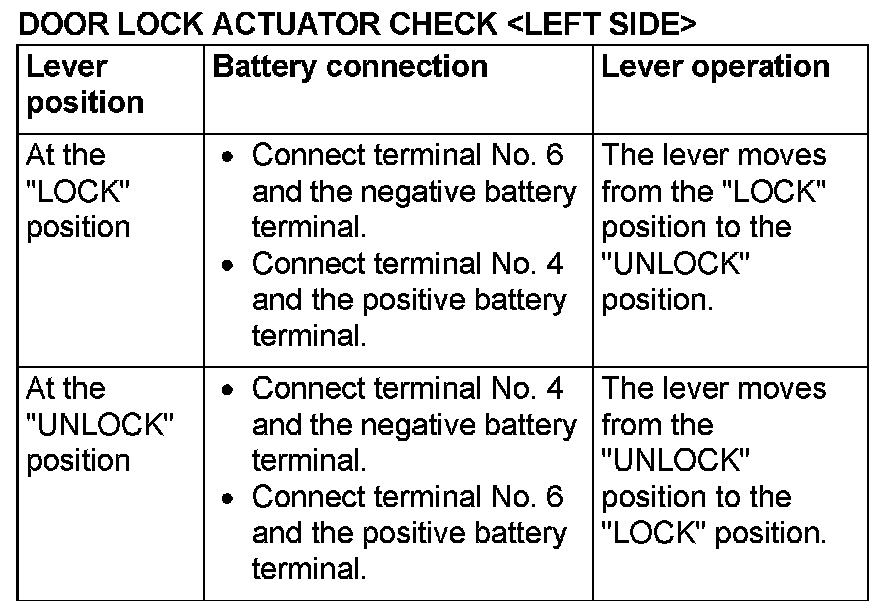

Door Lock Actuator Check <Left Side>:

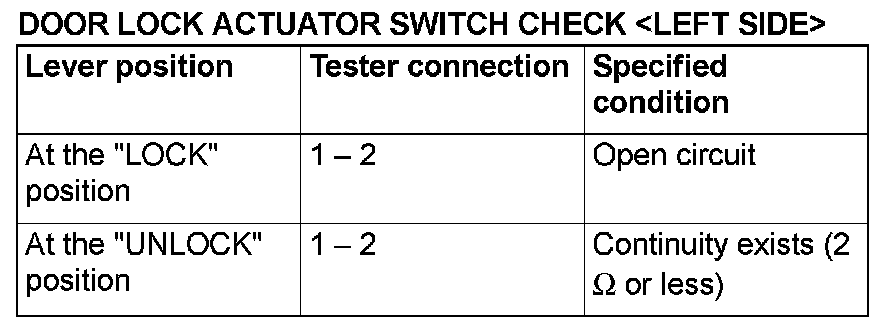

Door Lock Actuator Switch Check <Left Side>:

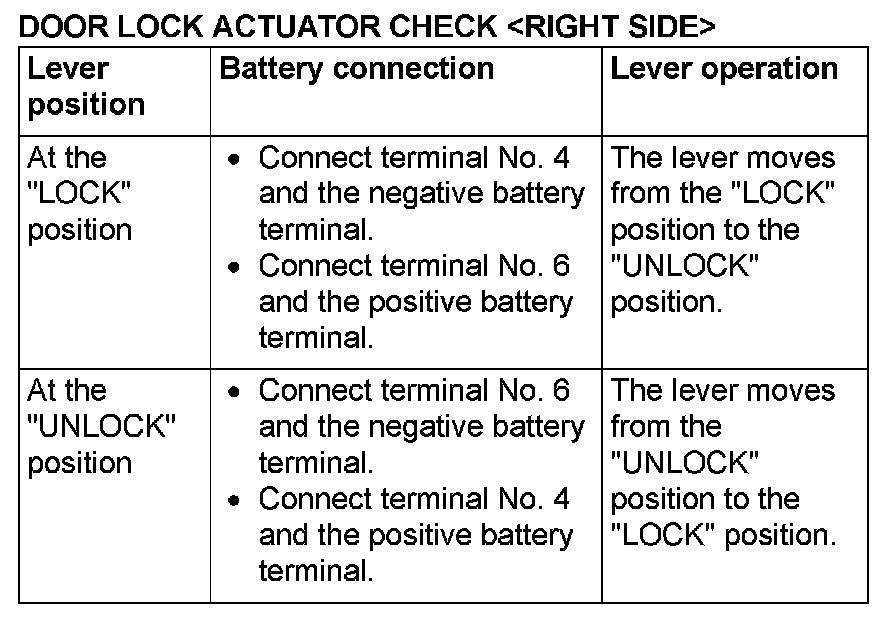

Door Lock Actuator Check <Right Side>:

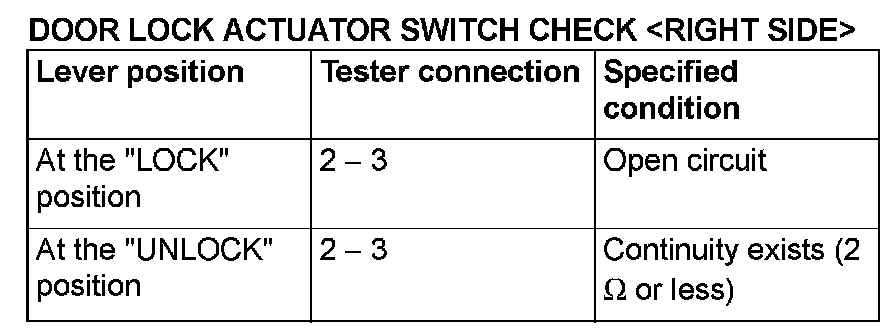

Door Lock Actuator Switch Check <Right Side>:
