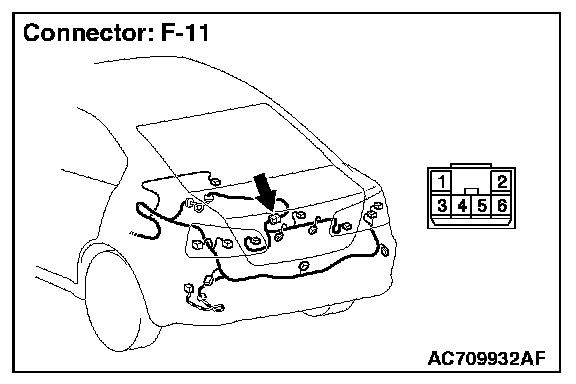

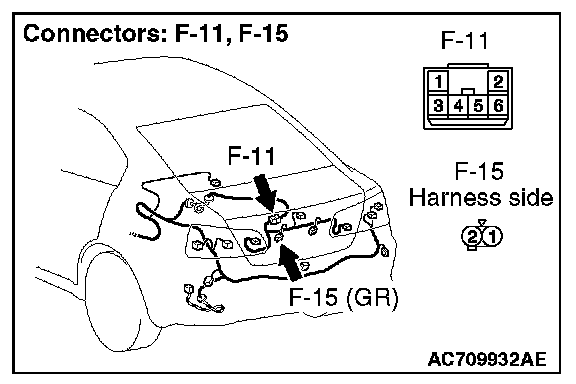

STEP 41. Check the wiring harness between license plate light (LH) connector F-15 (terminal 2) and intermediate connector F-11 (terminal 2).- Check the communication lines for open circuit and short circuit.
Q: Is the wiring harness between license plate light (LH) connector F-15 (terminal 2) and intermediate connector F-11 (terminal 2) in good condition?
YES : Replace the license plate light (LH) socket. Verify that the license plate light (LH) illuminate normally.
NO : The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary. Verify that the license plate light (LH) illuminate normally.

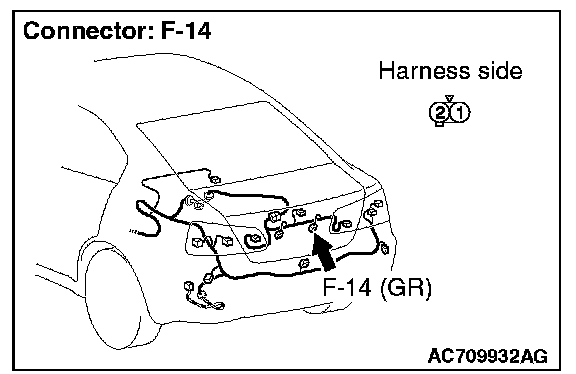

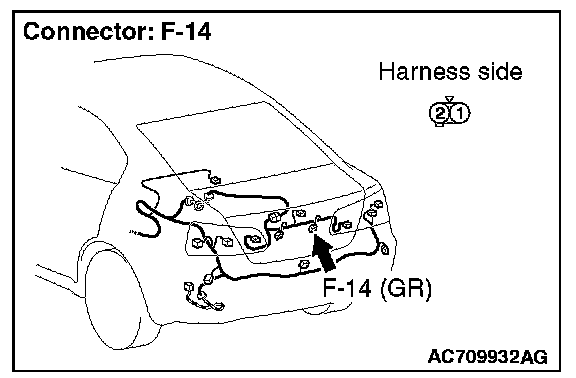

STEP 42. Check license plate light (RH) connector F-14 for loose, corroded or damaged terminals, or terminals pushed back in the connector.
Q: Is license plate light (RH) connector F-14 in good condition?
YES : Go to Step 43.
NO : Repair or replace the damaged component(s). Check that the license plate light (LH) illuminate normally.
STEP 43. Check the license plate light (RH) bulb.
1. Remove the license plate light (RH) bulb.
2. Verify that the license plate light (RH) bulb is not damaged or burned out.
Q: Is the license plate light (RH) bulb in good condition?
YES : Go to Step 44.
NO : Replace the license plate light (RH) bulb. Verify that the license plate light (RH) illuminate normally.

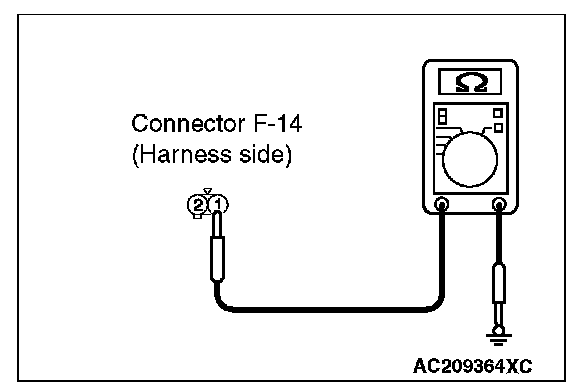

STEP 44. Check the ground circuit to the license plate light (RH). Measure the resistance at license plate light (RH) connector F-14.
1. Disconnect license plate light (RH) connector F-14 and measure the resistance available at the wiring harness side of the connector.
2. Measure the resistance value between terminal 1 and ground.
- The resistance should be 2 ohms or less.
Q: Is the measured resistance 2 ohms or less?
YES : Go to Step 46.
NO : Go to Step 45.
STEP 45. Check the wiring harness between license plate light (RH) connector F-14 (terminal 1) and ground.
- Check the ground wire for open circuit.
NOTE: Also check intermediate connector F-11 for loose, corroded, or damaged terminals, or terminals pushed back in the connector. If intermediate connector F-11 is damaged, repair or replace the damaged component(s) as described.
Q: Is the wiring harness between license plate light (RH) connector F-14 (terminal 1) and ground in good condition?
YES : Replace the license plate light (RH) socket. Verify that the license plate light (RH) illuminate normally.
NO : The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary. Verify that the license plate light (RH) illuminate normally.

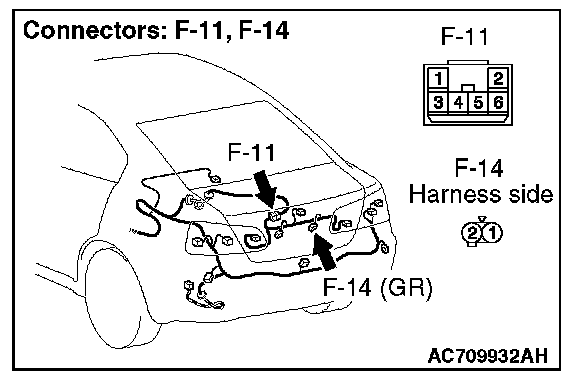

STEP 46. Check intermediate connector F-11 for loose, corroded or damaged terminals, or terminals pushed back in the connector.
Q: Is intermediate connector F-11 in good condition?
YES : Go to Step 47.
NO : Repair or replace the damaged component(s). Check that the license plate light (LH) illuminate normally.
STEP 47. Check the wiring harness between license plate light (RH) connector F-14 (terminal 2) and intermediate connector F-11 (terminal 2).
- Check the communication lines for open circuit and short circuit.
Q: Is the wiring harness between license plate light (RH) connector F-14 (terminal 2) and intermediate connector F-11 (terminal 2) in good condition?
YES : Replace the license plate light (LH) socket. Verify that the license plate light (LH) illuminate normally.
NO : The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary. Verify that the license plate light (LH) illuminate normally.

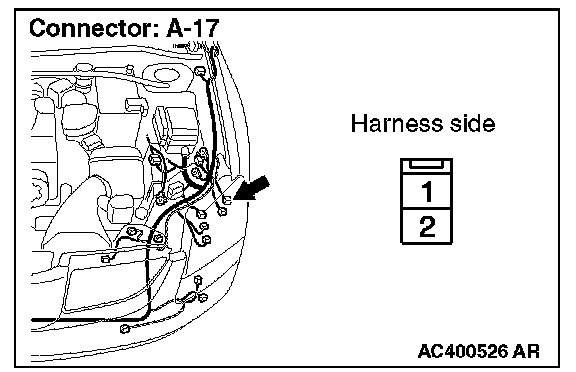

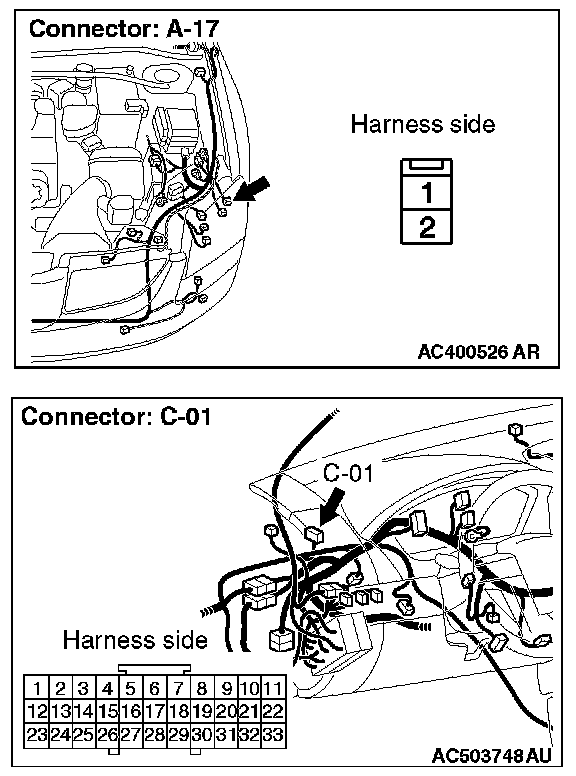

STEP 48. Check the wiring harness between front side marker light (LH) connector A-17 (terminal 2) and ground.
- Check the ground wire for open circuit.
Q: Is the wiring harness between front side marker light (LH) connector A-17 (terminal 2) and ground in good condition?
YES : Replace the side marker light socket. Verify that the side marker light illuminate normally.
NO : The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary. Verify that the side marker light illuminate normally.

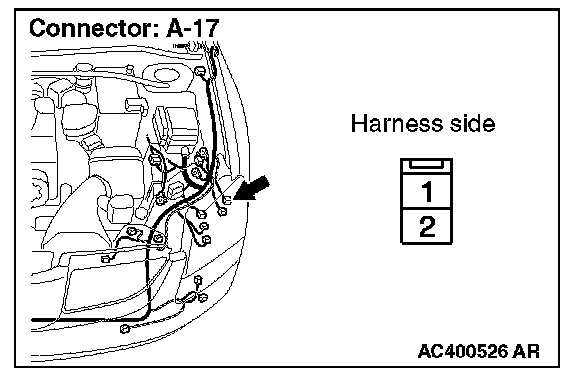

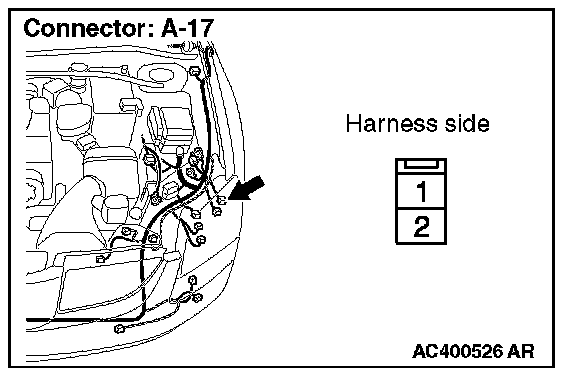

STEP 49. Check front side marker light (LH) connector A-17 for loose, corroded or damaged terminals, or terminals pushed back in the connector.
Q: Is front side marker light (LH) connector A-17 in good condition?
YES : Go to Step 50.
NO : Repair or replace the damaged component(s). Check that the front side marker light (LH) illuminates normally.
STEP 50. Check the front side marker light bulb (LH).
1. Remove the front side marker light bulb (LH).
2. Verify that the front side marker light bulb (LH) is not damaged or burned out.
Q: Is the front side marker light bulb (LH) in good condition?
YES : Go to Step 51.
NO : Replace the front side marker light bulb (LH). Verify that the front side marker light (LH) illuminates normally.

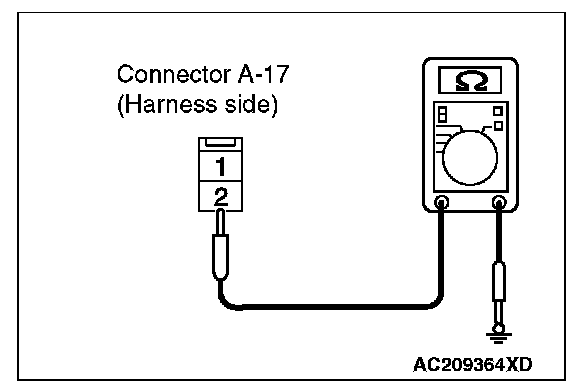

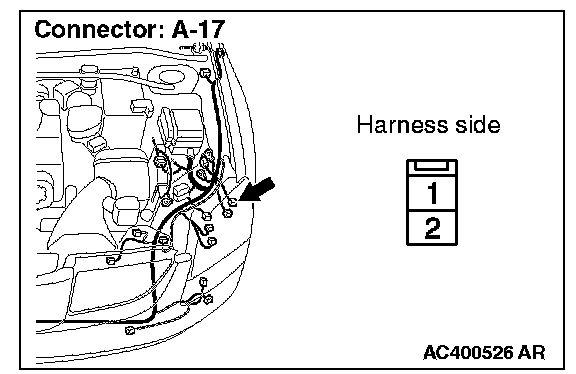

STEP 51. Check the ground circuit to the front side marker light (LH). Measure the resistance at front side marker light (LH) connector A-17.
1. Disconnect front side marker light (LH) connector A-17 and measure the resistance available at the wiring harness side of the connector.
2. Measure the resistance value between terminal 2 and ground.
- The resistance should be 2 ohms or less.
Q: Is the measured resistance 2 ohms or less?
YES : Go to Step 53.
NO : Go to Step 52.
STEP 52. Check the wiring harness between front side marker light (LH) connector A-17 (terminal 2) and ground.
- Check the ground wire for open circuit.
Q: Is the wiring harness between front side marker light (LH) connector A-17 (terminal 2) and ground in good condition?
YES : Replace the front combination light socket (LH). Verify that the front side marker light (LH) illuminates normally.
NO : The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary. Verify that the front side marker light (LH) illuminates normally.

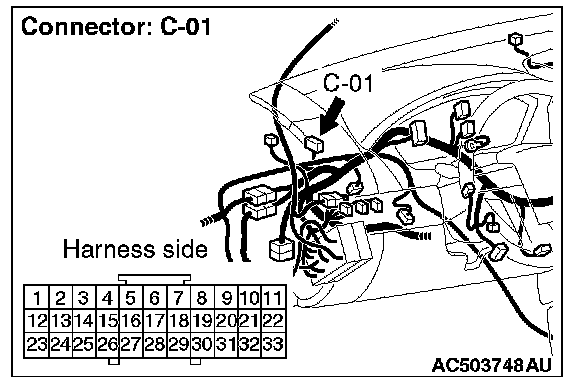

STEP 53. Check joint connector C-01 for loose, corroded or damaged terminals, or terminals pushed back in the connector.
Q: Is joint connector C-01 in good condition?
YES : Go to Step 54.
NO : Repair or replace the damaged component(s). Check that the front side marker light (LH) illuminates normally.
STEP 54. Check the wiring harness between front side marker light (LH) connector A-17 (terminal 1) and joint connector C-01 (terminal 3).
- Check the communication lines for open circuit and short circuit.
Q: Is the wiring harness between front side marker light (LH) connector A-17 (terminal 1) and joint connector C-01 (terminal 3) in good condition?
YES : No action is necessary and testing is complete.
NO : The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary. Verify that the front side marker light (LH) illuminates normally.

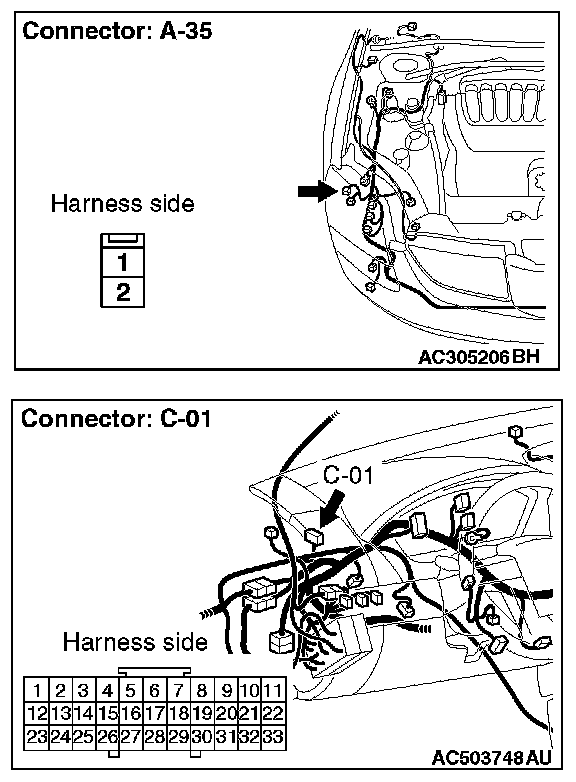

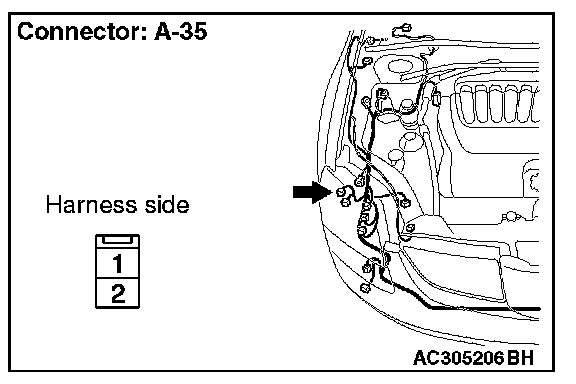

STEP 55. Check front side marker light (RH) connector A-35 for loose, corroded or damaged terminals, or terminals pushed back in the connector.
Q: Is front side marker light (RH) connector A-35 in good condition?
YES : Go to Step 56.
NO : Repair or replace the damaged component(s). Check that the front side marker light (RH) illuminates normally.
STEP 56. Check the front side marker light bulb (RH).
1. Remove the front side marker light bulb (RH).
2. Verify that the front side marker light bulb (RH) is not damaged or burned out.
Q: Is the front side marker light bulb (RH) in good condition?
YES : Go to Step 57.
NO : Replace the front side marker light bulb (LH). Verify that the front side marker light (LH) illuminates normally.

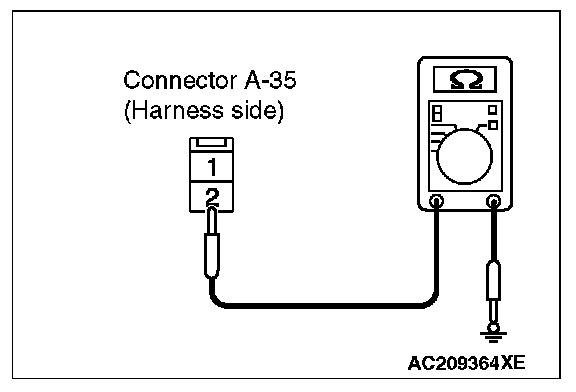

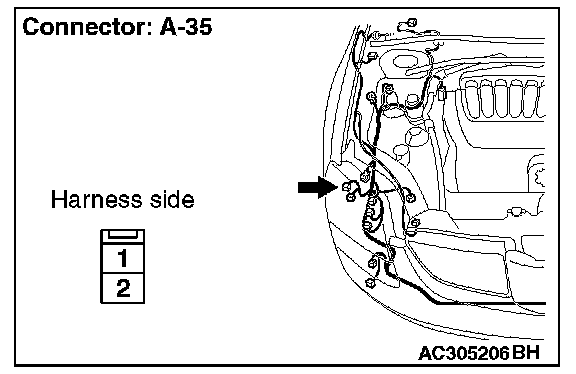

STEP 57. Check the ground circuit to the front side marker light (RH). Measure the resistance at front side marker light (RH) connector A-35.
1. Disconnect front side marker light (RH) connector A-35 and measure the resistance available at the wiring harness side of the connector.
2. Measure the resistance value between terminal 2 and ground.
- The resistance should be 2 ohms or less.
Q: Is the measured resistance 2 ohms or less?
YES : Go to Step 59.
NO : Go to Step 58.
STEP 58. Check the wiring harness between front side marker light (RH) connector A-35 (terminal 2) and ground.
- Check the ground wire for open circuit.
Q: Is the wiring harness between front side marker light (RH) connector A-35 (terminal 2) and ground in good condition?
YES : Replace the front combination light socket (RH). Verify that the front side marker light (RH) illuminates normally.
NO : The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary. Verify that the front side marker light (RH) illuminates normally.

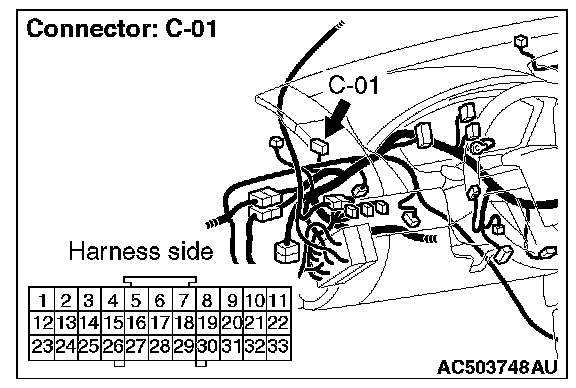

STEP 59. Check joint connector C-01 for loose, corroded or damaged terminals, or terminals pushed back in the connector.
Q: Is joint connector C-01 in good condition?
YES : Go to Step 60.
NO : Repair or replace the damaged component(s). Check that the front side marker light (RH) illuminates normally.
STEP 60. Check the wiring harness between front side marker light (RH) connector A-35 (terminal 1) and joint connector C-01 (terminal 20).
- Check the communication lines for open circuit and short circuit.
Q: Is the wiring harness between front side marker light (RH) connector A-35 (terminal 1) and joint connector C-01 (terminal 20) in good condition?
YES : No action is necessary and testing is complete.
NO : The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary. Verify that the front side marker light (RH) illuminates normally.
