Part 2

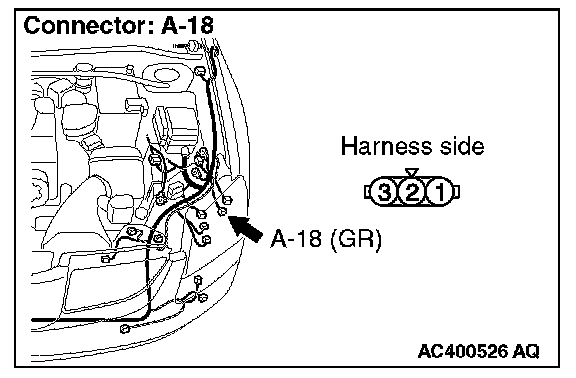

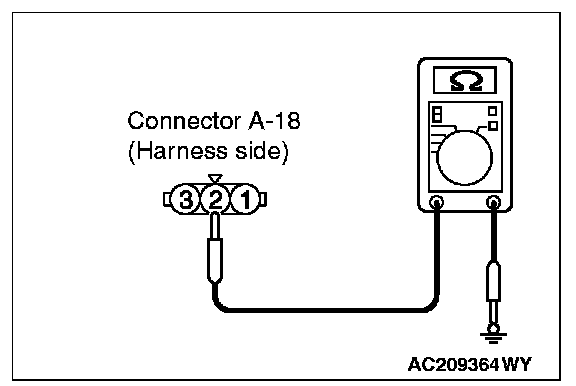

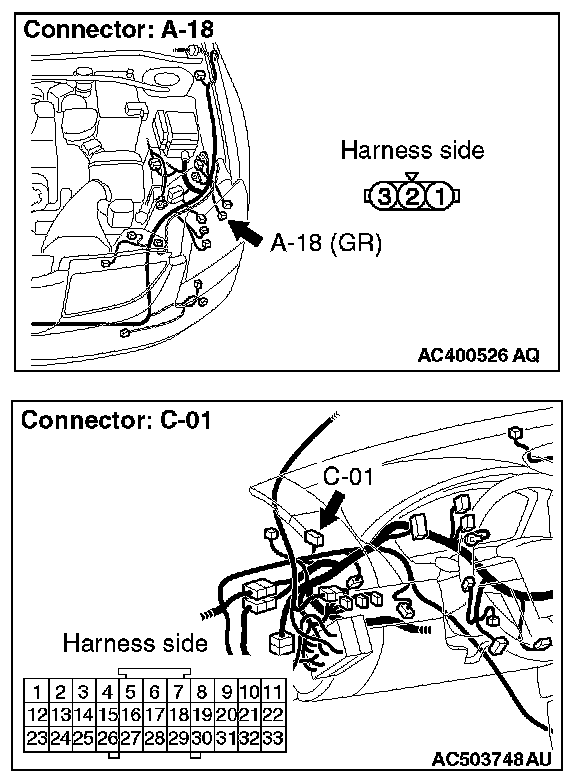

STEP 21. Check the ground circuit to the front parking light (LH). Measure the resistance at front combination light (LH) connector A-18.







1. Disconnect front combination light (LH) connector A-18 and measure the resistance available at the wiring harness side of the connector.







2. Measure the resistance value between terminal 2 and ground.
- The resistance should be 2 ohms or less.

Q: Is the measured resistance 2 ohms or less?

YES : Go to Step 23.

NO : Go to Step 22.

STEP 22. Check the wiring harness between front combination light (LH) connector A-18 (terminal 2) and ground.

- Check the ground wire for open circuit.







Q: Is the wiring harness between front combination light (LH) connector A-18 (terminal 2) and ground in good condition?

YES : Replace the front combination light socket (LH). Verify that the front parking light (LH) illuminates normally.

NO : The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary. Verify that the front parking light (LH) illuminates normally.

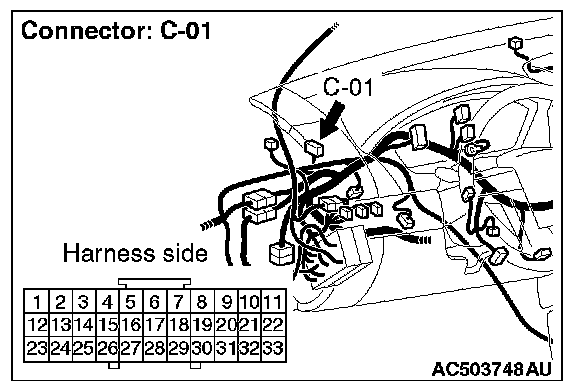

STEP 23. Check joint connector C-01 for loose, corroded or damaged terminals, or terminals pushed back in the connector.







Q: Is joint connector C-01 in good condition?

YES : Go to Step 24.

NO : Repair or replace the damaged component(s). Check that the front parking light (LH) illuminates normally.

STEP 24. Check the wiring harness between front combination light (LH) connector A-18 (terminal 3) and joint connector C-01 (terminal 2).

- Check the communication lines for open circuit and short circuit.







Q: Is the wiring harness between front combination light (LH) connector A-18 (terminal 3) and joint connector C-01 (terminal 2) in good condition?

YES : No action is necessary and testing is complete.

NO : The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary. Verify that the front parking light (LH) illuminates normally.

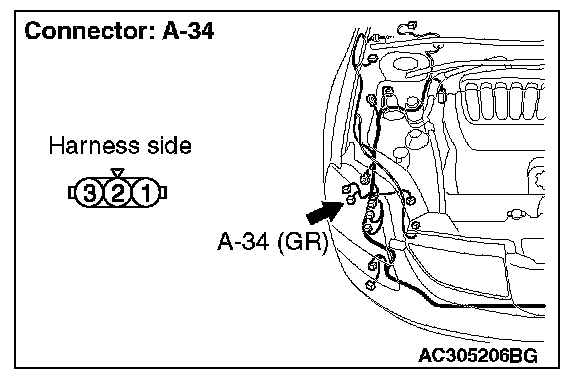

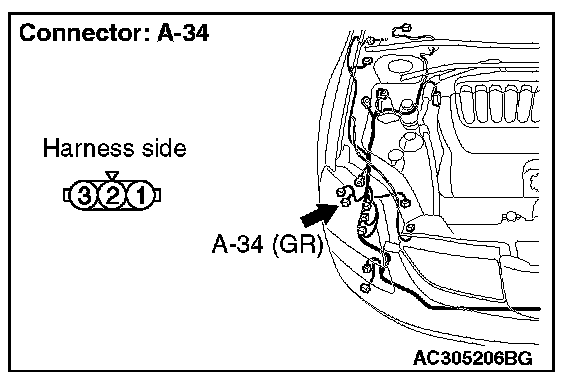

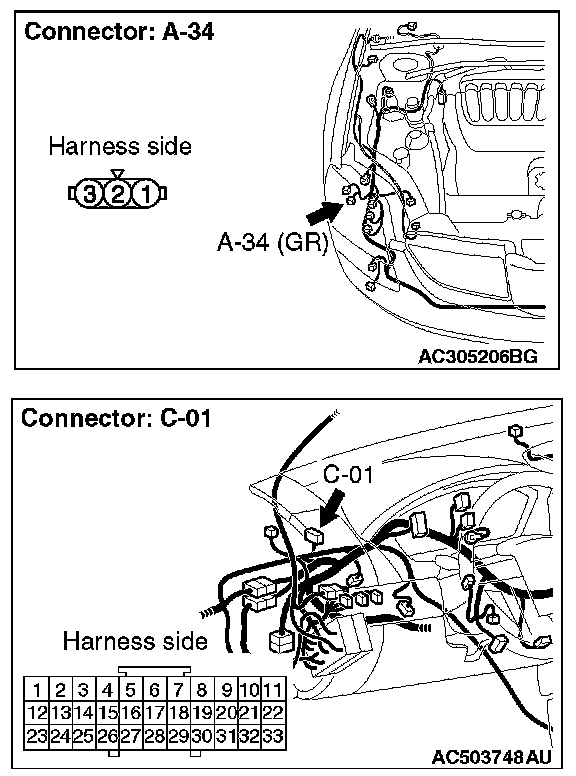

STEP 25. Check front combination light (RH) connector A-34 for loose, corroded or damaged terminals, or terminals pushed back in the connector.







Q: Is front combination light (RH) connector A-34 in good condition?

YES : Go to Step 26.

NO : Repair or replace the damaged component(s). Check that the front parking light (RH) illuminates normally.

STEP 26. Check the front parking light bulb (RH).

1. Remove the front parking light bulb (RH).
2. Verify that the front parking light bulb (RH) is not damaged or burned out.

Q: Is the front parking light bulb (RH) in good condition?

YES : Go to Step 27.

NO : Replace the front side marker light bulb (RH). Verify that the front parking light (RH) illuminates normally.

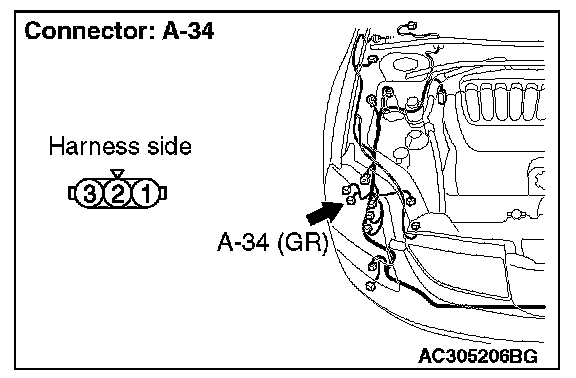

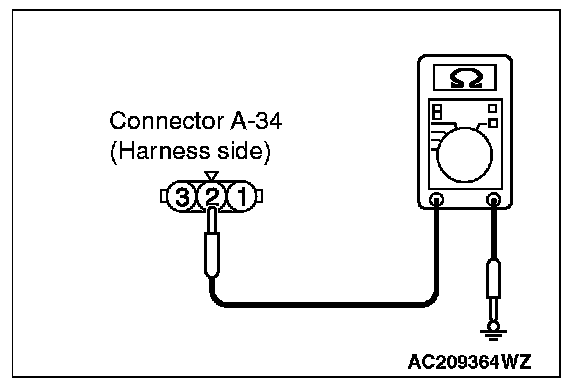

STEP 27. Check the ground circuit to the front parking light (RH). Measure the resistance at front combination light (RH) connector A-34.







1. Disconnect front combination light (RH) connector A-34, and measure the resistance available at the harness side of the connector.







2. Measure the resistance value between terminal 2 and ground.
- The resistance should be 2 ohms or less.

Q: Is the measured resistance 2 ohms or less?

YES : Go to Step 29.

NO : Go to Step 28.

STEP 28. Check the wiring harness between front combination light (RH) connector A-34 (terminal 2) and ground.

- Check the ground wire for open circuit.







Q: Is the wiring harness between front combination light (RH) connector A-34 (terminal 2) and ground in good condition?

YES : Replace the front combination light socket (RH). Verify that the front parking light (RH) illuminates normally.

NO : The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary. Verify that the front parking light (RH) illuminates normally.

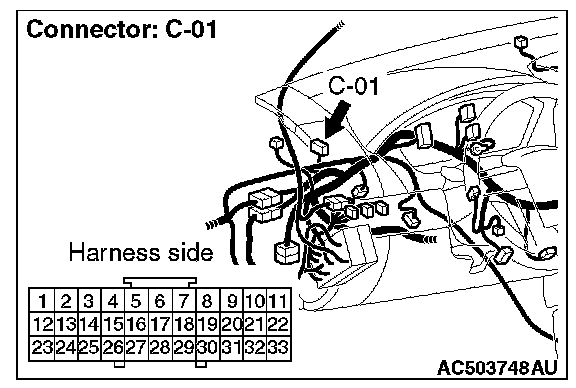

STEP 29. Check joint connector C-01 for loose, corroded or damaged terminals, or terminals pushed back in the connector.







Q: Is joint connector C-01 in good condition?

YES : Go to Step 30.

NO : Repair or replace the damaged component(s). Check that the front parking light (RH) illuminates normally.

STEP 30. Check the wiring harness between front combination light (RH) connector A-34 (terminal 3) and joint connector C-01 (terminal 19).

- Check the communication lines for open circuit and short circuit.







Q: Is the wiring harness between front combination light (RH) connector A-34 (terminal 3) and joint connector C-01 (terminal 19) in good condition?

YES : No action is necessary and testing is complete.

NO : The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary. Verify that the front parking light (RH) illuminates normally.

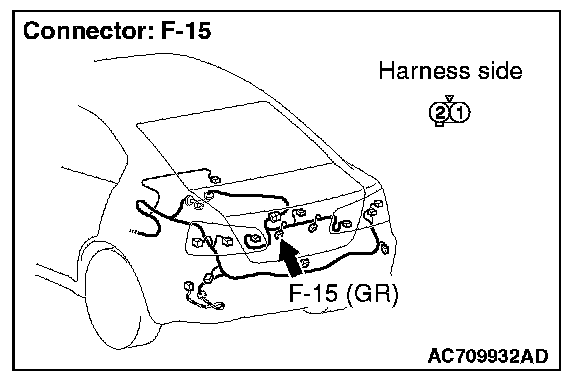

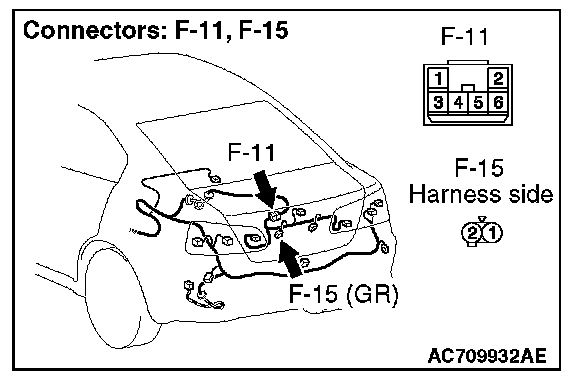

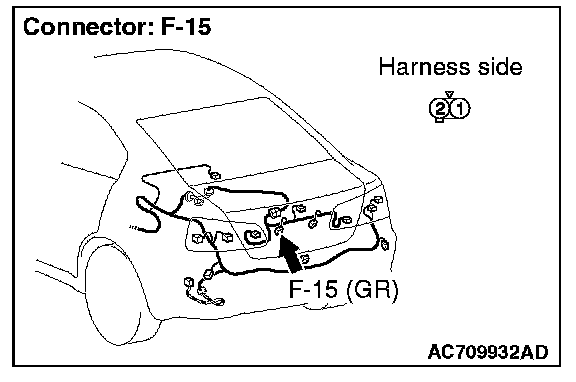

STEP 31. Check license plate light (LH) connector F-15 for loose, corroded or damaged terminals, or terminals pushed back in the connector.







Q: Is license plate light (LH) connector F-15 in good condition?

YES : Go to Step 32.

NO : Repair or replace the damaged component(s). Check that the license plate light illuminate normally.

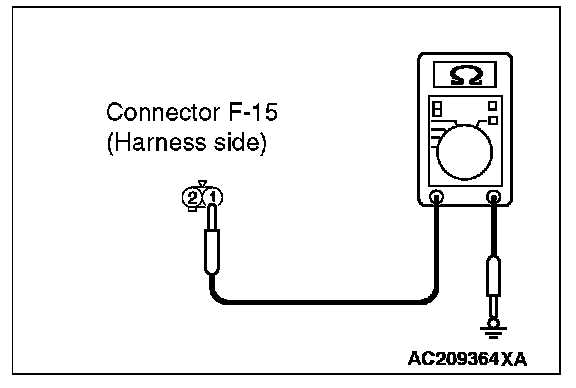

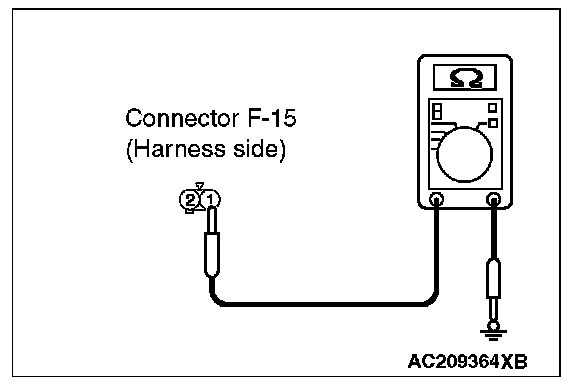

STEP 32. Check the ground circuit to the license plate light (LH). Measure the resistance at license plate light (LH) connector F-15.







1. Disconnect license plate light (LH) connector F-15 and measure the resistance available at the wiring harness side of the connector.







2. Measure the resistance value between terminal 1 and ground.
- The resistance should be 2 ohms or less.

Q: Is the measured resistance 2 ohms or less?

YES : Go to Step 34.

NO : Go to Step 33.

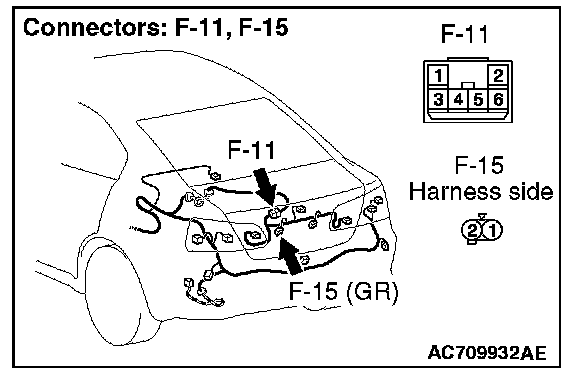

STEP 33. Check the wiring harness between license plate light (LH) connector F-15 (terminal 1) and ground.

- Check the ground wire for open circuit.

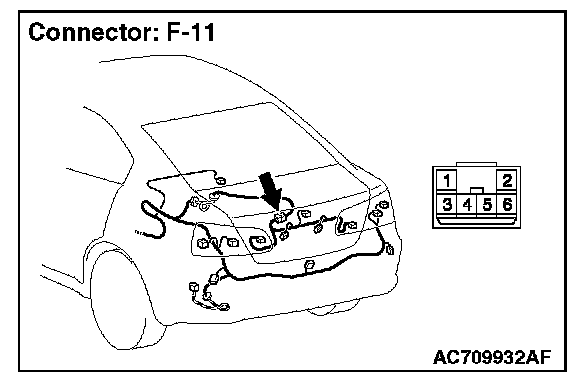

NOTE: Also check intermediate connector F-11 for loose, corroded, or damaged terminals, or terminals pushed back in the connector. If intermediate connector F-11 is damaged, repair or replace the damaged component(s) as described.

Q: Is the wiring harness between license plate light (LH) connector F-15 (terminal 1) and ground in good condition?

YES : Go to Step 34.

NO : The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary. Verify that the license plate light illuminate normally.

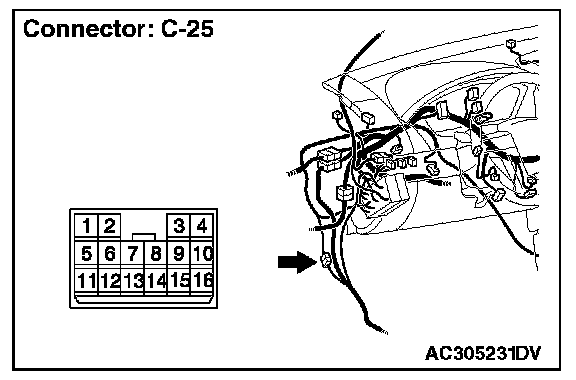

STEP 34. Check intermediate connector C-25 for loose, corroded or damaged terminals, or terminals pushed back in the connector.







Q: Is intermediate connector C-25 in good condition?

YES : Go to Step 35.

NO : Repair or replace the damaged component(s). Check that the license plate light illuminate normally.

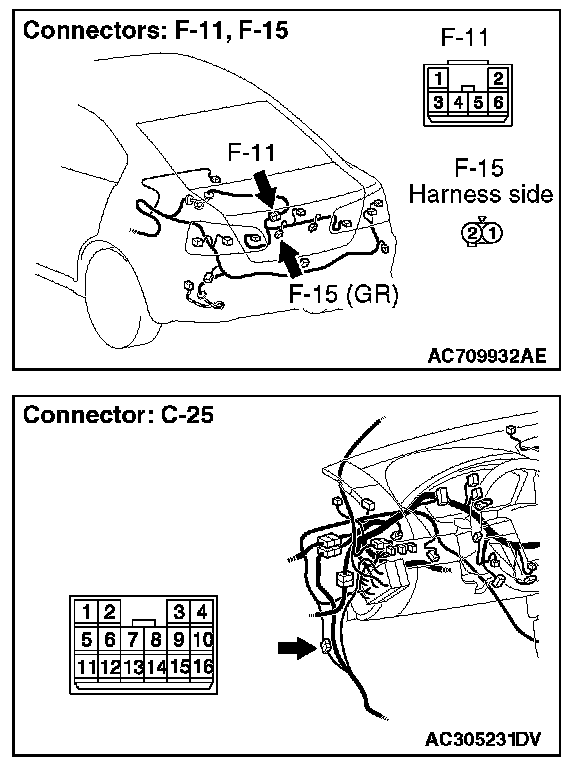

STEP 35. Check the wiring harness between license plate light (LH) connector F-15 (terminal 2) and intermediate connector C-25 (terminal 10).

- Check the communication lines for open circuit and short circuit.







NOTE: Also check intermediate connector F-11 for loose, corroded, or damaged terminals, or terminals pushed back in the connector. If intermediate connector F-11 is damaged, repair or replace the damaged component(s) as described.

Q: Is the wiring harness between license plate license plate light (LH) connector F-15 (terminal 2) and intermediate connector C-25 (terminal 10) in good condition?

YES : No action is necessary and testing is complete.

NO : The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary. Verify that the license plate light illuminate normally.

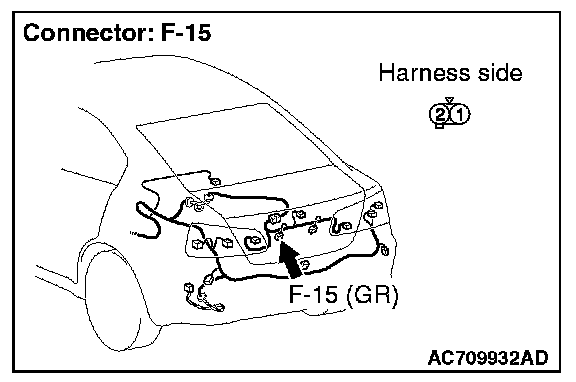

STEP 36. Check license plate light (LH) connector F-15 for loose, corroded or damaged terminals, or terminals pushed back in the connector.







Q: Is license plate light (LH) connector F-15 in good condition?

YES : Go to Step 37.

NO : Repair or replace the damaged component(s). Check that the license plate light (LH) illuminate normally.

STEP 37. Check the license plate light (LH) bulb.

1. Remove the license plate light (LH) bulb.
2. Verify that the license plate light (LH) bulb is not damaged or burned out.

Q: Is the license plate light (LH) bulb in good condition?

YES : Go to Step 38.

NO : Replace the license plate light (LH) bulb. Verify that the license plate light (LH) illuminate normally.

STEP 38. Check the ground circuit to the license plate light (LH). Measure the resistance at license plate light (LH) connector F-15.







1. Disconnect license plate light (LH) connector F-15 and measure the resistance available at the wiring harness side of the connector.







2. Measure the resistance value between terminal 1 and ground.
- The resistance should be 2 ohms or less.

Q: Is the measured resistance 2 ohms or less?

YES : Go to Step 40.

NO : Go to Step 39.

STEP 39. Check the wiring harness between license plate light (LH) connector F-15 (terminal 1) and ground.

- Check the ground wire for open circuit.







NOTE: Also check intermediate connector F-11 for loose, corroded, or damaged terminals, or terminals pushed back in the connector. If intermediate connector F-11 is damaged, repair or replace the damaged component(s) as described.

Q: Is the wiring harness between license plate light (LH) connector F-15 (terminal 1) and ground in good condition?

YES : Replace the license plate light (LH) socket. Verify that the license plate light (LH) illuminate normally.

NO : The wiring harness may be damaged or the connector(s) may have loose, corroded or damaged terminals, or terminals pushed back in the connector. Repair the wiring harness as necessary. Verify that the license plate light (LH) illuminate normally.

STEP 40. Check intermediate connector F-11 for loose, corroded or damaged terminals, or terminals pushed back in the connector.







Q: Is intermediate connector F-11 in good condition?

YES : Go to Step 41.

NO : Repair or replace the damaged component(s). Check that the license plate light (LH) illuminate normally.
