DTC 14

DTC 014: Combination Meter Time-out

CAUTION:
- If DTC 014 is set in the multi-center display unit (middle grade type), always diagnose the CAN bus lines.
- Before replacing the multi-center display unit (middle grade type), ensure that the power supply circuit and the ground circuit are normal.


NOTE: When the DTC relating to the CAN communication error are set, make sure of the vehicle equipment. When the vehicle is not equipped with the system the multi-center display unit communicates to, the DTC is always set. This is not abnormal.

CIRCUIT OPERATION
The multi-center display unit (middle grade type) is linked to CAN communication lines to communicate with the combination meter and the powertrain control module, both of which have a terminator resistor.

DTC SET CONDITION
The multi-center display unit (middle grade type) receives signals from the combination meter via CAN bus lines. If the display unit can not receive the necessary combination meter signals, DTC 014 will be set.

TECHNICAL DESCRIPTION (COMMENT)

CAUTION: If the ignition switch is turned to the ON position without starting the engine, DTC (past trouble) 011, 012 and 013 may be set to the multi-center display unit (middle grade type) after three minutes.

Current trouble

- Connector(s) or wiring harness in the CAN bus lines between the combination meter and the multi-center display unit (middle grade type), the power supply system to the display unit, the display unit itself, or the combination meter may be defective.

Past trouble
- Carry out diagnosis with particular emphasis on connector(s) or wiring harness in the CAN bus lines between the combination meter and the multi-center display unit (middle grade type), the power supply system to the display unit.

NOTE: For a past trouble, you may not find it by the M.U.T.-III CAN bus diagnostics even if there is any failure in CAN bus lines. In this case, check the CAN bus lines. You can narrow down the possible cause of the trouble by referring to the DTC, which is set regarding the CAN communication-linked ECUs. (Refer to CAN bus line Diagnostics Flow) Explanation About the Scan Tool (M.U.T.-III) CAN Bus Diagnostics

TROUBLESHOOTING HINTS
- The wiring harness or connectors may have loose, corroded, or damaged terminals, or terminals pushed back in the connector.
- Malfunction of combination meter
- Malfunction of multi-center display unit (middle grade type)

DIAGNOSIS

Required Special Tools:
- MB991958: Scan Tool (M.U.T.-III Sub Assembly)
- MB991824: Vehicle Communication Interface (V.C.I.)
- MB991827: M.U.T.-III USB Cable
- MB991910: M.U.T.-III Main Harness A (Vehicles with CAN communication system)

STEP 1. Using scan tool MB991958, diagnose the CAN bus line.

Use scan tool MB991958 to diagnose the CAN bus lines.

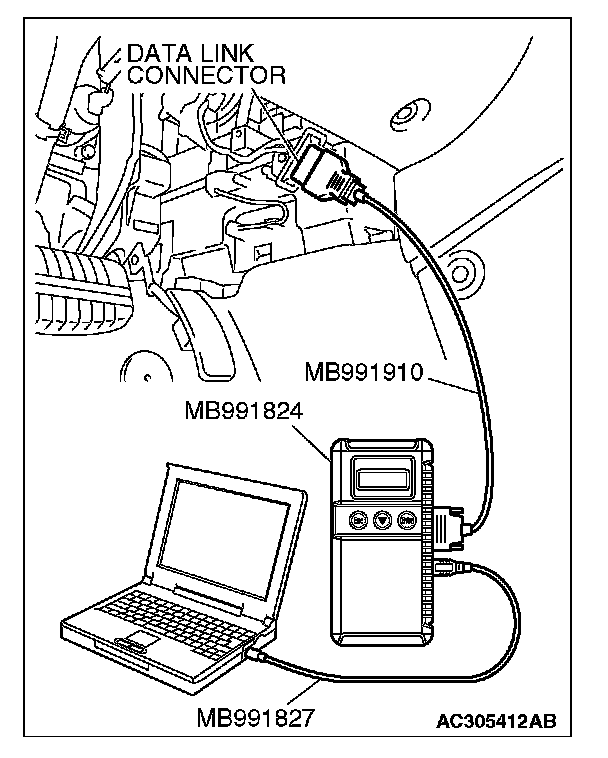

1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to "ON" position.
3. Diagnose the CAN bus line.

Q: Is the check result satisfactory?

YES : Go to Step 2.

NO : Repair the CAN bus lines. On completion, go Step 5.

STEP 2. Using scan tool MB991958, read the diagnostic trouble code related to the other system.

Check if a DTC, which relates to CAN communication-linked systems below, is set.

Powertrain control module
- DTC U1108: Combination meter time-out

ETACS-ECU
- DTC U1108: Combination meter time-out

Q: Is the DTC set?

YES : Go to Step 3.

NO : Go to Step 4.

STEP 3. Recheck for diagnostic trouble code.

Recheck if the DTC is set.

1. Erase the DTC.
2. Turn the ignition switch to "ON" position.
3. Check if the DTC is set.

Q: Is the DTC set?

YES : Replace multi-center display unit (middle grade type) and then go to step 5.

NO : A poor connection, open circuit or other intermittent malfunction is present in the CAN bus lines between the combination meter and the multi-center display unit (middle grade type).

STEP 4. Recheck for diagnostic trouble code.

Recheck if the DTC is set.

1. Erase the DTC.
2. Turn the ignition switch to "ON" position.
3. Check if the DTC is set.

Q: Is the DTC set?

YES : Replace multi-center display unit (middle grade type) and then go to step 5.

NO : A poor connection, open circuit or other intermittent malfunction is present in the CAN bus lines between the combination meter and the multi-center display unit (middle grade type).

STEP 5. Recheck for diagnostic trouble code.

Recheck if the DTC is set.

1. Erase the DTC.
2. Turn the ignition switch to "ON" position.
3. Check if the DTC is set.

Q: Is the DTC set?

YES : Go to Step 1.

NO : The procedure is complete.
