DTC 14

DTC 14: Combination Meter Time-out

CAUTION:
- If DTC 14 is set in the multi-center display, always diagnose the CAN bus lines.
- Before replacing the multi-center display, ensure that the power supply circuit and the ground circuit are normal. (Check that the voltage is 10 V or more.)


NOTE: When the DTC relating to the CAN communication error are set, make sure of the vehicle equipment. When the vehicle is not equipped with the system the multi-center display communicates to, the DTC is always set. This is not abnormal.

DTC SET CONDITION
The multi-center display receives signals from the combination meter via CAN bus lines. If the display unit can not receive the necessary combination meter signals, DTC 014 will be set.

TECHNICAL DESCRIPTION (COMMENT)

CAUTION: If the ignition switch is turned to the ON position without starting the engine, DTC (past trouble) 11, 12 and 13 may be set to the multi-center display after three minutes.

Current trouble

- Connector(s) or wiring harness in the CAN bus lines between the combination meter and the multi-center display, the power supply system to the display unit, the multi-center display itself, or the combination meter may be defective.

Past trouble
- Carry out diagnosis with particular emphasis on connector(s) or wiring harness in the CAN bus lines between the combination meter and the multi-center display, the power supply system to the multi-center display.

NOTE: For a past trouble, you may not find it by the M.U.T.-III CAN bus diagnostics even if there is any failure in CAN bus lines. In this case, check the CAN bus lines. You can narrow down the possible cause of the trouble by referring to the DTC, which is set regarding the CAN communication-linked ECUs. (Refer to CAN bus line Diagnostics Flow. Explanation About the Scan Tool (M.U.T.-III) CAN Bus Diagnostics

TROUBLESHOOTING HINTS
- The wiring harness or connectors may have loose, corroded, or damaged terminals, or terminals pushed back in the connector.
- Malfunction of combination meter
- Malfunction of multi-center display

DIAGNOSIS

Required Special Tools:
- MB991958: Scan Tool (M.U.T.-III Sub Assembly)
- MB991824: Vehicle Communication Interface (V.C.I.)
- MB991827: M.U.T.-III USB Cable
- MB991910: M.U.T.-III Main Harness A (Vehicles with CAN communication system)

STEP 1. Using scan tool MB991958, diagnose the CAN bus line.

Use scan tool MB991958 to diagnose the CAN bus lines.







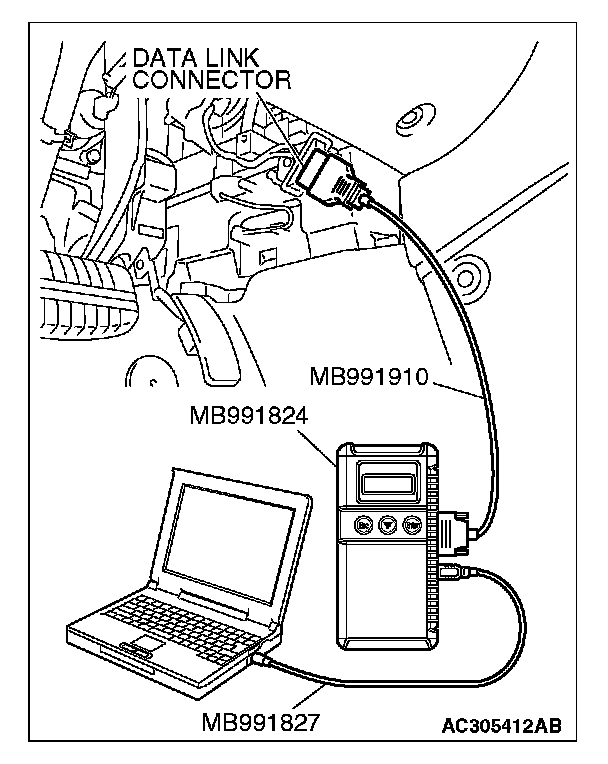

1. Connect scan tool MB991958 to the data link connector.
2. Turn the ignition switch to "ON" position.
3. Diagnose the CAN bus line.

Q: Is the check result satisfactory?

YES : Go to Step 2.

NO : Repair the CAN bus lines. On completion, go Step 6.

STEP 2. Using scan tool MB991958, read combination meter diagnostic trouble code

Check that the combination meter sets a DTC.

Q: Is the DTC set?

YES : Diagnose the combination meter by referring to Diagnostic Trouble Code Chart. Diagnostic Trouble Code Descriptions

NO : Go to Step 3.

STEP 3. Using scan tool MB991958, read the diagnostic trouble code related to the other system.

Check if a DTC, which relates to CAN communication-linked systems below, is set.

Powertrain control module
- DTC U1108: Combination meter time-out

ETACS-ECU
- DTC U1108: Combination meter time-out

Q: Is the DTC set?

YES : Go to Step 4.

NO : Go to Step 5.

STEP 4. Recheck for diagnostic trouble code.

Recheck if the DTC is set.

1. Erase the DTC.
2. Turn the ignition switch to "ON" position.
3. Check if the DTC is set.

Q: Is the DTC set?

YES : Replace multi-center display and then go to step 5.

NO : A poor connection, open circuit or other intermittent malfunction is present in the CAN bus lines between the combination meter and the multi-center display unit.

STEP 5. Recheck for diagnostic trouble code.

Recheck if the DTC is set.

1. Erase the DTC.
2. Turn the ignition switch to "ON" position.
3. Check if the DTC is set.

Q: Is the DTC set?

YES : Replace multi-center display and then go to step 6.

NO : A poor connection, open circuit or other intermittent malfunction is present in the CAN bus lines between the combination meter and the multi-center display.

STEP 6. Recheck for diagnostic trouble code.

Recheck if the DTC is set.

1. Erase the DTC.
2. Turn the ignition switch to "ON" position.
3. Check if the DTC is set.

Q: Is the DTC set?

YES : Go to Step 1.

NO : The procedure is complete.
