B1446

DTC B1446: Side Impact Sensor (Rear) (RH) System for Fault 1

DTC B1456: Side Impact Sensor (Rear) (LH) System for Fault 1


CAUTION: If DTC B1446 or B1456 is set in the SRS-ECU, always diagnose the CAN main bus line.

DTC SET CONDITIONS
These DTCs are set if the following conditions are detected from the analog G-sensor inside the side impact sensor output:
- Analog G-sensor is not operating.
- Analog G-sensor characteristics are abnormal.
- Analog G-sensor output is abnormal.

TROUBLESHOOTING HINTS
Malfunction of side impact sensor (rear) (RH) (for DTC B1446) and side impact sensor (rear) (LH) (for DTC B1456)

DIAGNOSIS

Required Special Tool:
- MB991958: Scan Tool (M.U.T.-III Sub Assembly)
- MB991824: Vehicle Communication Interface (V.C.I.)
- MB991827: M.U.T.-III USB Cable
- MB991910: M.U.T.-III Main Harness A (Vehicles with CAN communication system)

STEP 1. Using scan tool MB991958, diagnose the CAN bus line.







CAUTION: To prevent damage to scan tool MB991958, always turn the ignition switch to the "LOCK" (OFF) position before connecting or disconnecting scan tool MB991958.

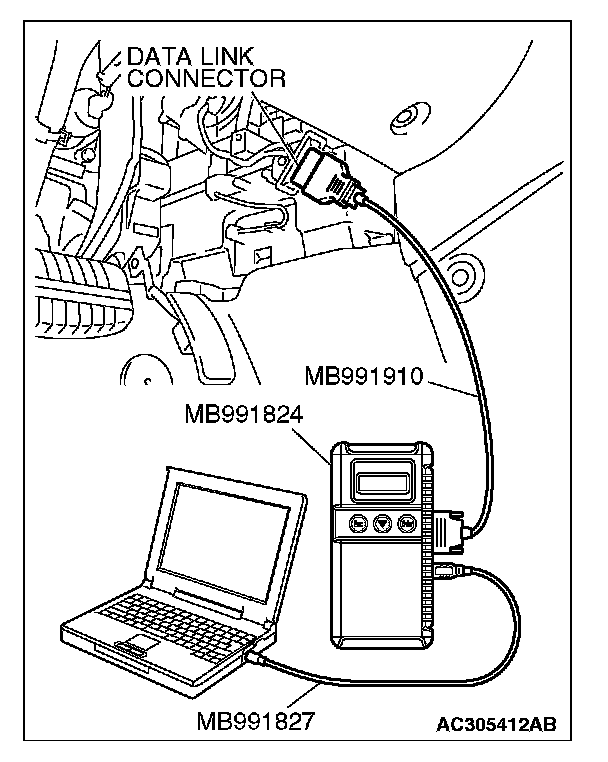

1. Connect scan tool MB991958. Refer to "How to connect the scan tool." How To Connect The Scan Tool (M.U.T.-III)
2. Turn the ignition switch to the "ON" position.
3. Diagnose the CAN bus line.
4. Turn the ignition switch to the "LOCK" (OFF) position.

Q: Is the CAN bus line found to be normal?

YES : Replace the SRS-ECU and side impact sensor (rear) (RH) (for DTC B1446) or replace the SRS-ECU and side impact sensor (rear) (LH) (for DTC B1456).

NO : Repair the CAN bus line.
