Removal and Replacement

STARTER MOTOR ASSEMBLY

REMOVAL AND INSTALLATION [3.8L ENGINE]


Pre-removal & Post-installation Operation:

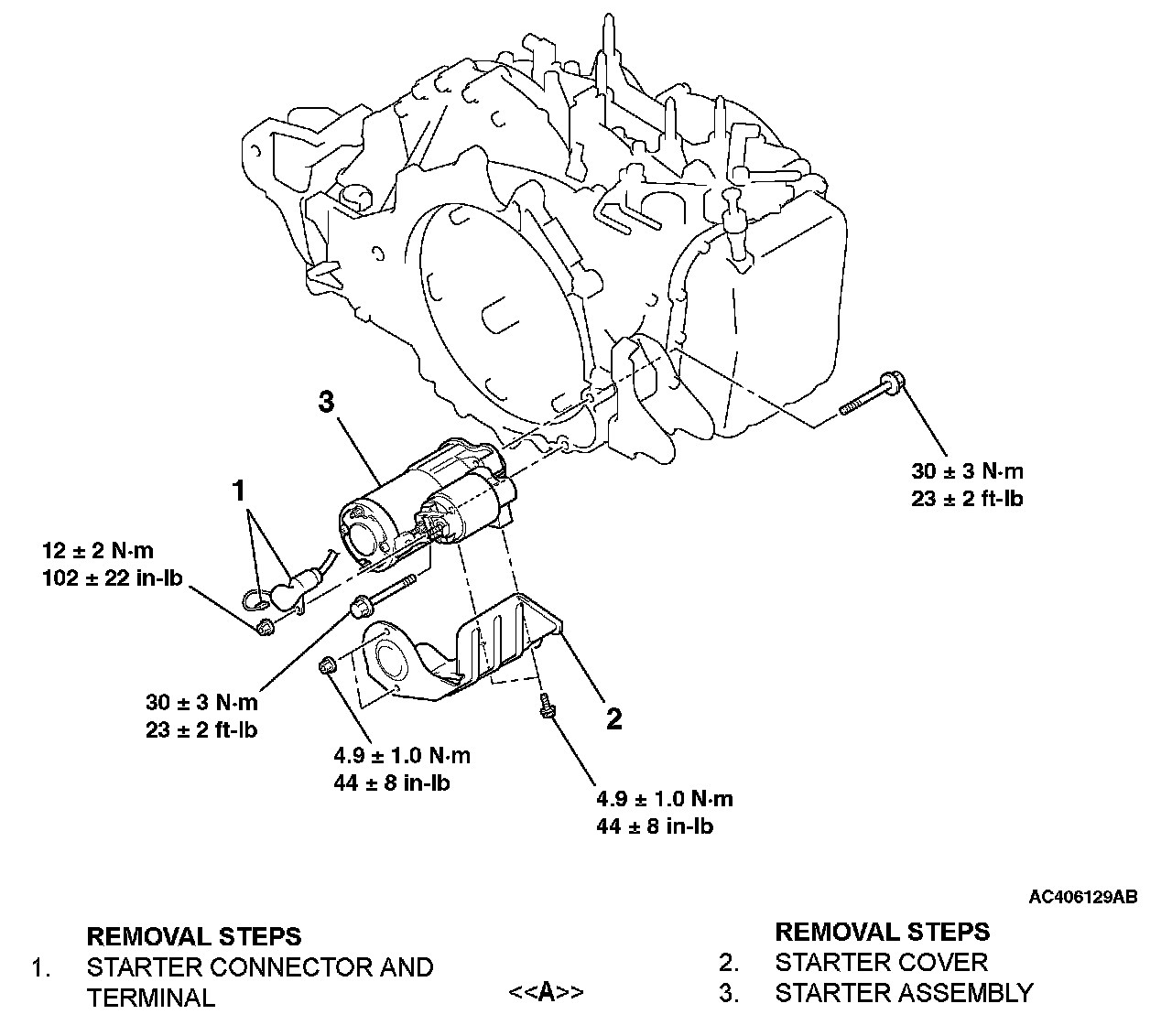

Removal Steps 1-3:






REMOVAL SERVICE POINT

[[A]] STARTER ASSEMBLY REMOVAL
Remove the starter assembly from under the vehicle.
