Oil Pan, Engine

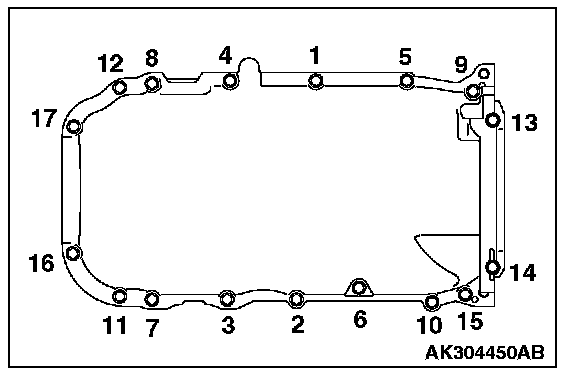

Upper
Oil Pan
Bolts
9.0 ± 3.0 Nm (80 ± 26 in-lb)

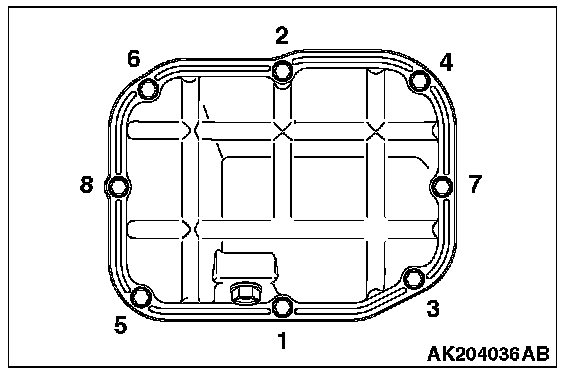

Lower
Oil Pan
Bolts
11 ± 1 Nm (98 ± 8 in-lb)
