Condenser HVAC: Service and Repair

CONDENSER AND CONDENSER FAN MOTOR

REMOVAL AND INSTALLATION

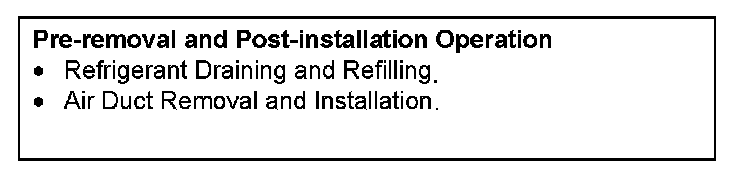

Pre-removal & Post-installation Operation:

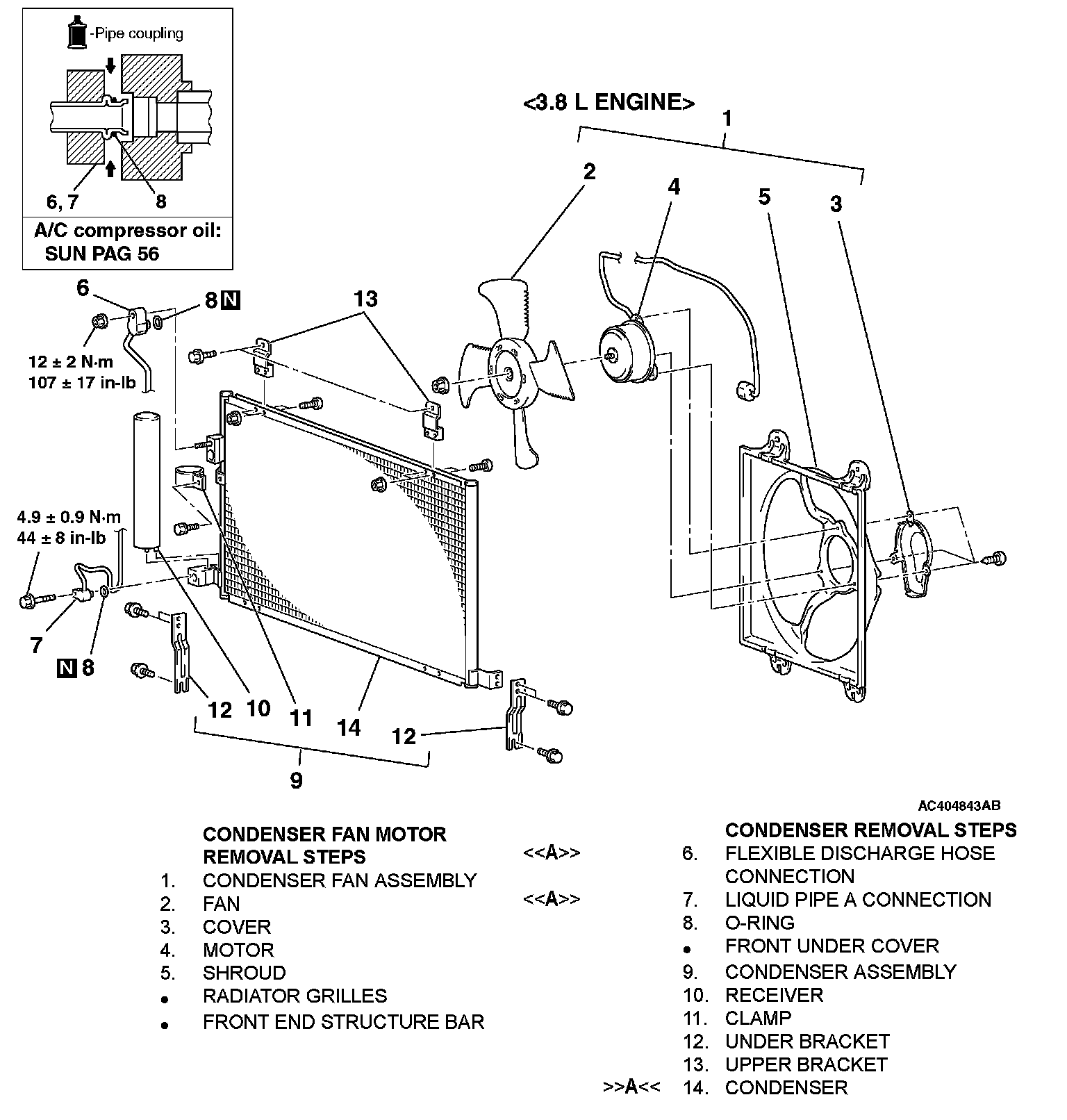

Removal Steps 1-14:

REMOVAL SERVICE POINT

[A] FLEXIBLE DISCHARGE HOSE AND LIQUID PIPE A DISCONNECTION

CAUTION: As the compressor oil and receiver are highly moisture absorbent, use a non-porous material to plug the hose and nipples.

To prevent the entry of dust or other foreign bodies, plug the dismantled hose and condenser assembly nipples.

INSTALLATION SERVICE POINT

[A] CONDENSER INSTALLATION
When replacing the condenser, refill it with a specified amount of compressor oil and install it to the vehicle.
Compressor oil: SUN PAG 56
Quantity: 15 cm3 (0.5 fl.oz)
