Water Pump: Service and Repair

REMOVAL AND INSTALLATION

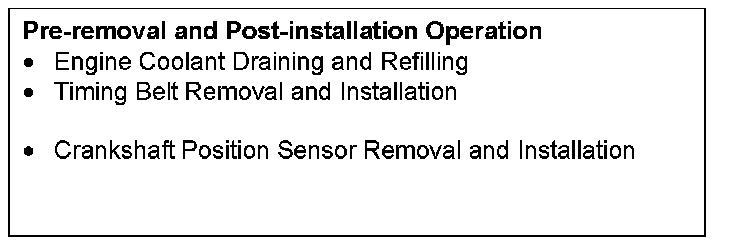

Pre-removal & Post-installation Operation:

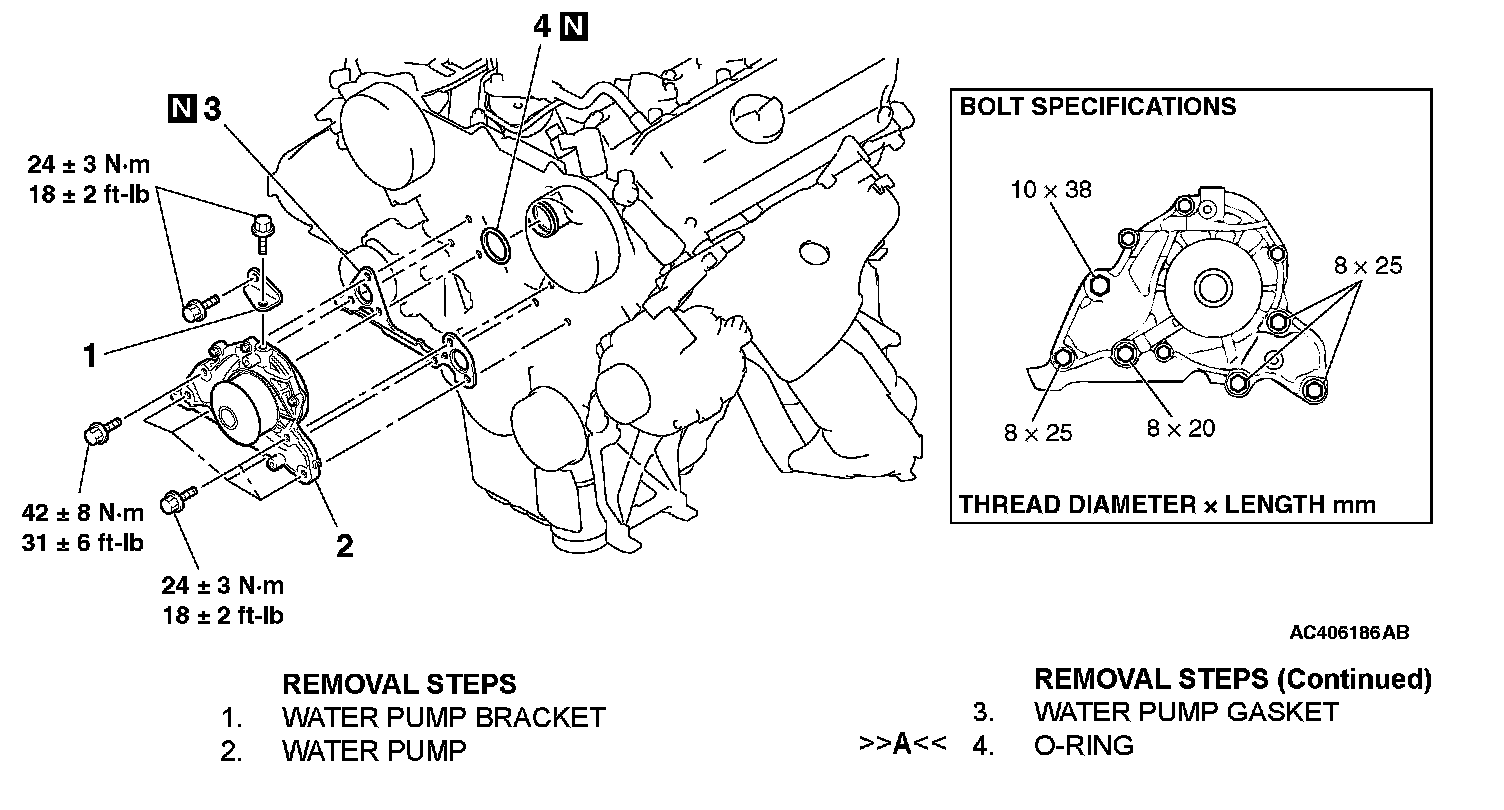

Removal Steps 1-4:

INSTALLATION SERVICE POINT

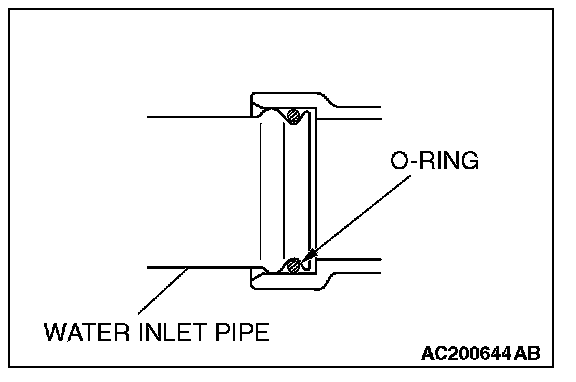

]]A[[ O-RING INSTALLATION

CAUTION
Do not let the O-ring get contaminated with grease or engine oil.





Fit the O-ring into the groove of the water inlet pipe end, and apply water or coolant to the circumference of the O-ring and the pipe bores to insert the pipe assembly.
