Intake Manifold and Fuel Parts

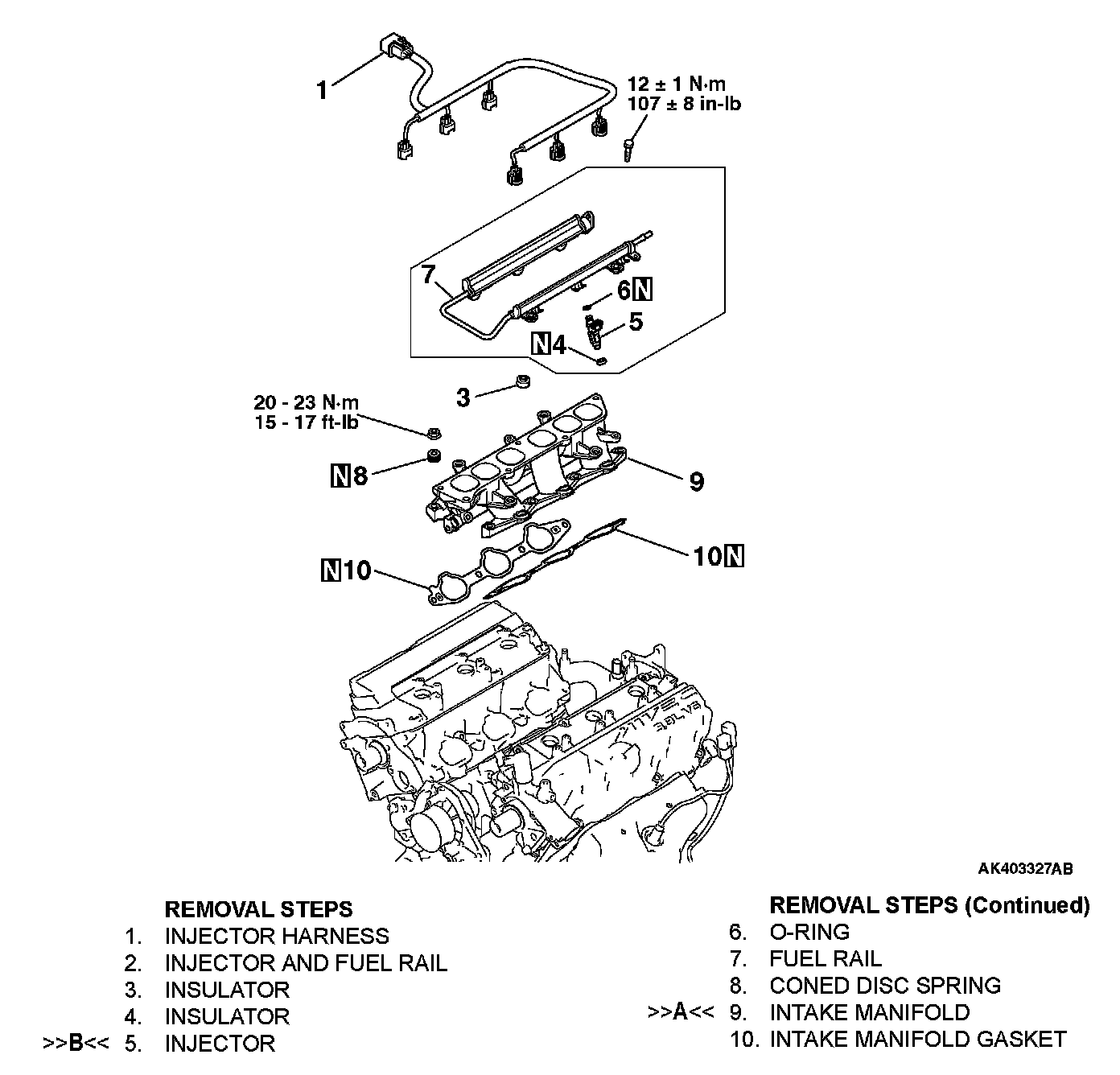

REMOVAL AND INSTALLATIONRemoval Steps 1-10:
INSTALLATION SERVICE POINTS

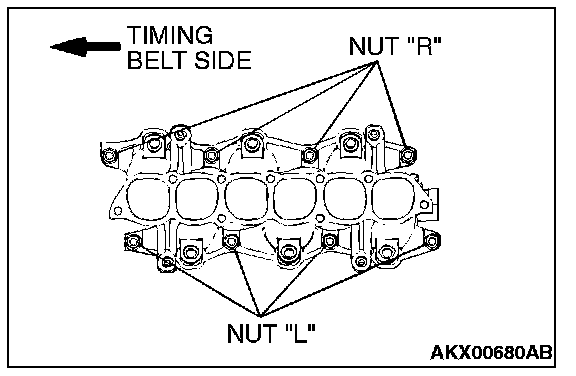

]]A[[ INTAKE MANIFOLD INSTALLATION
1. Tighten the nuts "R" to 6.4 ± 1.5 Nm (57 ± 13 in-lb)
2. Tighten the nuts "L" to the specified torque.
Tightening torque: 20 - 23 Nm (15 - 17 ft-lb)
3. Tighten the nuts "R" to the specified torque.
Tightening torque: 20 - 23 Nm (15 - 17 ft-lb)
4. Tighten the nuts "L" to the specified torque.
Tightening torque: 20 - 23 Nm (15 - 17 ft-lb)
5. Tighten the nuts "R" to the specified torque.
Tightening torque: 20 - 23 Nm (15 - 17 ft-lb)
]]B[[ INJECTOR INSTALLATION
CAUTION
Use care not to let engine oil enter the fuel rail.
1. Apply clean engine oil to the O-ring.

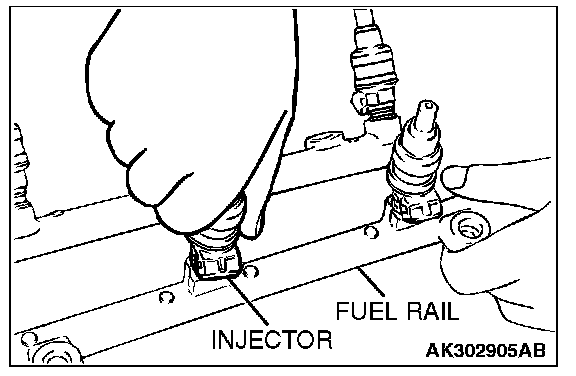

2. Insert the injector into the fuel rail.
3. Make sure the injector rotates smoothly. If not, remove the injector to check the O-ring. for damage, and replace the O-ring. if necessary. Then reinsert the injector and check that it rotates smoothly.

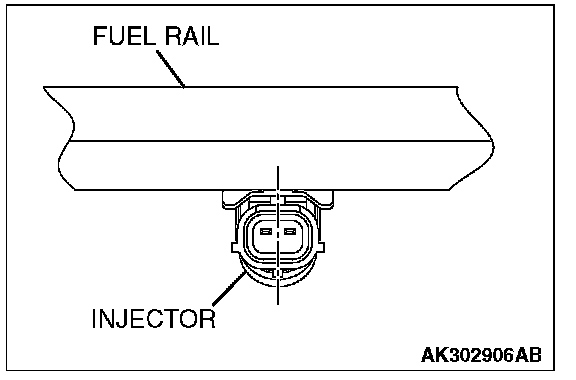

4. Confirm the protrusion of injector is at center. If not, rotate the injector for protrusion to be center.
