Rear Crankshaft Main Bearing Seal: Service and Repair

REMOVAL AND INSTALLATION [REAR OIL SEAL]

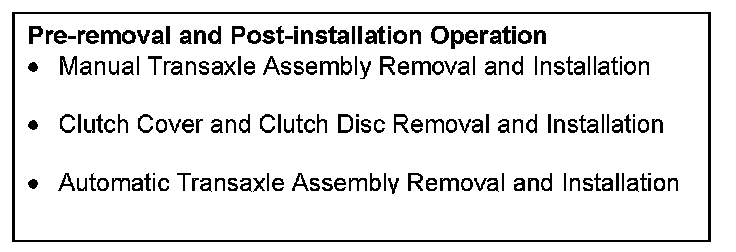

Pre-removal & Post-installation Operation:

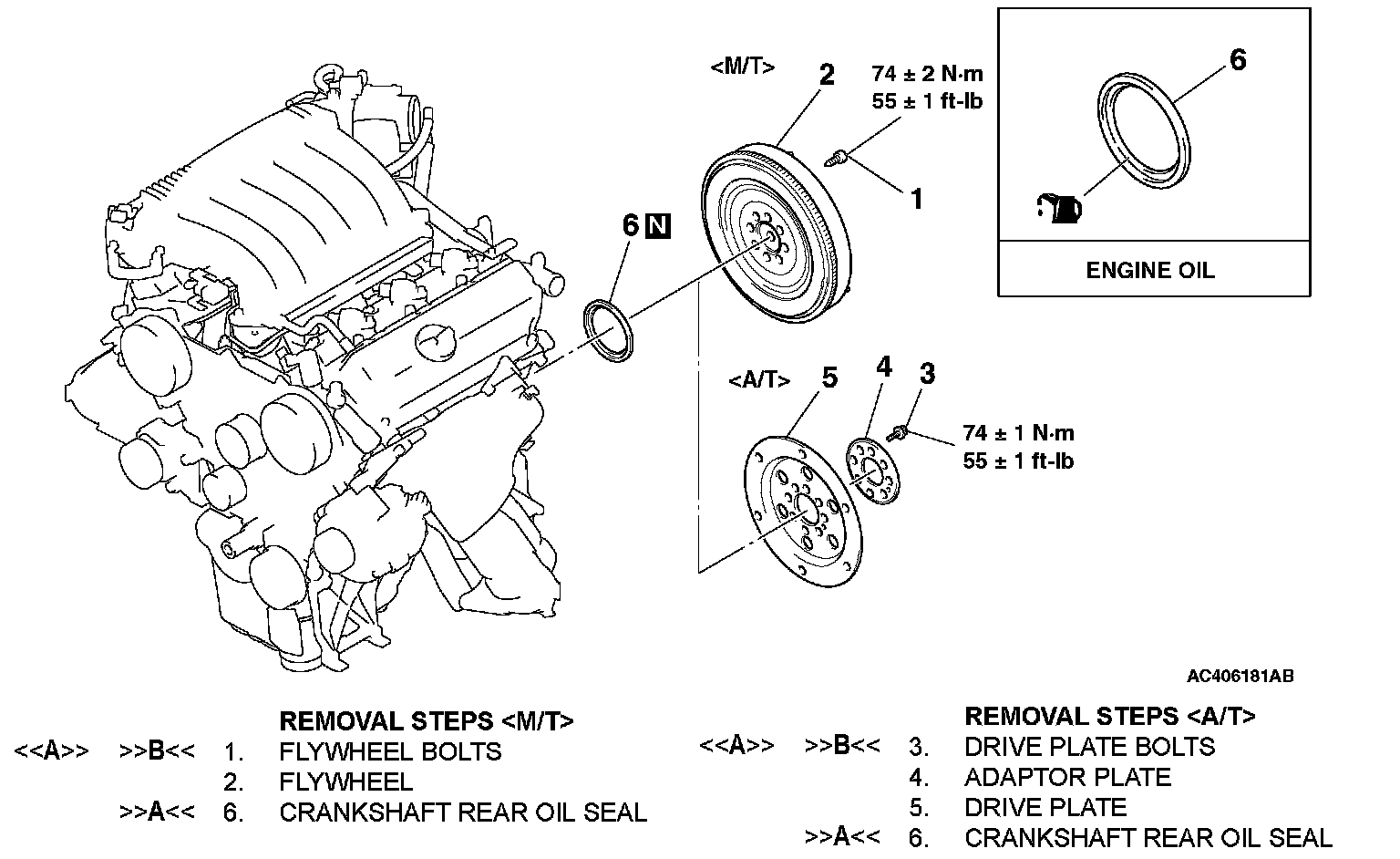

Removal Steps 1-6:

Required Special Tools:
^ MD998718: Crankshaft Rear Oil Seal Installer
^ MD998781: Flywheel Stopper

REMOVAL SERVICE POINT

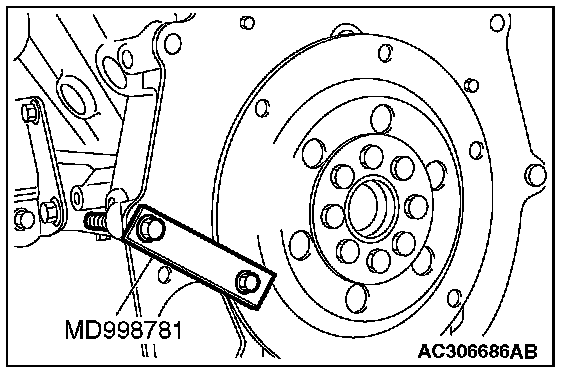

[[A]] FLYWHEEL BOLTS/DRIVE PLATE BOLTS REMOVAL





Use special tool MD998781 to secure the drive plate and remove the flywheel bolts or drive plate bolts.

INSTALLATION SERVICE POINTS

]]A[[ CRANKSHAFT REAR OIL SEAL INSTALLATION
1. Apply a small amount of engine oil to the entire circumference of the oil seal lip.

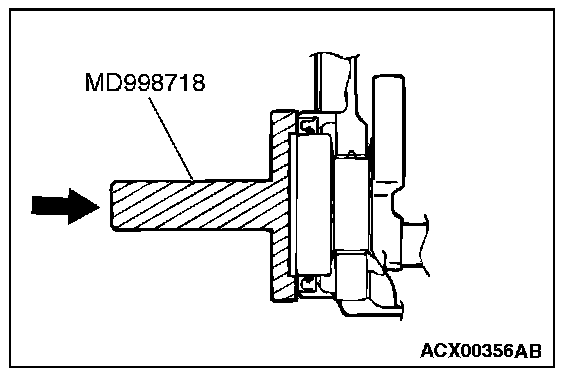

2. Use special tool MD998718 to tap in the oil seal as shown in the illustration.

]]B[[ DRIVE PLATE BOLTS/FLYWHEEL BOLTS INSTALLATION





Use special tool MD998781 in the same way as during removal to install the flywheel bolts or drive plate bolts.
